Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

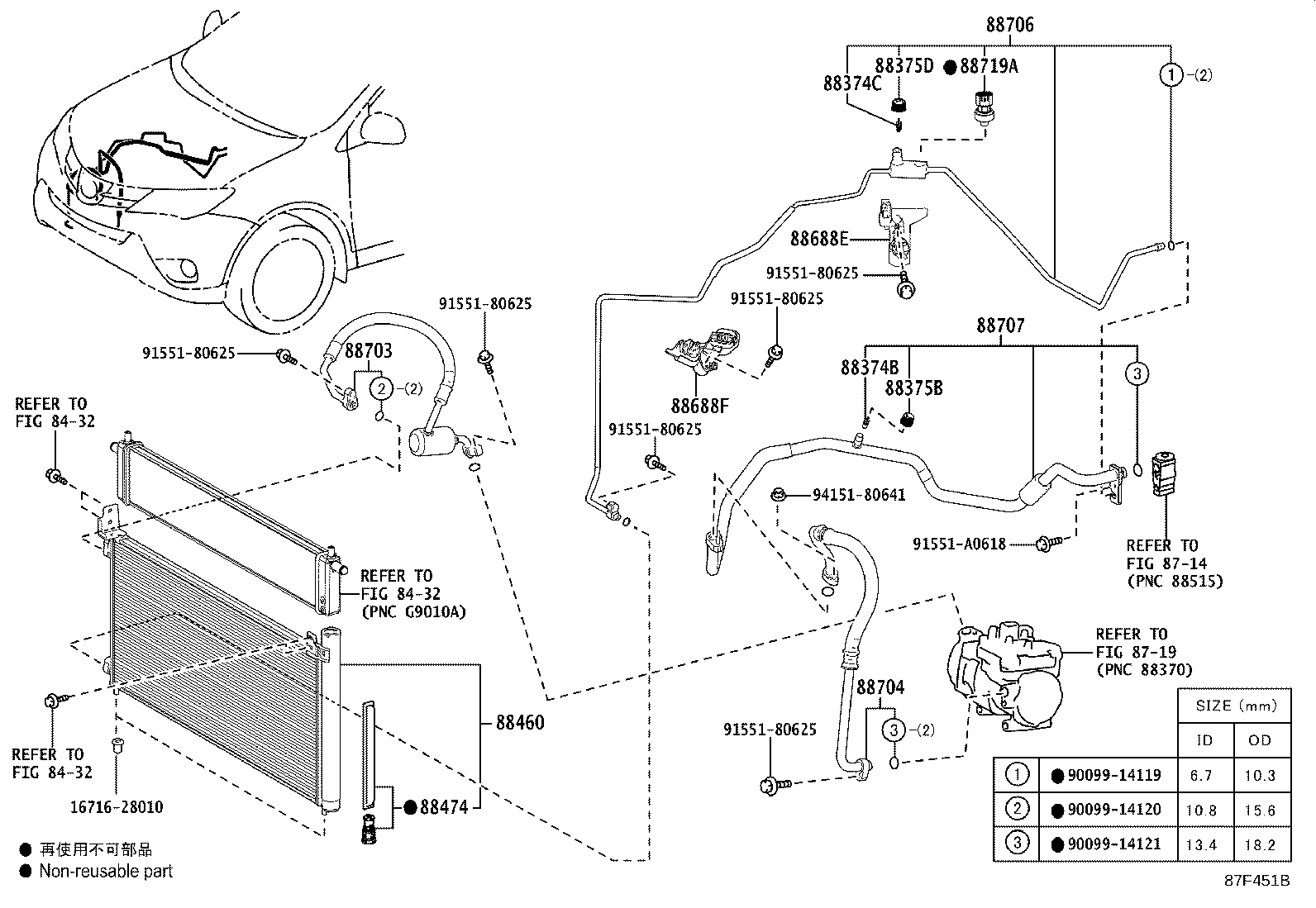

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88374B — Valve, Service, NO.1 | ||||
| 88374-30010 |
Valve, Service, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88374-30010 |
Valve, Service, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 88374C — Valve, Service, NO.2 | ||||
| 88374-30010 |
Valve, Service, NO.2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88374-30010 |
Valve, Service, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 88375B — Cap, Service Valve, NO.1 | ||||
| 88375-30290 |
Cap, Service Valve, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88375-30290 |
Cap, Service Valve, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 88375D — Cap, Service Valve, NO.2 | ||||
| 88375-30280 |
Cap, Service Valve, NO.2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88375-30280 |
Cap, Service Valve, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88460-42110 |
Condenser Assy, Cooler
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88460-42110 |
Condenser Assy, Cooler
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 88460-42150 |
Condenser Assy, Cooler
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 88474 — Dryer, Cooler | ||||
| 88474-12030 |
Dryer, Cooler
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88474-12030 |
Dryer, Cooler
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 88474-47020 |
Dryer, Cooler
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 88688E — Bracket, Cooler Refrigerant Hose, NO.1 | ||||
| 88688-42510 |
Bracket, Cooler Refrigerant Hose, NO.1
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88688-42510 |
Bracket, Cooler Refrigerant Hose, NO.1
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 88688F — Bracket, Cooler Refrigerant Hose, NO.2 | ||||
| 88688-42520 |
Bracket, Cooler Refrigerant Hose, NO.2
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88688-42520 |
Bracket, Cooler Refrigerant Hose, NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 88703 — Hose Sub-assy, Discharge | ||||
| 88703-42210 |
Hose Sub-assy, Discharge
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88703-42210 |
Hose Sub-assy, Discharge
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 88703-42240 |
Hose Sub-assy, Discharge
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 88704 — Hose Sub-assy, Suction | ||||
| 88704-42280 |
Hose Sub-assy, Suction
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88704-42280 |
Hose Sub-assy, Suction
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 88704-42710 |
Hose Sub-assy, Suction
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 88706 — Pipe Sub-assy, Liquid | ||||
| 88706-42450 |
Pipe Sub-assy, Liquid
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88706-42450 |
Pipe Sub-assy, Liquid
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 88706-42810 |
Pipe Sub-assy, Liquid
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 88707 — Pipe Sub-assy, Suction | ||||
| 88707-42120 |
Pipe Sub-assy, Suction
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88707-42120 |
Pipe Sub-assy, Suction
2015-10 → 2018-10
ended
|
ASA4# | — | |
| 88707-42150 |
Pipe Sub-assy, Suction
2015-10 → 2018-10
ended
|
AVA44 | — | |
| 88719A — Sensor, Air Conditioner Pressure | ||||
| 88719-33020 |
Sensor, Air Conditioner Pressure
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 88719-33020 |
Sensor, Air Conditioner Pressure
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
