Toyota RAV4 (JPP)
2012-12 → 2018-10 · chassis ASA4#,AVA44 · catalogue 662440 · United States
Supported model
Data version 2019-04

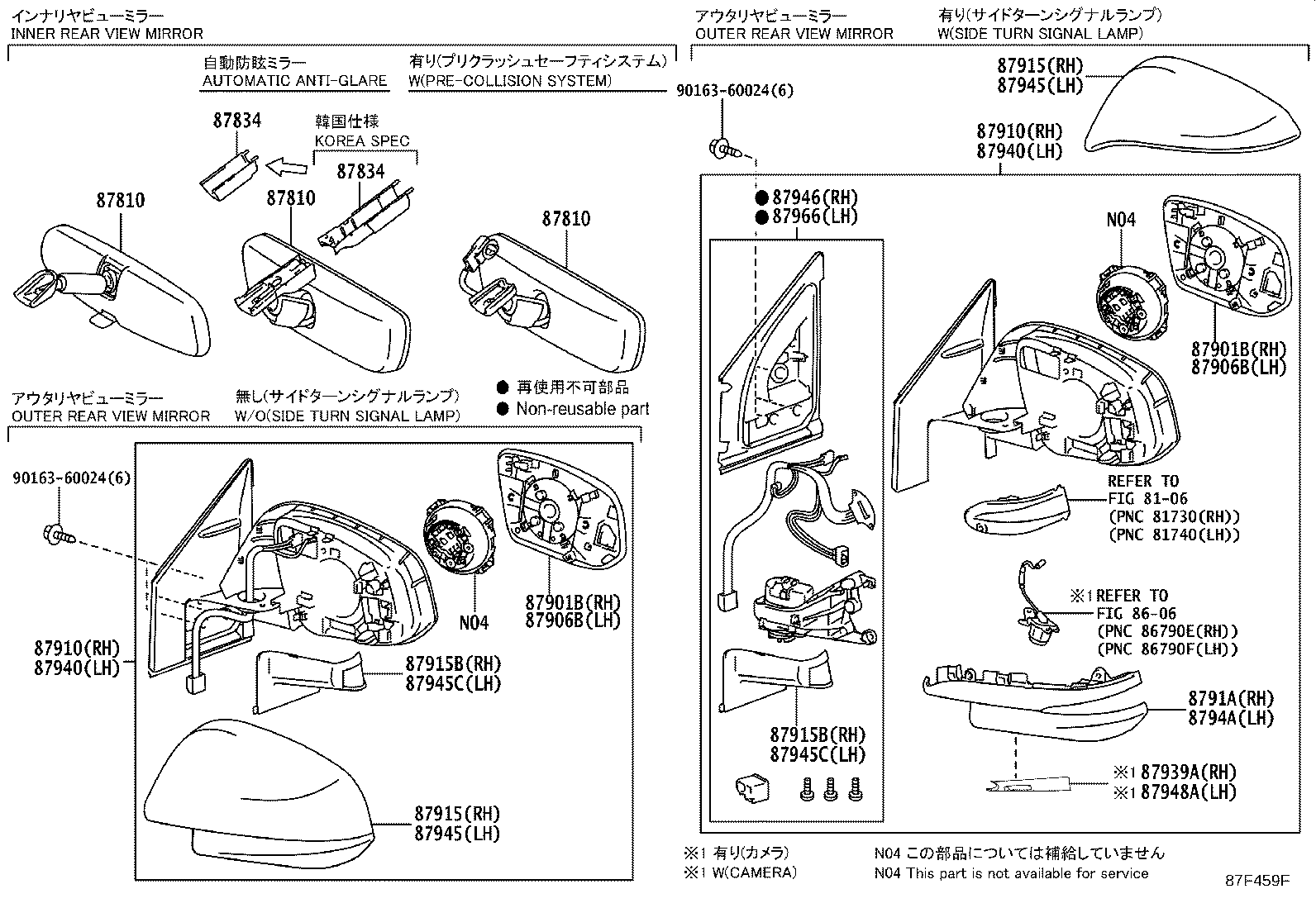

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-0WK20 |
Mirror Assy, Inner Rear View
2012-12 → 2015-09
ended
|
ASA4# LIMD | — | |
| 87810-52041 |
Mirror Assy, Inner Rear View
2012-12 → 2015-10
ended
|
ASA4# LE,XLE | — | |
| 87810-0WK00 note |
Mirror Assy, Inner Rear View
2016-08 → 2018-10
ended
|
AVA44 (SE,XLE) CND | — | |
| 87810-0WQ10 note |
Mirror Assy, Inner Rear View
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87810-0WQ10 note |
Mirror Assy, Inner Rear View
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87810-0WQ10 |
Mirror Assy, Inner Rear View
2016-08 → 2018-10
ended
|
AVA44 (SE,XLE) CND | — | |
| 87810-0WQ20 |
Mirror Assy, Inner Rear View
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87810-0WQ20 note |
Mirror Assy, Inner Rear View
2016-08 → 2018-10
ended
|
ASA4#,AVA44 (SE,XLE) USA | — | |
| 87810-0WQ20 note |
Mirror Assy, Inner Rear View
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87810-0WQ20 note |
Mirror Assy, Inner Rear View
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87810-0WQ20 note |
Mirror Assy, Inner Rear View
2015-10 → 2018-10
ended
|
AVA44 (SE,XLE) CND | — | |
| 87810-0WQ20 |
Mirror Assy, Inner Rear View
2015-10 → 2018-10
ended
|
AVA44 LIMD CND | — | |
| 87810-0WQ20 note |
Mirror Assy, Inner Rear View
2015-10 → 2016-08
ended
|
ASA4#,AVA44 (SE,XLE) USA | — | |
| 87810-0WQ30 note |
Mirror Assy, Inner Rear View
2015-10 → 2018-10
ended
|
AVA44 LIMD CND | — | |
| 87810-0WQ30 note |
Mirror Assy, Inner Rear View
2015-10 → 2018-10
ended
|
AVA44 LIMD CND | — | |
| 87810-0WQ30 note |
Mirror Assy, Inner Rear View
2015-10 → 2018-10
ended
|
AVA44 (SE,XLE) CND | — | |
| 87810-0WQ30 note |
Mirror Assy, Inner Rear View
2015-10 → 2016-08
ended
|
ASA4#,AVA44 (SE,XLE) USA | — | |
| 87810-0WQ30 note |
Mirror Assy, Inner Rear View
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87810-0WQ30 note |
Mirror Assy, Inner Rear View
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87810-0WQ30 |
Mirror Assy, Inner Rear View
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87810-0WQ30 note |
Mirror Assy, Inner Rear View
2016-08 → 2018-10
ended
|
ASA4#,AVA44 (SE,XLE) USA | — | |
| 87810-0WQ40 |
Mirror Assy, Inner Rear View
2015-10 → 2018-10
ended
|
ASA4#,AVA44 (LE,SE,XLE) USA | — | |
| 87810-0WQ40 |
Mirror Assy, Inner Rear View
2015-10 → 2016-08
ended
|
AVA44 XLE CND | — | |
| 87834 — Cover, Inner Rear View Mirror Stay Holder | ||||
| 87818-47010 |
Cover, Inner Rear View Mirror Stay Holder
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 87818-0W070 note |
Cover, Inner Rear View Mirror Stay Holder
2015-10 → 2016-08
ended
|
ASA4#,AVA44 (SE,XLE) USA | — | |
| 87818-0W070 |
Cover, Inner Rear View Mirror Stay Holder
2015-10 → 2018-10
ended
|
AVA44 LIMD CND | — | |
| 87818-0W070 note |
Cover, Inner Rear View Mirror Stay Holder
2015-10 → 2018-10
ended
|
AVA44 (SE,XLE) CND | — | |
| 87818-0W070 note |
Cover, Inner Rear View Mirror Stay Holder
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87818-0W070 note |
Cover, Inner Rear View Mirror Stay Holder
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87818-0W070 note |
Cover, Inner Rear View Mirror Stay Holder
2016-08 → 2018-10
ended
|
ASA4#,AVA44 (SE,XLE) USA | — | |
| 87818-0W070 |
Cover, Inner Rear View Mirror Stay Holder
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87818-76010 note |
Cover, Inner Rear View Mirror Stay Holder
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87818-76010 |
Cover, Inner Rear View Mirror Stay Holder
2016-08 → 2018-10
ended
|
AVA44 (SE,XLE) CND | — | |
| 87818-76010 note |
Cover, Inner Rear View Mirror Stay Holder
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87901B — Mirror Sub-assy, Outer Rear View, RH | ||||
| 87931-42B70 |
Mirror Sub-assy, Outer Rear View, RH
2012-12 → 2015-10
ended
|
ASA4# LE | — | |
| 87931-42B80 |
Mirror Sub-assy, Outer Rear View, RH
2012-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87931-42C80 note |
Mirror Sub-assy, Outer Rear View, RH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 87931-42C80 note |
Mirror Sub-assy, Outer Rear View, RH
2015-10 → 2017-08
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87931-42D40 |
Mirror Sub-assy, Outer Rear View, RH
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 87931-42D50 |
Mirror Sub-assy, Outer Rear View, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87931-42D60 note |
Mirror Sub-assy, Outer Rear View, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 87931-42D60 note |
Mirror Sub-assy, Outer Rear View, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87931-42D60 note |
Mirror Sub-assy, Outer Rear View, RH
2017-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87906B — Mirror Sub-assy, Outer Rear View, LH | ||||
| 87961-42B40 |
Mirror Sub-assy, Outer Rear View, LH
2012-12 → 2015-10
ended
|
ASA4# LE | — | |
| 87961-42B50 |
Mirror Sub-assy, Outer Rear View, LH
2012-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87961-42C50 note |
Mirror Sub-assy, Outer Rear View, LH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 87961-42C50 note |
Mirror Sub-assy, Outer Rear View, LH
2015-10 → 2017-08
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87961-42D10 |
Mirror Sub-assy, Outer Rear View, LH
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 87961-42D20 |
Mirror Sub-assy, Outer Rear View, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87961-42D30 note |
Mirror Sub-assy, Outer Rear View, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 87961-42D30 note |
Mirror Sub-assy, Outer Rear View, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87961-42G50 note |
Mirror Sub-assy, Outer Rear View, LH
2017-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-42B70 note |
Mirror Assy, Outer Rear View, RH
2012-12 → 2014-10
ended
|
ASA4# LE | — | |
| 87910-42B80 note |
Mirror Assy, Outer Rear View, RH
2012-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87910-42C80 note |
Mirror Assy, Outer Rear View, RH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 87910-42D00 note |
Mirror Assy, Outer Rear View, RH
2014-10 → 2015-10
ended
|
ASA4# LE | — | |
| 87910-42C80 note |
Mirror Assy, Outer Rear View, RH
2015-10 → 2017-08
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87910-42D20 note |
Mirror Assy, Outer Rear View, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 87910-42D40 |
Mirror Assy, Outer Rear View, RH
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 87910-42D50 |
Mirror Assy, Outer Rear View, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87910-42D60 note |
Mirror Assy, Outer Rear View, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87910-42G70 note |
Mirror Assy, Outer Rear View, RH
2017-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87915 — Cover, Outer Mirror, RH | ||||
| 87915-42150 note |
Cover, Outer Mirror, RH
2012-12 → 2014-10
ended
|
ASA4# LE | — | |
| 87915-42160-A0 note |
Cover, Outer Mirror, RH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-42160-A1 note |
Cover, Outer Mirror, RH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-42160-B0 note |
Cover, Outer Mirror, RH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-42160-B1 note |
Cover, Outer Mirror, RH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-42160-C1 note |
Cover, Outer Mirror, RH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-42160-D0 note |
Cover, Outer Mirror, RH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-42160-E0 note |
Cover, Outer Mirror, RH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-42160-E1 note |
Cover, Outer Mirror, RH
2013-11 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-42160-G0 note |
Cover, Outer Mirror, RH
2012-12 → 2013-11
ended
|
ASA4# LIMD,XLE | — | |
| 87915-42160-J0 note |
Cover, Outer Mirror, RH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-42190 note |
Cover, Outer Mirror, RH
2014-10 → 2015-10
ended
|
ASA4# LE | — | |
| 87915-48040-A0 note |
Cover, Outer Mirror, RH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-48040-A1 note |
Cover, Outer Mirror, RH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-48040-B0 note |
Cover, Outer Mirror, RH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-48040-B2 note |
Cover, Outer Mirror, RH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-48040-C3 note |
Cover, Outer Mirror, RH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-48040-D2 note |
Cover, Outer Mirror, RH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-48040-E0 note |
Cover, Outer Mirror, RH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-48040-E2 note |
Cover, Outer Mirror, RH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-48040-E3 note |
Cover, Outer Mirror, RH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87915-42190 note |
Cover, Outer Mirror, RH
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 87915-48040-A0 note |
Cover, Outer Mirror, RH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87915-48040-A1 note |
Cover, Outer Mirror, RH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87915-48040-B0 note |
Cover, Outer Mirror, RH
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87915-48040-B0 note |
Cover, Outer Mirror, RH
2015-10 → 2016-08
ended
|
ASA4# SE | — | |
| 87915-48040-B2 note |
Cover, Outer Mirror, RH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87915-48040-B4 note |
Cover, Outer Mirror, RH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87915-48040-B4 note |
Cover, Outer Mirror, RH
2016-08 → 2018-10
ended
|
ASA4# SE | — | |
| 87915-48040-C0 note |
Cover, Outer Mirror, RH
2015-10 → 2018-10
ended
|
ASA4# SE | — | |
| 87915-48040-C0 note |
Cover, Outer Mirror, RH
2016-08 → 2018-10
ended
|
AVA44 SE CND | — | |
| 87915-48040-C0 note |
Cover, Outer Mirror, RH
2016-08 → 2018-10
ended
|
AVA44 SE USA | — | |
| 87915-48040-C2 note |
Cover, Outer Mirror, RH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87915-48040-C3 note |
Cover, Outer Mirror, RH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87915-48040-D2 note |
Cover, Outer Mirror, RH
2015-10 → 2017-08
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87915-48040-D3 note |
Cover, Outer Mirror, RH
2015-10 → 2017-08
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87915-48040-D5 note |
Cover, Outer Mirror, RH
2017-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87915-48040-E0 note |
Cover, Outer Mirror, RH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87915-48040-E2 note |
Cover, Outer Mirror, RH
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87915-48040-E3 note |
Cover, Outer Mirror, RH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87915-48040-J1 note |
Cover, Outer Mirror, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87915B — Cover, Outer Mirror, Lower RH | ||||
| 87915-42140 |
Cover, Outer Mirror, Lower RH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 87915-42140 note |
Cover, Outer Mirror, Lower RH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 87915-42140 |
Cover, Outer Mirror, Lower RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 87915-42140 note |
Cover, Outer Mirror, Lower RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 8791A — Cover, Outer Mirror, RH NO.2 | ||||
| 8791B-42C10 |
Cover, Outer Mirror, RH NO.2
2012-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 8791B-35C00 note |
Cover, Outer Mirror, RH NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 8791B-42C10 |
Cover, Outer Mirror, RH NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87939A — Cover, Outer Mirror Hole, RH | ||||
| 87939-42D70 note |
Cover, Outer Mirror Hole, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-42B40 note |
Mirror Assy, Outer Rear View, LH
2012-12 → 2014-10
ended
|
ASA4# LE | — | |
| 87940-42B50 note |
Mirror Assy, Outer Rear View, LH
2012-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87940-42C50 note |
Mirror Assy, Outer Rear View, LH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 87940-42C70 note |
Mirror Assy, Outer Rear View, LH
2014-10 → 2015-10
ended
|
ASA4# LE | — | |
| 87940-42C50 note |
Mirror Assy, Outer Rear View, LH
2015-10 → 2017-08
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87940-42C90 note |
Mirror Assy, Outer Rear View, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 87940-42D10 |
Mirror Assy, Outer Rear View, LH
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 87940-42D20 |
Mirror Assy, Outer Rear View, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87940-42D30 note |
Mirror Assy, Outer Rear View, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87940-42G50 note |
Mirror Assy, Outer Rear View, LH
2017-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87945 — Cover, Outer Mirror, LH | ||||
| 87945-42150 note |
Cover, Outer Mirror, LH
2012-12 → 2014-10
ended
|
ASA4# LE | — | |
| 87945-42160-A0 note |
Cover, Outer Mirror, LH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-42160-A1 note |
Cover, Outer Mirror, LH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-42160-B0 note |
Cover, Outer Mirror, LH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-42160-B1 note |
Cover, Outer Mirror, LH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-42160-C1 note |
Cover, Outer Mirror, LH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-42160-D0 note |
Cover, Outer Mirror, LH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-42160-E0 note |
Cover, Outer Mirror, LH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-42160-E1 note |
Cover, Outer Mirror, LH
2013-11 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-42160-G0 note |
Cover, Outer Mirror, LH
2012-12 → 2013-11
ended
|
ASA4# LIMD,XLE | — | |
| 87945-42160-J0 note |
Cover, Outer Mirror, LH
2012-12 → 2014-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-42190 note |
Cover, Outer Mirror, LH
2014-10 → 2015-10
ended
|
ASA4# LE | — | |
| 87945-48040-A0 note |
Cover, Outer Mirror, LH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-48040-A1 note |
Cover, Outer Mirror, LH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-48040-B0 note |
Cover, Outer Mirror, LH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-48040-B2 note |
Cover, Outer Mirror, LH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-48040-C3 note |
Cover, Outer Mirror, LH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-48040-D2 note |
Cover, Outer Mirror, LH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-48040-E0 note |
Cover, Outer Mirror, LH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-48040-E2 note |
Cover, Outer Mirror, LH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-48040-E3 note |
Cover, Outer Mirror, LH
2014-10 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 87945-42190 note |
Cover, Outer Mirror, LH
2015-10 → 2018-10
ended
|
ASA4# LE | — | |
| 87945-48040-A0 note |
Cover, Outer Mirror, LH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87945-48040-A1 note |
Cover, Outer Mirror, LH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87945-48040-B0 note |
Cover, Outer Mirror, LH
2015-10 → 2016-08
ended
|
ASA4# SE | — | |
| 87945-48040-B0 note |
Cover, Outer Mirror, LH
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87945-48040-B2 note |
Cover, Outer Mirror, LH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87945-48040-B4 note |
Cover, Outer Mirror, LH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87945-48040-B4 note |
Cover, Outer Mirror, LH
2016-08 → 2018-10
ended
|
ASA4# SE | — | |
| 87945-48040-C0 note |
Cover, Outer Mirror, LH
2015-10 → 2018-10
ended
|
ASA4# SE | — | |
| 87945-48040-C0 note |
Cover, Outer Mirror, LH
2016-08 → 2018-10
ended
|
AVA44 SE USA | — | |
| 87945-48040-C0 note |
Cover, Outer Mirror, LH
2016-08 → 2018-10
ended
|
AVA44 SE CND | — | |
| 87945-48040-C2 note |
Cover, Outer Mirror, LH
2016-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87945-48040-C3 note |
Cover, Outer Mirror, LH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87945-48040-D2 note |
Cover, Outer Mirror, LH
2015-10 → 2017-08
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87945-48040-D3 note |
Cover, Outer Mirror, LH
2015-10 → 2017-08
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87945-48040-D5 note |
Cover, Outer Mirror, LH
2017-08 → 2018-10
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87945-48040-E0 note |
Cover, Outer Mirror, LH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87945-48040-E2 note |
Cover, Outer Mirror, LH
2015-10 → 2016-08
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87945-48040-E3 note |
Cover, Outer Mirror, LH
2015-10 → 2018-10
ended
|
AVA44 LIMD,XLE;ASA4# LIMD,SE,XLE | — | |
| 87945-48040-J1 note |
Cover, Outer Mirror, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,XLE | — | |
| 87945C — Cover, Outer Mirror, Lower LH | ||||
| 87945-42140 |
Cover, Outer Mirror, Lower LH
2012-12 → 2015-10
ended
|
ASA4# | — | |
| 87945-42140 note |
Cover, Outer Mirror, Lower LH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 87945-42140 note |
Cover, Outer Mirror, Lower LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87945-42140 |
Cover, Outer Mirror, Lower LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 87946 — Retractor, Outer Mirror, RH | ||||
| 87946-42C20 note |
Retractor, Outer Mirror, RH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 00000-00000 note |
Retractor, Outer Mirror, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 00000-00000 note |
Retractor, Outer Mirror, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 00000-00000 note |
Retractor, Outer Mirror, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87946-42C20 note |
Retractor, Outer Mirror, RH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
| 87948A — Cover, Outer Mirror Hole, LH | ||||
| 87948-42D40 note |
Cover, Outer Mirror Hole, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 8794A — Cover, Outer Mirror, LH NO.2 | ||||
| 8794B-42B80 |
Cover, Outer Mirror, LH NO.2
2012-12 → 2015-10
ended
|
ASA4# LIMD,XLE | — | |
| 8794B-35B70 note |
Cover, Outer Mirror, LH NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 8794B-42B80 |
Cover, Outer Mirror, LH NO.2
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87966 — Retractor, Outer Mirror, LH | ||||
| 87966-42B90 note |
Retractor, Outer Mirror, LH
2012-12 → 2015-10
ended
|
ASA4# LIMD | — | |
| 00000-00000 note |
Retractor, Outer Mirror, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 | — | |
| 00000-00000 note |
Retractor, Outer Mirror, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE | — | |
| 00000-00000 note |
Retractor, Outer Mirror, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD,SE,XLE | — | |
| 87966-42B90 note |
Retractor, Outer Mirror, LH
2015-10 → 2018-10
ended
|
ASA4#,AVA44 LIMD USA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
