Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

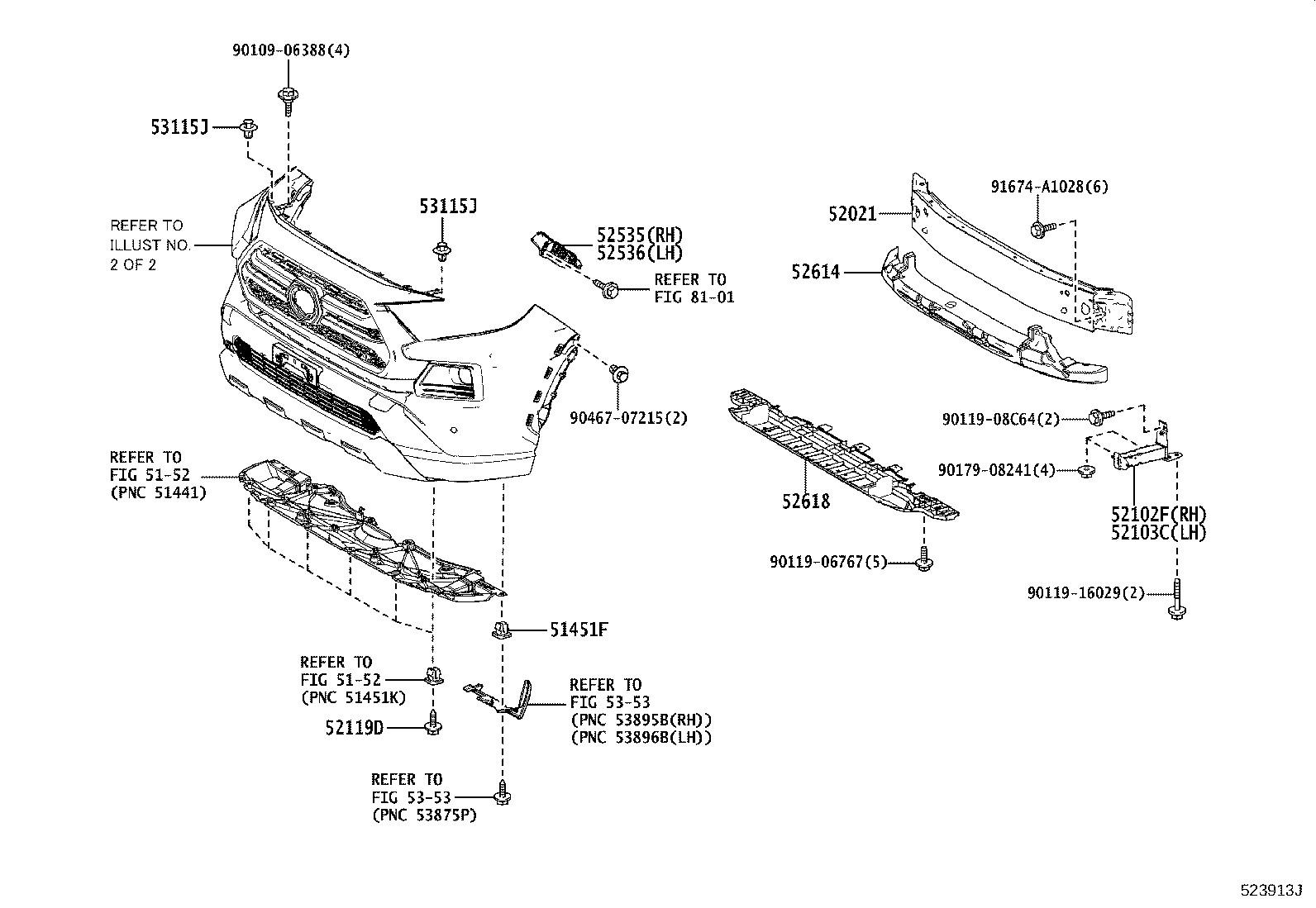

Exploded illustration 523913J 53115J — CLIP, RADIATOR GRILLE BRACKET (4 parts) 53115J — CLIP, RADIATOR GRILLE BRACKET (4 parts) 52535 — RETAINER, FRONT BUMPER SIDE, RH (4 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (4 parts) 9010906388 — not listed in this catalogue 8101 — not listed in this catalogue 52618 — ABSORBER, FRONT BUMPER, LOWER (8 parts) 9011906767 — not listed in this catalogue 9046707215 — not listed in this catalogue 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (4 parts) 52614 — ABSORBER, FRONT BUMPER ENERGY, NO.2 (8 parts) 91674A1028 — not listed in this catalogue 52102F — EXTENSION SUB-ASSY, FRONT BUMPER, RH (8 parts) 52103C — EXTENSION SUB-ASSY, FRONT BUMPER, LH (8 parts) 9011908C64 — not listed in this catalogue 9017908241 — not listed in this catalogue 9011916029 — not listed in this catalogue 5353 — not listed in this catalogue 5152 — not listed in this catalogue 5152 — not listed in this catalogue 5353 — not listed in this catalogue 52119D — SCREW, NO.1 (4 parts) 51451F — GROMMET, NO.1 (4 parts)
523913J · 11 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
51451F — Grommet, NO.1
90189-06237 Grommet, NO.1
2018-11 → 2020-07 ended
AXAA5#,AXAH5#,AXAL54 —
90189-06237 Grommet, NO.1
2020-08 → 2022-10 ended
AXAA5#,AXAH5#,AXAL54 —
90189-06237 Grommet, NO.1
2022-10 → 2023-10 ended
AXAA5#,AXAH5#,AXAL54 —
90189-06237 Grommet, NO.1
2023-10 → —
AXAA5#,AXAH5#,AXAL54 —
52021 — Reinforcement Sub-assy, Front Bumper
52021-42200 Reinforcement Sub-assy, Front Bumper
2018-11 → 2020-07 ended
AXAA5#,AXAH5#,AXAL54 —
52021-42200 Reinforcement Sub-assy, Front Bumper
2020-08 → 2022-10 ended
AXAA5#,AXAH5#,AXAL54 —
52021-42200 Reinforcement Sub-assy, Front Bumper
2022-10 → 2023-10 ended
AXAA5#,AXAH5#,AXAL54 —
52021-42200 Reinforcement Sub-assy, Front Bumper
2023-10 → —
AXAA5#,AXAH5#,AXAL54 —
52102F — Extension Sub-assy, Front Bumper, RH
52102-42100 Extension Sub-assy, Front Bumper, RH
2018-11 → 2020-07 ended
AXAH5#,AXAL54 —
52102-42110 Extension Sub-assy, Front Bumper, RH
2018-11 → 2020-07 ended
AXAA5# —
52102-42100 Extension Sub-assy, Front Bumper, RH
2020-08 → 2022-10 ended
AXAH5#,AXAL54 —
52102-42110 Extension Sub-assy, Front Bumper, RH
2020-08 → 2022-10 ended
AXAA5# —
52102-42100 Extension Sub-assy, Front Bumper, RH
2022-10 → 2023-10 ended
AXAH5#,AXAL54 —
52102-42110 Extension Sub-assy, Front Bumper, RH
2022-10 → 2023-10 ended
AXAA5# —
52102-42100 Extension Sub-assy, Front Bumper, RH
2023-10 → —
AXAH5#,AXAL54 —
52102-42110 Extension Sub-assy, Front Bumper, RH
2023-10 → —
AXAA5# —
52103C — Extension Sub-assy, Front Bumper, LH
52103-42100 Extension Sub-assy, Front Bumper, LH
2018-11 → 2020-07 ended
AXAH5#,AXAL54 —
52103-42110 Extension Sub-assy, Front Bumper, LH
2018-11 → 2020-07 ended
AXAA5# —
52103-42100 Extension Sub-assy, Front Bumper, LH
2020-08 → 2022-10 ended
AXAH5#,AXAL54 —
52103-42110 Extension Sub-assy, Front Bumper, LH
2020-08 → 2022-10 ended
AXAA5# —
52103-42100 Extension Sub-assy, Front Bumper, LH
2022-10 → 2023-10 ended
AXAH5#,AXAL54 —
52103-42110 Extension Sub-assy, Front Bumper, LH
2022-10 → 2023-10 ended
AXAA5# —
52103-42100 Extension Sub-assy, Front Bumper, LH
2023-10 → —
AXAH5#,AXAL54 —
52103-42110 Extension Sub-assy, Front Bumper, LH
2023-10 → —
AXAA5# —
52119D — Screw, NO.1
90159-60477 Screw, NO.1
2018-11 → 2020-07 ended
AXAA5#,AXAH5#,AXAL54 —
90159-60477 Screw, NO.1
2020-08 → 2022-10 ended
AXAA5#,AXAH5#,AXAL54 —
90159-60477 Screw, NO.1
2022-10 → 2023-10 ended
AXAA5#,AXAH5#,AXAL54 —
90159-60477 Screw, NO.1
2023-10 → —
AXAA5#,AXAH5#,AXAL54 —
52535 — Retainer, Front Bumper Side, RH
52535-42050 Retainer, Front Bumper Side, RH
2018-11 → 2020-07 ended
AXAA5#,AXAH5#,AXAL54 —
52535-42050 Retainer, Front Bumper Side, RH
2020-08 → 2022-10 ended
AXAA5#,AXAH5#,AXAL54 —
52535-42050 Retainer, Front Bumper Side, RH
2022-10 → 2023-10 ended
AXAA5#,AXAH5#,AXAL54 —
52535-42050 note Retainer, Front Bumper Side, RH
2023-10 → —
AXAA5#,AXAH5#,AXAL54 —
52536 — Retainer, Front Bumper Side, LH
52536-42080 Retainer, Front Bumper Side, LH
2018-11 → 2020-07 ended
AXAA5#,AXAH5#,AXAL54 —
52536-42080 Retainer, Front Bumper Side, LH
2020-08 → 2022-10 ended
AXAA5#,AXAH5#,AXAL54 —
52536-42080 Retainer, Front Bumper Side, LH
2022-10 → 2023-10 ended
AXAA5#,AXAH5#,AXAL54 —
52536-42080 note Retainer, Front Bumper Side, LH
2023-10 → —
AXAA5#,AXAH5#,AXAL54 —
52614 — Absorber, Front Bumper Energy, NO.2
52614-42120 Absorber, Front Bumper Energy, NO.2
2018-11 → 2020-07 ended
AXAA5#,AXAH5#,AXAL54 G,M,X —
52614-42130 Absorber, Front Bumper Energy, NO.2
2018-11 → 2020-07 ended
AXAA54 V —
52614-42120 Absorber, Front Bumper Energy, NO.2
2020-08 → 2022-10 ended
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X —
52614-42130 Absorber, Front Bumper Energy, NO.2
2020-08 → 2022-10 ended
AXAA54 V —
52614-42120 Absorber, Front Bumper Energy, NO.2
2022-10 → 2023-10 ended
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X —
52614-42130 Absorber, Front Bumper Energy, NO.2
2022-10 → 2023-10 ended
AXAA54 V —
52614-42120 Absorber, Front Bumper Energy, NO.2
2023-10 → —
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X —
52614-42130 Absorber, Front Bumper Energy, NO.2
2023-10 → —
AXAA54 V —
52618 — Absorber, Front Bumper, Lower
52618-42060 Absorber, Front Bumper, Lower
2018-11 → 2020-07 ended
AXAH5#,AXAL54 —
52618-42080 Absorber, Front Bumper, Lower
2018-11 → 2020-07 ended
AXAA5# —
52618-42060 Absorber, Front Bumper, Lower
2020-08 → 2022-10 ended
AXAH5#,AXAL54 —
52618-42080 Absorber, Front Bumper, Lower
2020-08 → 2022-10 ended
AXAA5# —
52618-42060 Absorber, Front Bumper, Lower
2022-10 → 2023-10 ended
AXAH5#,AXAL54 —
52618-42080 Absorber, Front Bumper, Lower
2022-10 → 2023-10 ended
AXAA5# —
52618-42060 Absorber, Front Bumper, Lower
2023-10 → —
AXAH5#,AXAL54 —
52618-42080 Absorber, Front Bumper, Lower
2023-10 → —
AXAA5# —
53115J — Clip, Radiator Grille Bracket
90467-05063-C0 note Clip, Radiator Grille Bracket
2018-11 → 2020-07 ended
AXAA5#,AXAH5#,AXAL54 —
90467-05063-C0 note Clip, Radiator Grille Bracket
2020-08 → 2022-10 ended
AXAA5#,AXAH5#,AXAL54 —
90467-05063-C0 note Clip, Radiator Grille Bracket
2022-10 → 2023-10 ended
AXAA5#,AXAH5#,AXAL54 —
90467-05063-C0 note Clip, Radiator Grille Bracket
2023-10 → —
AXAA5#,AXAH5#,AXAL54 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
