Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States
Supported model
Data version 2023-10

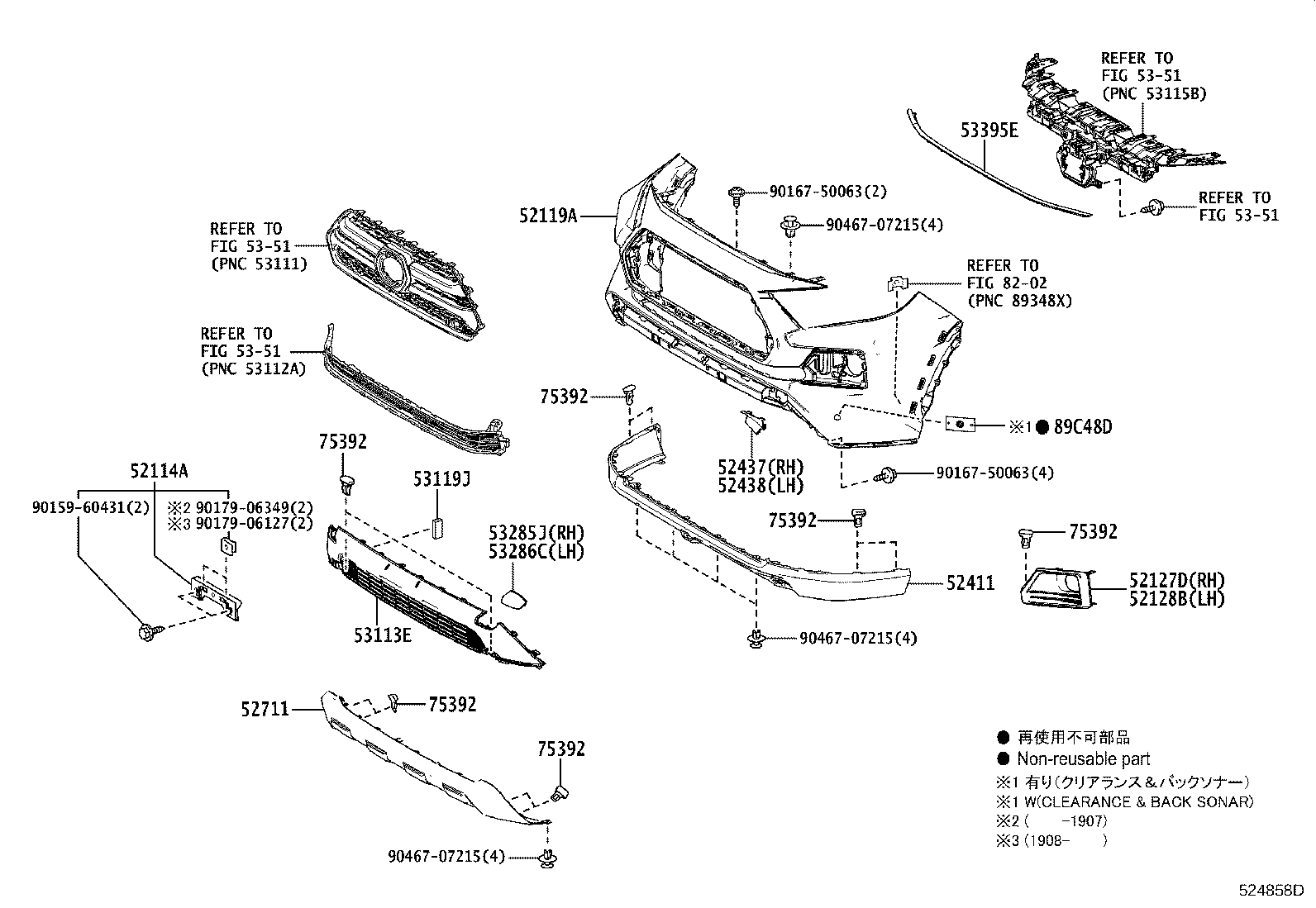

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-42140 |
Bracket, Front Bumper Extension Mounting
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G,M,X | — | |
| 52114-42150 |
Bracket, Front Bumper Extension Mounting
2018-11 → 2020-07
ended
|
AXAH52 | — | |
| 52114-42150 note |
Bracket, Front Bumper Extension Mounting
2019-02 → 2020-07
ended
|
AXAH54 G | — | |
| 52114-42150 note |
Bracket, Front Bumper Extension Mounting
2018-11 → 2020-07
ended
|
AXAA52,AXAH54 M | — | |
| 52114-42150 note |
Bracket, Front Bumper Extension Mounting
2018-11 → 2020-07
ended
|
AXAA52,AXAH54 M | — | |
| 52114-42170 |
Bracket, Front Bumper Extension Mounting
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 52114-42140 |
Bracket, Front Bumper Extension Mounting
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G,M,P,S,X | — | |
| 52114-42150 note |
Bracket, Front Bumper Extension Mounting
2020-08 → 2021-12
ended
|
AXAH54 M | — | |
| 52114-42150 note |
Bracket, Front Bumper Extension Mounting
2020-08 → 2021-12
ended
|
AXAA52 M | — | |
| 52114-42150 note |
Bracket, Front Bumper Extension Mounting
2020-08 → 2022-10
ended
|
AXAH54 M | — | |
| 52114-42150 |
Bracket, Front Bumper Extension Mounting
2020-08 → 2022-10
ended
|
AXAH52 | — | |
| 52114-42150 note |
Bracket, Front Bumper Extension Mounting
2020-08 → 2022-10
ended
|
AXAH54 G | — | |
| 52114-42170 |
Bracket, Front Bumper Extension Mounting
2020-08 → 2022-10
ended
|
AXAA54 V | — | |
| 52114-42140 |
Bracket, Front Bumper Extension Mounting
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 G,M,P,S,X | — | |
| 52114-42150 |
Bracket, Front Bumper Extension Mounting
2022-10 → 2023-10
ended
|
AXAH52 | — | |
| 52114-42150 note |
Bracket, Front Bumper Extension Mounting
2022-10 → 2023-10
ended
|
AXAH54 G | — | |
| 52114-42150 note |
Bracket, Front Bumper Extension Mounting
2022-10 → 2023-10
ended
|
AXAH54 M | — | |
| 52114-42170 |
Bracket, Front Bumper Extension Mounting
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 52114-42140 |
Bracket, Front Bumper Extension Mounting
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 G,M,P,S,X | — | |
| 52114-42150 |
Bracket, Front Bumper Extension Mounting
2023-10 → —
|
AXAH52 | — | |
| 52114-42150 note |
Bracket, Front Bumper Extension Mounting
2023-10 → —
|
AXAH54 G | — | |
| 52114-42150 note |
Bracket, Front Bumper Extension Mounting
2023-10 → —
|
AXAH54 M | — | |
| 52114-42170 |
Bracket, Front Bumper Extension Mounting
2023-10 → —
|
AXAA54 V | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-4A916 |
Cover, Front Bumper
2018-11 → 2020-07
ended
|
AXAA5#,AXAH5#,AXAL54 M,X | — | |
| 52119-4A917 note |
Cover, Front Bumper
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 52119-4A918 note |
Cover, Front Bumper
2019-02 → 2019-10
ended
|
AXAH54 M | — | |
| 52119-4A918 |
Cover, Front Bumper
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52119-4A918 note |
Cover, Front Bumper
2019-10 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 52119-4A918 note |
Cover, Front Bumper
2019-10 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52119-4A918 note |
Cover, Front Bumper
2018-11 → 2019-10
ended
|
AXAA5#,AXAH54 M | — | |
| 52119-4A919 note |
Cover, Front Bumper
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 52119-4A919 note |
Cover, Front Bumper
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 52119-4A920 note |
Cover, Front Bumper
2018-11 → 2020-07
ended
|
AXAA52,AXAH54 M | — | |
| 52119-4A920 note |
Cover, Front Bumper
2018-11 → 2020-07
ended
|
AXAH52 | — | |
| 52119-4A920 note |
Cover, Front Bumper
2019-02 → 2020-07
ended
|
AXAH54 G | — | |
| 52119-4A916 note |
Cover, Front Bumper
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M,P,S,X | — | |
| 52119-4A916 note |
Cover, Front Bumper
2020-08 → 2021-12
ended
|
AXAH52 | — | |
| 52119-4A917 note |
Cover, Front Bumper
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 52119-4A918 note |
Cover, Front Bumper
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 52119-4A918 note |
Cover, Front Bumper
2021-12 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52119-4A918 note |
Cover, Front Bumper
2020-08 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 52119-4A918 note |
Cover, Front Bumper
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52119-4A918 note |
Cover, Front Bumper
2020-08 → 2021-12
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52119-4A918 note |
Cover, Front Bumper
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 52119-4A919 note |
Cover, Front Bumper
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 52119-4A919 note |
Cover, Front Bumper
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 52119-4A919 note |
Cover, Front Bumper
2021-12 → 2022-05
ended
|
AXAA54 V | — | |
| 52119-4A920 note |
Cover, Front Bumper
2020-08 → 2021-12
ended
|
AXAH52 | — | |
| 52119-4A920 note |
Cover, Front Bumper
2020-08 → 2021-12
ended
|
AXAA52 M | — | |
| 52119-4A920 note |
Cover, Front Bumper
2020-08 → 2022-10
ended
|
AXAH54 G | — | |
| 52119-4A920 note |
Cover, Front Bumper
2020-08 → 2022-10
ended
|
AXAH54 M | — | |
| 52119-4A920 note |
Cover, Front Bumper
2021-12 → 2022-10
ended
|
AXAH52 | — | |
| 52119-4A950 note |
Cover, Front Bumper
2022-05 → 2022-10
ended
|
AXAA54 V | — | |
| 52119-4A916 note |
Cover, Front Bumper
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M,P,S,X | — | |
| 52119-4A918 note |
Cover, Front Bumper
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 52119-4A918 note |
Cover, Front Bumper
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 52119-4A918 note |
Cover, Front Bumper
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52119-4A918 note |
Cover, Front Bumper
2022-10 → 2023-10
ended
|
AXAH54 M | — | |
| 52119-4A950 note |
Cover, Front Bumper
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 52119-4A916 note |
Cover, Front Bumper
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M,P,S,X | — | |
| 52119-4A927 note |
Cover, Front Bumper
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 52119-4A927 note |
Cover, Front Bumper
2023-10 → —
|
AXAH54 M | — | |
| 52119-4A927 note |
Cover, Front Bumper
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52119-4A927 note |
Cover, Front Bumper
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 52119-4A963 note |
Cover, Front Bumper
2023-10 → —
|
AXAA54 V | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 52127-42180 |
Cover, Front Bumper Hole, RH
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 X | — | |
| 52127-42190 |
Cover, Front Bumper Hole, RH
2018-11 → 2020-07
ended
|
AXAA5#,AXAH5#,AXAL54 G,M | — | |
| 52127-42200 |
Cover, Front Bumper Hole, RH
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 52127-42220 note |
Cover, Front Bumper Hole, RH
2019-02 → 2019-10
ended
|
AXAH54 M | — | |
| 52127-42220 note |
Cover, Front Bumper Hole, RH
2019-10 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 52127-42220 note |
Cover, Front Bumper Hole, RH
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2021-12 → 2022-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2021-12 → 2022-10
ended
|
AXAH54 M | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2021-12 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2021-12 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52127-42180 note |
Cover, Front Bumper Hole, RH
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 X | — | |
| 52127-42180 note |
Cover, Front Bumper Hole, RH
2021-12 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52127-42190 note |
Cover, Front Bumper Hole, RH
2020-08 → 2021-12
ended
|
AXAA5#,AXAH5#,AXAL54 G,M | — | |
| 52127-42200 note |
Cover, Front Bumper Hole, RH
2020-08 → 2022-10
ended
|
AXAA54 V | — | |
| 52127-42210 note |
Cover, Front Bumper Hole, RH
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 S | — | |
| 52127-42220 note |
Cover, Front Bumper Hole, RH
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 52127-42220 note |
Cover, Front Bumper Hole, RH
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 52127-42230 note |
Cover, Front Bumper Hole, RH
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2022-10 → 2023-10
ended
|
AXAH54 M | — | |
| 52127-42180 note |
Cover, Front Bumper Hole, RH
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M,X | — | |
| 52127-42200 note |
Cover, Front Bumper Hole, RH
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 52127-42210 note |
Cover, Front Bumper Hole, RH
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 S | — | |
| 52127-42230 note |
Cover, Front Bumper Hole, RH
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2023-10 → —
|
AXAH54 M | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52030-42080 note |
Cover, Front Bumper Hole, RH
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52127-42180 note |
Cover, Front Bumper Hole, RH
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M,X | — | |
| 52127-42200 note |
Cover, Front Bumper Hole, RH
2023-10 → —
|
AXAA54 V | — | |
| 52127-42210 note |
Cover, Front Bumper Hole, RH
2023-10 → —
|
AXAH54,AXAL54 S | — | |
| 52127-42230 note |
Cover, Front Bumper Hole, RH
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 52128B — Cover, Front Bumper Hole, LH | ||||
| 52128-42180 |
Cover, Front Bumper Hole, LH
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 X | — | |
| 52128-42190 |
Cover, Front Bumper Hole, LH
2018-11 → 2020-07
ended
|
AXAA5#,AXAH5#,AXAL54 G,M | — | |
| 52128-42200 |
Cover, Front Bumper Hole, LH
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 52128-42220 note |
Cover, Front Bumper Hole, LH
2019-02 → 2019-10
ended
|
AXAH54 M | — | |
| 52128-42220 note |
Cover, Front Bumper Hole, LH
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 52128-42220 note |
Cover, Front Bumper Hole, LH
2019-10 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 52040-42080 note |
Cover, Front Bumper Hole, LH
2021-12 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52040-42080 note |
Cover, Front Bumper Hole, LH
2021-12 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52040-42080 note |
Cover, Front Bumper Hole, LH
2021-12 → 2022-10
ended
|
AXAH54 M | — | |
| 52040-42080 |
Cover, Front Bumper Hole, LH
2021-12 → 2022-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 52128-42180 |
Cover, Front Bumper Hole, LH
2021-12 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52128-42180 |
Cover, Front Bumper Hole, LH
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 X | — | |
| 52128-42190 note |
Cover, Front Bumper Hole, LH
2020-08 → 2021-12
ended
|
AXAH54 M | — | |
| 52128-42190 |
Cover, Front Bumper Hole, LH
2021-03 → 2021-12
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52128-42190 note |
Cover, Front Bumper Hole, LH
2021-03 → 2021-12
ended
|
AXAH54 G | — | |
| 52128-42190 note |
Cover, Front Bumper Hole, LH
2020-08 → 2021-12
ended
|
AXAA52,AXAH54 M | — | |
| 52128-42190 |
Cover, Front Bumper Hole, LH
2020-08 → 2021-12
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52128-42190 |
Cover, Front Bumper Hole, LH
2020-08 → 2021-12
ended
|
AXAH52 | — | |
| 52128-42190 note |
Cover, Front Bumper Hole, LH
2020-08 → 2021-03
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52128-42190 |
Cover, Front Bumper Hole, LH
2020-08 → 2021-03
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52128-42200 |
Cover, Front Bumper Hole, LH
2020-08 → 2022-10
ended
|
AXAA54 V | — | |
| 52128-42210 |
Cover, Front Bumper Hole, LH
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 S | — | |
| 52128-42220 note |
Cover, Front Bumper Hole, LH
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 52128-42220 note |
Cover, Front Bumper Hole, LH
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 52128-42231 |
Cover, Front Bumper Hole, LH
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 52040-42080 note |
Cover, Front Bumper Hole, LH
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52040-42080 note |
Cover, Front Bumper Hole, LH
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52040-42080 |
Cover, Front Bumper Hole, LH
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 52040-42080 note |
Cover, Front Bumper Hole, LH
2022-10 → 2023-10
ended
|
AXAH54 M | — | |
| 52128-42180 |
Cover, Front Bumper Hole, LH
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M,X | — | |
| 52128-42200 |
Cover, Front Bumper Hole, LH
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 52128-42210 |
Cover, Front Bumper Hole, LH
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 S | — | |
| 52128-42231 |
Cover, Front Bumper Hole, LH
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 52040-42080 |
Cover, Front Bumper Hole, LH
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 52040-42080 note |
Cover, Front Bumper Hole, LH
2023-10 → —
|
AXAH54 M | — | |
| 52040-42080 note |
Cover, Front Bumper Hole, LH
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52040-42080 note |
Cover, Front Bumper Hole, LH
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 52128-42180 |
Cover, Front Bumper Hole, LH
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M,X | — | |
| 52128-42200 |
Cover, Front Bumper Hole, LH
2023-10 → —
|
AXAA54 V | — | |
| 52128-42210 |
Cover, Front Bumper Hole, LH
2023-10 → —
|
AXAH54,AXAL54 S | — | |
| 52128-42231 |
Cover, Front Bumper Hole, LH
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 52411 — Guard, Front Bumper | ||||
| 52411-42100 |
Guard, Front Bumper
2018-11 → 2020-07
ended
|
AXAA5#,AXAH5#,AXAL54 M,X | — | |
| 52411-42110 |
Guard, Front Bumper
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52411-42120 |
Guard, Front Bumper
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 52411-42908 note |
Guard, Front Bumper
2019-02 → 2019-10
ended
|
AXAH54 M | — | |
| 52411-42908 note |
Guard, Front Bumper
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 52411-42908 note |
Guard, Front Bumper
2019-10 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 52411-42100 |
Guard, Front Bumper
2020-08 → 2022-10
ended
|
AXAA5#,AXAH5#,AXAL54 M,X | — | |
| 52411-42110 |
Guard, Front Bumper
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52411-42120 |
Guard, Front Bumper
2020-08 → 2022-10
ended
|
AXAA54 V | — | |
| 52411-42908 note |
Guard, Front Bumper
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 52411-42908 note |
Guard, Front Bumper
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 52411-42908 |
Guard, Front Bumper
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P,S | — | |
| 52411-42100 |
Guard, Front Bumper
2022-10 → 2023-10
ended
|
AXAA5#,AXAH5#,AXAL54 M,X | — | |
| 52411-42110 |
Guard, Front Bumper
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52411-42120 |
Guard, Front Bumper
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 52411-42908 |
Guard, Front Bumper
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P,S | — | |
| 52411-42100 |
Guard, Front Bumper
2023-10 → —
|
AXAA5#,AXAH5#,AXAL54 M,X | — | |
| 52411-42110 |
Guard, Front Bumper
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52411-42120 |
Guard, Front Bumper
2023-10 → —
|
AXAA54 V | — | |
| 52411-42908 |
Guard, Front Bumper
2023-10 → —
|
AXAH54,AXAL54 P,S | — | |
| 52437 — Cover, Front Bumper Guard, RH | ||||
| 52437-42901 |
Cover, Front Bumper Guard, RH
2018-11 → 2020-07
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,X | — | |
| 52437-42903 |
Cover, Front Bumper Guard, RH
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 52437-42901 |
Cover, Front Bumper Guard, RH
2020-08 → 2022-10
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X | — | |
| 52437-42903 |
Cover, Front Bumper Guard, RH
2020-08 → 2022-10
ended
|
AXAA54 V | — | |
| 52437-42901 |
Cover, Front Bumper Guard, RH
2022-10 → 2023-10
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X | — | |
| 52437-42903 |
Cover, Front Bumper Guard, RH
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 52437-42901 |
Cover, Front Bumper Guard, RH
2023-10 → —
|
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X | — | |
| 52437-42903 |
Cover, Front Bumper Guard, RH
2023-10 → —
|
AXAA54 V | — | |
| 52438 — Cover, Front Bumper Guard, LH | ||||
| 52438-42901 |
Cover, Front Bumper Guard, LH
2018-11 → 2020-07
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,X | — | |
| 52438-42902 |
Cover, Front Bumper Guard, LH
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 52438-42901 |
Cover, Front Bumper Guard, LH
2020-08 → 2022-10
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X | — | |
| 52438-42902 |
Cover, Front Bumper Guard, LH
2020-08 → 2022-10
ended
|
AXAA54 V | — | |
| 52438-42901 |
Cover, Front Bumper Guard, LH
2022-10 → 2023-10
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X | — | |
| 52438-42902 |
Cover, Front Bumper Guard, LH
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 52438-42901 |
Cover, Front Bumper Guard, LH
2023-10 → —
|
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X | — | |
| 52438-42902 |
Cover, Front Bumper Guard, LH
2023-10 → —
|
AXAA54 V | — | |
| 52711 — Moulding, Front Bumper | ||||
| 52711-42140-B0 note |
Moulding, Front Bumper
2019-02 → 2019-10
ended
|
AXAH54 M | — | |
| 52711-42140-B0 note |
Moulding, Front Bumper
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52711-42140-B0 note |
Moulding, Front Bumper
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 52711-42140-B0 note |
Moulding, Front Bumper
2019-10 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 52711-42150-B0 note |
Moulding, Front Bumper
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 52711-42140-B0 note |
Moulding, Front Bumper
2020-08 → 2021-12
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52711-42140-B0 note |
Moulding, Front Bumper
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 52711-42140-B1 note |
Moulding, Front Bumper
2021-12 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52711-42140-B1 note |
Moulding, Front Bumper
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 S | — | |
| 52711-42140-B1 note |
Moulding, Front Bumper
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 52711-42150-B0 note |
Moulding, Front Bumper
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 52711-42150-B0 note |
Moulding, Front Bumper
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 52711-42140-B1 note |
Moulding, Front Bumper
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52711-42140-B1 note |
Moulding, Front Bumper
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 52711-42140-B1 note |
Moulding, Front Bumper
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 S | — | |
| 52711-42150-B0 note |
Moulding, Front Bumper
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 52711-42140-B1 note |
Moulding, Front Bumper
2023-10 → —
|
AXAH54,AXAL54 S | — | |
| 52711-42140-B1 note |
Moulding, Front Bumper
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 52711-42140-B1 note |
Moulding, Front Bumper
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 52711-42150-B0 note |
Moulding, Front Bumper
2023-10 → —
|
AXAA54 V | — | |
| 53113E — Grille, Radiator, Lower NO.2 | ||||
| 53113-42110 |
Grille, Radiator, Lower NO.2
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G,M,X | — | |
| 53113-42120 note |
Grille, Radiator, Lower NO.2
2018-11 → 2020-07
ended
|
AXAA52,AXAH54 M | — | |
| 53113-42120 note |
Grille, Radiator, Lower NO.2
2019-02 → 2020-07
ended
|
AXAH54 G | — | |
| 53113-42120 note |
Grille, Radiator, Lower NO.2
2018-11 → 2020-07
ended
|
AXAA52,AXAH54 M | — | |
| 53113-42120 |
Grille, Radiator, Lower NO.2
2018-11 → 2020-07
ended
|
AXAH52 | — | |
| 53113-42140 |
Grille, Radiator, Lower NO.2
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 53113-42170-C0 note |
Grille, Radiator, Lower NO.2
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 53113-42170-C0 note |
Grille, Radiator, Lower NO.2
2019-10 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 53113-42170-C0 note |
Grille, Radiator, Lower NO.2
2019-02 → 2019-10
ended
|
AXAH54 M | — | |
| 53113-42110 |
Grille, Radiator, Lower NO.2
2020-08 → 2021-12
ended
|
AXAA5#,AXAH54,AXAL54 G,M,X | — | |
| 53113-42111 |
Grille, Radiator, Lower NO.2
2021-12 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G,M,X | — | |
| 53113-42120 |
Grille, Radiator, Lower NO.2
2020-08 → 2021-12
ended
|
AXAH52 | — | |
| 53113-42120 note |
Grille, Radiator, Lower NO.2
2020-08 → 2021-12
ended
|
AXAH54 M | — | |
| 53113-42120 note |
Grille, Radiator, Lower NO.2
2020-08 → 2021-12
ended
|
AXAA52,AXAH54 M | — | |
| 53113-42120 note |
Grille, Radiator, Lower NO.2
2020-08 → 2021-12
ended
|
AXAH54 G | — | |
| 53113-42121 |
Grille, Radiator, Lower NO.2
2021-12 → 2022-10
ended
|
AXAH52 | — | |
| 53113-42121 note |
Grille, Radiator, Lower NO.2
2021-12 → 2022-10
ended
|
AXAH54 G | — | |
| 53113-42121 note |
Grille, Radiator, Lower NO.2
2021-12 → 2022-10
ended
|
AXAH54 M | — | |
| 53113-42140 |
Grille, Radiator, Lower NO.2
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 53113-42141 |
Grille, Radiator, Lower NO.2
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 53113-42170-C0 note |
Grille, Radiator, Lower NO.2
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 53113-42170-C0 note |
Grille, Radiator, Lower NO.2
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 53113-42171-C0 note |
Grille, Radiator, Lower NO.2
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 S | — | |
| 53113-42171-C0 note |
Grille, Radiator, Lower NO.2
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 53113-42111 |
Grille, Radiator, Lower NO.2
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 G,M,X | — | |
| 53113-42121 note |
Grille, Radiator, Lower NO.2
2022-10 → 2023-10
ended
|
AXAH54 G | — | |
| 53113-42121 note |
Grille, Radiator, Lower NO.2
2022-10 → 2023-10
ended
|
AXAH54 M | — | |
| 53113-42121 |
Grille, Radiator, Lower NO.2
2022-10 → 2023-10
ended
|
AXAH52 | — | |
| 53113-42141 |
Grille, Radiator, Lower NO.2
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 53113-42171-C0 note |
Grille, Radiator, Lower NO.2
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 S | — | |
| 53113-42171-C0 note |
Grille, Radiator, Lower NO.2
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 53113-42111 |
Grille, Radiator, Lower NO.2
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 G,M,X | — | |
| 53113-42121 |
Grille, Radiator, Lower NO.2
2023-10 → —
|
AXAH52 | — | |
| 53113-42121 note |
Grille, Radiator, Lower NO.2
2023-10 → —
|
AXAH54 G | — | |
| 53113-42121 note |
Grille, Radiator, Lower NO.2
2023-10 → —
|
AXAH54 M | — | |
| 53113-42141 |
Grille, Radiator, Lower NO.2
2023-10 → —
|
AXAA54 V | — | |
| 53113-42171-C0 note |
Grille, Radiator, Lower NO.2
2023-10 → —
|
AXAH54,AXAL54 S | — | |
| 53113-42171-C0 note |
Grille, Radiator, Lower NO.2
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 53119J — Protector, Radiator Grille, RH | ||||
| 53119-42030 |
Protector, Radiator Grille, RH
2021-12 → 2022-10
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X | — | |
| 53119-42040 |
Protector, Radiator Grille, RH
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 53285J — Cover, Front Bumper Arm Hole, RH | ||||
| 53285-42120 |
Cover, Front Bumper Arm Hole, RH
2018-11 → 2020-07
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,X | — | |
| 53285-42130 |
Cover, Front Bumper Arm Hole, RH
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 53285-42140-C0 note |
Cover, Front Bumper Arm Hole, RH
2019-02 → 2019-10
ended
|
AXAH54 M | — | |
| 53285-42140-C0 note |
Cover, Front Bumper Arm Hole, RH
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 53285-42140-C0 note |
Cover, Front Bumper Arm Hole, RH
2019-10 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 53285-42120 |
Cover, Front Bumper Arm Hole, RH
2020-08 → 2022-10
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,X | — | |
| 53285-42130 |
Cover, Front Bumper Arm Hole, RH
2020-08 → 2022-10
ended
|
AXAA54 V | — | |
| 53285-42140-C0 note |
Cover, Front Bumper Arm Hole, RH
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 53285-42140-C0 note |
Cover, Front Bumper Arm Hole, RH
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 53285-42140-C0 note |
Cover, Front Bumper Arm Hole, RH
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 S | — | |
| 53285-42140-C0 note |
Cover, Front Bumper Arm Hole, RH
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 53285-42120 note |
Cover, Front Bumper Arm Hole, RH
2022-10 → 2023-10
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,X | — | |
| 53285-42130 note |
Cover, Front Bumper Arm Hole, RH
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 53285-42140-C0 note |
Cover, Front Bumper Arm Hole, RH
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 S | — | |
| 53285-42140-C0 note |
Cover, Front Bumper Arm Hole, RH
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 53285-42120 note |
Cover, Front Bumper Arm Hole, RH
2023-10 → —
|
AXAA5#,AXAH5#,AXAL54 G,M,X | — | |
| 53285-42130 note |
Cover, Front Bumper Arm Hole, RH
2023-10 → —
|
AXAA54 V | — | |
| 53285-42140-C0 note |
Cover, Front Bumper Arm Hole, RH
2023-10 → —
|
AXAH54,AXAL54 S | — | |
| 53285-42140-C0 note |
Cover, Front Bumper Arm Hole, RH
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 53286C — Cover, Front Bumper Arm Hole, LH | ||||
| 53286-42130 |
Cover, Front Bumper Arm Hole, LH
2018-11 → 2020-07
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,X | — | |
| 53286-42140 |
Cover, Front Bumper Arm Hole, LH
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 53286-42150-C0 note |
Cover, Front Bumper Arm Hole, LH
2019-02 → 2019-10
ended
|
AXAH54 M | — | |
| 53286-42150-C0 note |
Cover, Front Bumper Arm Hole, LH
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 53286-42150-C0 note |
Cover, Front Bumper Arm Hole, LH
2019-10 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 53286-42130 |
Cover, Front Bumper Arm Hole, LH
2020-08 → 2022-10
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,X | — | |
| 53286-42140 |
Cover, Front Bumper Arm Hole, LH
2020-08 → 2022-10
ended
|
AXAA54 V | — | |
| 53286-42150-C0 note |
Cover, Front Bumper Arm Hole, LH
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 53286-42150-C0 note |
Cover, Front Bumper Arm Hole, LH
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 53286-42150-C0 note |
Cover, Front Bumper Arm Hole, LH
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 S | — | |
| 53286-42150-C0 note |
Cover, Front Bumper Arm Hole, LH
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 53286-42130 note |
Cover, Front Bumper Arm Hole, LH
2022-10 → 2023-10
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,X | — | |
| 53286-42140 note |
Cover, Front Bumper Arm Hole, LH
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 53286-42150-C0 note |
Cover, Front Bumper Arm Hole, LH
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 53286-42150-C0 note |
Cover, Front Bumper Arm Hole, LH
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 S | — | |
| 53286-42130 note |
Cover, Front Bumper Arm Hole, LH
2023-10 → —
|
AXAA5#,AXAH5#,AXAL54 G,M,X | — | |
| 53286-42140 note |
Cover, Front Bumper Arm Hole, LH
2023-10 → —
|
AXAA54 V | — | |
| 53286-42150-C0 note |
Cover, Front Bumper Arm Hole, LH
2023-10 → —
|
AXAH54,AXAL54 S | — | |
| 53286-42150-C0 note |
Cover, Front Bumper Arm Hole, LH
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 53395E — Seal, Hood TO Front End Panel | ||||
| 53395-42080 |
Seal, Hood TO Front End Panel
2018-11 → 2020-07
ended
|
AXAA5#,AXAH5#,AXAL54 | — | |
| 53395-42080 |
Seal, Hood TO Front End Panel
2020-08 → 2022-10
ended
|
AXAA5#,AXAH5#,AXAL54 | — | |
| 53395-42080 |
Seal, Hood TO Front End Panel
2022-10 → 2023-10
ended
|
AXAA5#,AXAH5#,AXAL54 | — | |
| 53395-42080 |
Seal, Hood TO Front End Panel
2023-10 → —
|
AXAA5#,AXAH5#,AXAL54 | — | |
| 75392 — Retainer, Outside Moulding | ||||
| 75392-35220 |
Retainer, Outside Moulding
2018-11 → 2020-07
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,X | — | |
| 75392-35220 |
Retainer, Outside Moulding
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 75392-35220 |
Retainer, Outside Moulding
2020-08 → 2022-10
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X | — | |
| 75392-35220 |
Retainer, Outside Moulding
2020-08 → 2022-10
ended
|
AXAA54 V | — | |
| 75392-35220 |
Retainer, Outside Moulding
2022-10 → 2023-10
ended
|
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X | — | |
| 75392-35220 |
Retainer, Outside Moulding
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 75392-35220 |
Retainer, Outside Moulding
2023-10 → —
|
AXAA5#,AXAH5#,AXAL54 G,M,P,S,X | — | |
| 75392-35220 |
Retainer, Outside Moulding
2023-10 → —
|
AXAA54 V | — | |
| 89C48D — Retainer, Ultrasonic Sensor, Front Corner | ||||
| 89348-12070-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 89348-12070-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12070-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12070-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 89348-12070-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M,V | — | |
| 89348-12070-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 89348-12070-J4 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 89348-12070-J4 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12070-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 89348-12140-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12140-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12140-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M,V | — | |
| 89348-12140-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 89348-12140-J4 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-J4 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA54 V | — | |
| 89348-12140-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-02 → 2020-07
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12140-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-33400 note |
Retainer, Ultrasonic Sensor, Front Corner
2019-02 → 2020-07
ended
|
AXAH54 G | — | |
| 89348-33400 note |
Retainer, Ultrasonic Sensor, Front Corner
2018-11 → 2020-07
ended
|
AXAA52,AXAH5# M | — | |
| 89348-12070-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 89348-12070-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12070-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 89348-12070-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12070-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12070-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12070-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12070-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12070-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12070-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12070-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 89348-12070-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 89348-12070-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12070-J4 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2020-12
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-J4 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12070-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12070-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-R1 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-12 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-R1 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12140-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12140-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 89348-12140-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12140-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 89348-12140-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12140-A1 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12140-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12140-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12140-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12140-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 89348-12140-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12140-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12140-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAA54 V | — | |
| 89348-12140-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-J4 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2020-12
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-J4 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA54 V | — | |
| 89348-12140-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAH54,AXAL54 M | — | |
| 89348-12140-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-R1 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-12 → 2022-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-R1 note |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-33400 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2021-12
ended
|
AXAA52,AXAH52 M | — | |
| 89348-33400 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAH54 M | — | |
| 89348-33400 note |
Retainer, Ultrasonic Sensor, Front Corner
2020-08 → 2022-10
ended
|
AXAH54 G | — | |
| 89348-33400 |
Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2022-10
ended
|
AXAH52 | — | |
| 89348-12070-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G,V | — | |
| 89348-12070-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA54 V | — | |
| 89348-12070-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-A4 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-A4 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12070-A4 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12070-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G,V | — | |
| 89348-12070-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 89348-12070-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52 | — | |
| 89348-12070-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12070-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12070-R1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52 | — | |
| 89348-12070-R1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12070-R1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G,V | — | |
| 89348-12140-22 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA54 V | — | |
| 89348-12140-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-A4 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-A4 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-A4 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12140-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-B6 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-12140-B7 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G,V | — | |
| 89348-12140-D0 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA54 V | — | |
| 89348-12140-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52 | — | |
| 89348-12140-G2 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-12140-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-R1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH52 | — | |
| 89348-12140-R1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-12140-R1 note |
Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-10
ended
|
AXAH54,AXAL54 P | — | |
| 89348-42230-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA54 V | — | |
| 89348-42230-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42230-A2 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42230-A2 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 89348-42230-A2 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-42230-B0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-42230-B0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42230-B0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 89348-42230-B1 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-42230-B1 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42230-B1 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 89348-42230-C0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G,V | — | |
| 89348-42230-C0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42230-D1 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G,V | — | |
| 89348-42230-D1 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42230-G0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42230-G0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA54 V | — | |
| 89348-42230-G0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52 | — | |
| 89348-42230-J0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-42230-J0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42230-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52 | — | |
| 89348-42230-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42230-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 89348-42240-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42240-A0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA54 V | — | |
| 89348-42240-A2 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-42240-A2 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42240-A2 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 89348-42240-B0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-42240-B0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42240-B0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 89348-42240-B1 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-42240-B1 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH54,AXAL54 P | — | |
| 89348-42240-B1 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42240-C0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G,V | — | |
| 89348-42240-C0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42240-D1 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G,V | — | |
| 89348-42240-D1 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42240-G0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA54 V | — | |
| 89348-42240-G0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52 | — | |
| 89348-42240-G0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42240-J0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52;AXAA5#,AXAH54,AXAL54 G | — | |
| 89348-42240-J0 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42240-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH52 | — | |
| 89348-42240-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAA5#,AXAH54,AXAL54 M | — | |
| 89348-42240-J5 note |
Retainer, Ultrasonic Sensor, Front Corner
2023-10 → —
|
AXAH54,AXAL54 P | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
