Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States
Supported model
Data version 2023-10
Starter
8 part groups · 2 illustrations

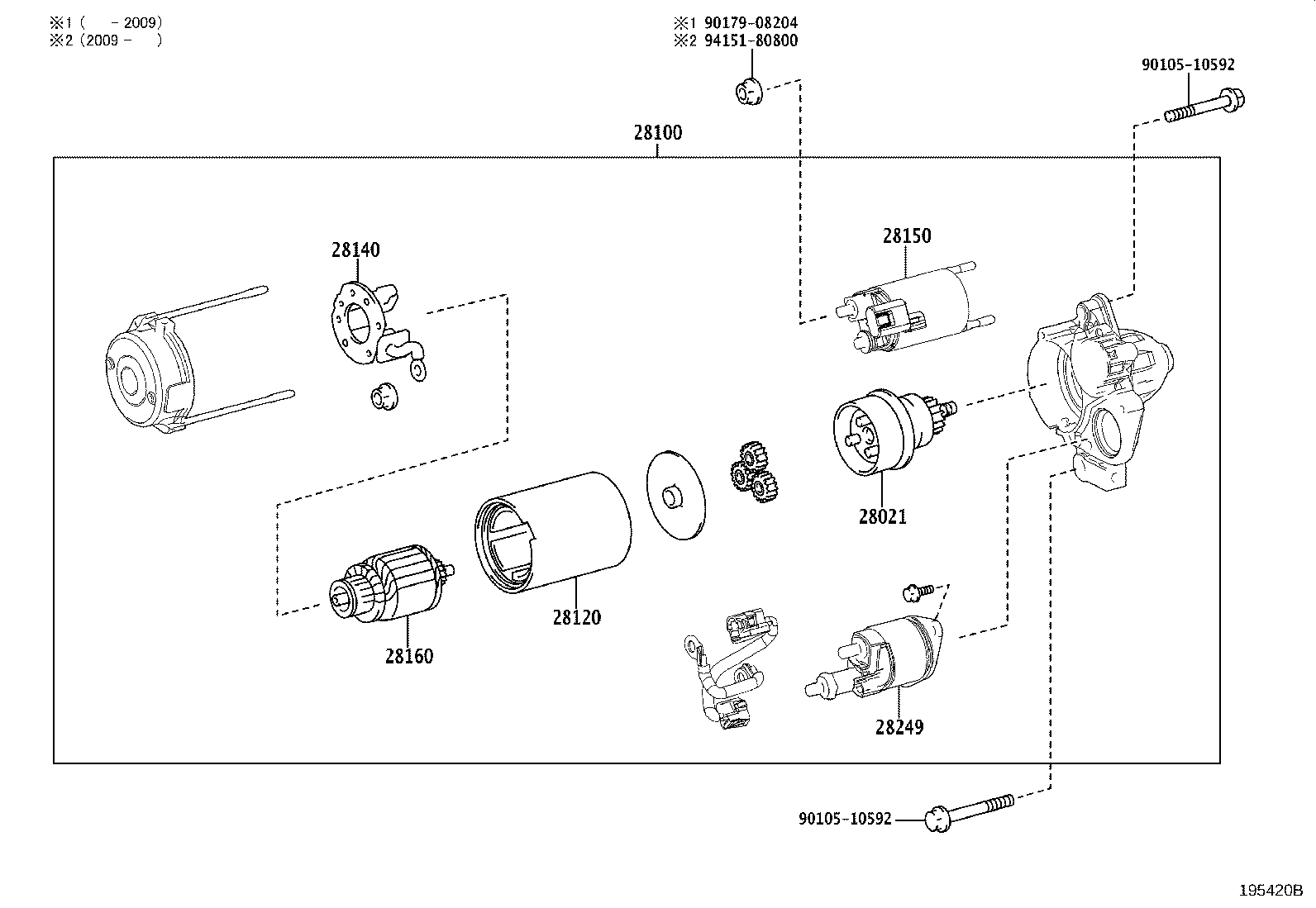

Part groups
| PNC | Description |
|---|---|
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28120 | Yoke Assy, Starter |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28226C | Starter Kit, Repair Service, NO.2 |
| 28249 | Relay, Starter Inrush Current Reduction |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
