Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 2 illustrations

Illustrations

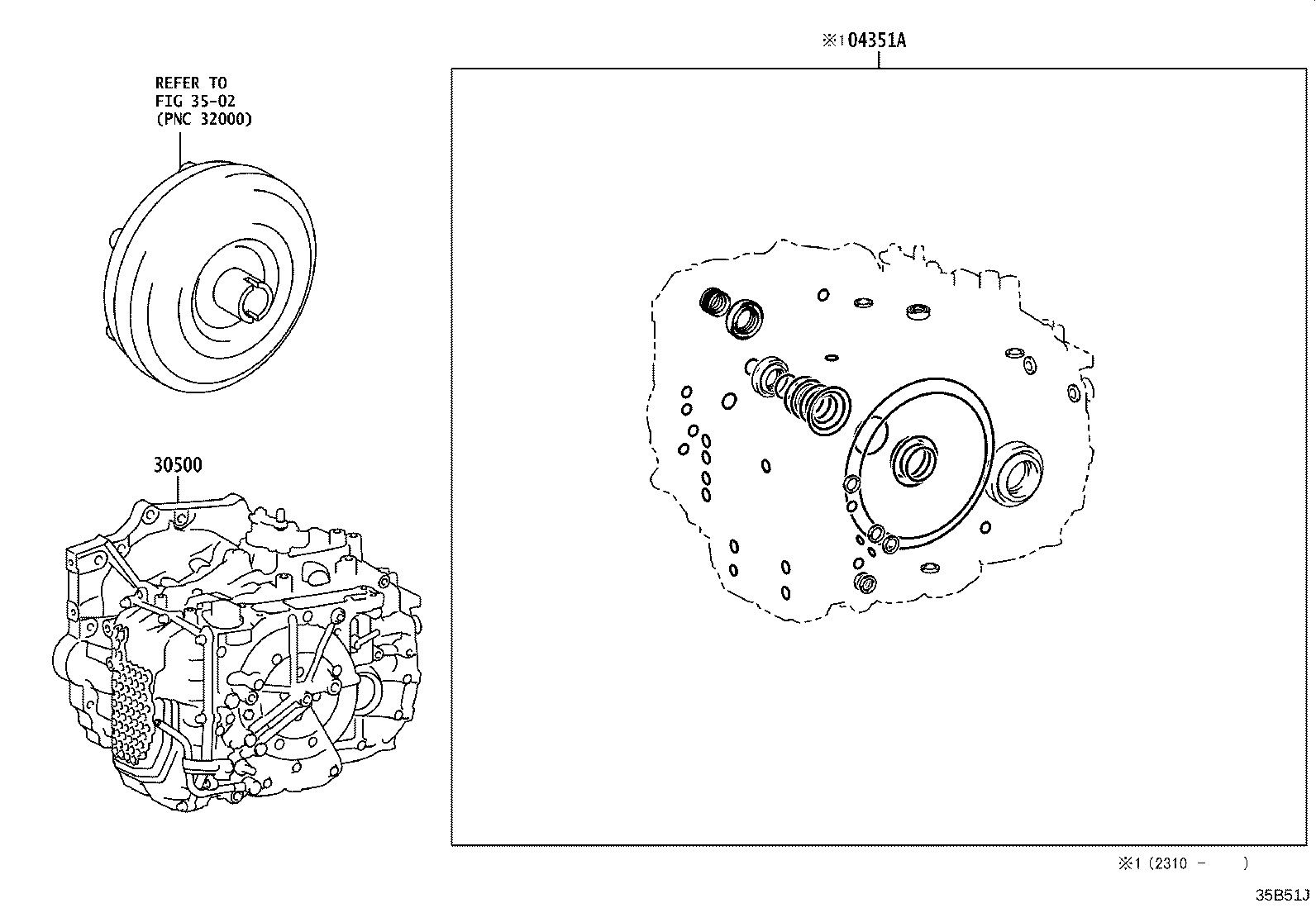

Figure 35A323G 35A323G 2018-11 → — Figure 35B51J 35B51J 2018-10 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
