Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States
Supported model
Data version 2023-10

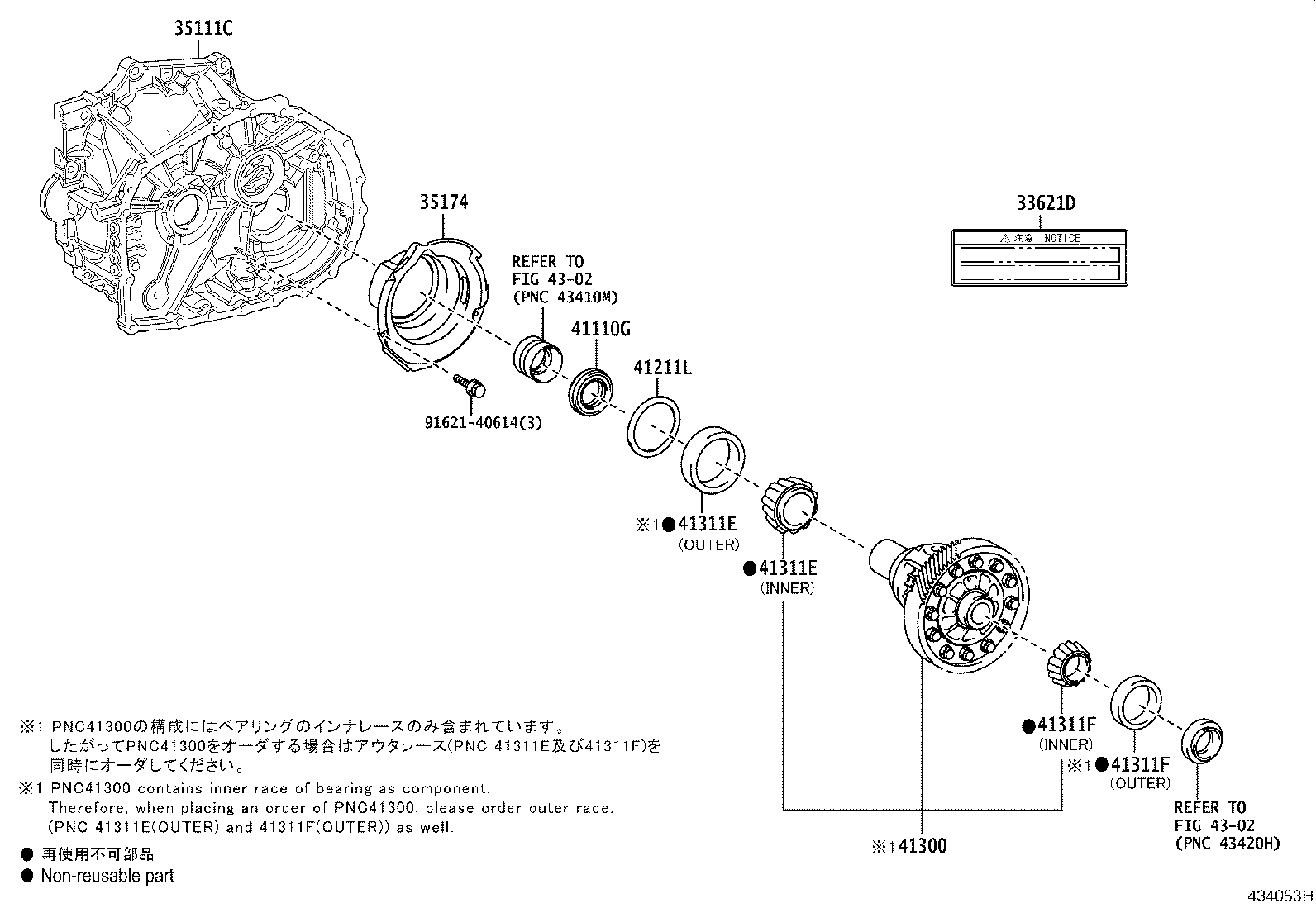

Front Axle Housing & Differential
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33621D | Label, Transaxle Oil Information |
| 35111C | Housing, Transaxle |
| 35174 | Separator, Transaxle Housing Oil |
| 41110G | Seal, Oil (FOR DIFFERENTIAL SIDE) |
| 41211L | Shim (FOR DIFFERENTIAL DRIVE PINION) |
| 41300 | Case Assy, Front Differential, W/Ring Gear |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
