Brake Pedal & Bracket

5 part groups · 2 illustrations

Illustrations

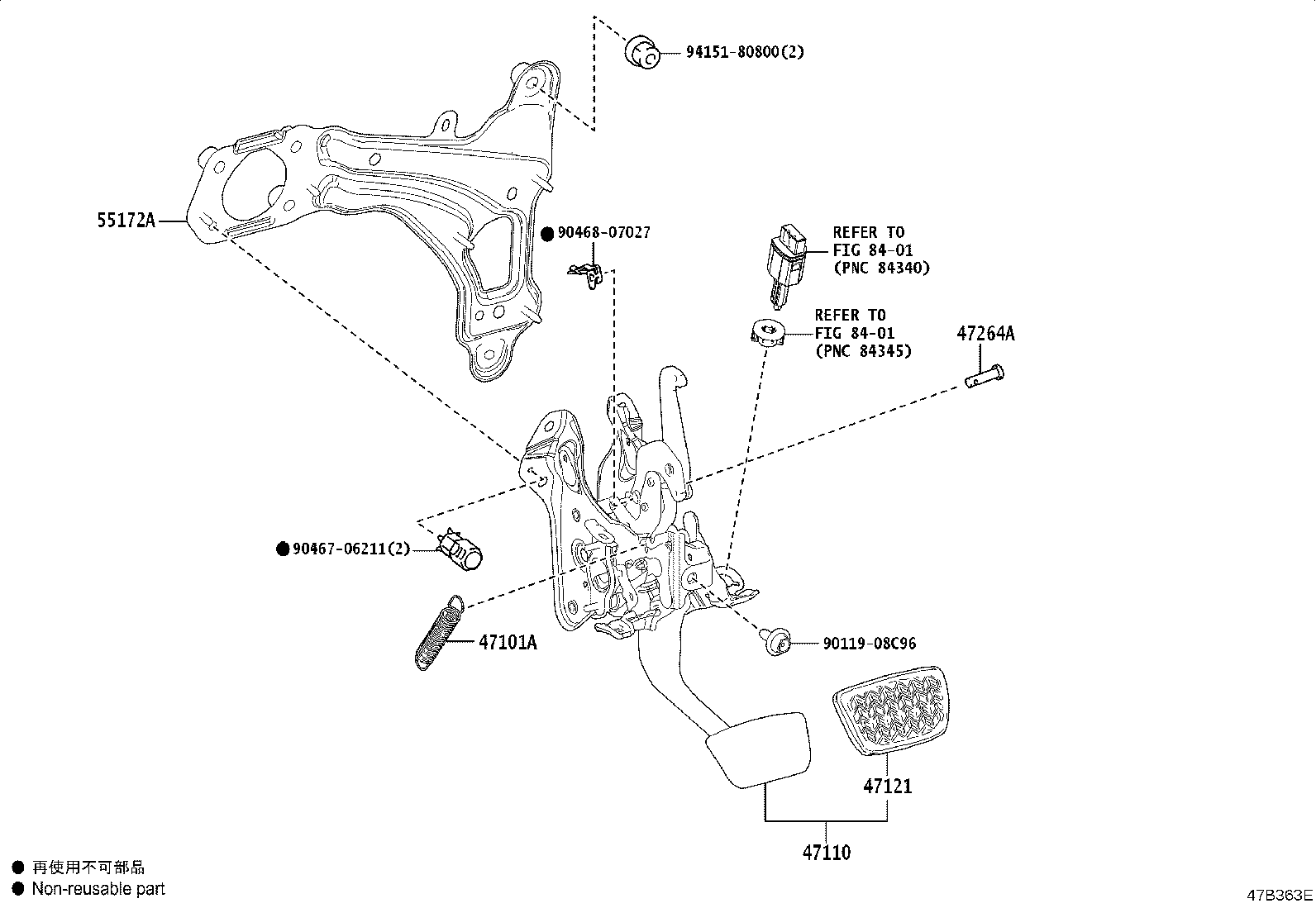

Figure 47B435D 47B435D 2018-11 → — Figure 47B363E 47B363E 2018-11 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
55172A Base, Brake Pedal Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
