Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States

Supported model Data version 2023-10

Suspension Crossmember & Under Cover

38 part groups · 6 illustrations

PNC	Description
51100H	Frame Assy, Front

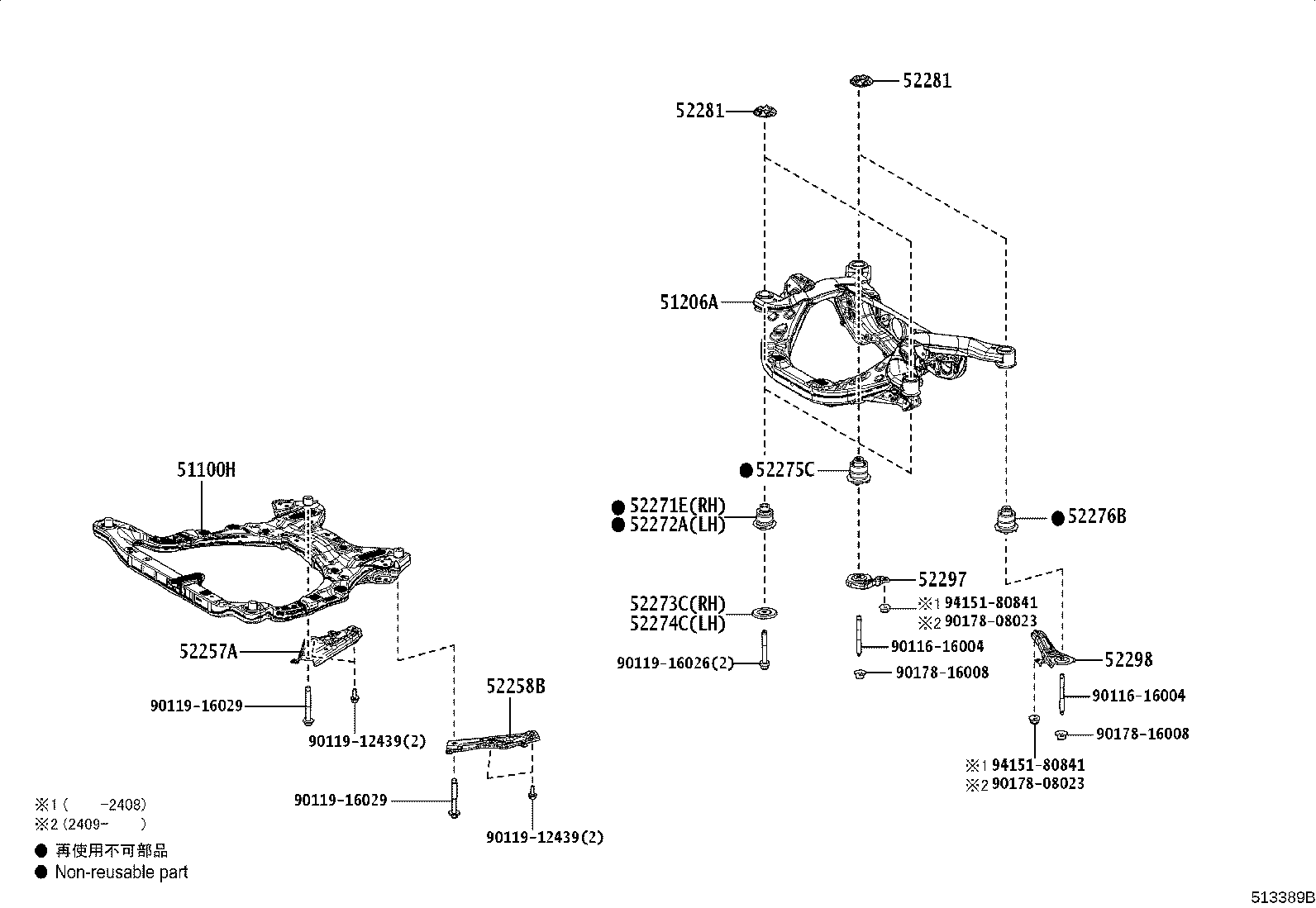

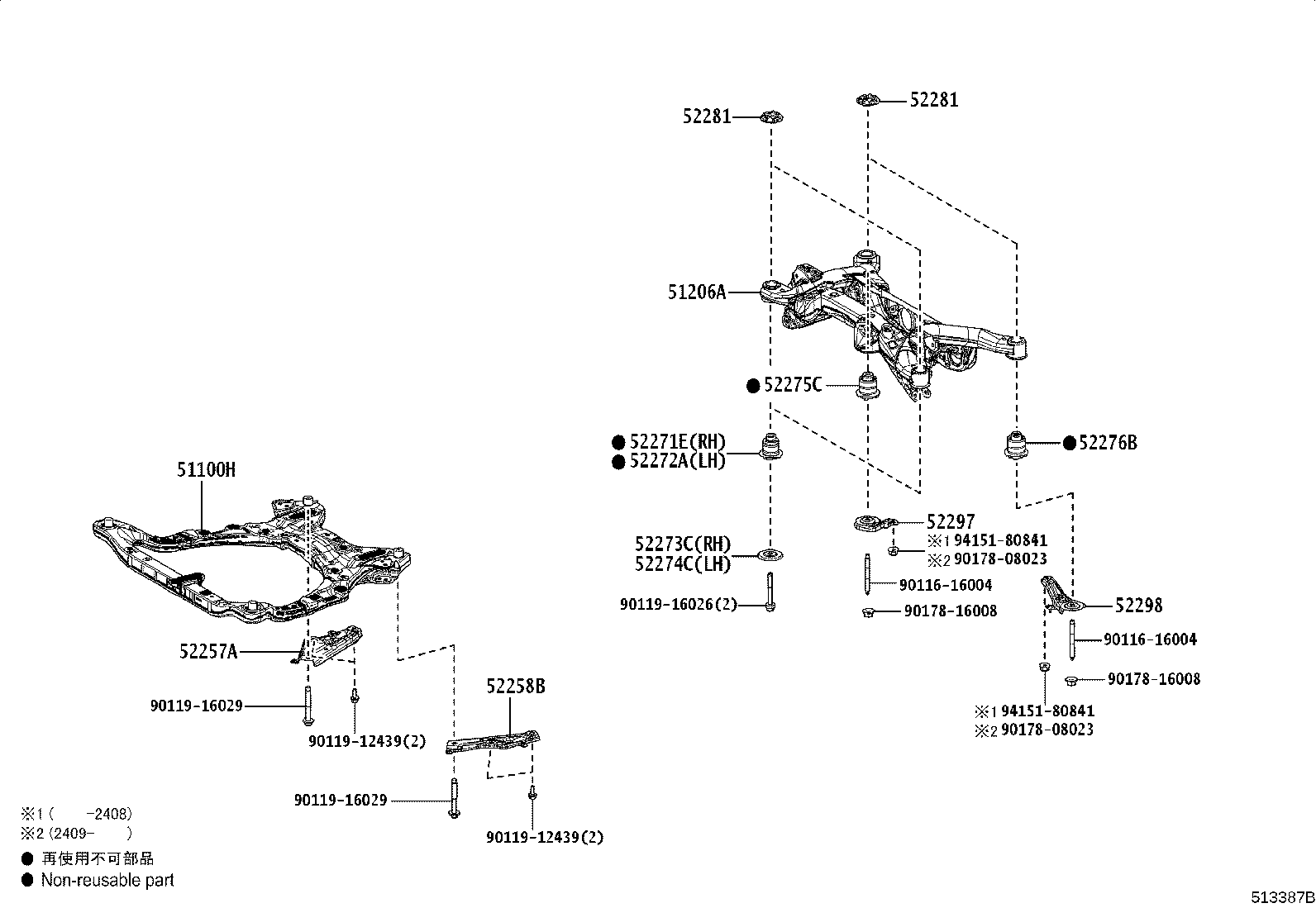

51206A	Member Sub-assy, Rear Suspension

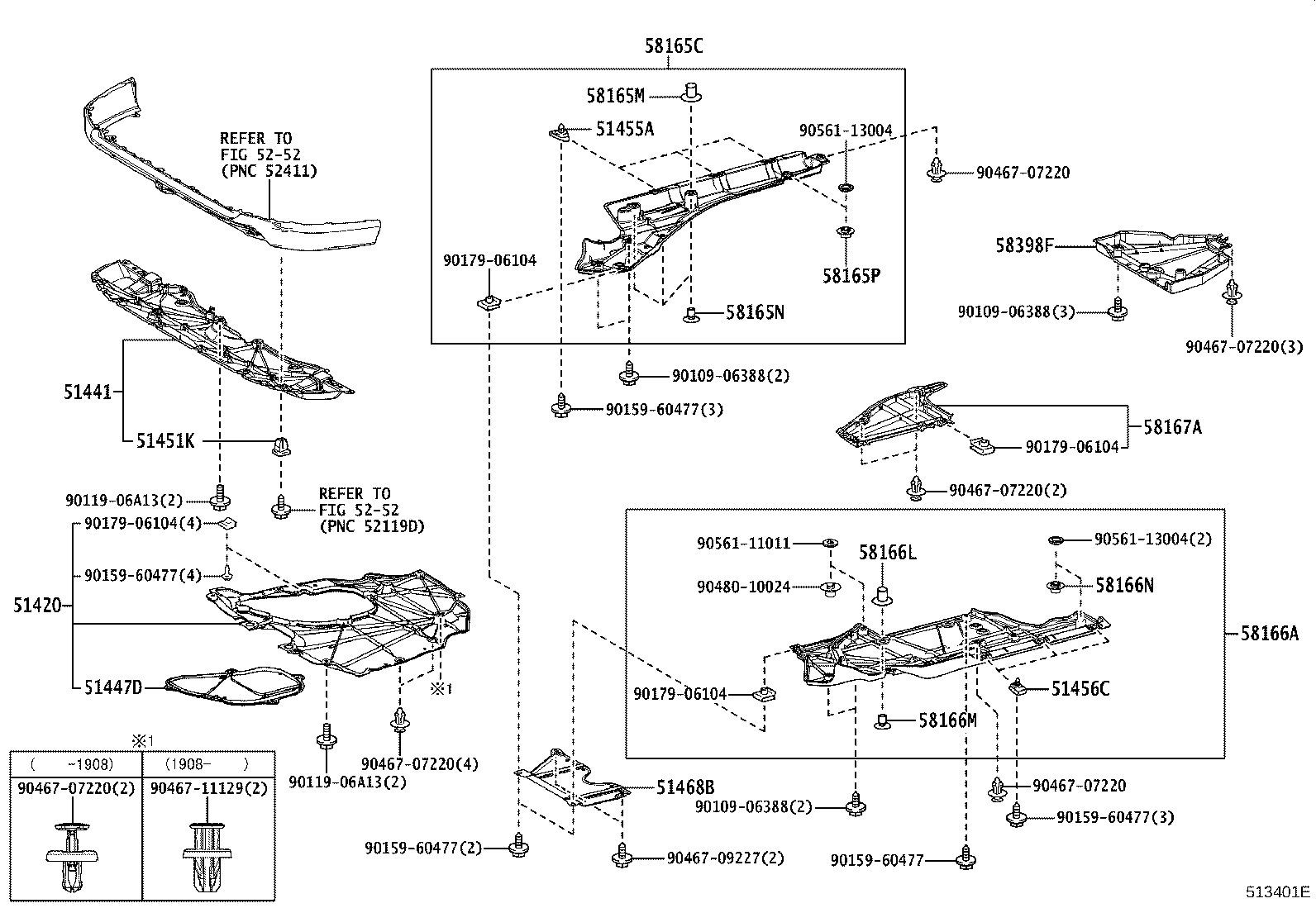

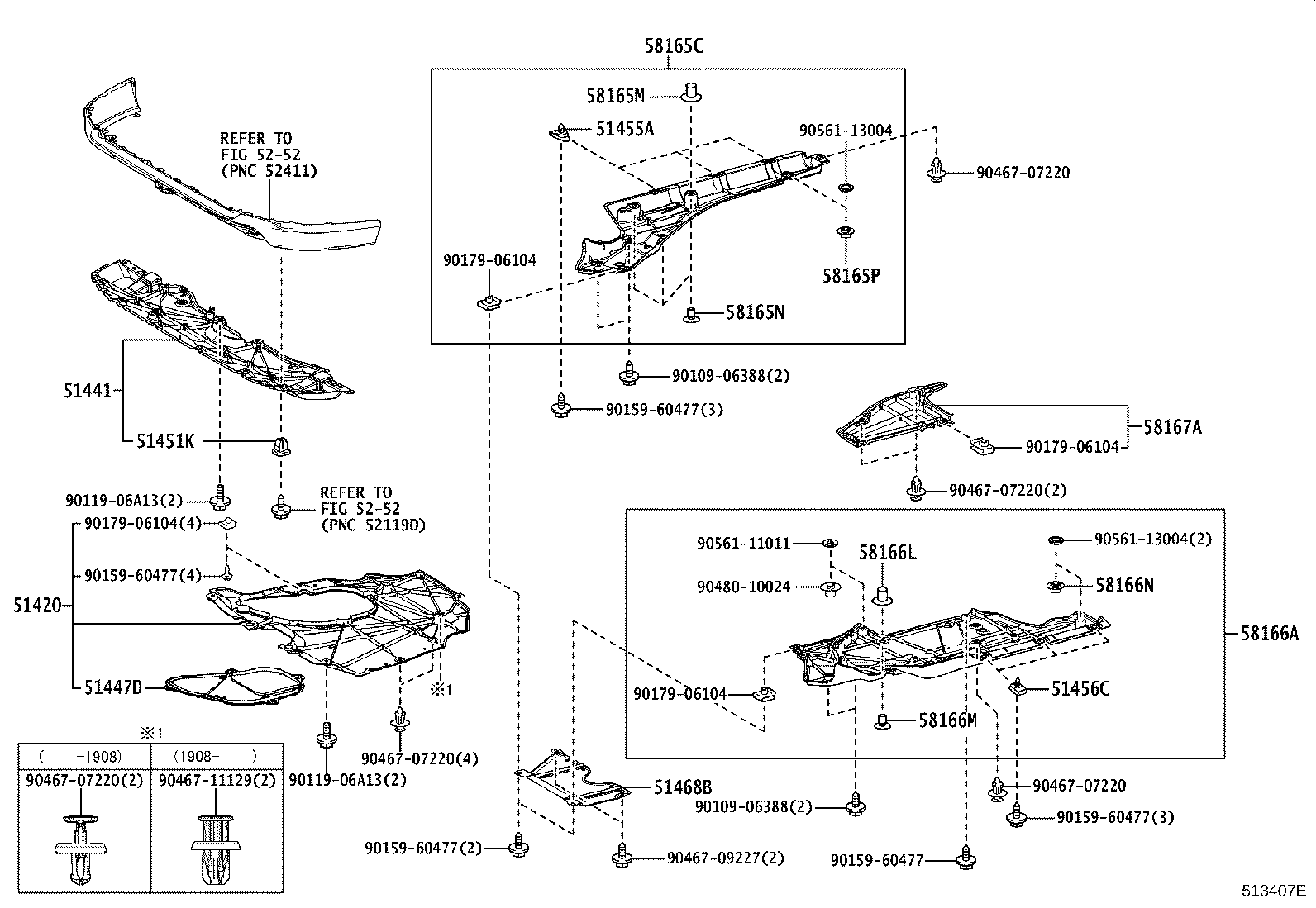

51420	Cover Assy, Engine Under, NO.2

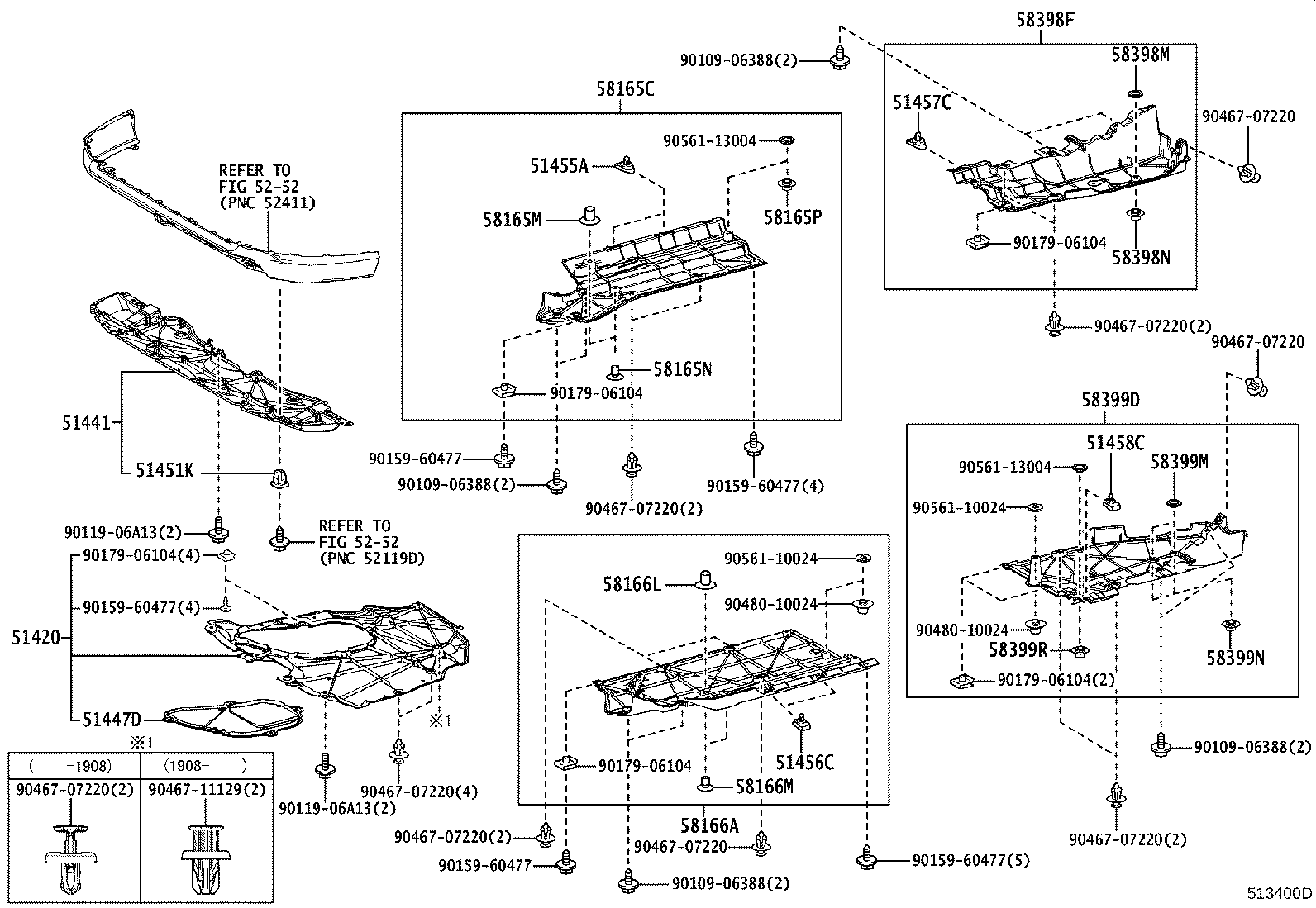

51441	Cover, Engine Under, NO.1
51447D	Cover, Engine Under, NO.4 Center
51451K	Grommet, Screw, NO.1
51455A	Seal, Engine Under Cover, NO.1
51456C	Seal, Engine Under Cover, NO.2
51457C	Seal, Engine Under Cover, NO.3
51458C	Seal, Engine Under Cover, NO.4
51468B	Insulator, Engine Under Cover Heat
52257A	Brace, Front Suspension Member, Rear RH
52258B	Brace, Front Suspension Member, Rear LH
52271E	Cushion, Rear Suspension Member Body Mounting, Front RH
52272A	Cushion, Rear Suspension Member Body Mounting, Front LH
52273C	Stopper, Rear Suspension Member, Lower RH
52274C	Stopper, Rear Suspension Member, Lower LH
52275C	Cushion, Rear Suspension Member Body Mounting, Rear RH
52276B	Cushion, Rear Suspension Member Body Mounting, Rear LH
52281	Cushion, Differential Support Member
52297	Brace, Rear Suspension Member, Rear Lower RH
52298	Brace, Rear Suspension Member, Rear Lower LH
58165C	Cover, Front Floor, RH
58165M	Clip, Front Floor Cover, NO.1
58165N	Clip, Front Floor Cover, NO.2
58165P	Clip, Front Floor Cover, NO.3
58166A	Cover, Front Floor, LH
58166L	Clip, Front Floor Cover, NO.1
58166M	Clip, Front Floor Cover, NO.2
58166N	Clip, Front Floor Cover, NO.3
58167A	Cover, Front Floor, Center
58398F	Cover, Floor Under, NO.1
58398M	Clip, Floor Under Cover, NO.1
58398N	Clip, Floor Under Cover, NO.2
58399D	Cover, Floor Under, NO.2
58399M	Clip, Floor Under Cover, NO.1
58399N	Clip, Floor Under Cover, NO.2
58399R	Clip, Floor Under Cover, NO.3
