Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States
Supported model
Data version 2023-10

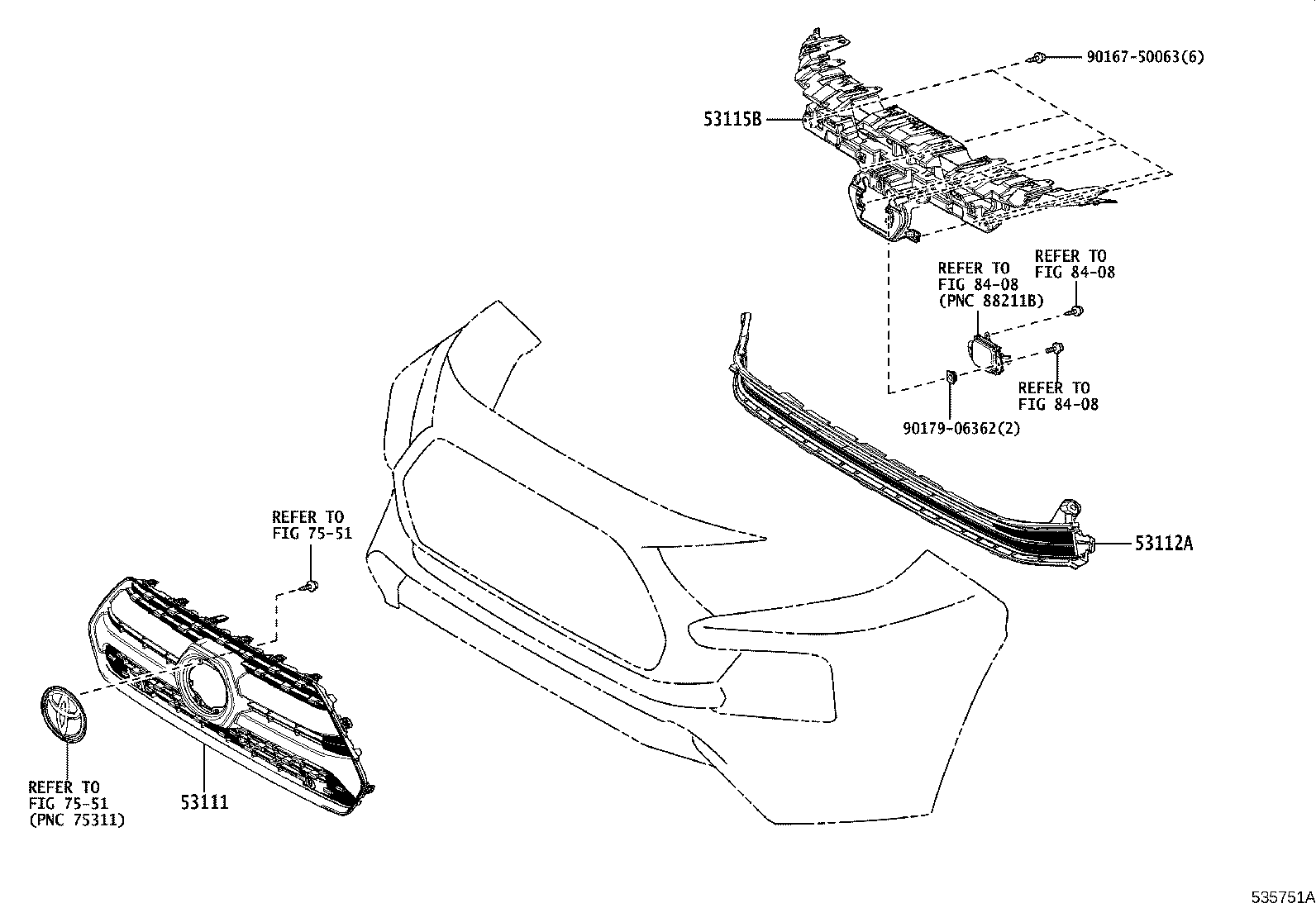

Radiator Grille
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53112A | Grille, Radiator, Lower |
| 53115B | Bracket, Radiator Grille |
| 53123B | Moulding, Radiator Grille Side, RH |
| 53124B | Moulding, Radiator Grille Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
