Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States

Supported model Data version 2023-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

85 part groups · 9 illustrations

Illustrations

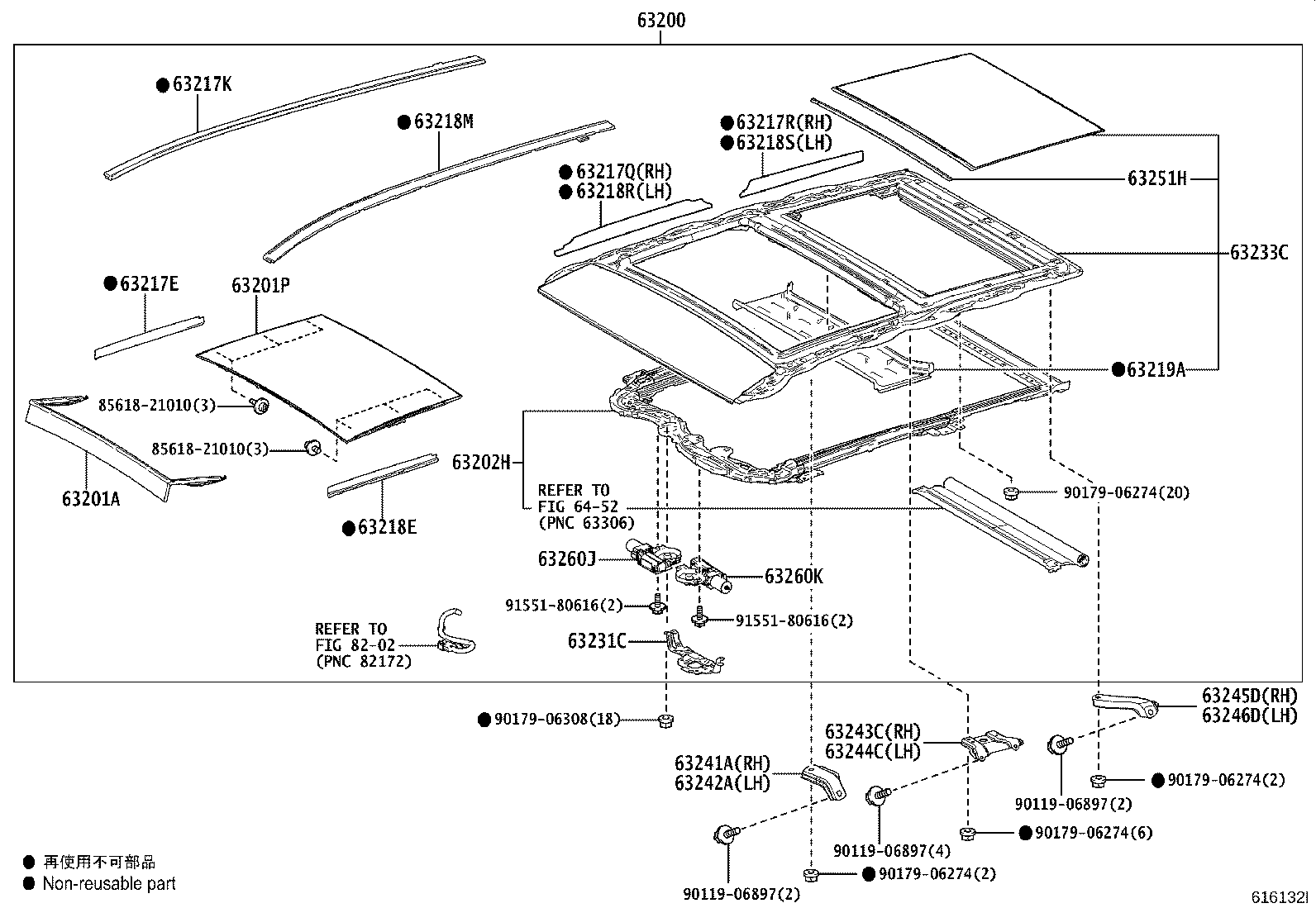

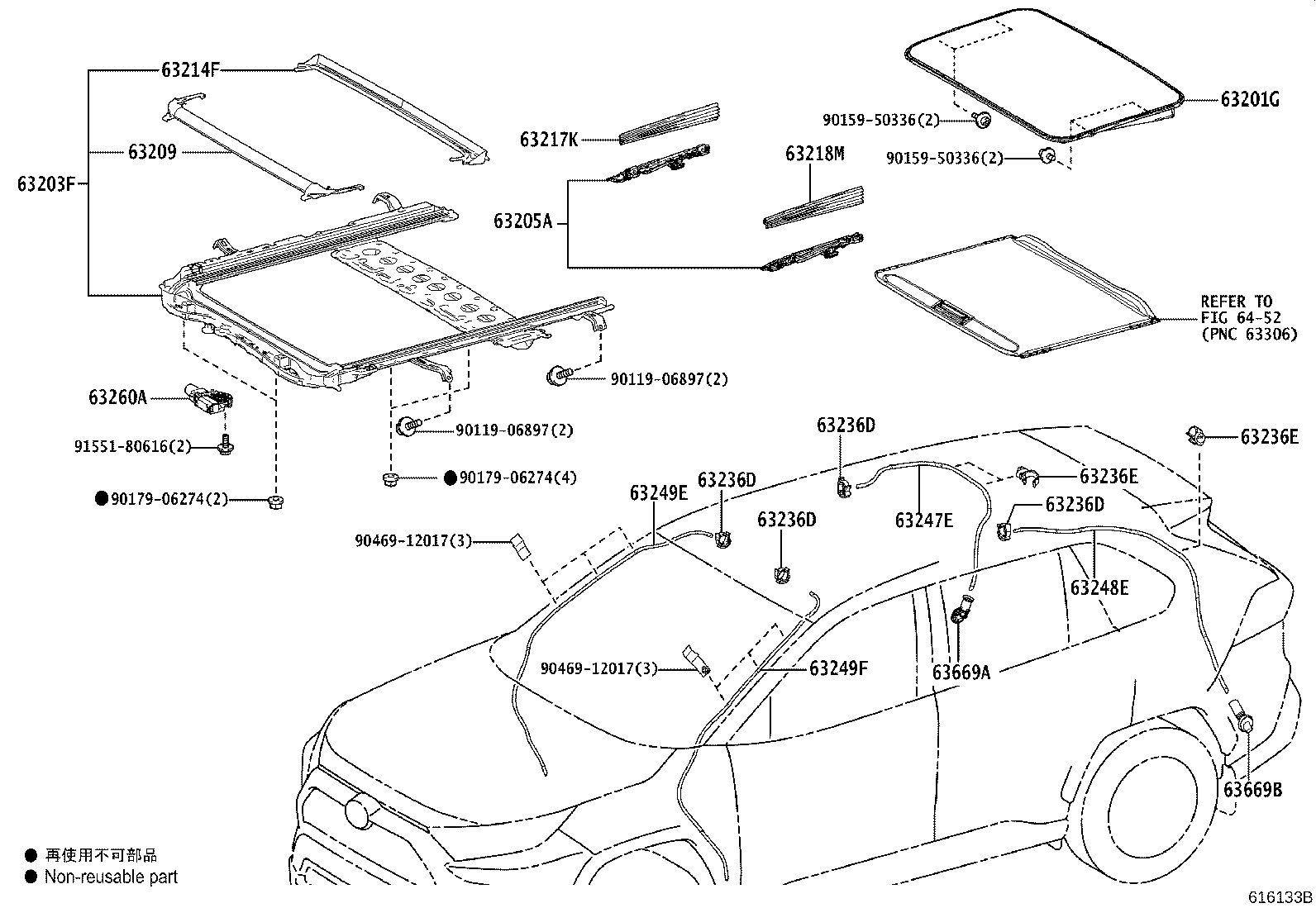

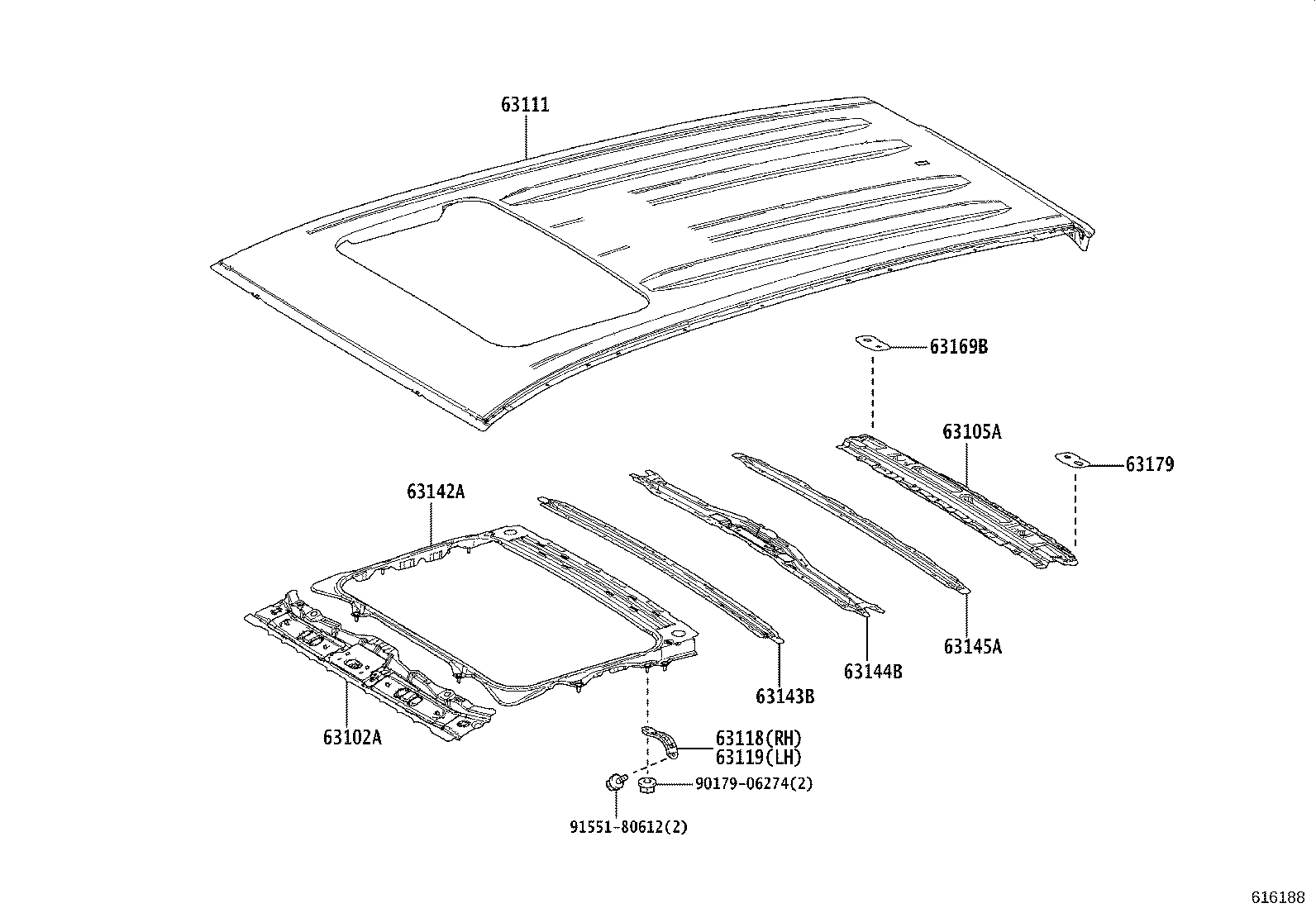

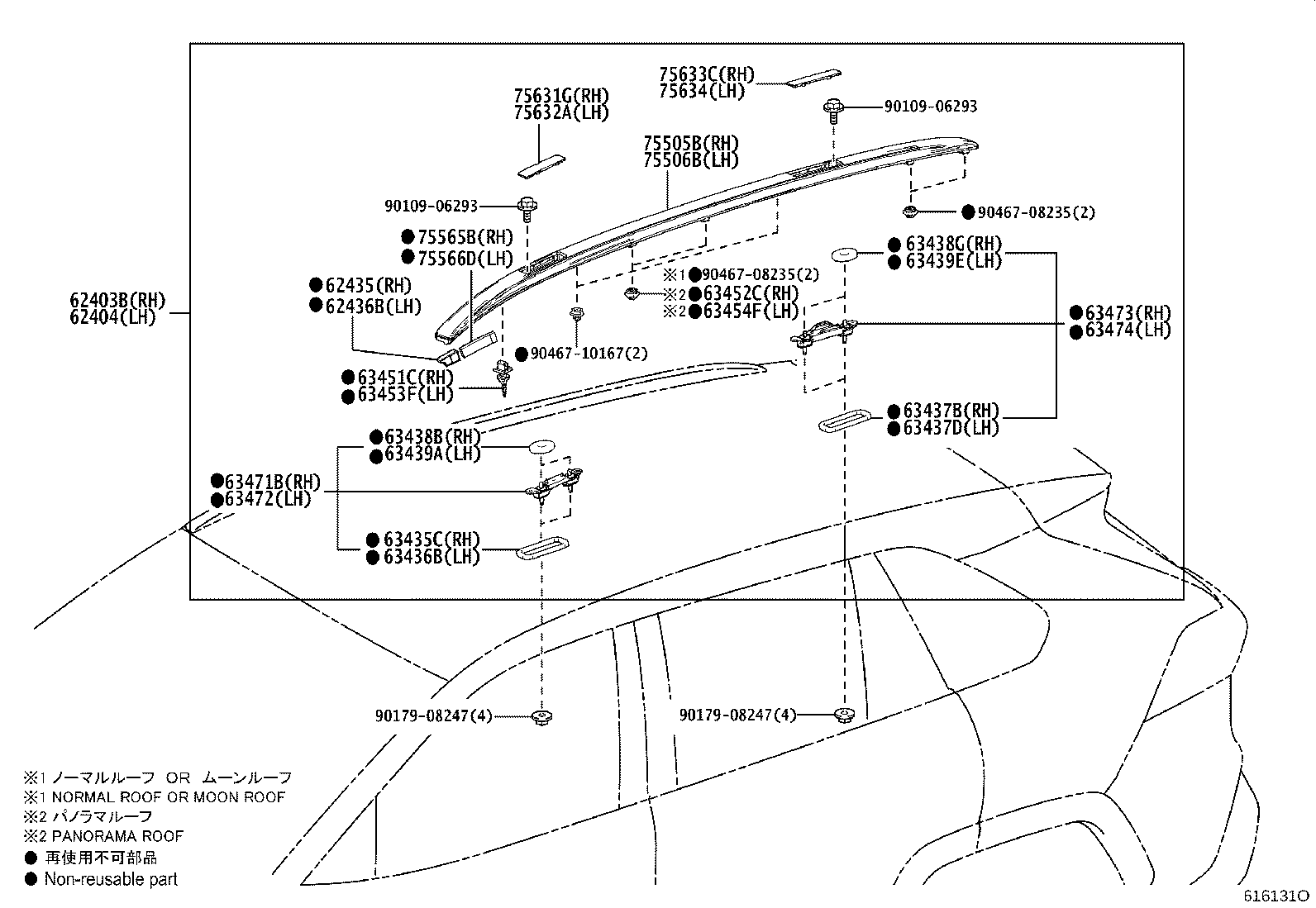

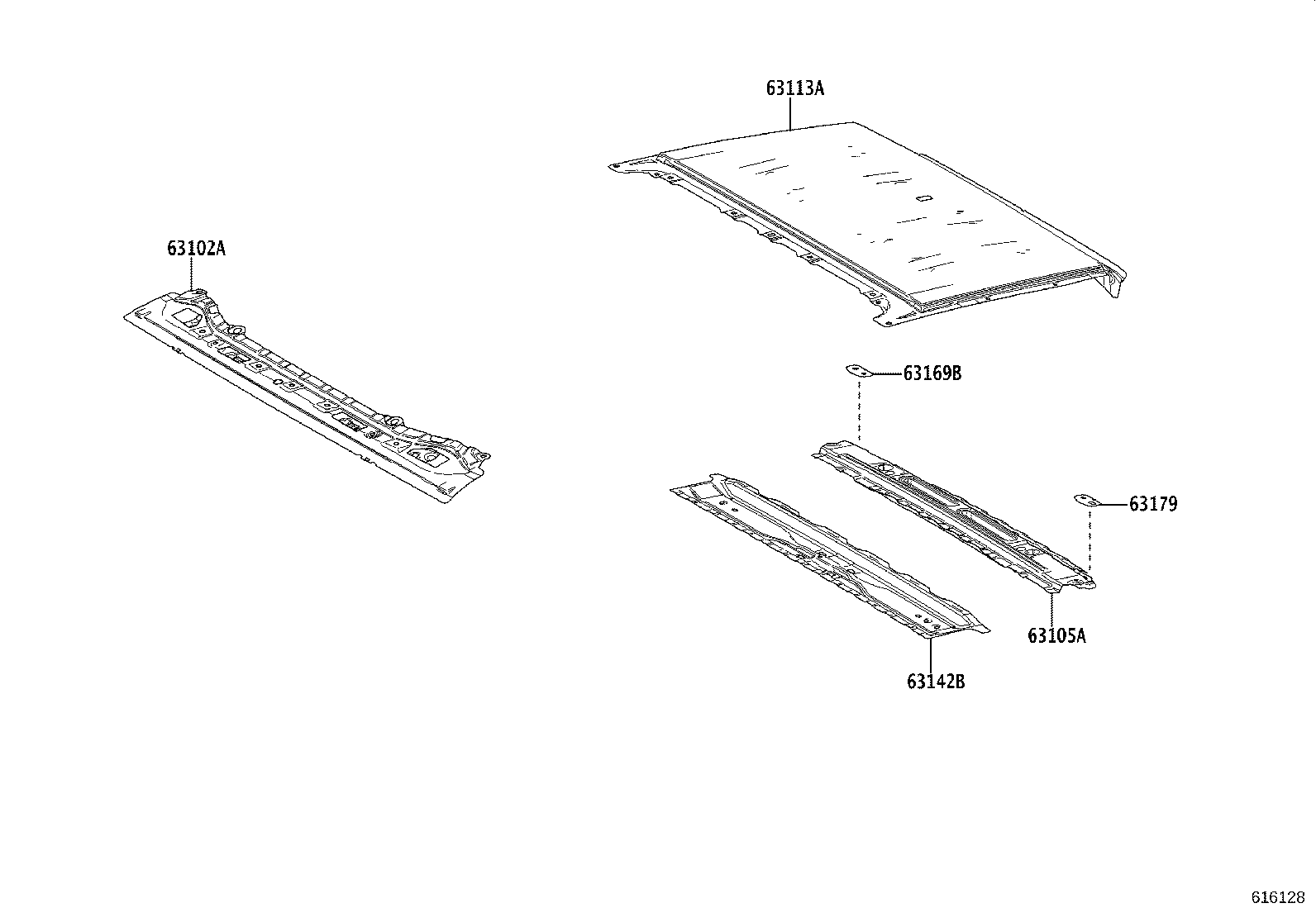

616131O 2018-11 → 2020-07

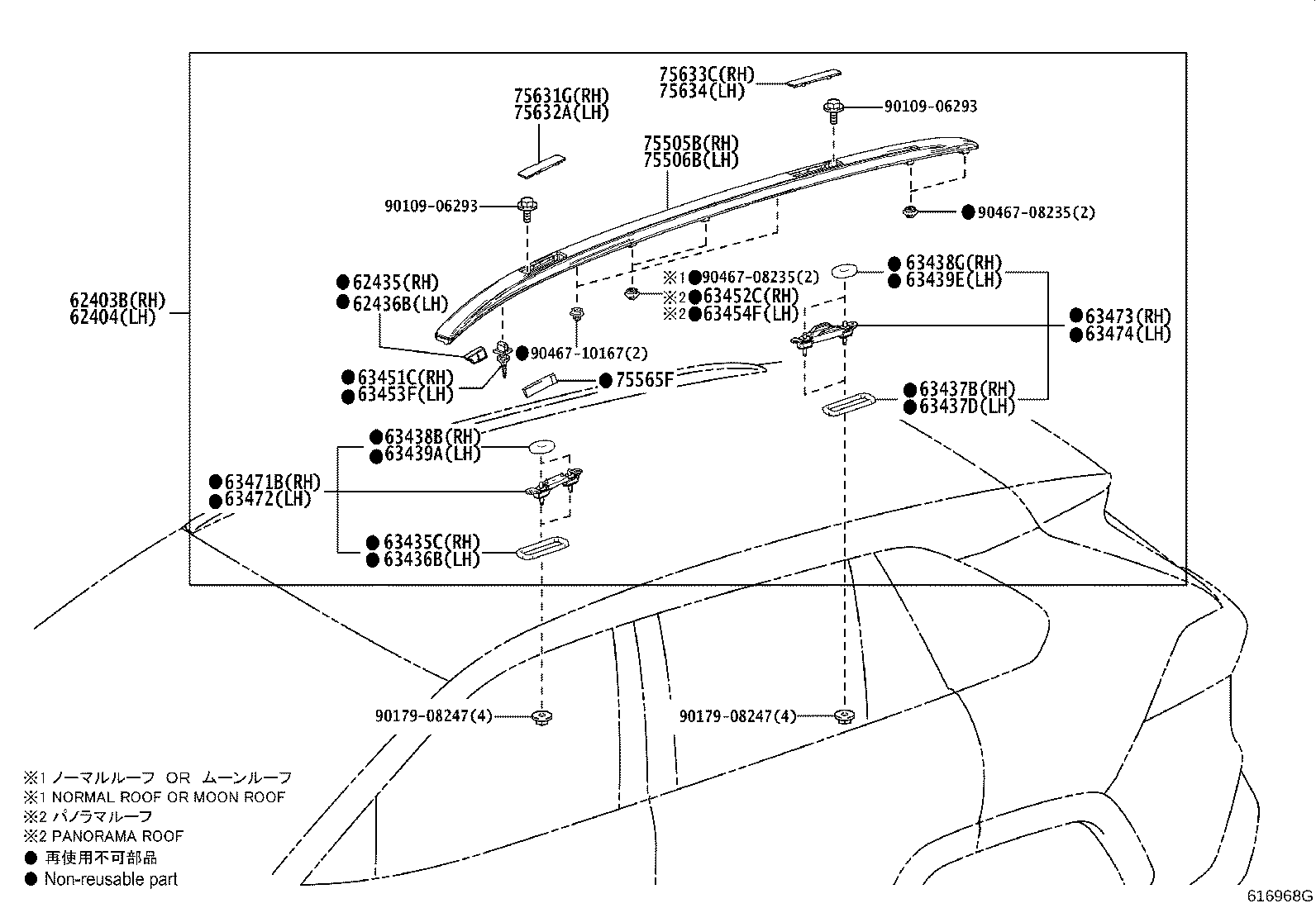

616968G 2020-08 → 2021-12

616968G 2021-12 → —

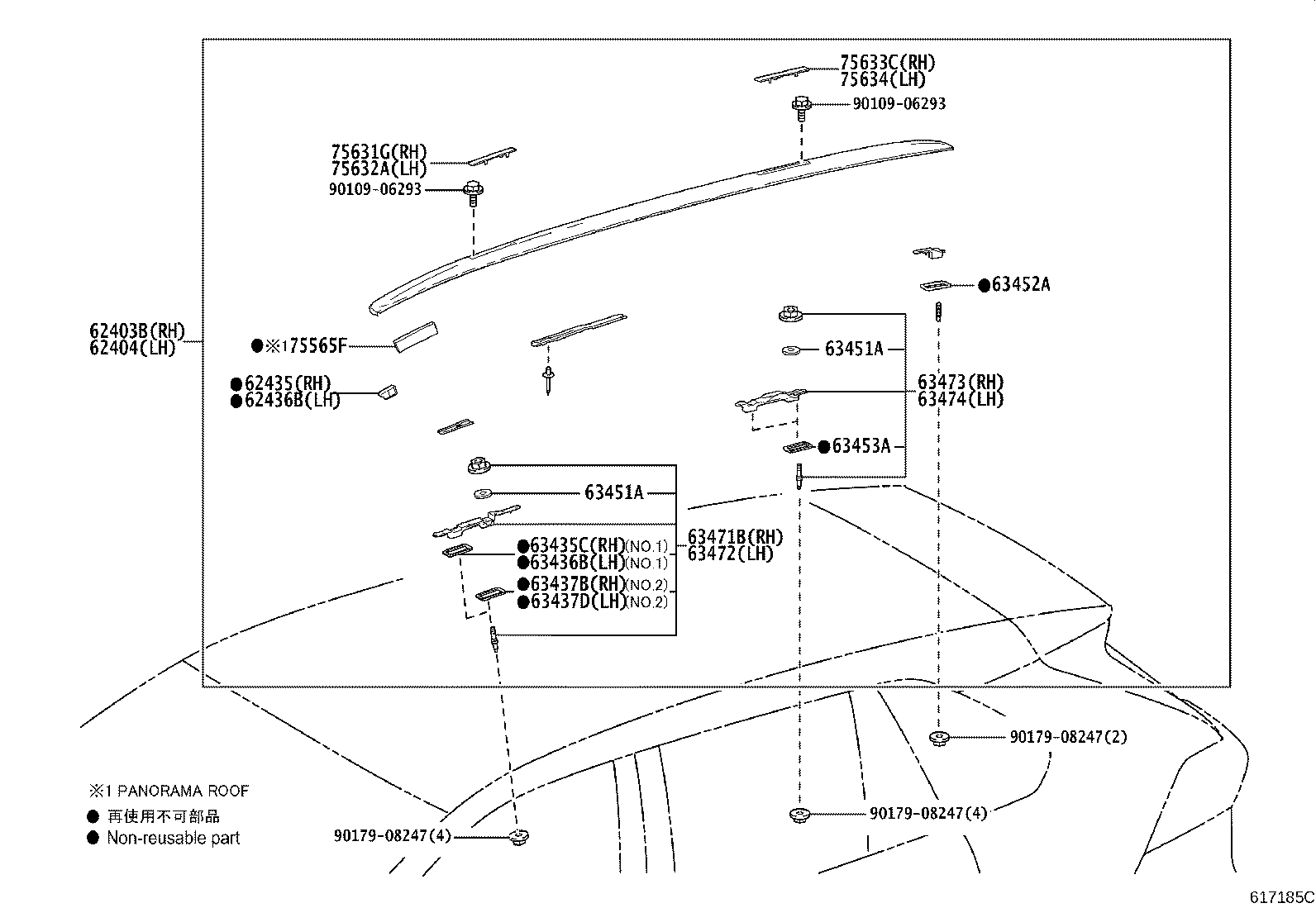

617185C 2021-12 → —

Part groups

PNC	Description
62403B	Garnish Sub-assy, Roof Side Rail, RH
62404	Garnish Sub-assy, Roof Side Rail, LH
62435	Pad, Roof Side Rail Garnish, RH
62436B	Pad, Roof Side Rail Garnish, LH
63102A	Panel Sub-assy, Windshield Header
63103B	Reinforcement Sub-assy, Roof Panel, Center
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63113A	Panel, Roof, NO.3
63118	Support, Roof Panel, RH
63119	Support, Roof Panel, LH
63141G	Reinforcement, Roof Panel, NO.1
63142A	Reinforcement, Roof Panel, NO.2
63142B	Reinforcement, Roof Panel, Rear
63143B	Reinforcement, Roof Panel, NO.3
63144B	Reinforcement, Roof Panel, NO.4
63145A	Reinforcement, Roof Panel, NO.5
63169B	Plate, Roof Panel Reinforcement, RH
63179	Plate, Roof Panel Reinforcement, LH
63200	Housing Assy, Moon Roof
63201A	Panel Sub-assy, Sliding Roof OR Removable Roof
63201G	Glass Sub-assy, Sliding Roof
63201P	Glass Sub-assy, Sliding Roof
63202H	Rail Sub-assy, Slide Roof
63203F	Housing Sub-assy, Sliding Roof
63205A	Cable Sub-assy, Sliding Roof Drive
63209	Panel Sub-assy, Roof Wind Deflector
63214F	Channel, Roof Drip, Rear
63217E	Garnish, Sliding Roof, Front RH
63217K	Garnish, Sliding Roof Side, RH
63217Q	Garnish, Sliding Roof Side, RH
63217R	Garnish, Sliding Roof Side, RH
63218E	Garnish, Sliding Roof, Front LH
63218M	Garnish, Sliding Roof Side, LH
63218R	Garnish, Sliding Roof Side, LH
63218S	Garnish, Sliding Roof Side, LH
63219A	Garnish, Sliding Roof, Rear
63231C	Bracket, Room Lamp
63233C	Panel, Sliding Roof Housing
63236D	Clamp, Sliding Roof Drain Hose
63236E	Clamp, Sliding Roof Drain Hose
63241A	Bracket, Sliding Roof Housing Front Mounting, RH
63242A	Bracket, Sliding Roof Housing Front Mounting, LH
63243C	Bracket, Sliding Roof Housing Center Mounting, RH
63244C	Bracket, Sliding Roof Housing Center Mounting, LH
63245D	Bracket, Sliding Roof Housing Rear Mounting, RH
63246D	Bracket, Sliding Roof Housing Rear Mounting, LH
63247E	Hose, Sliding Roof Drain, Rear RH
63248E	Hose, Sliding Roof Drain, Rear LH
63249E	Hose, Sliding Roof Drain
63249F	Hose, Sliding Roof Drain
63251H	Weatherstrip, Sliding Roof
63260A	Gear Sub-assy, Sliding Roof Drive
63260J	Gear Assy, Sliding Roof Drive
63260K	Gear Assy, Sliding Roof Drive
63435C	Seal, Roof Carrier, NO.1 RH
63436B	Seal, Roof Carrier, NO.1 LH
63437B	Seal, Roof Carrier, NO.2 RH
63437D	Seal, Roof Carrier, NO.2 LH
63438B	Seal, Roof Carrier, NO.3 RH
63438G	Seal, Roof Carrier, NO.4 RH
63439A	Seal, Roof Carrier, NO.3 LH
63439E	Seal, Roof Carrier, NO.4 LH
63451A	Seal, Roof Carrier, NO.1 Support
63451C	Retainer, Roof Rack, Front RH
63452A	Seal, Roof Carrier, NO.2 Support
63452C	Retainer, Roof Rack, Rear RH
63453A	Seal, Roof Carrier, NO.3 Support
63453F	Retainer, Roof Rack, Front LH
63454F	Retainer, Roof Rack, Rear LH
63471B	Leg, Roof Rack, Front RH
63472	Leg, Roof Rack, Front LH
63473	Leg, Roof Rack, Rear RH
63474	Leg, Roof Rack, Rear LH
63669A	Grommet, Sliding Roof Drain
63669B	Grommet, Sliding Roof Drain
75505B	Garnish Sub-assy, Roof Side, Front RH
75506B	Garnish Sub-assy, Roof Side, Front LH
75565B	Protector, Roof Side Garnish, Front RH
75565F	Protector, Roof Side Garnish, NO.1
75566D	Protector, Roof Side Garnish, Front LH
75631G	Lid, Roof Side Garnish, NO.1 RH
75632A	Lid, Roof Side Garnish, NO.1 LH
75633C	Lid, Roof Side Garnish, NO.2 RH
75634	Lid, Roof Side Garnish, NO.2 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
