Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

20 part groups · 6 illustrations

Illustrations

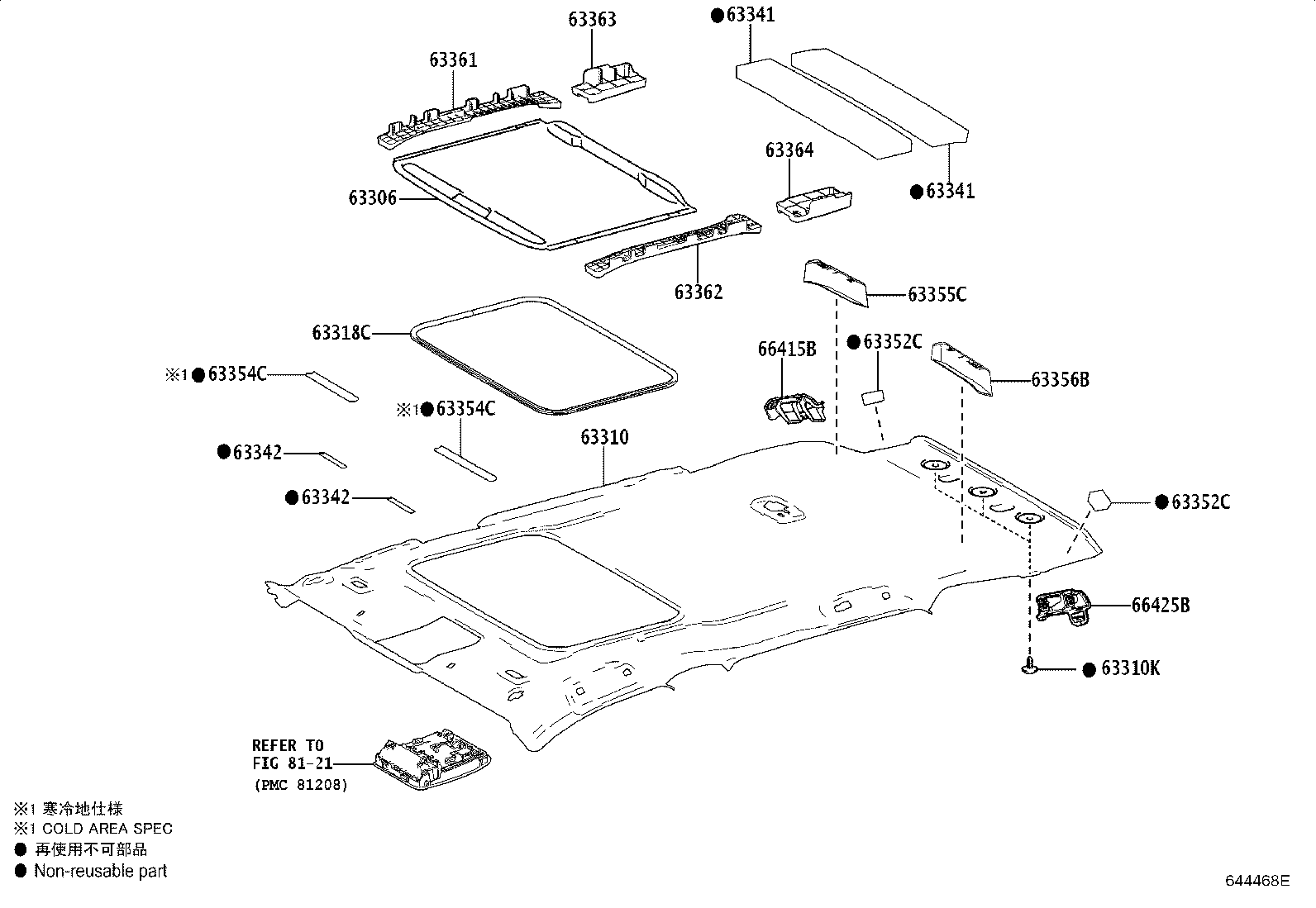

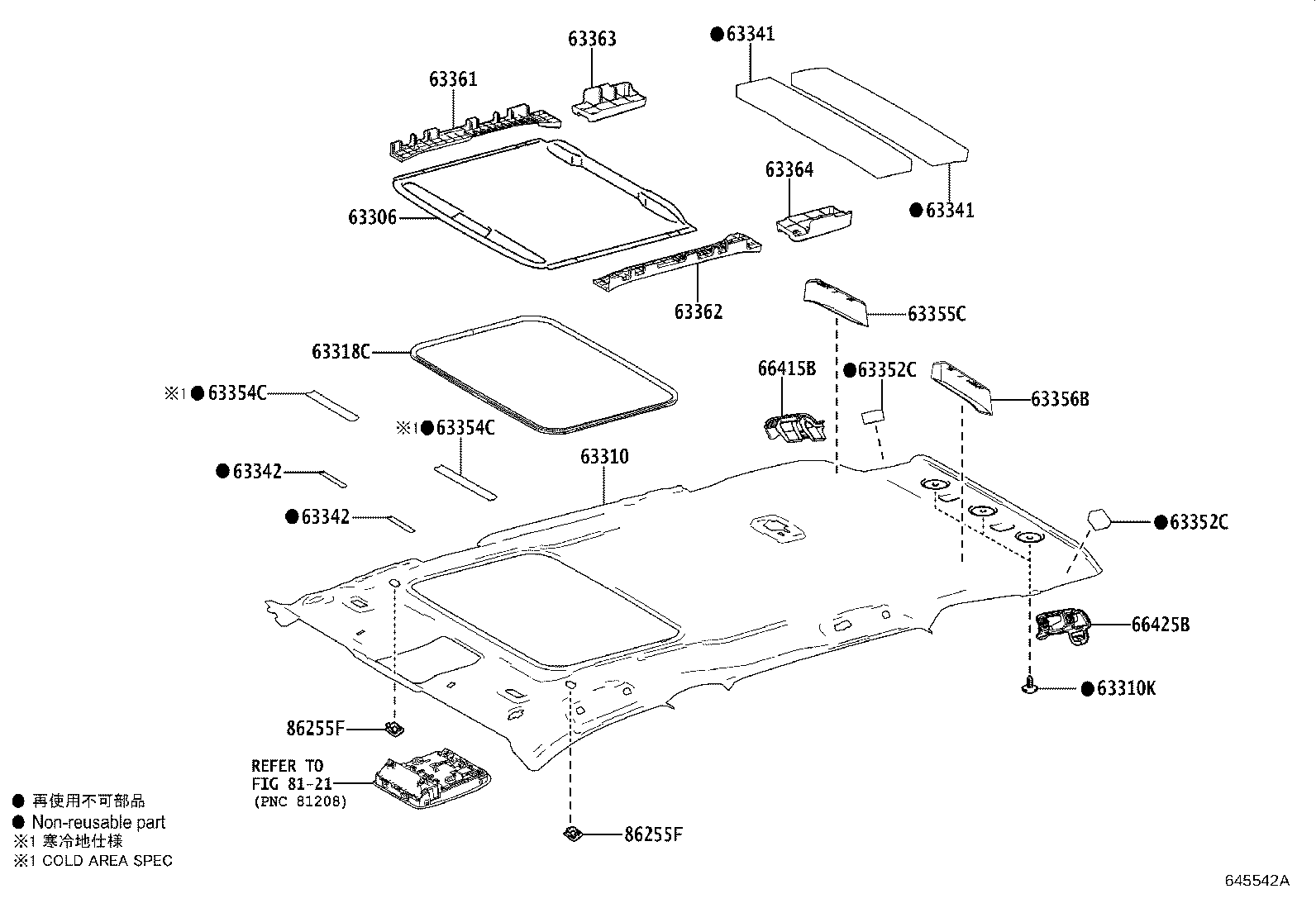

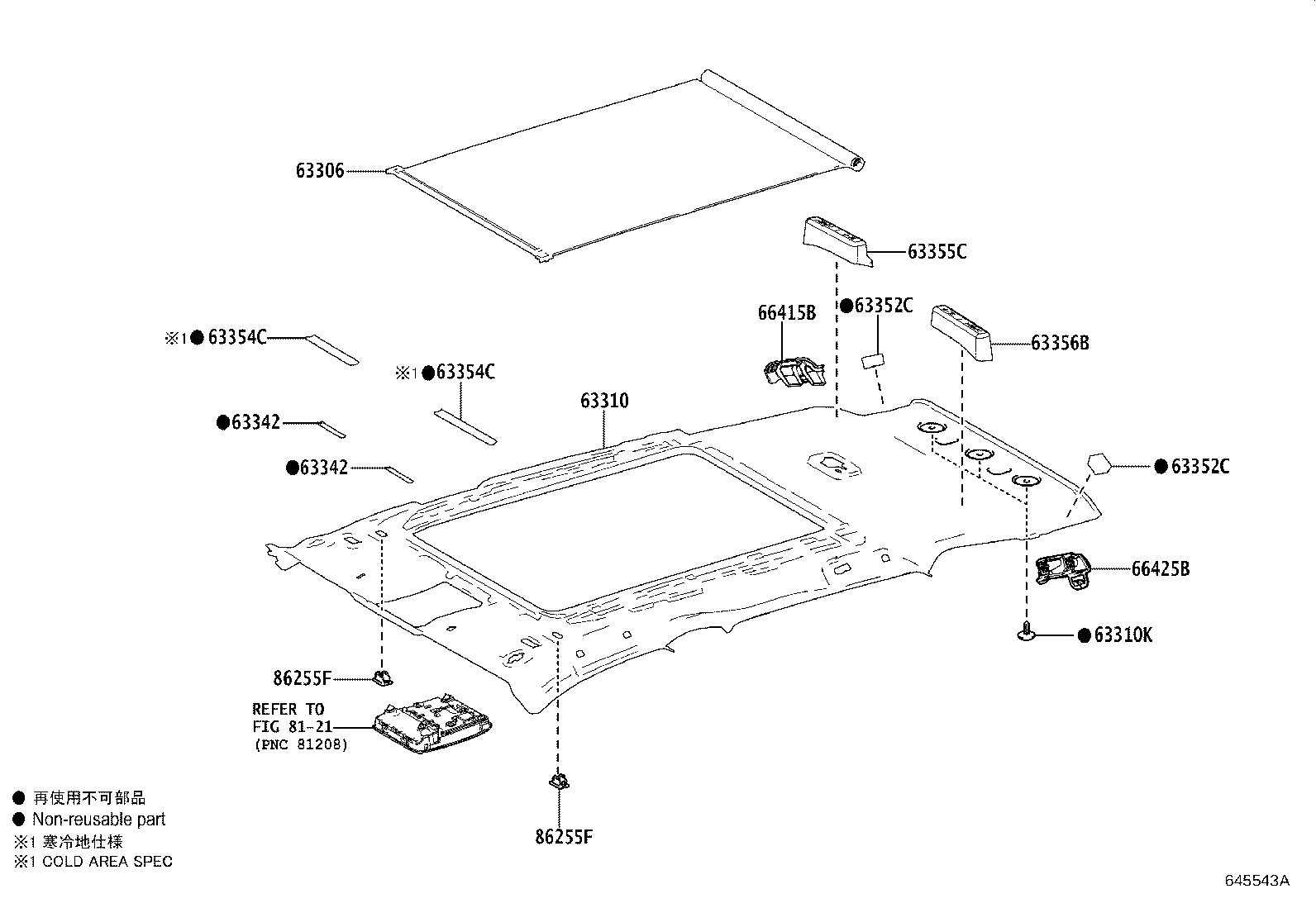

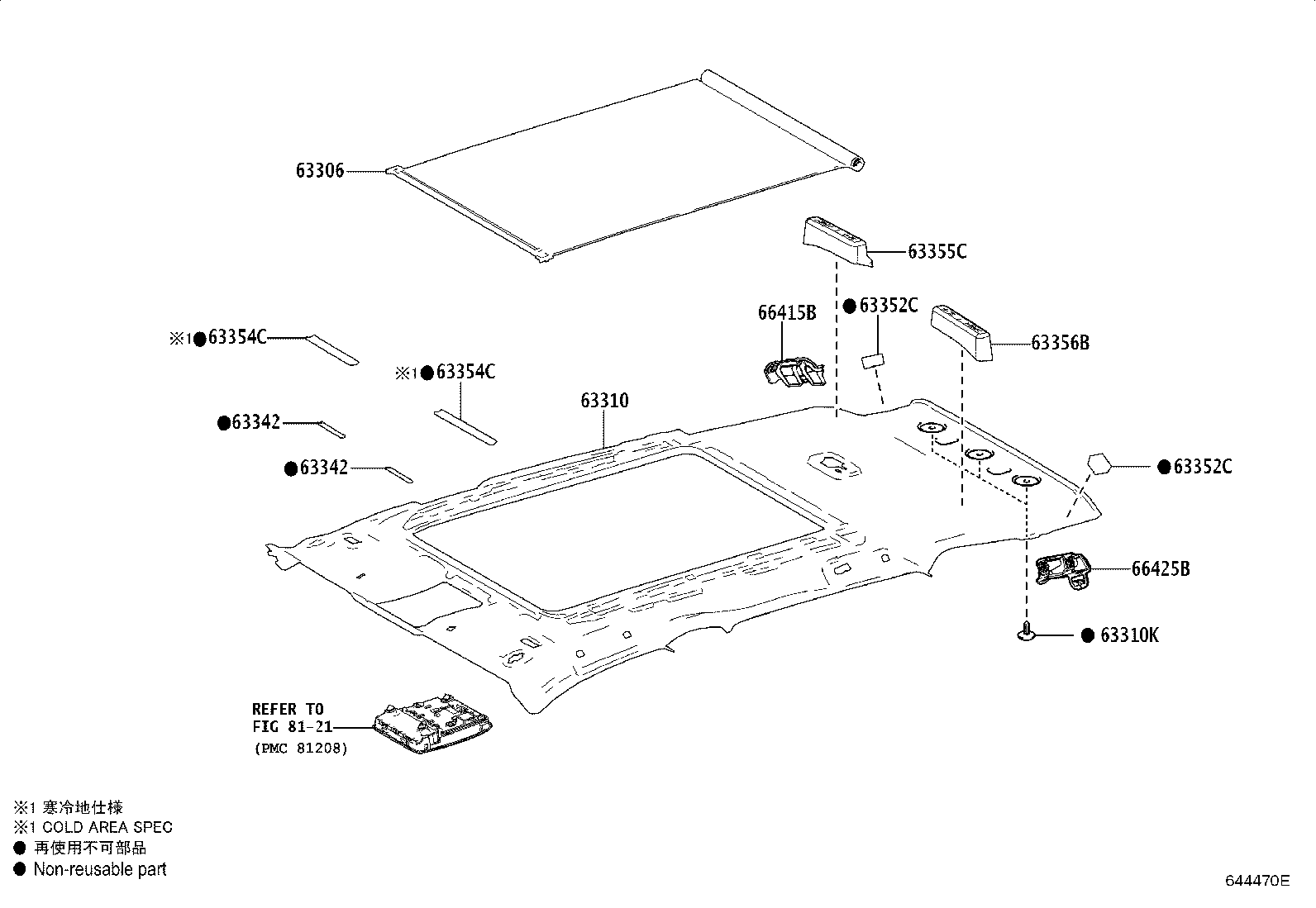

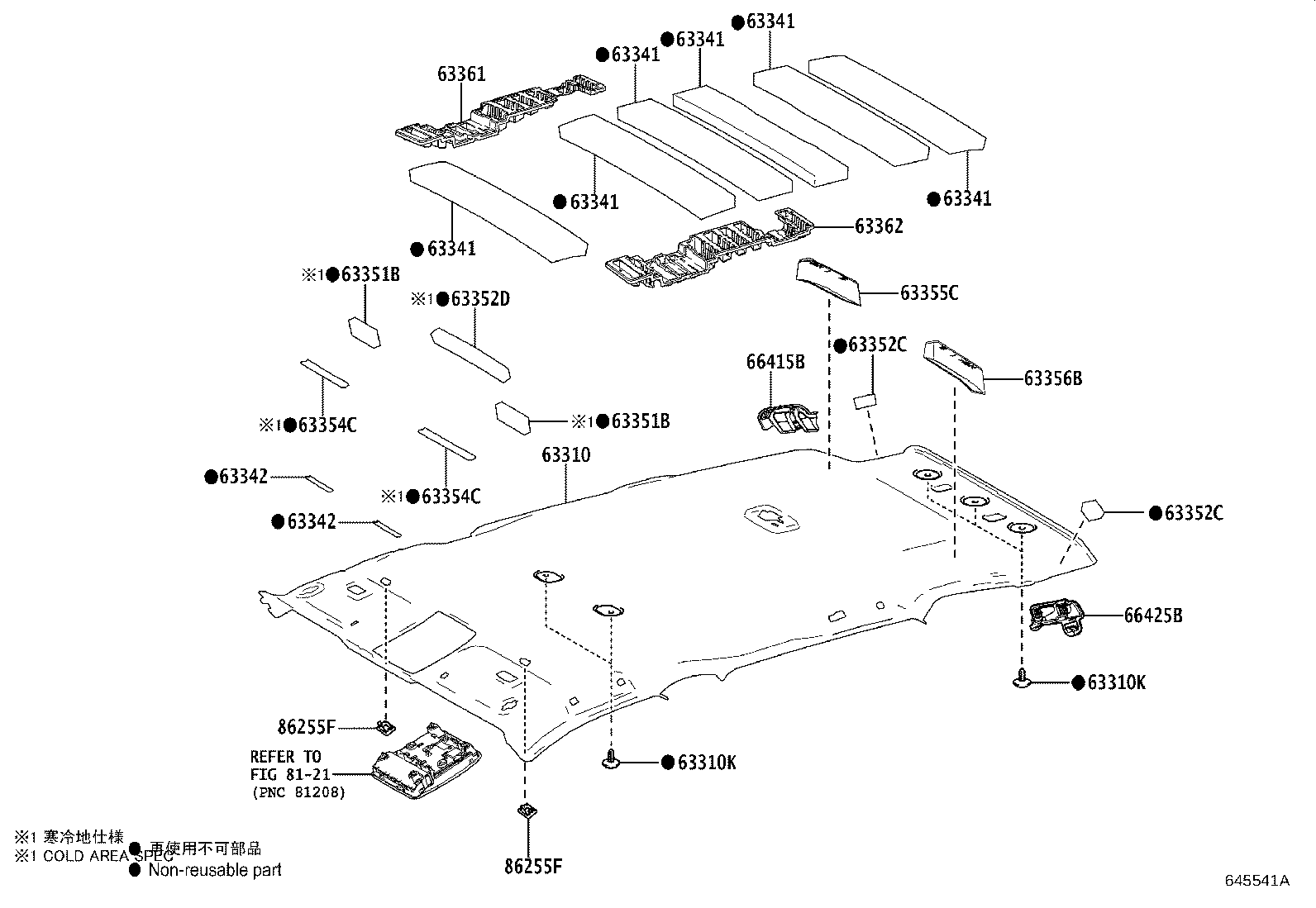

Figure 644465H 644465H 2018-11 → 2022-10 Figure 644468E 644468E 2018-11 → 2022-10 Figure 644470E 644470E 2018-11 → 2022-10 Figure 645541A 645541A 2022-10 → — Figure 645542A 645542A 2022-10 → — Figure 645543A 645543A 2022-10 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310K Clip
63318C Moulding, Sun Roof Opening Trim
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63345D Pad, Roof Silencer, Center
63351B Pad, Roof Headlining
63352C Pad, Roof Headlining, End
63352D Pad, Roof Headlining, NO.2
63354C Pad, Roof Headlining Front Side
63355C Pad, Roof Headlining, RH
63356B Pad, Roof Headlining, LH
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
66415B Spacer, Side Rail, Rear NO.2 RH
66425B Spacer, Side Rail, Rear NO.2 LH
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
