Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States
Supported model
Data version 2023-10

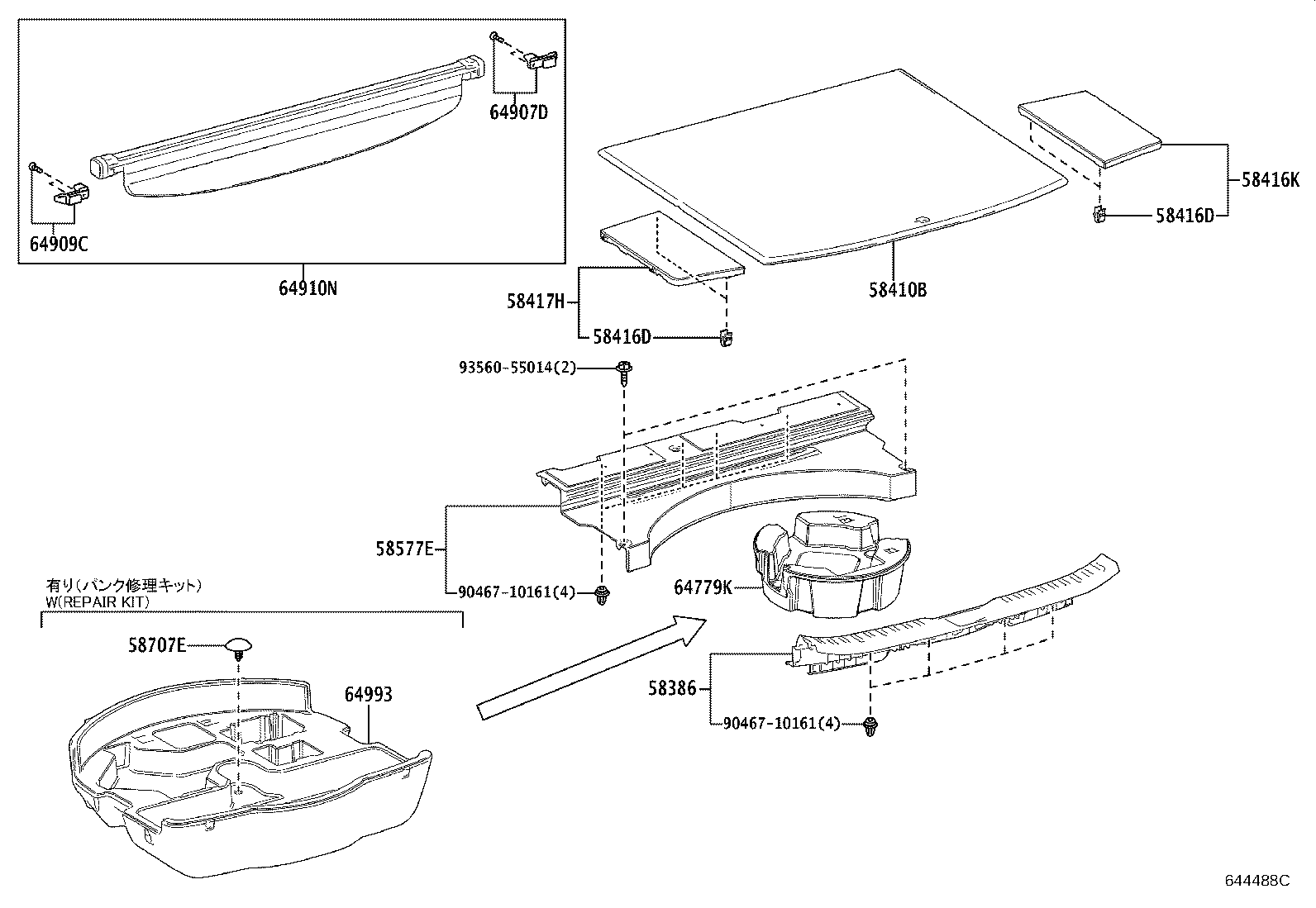

Deck Board & Deck Trim Cover
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58386 | Plate, Rear Floor Finish |
| 58410B | Board Assy, Deck |
| 58416D | Clip, Rear Floor Board |
| 58416K | Board, Rear Floor, NO.2 |
| 58417H | Board, Rear Floor, NO.3 |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58577E | Plate, Rear Floor Mat Support Side, NO.1 |
| 58707E | Plug Set, Hole |
| 64230A | Net Assy, Room Partition |
| 64714J | Cover, Deck Side Trim, RH |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64730J | Panel Assy, Deck Trim Side, RH |
| 64730K | Clip(FOR DECK SIDE TRIM PANEL) |
| 64740E | Panel Assy, Deck Trim Side, LH |
| 64779K | Stopper, Spare Wheel Cover |
| 64783C | Plate, Deck Trim Pocket Cover |
| 64907D | Stopper Sub-assy, Tonneau Cover, RH |
| 64909C | Stopper Sub-assy, Tonneau Cover, LH |
| 64910N | Cover Assy, Tonneau |
| 64993 | Box, Deck Floor, Rear |
| 65351A | Cover, Battery Hole |
| 73708A | Bracket Set, Tether Anchor |
| 86831B | Cover, Accessory Socket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
