Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States
Supported model
Data version 2023-10

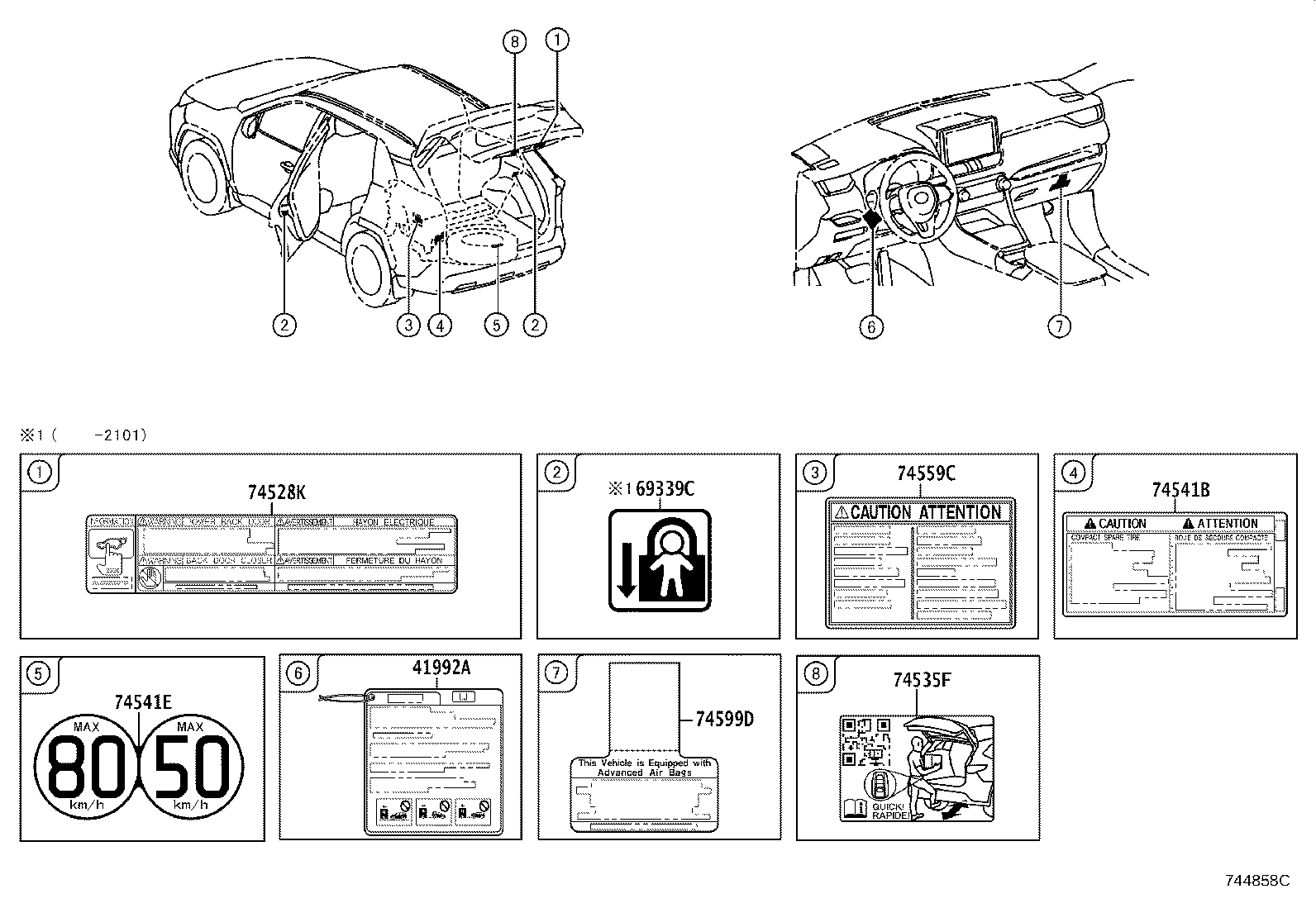

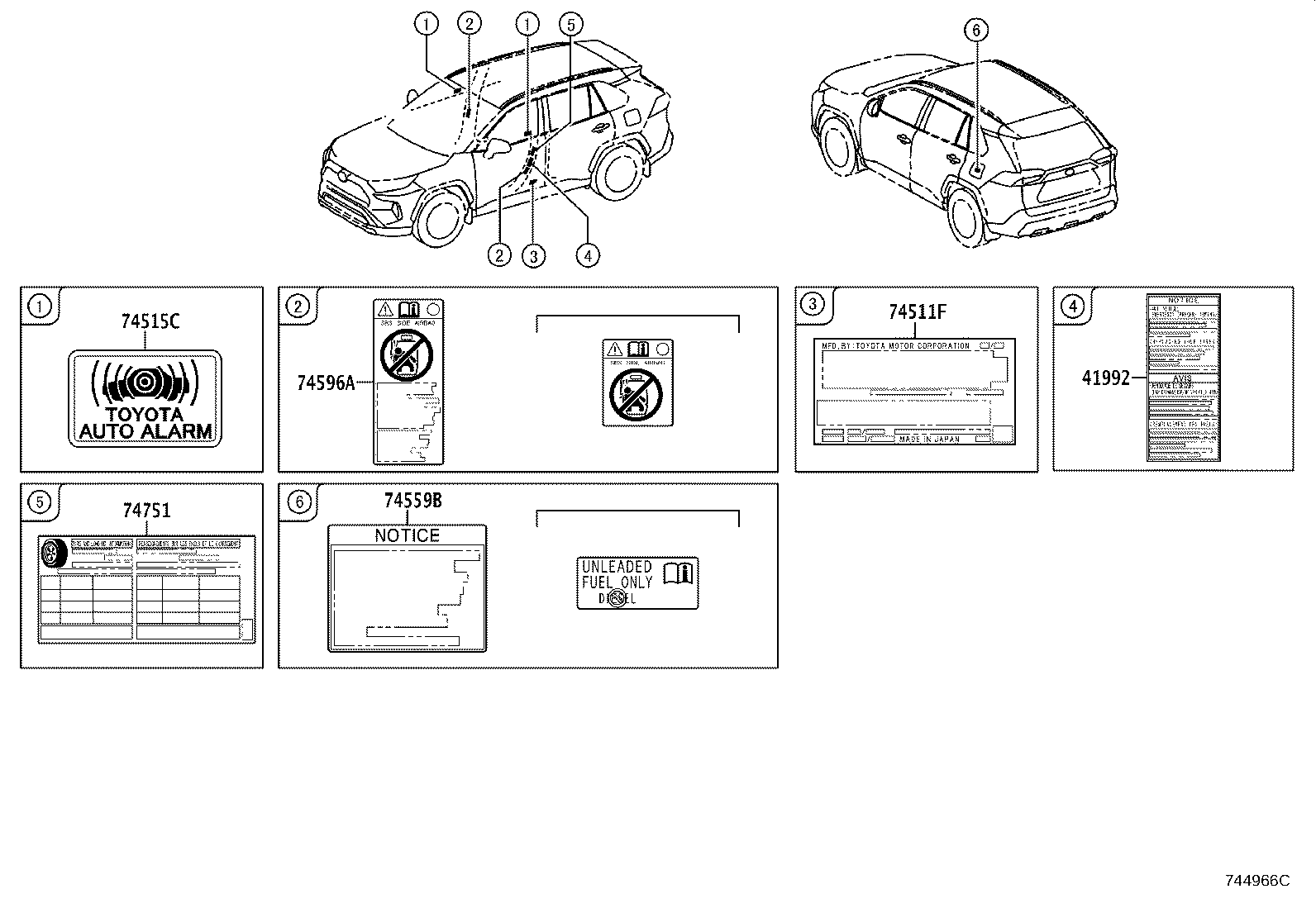

Caution Plate
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11282B | Label, Loaded Testing Caution |
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 15369A | Label, Engine Oil Information |
| 16793B | Label, Cooling Fan Information |
| 41992 | Label, Differential Notice |
| 41992A | Label, Differential Notice, NO.2 |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515C | Label, Theft Warning Information |
| 74528K | Label, Door Closer Caution |
| 74535F | Label, Gate Helper Information |
| 74541B | Plate, Compact Spare Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74559C | Label, Fuel Information, NO.2 |
| 74596A | Label, Side Airbag Caution |
| 74599D | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
| G92A1 | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
