Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States
Supported model
Data version 2023-10

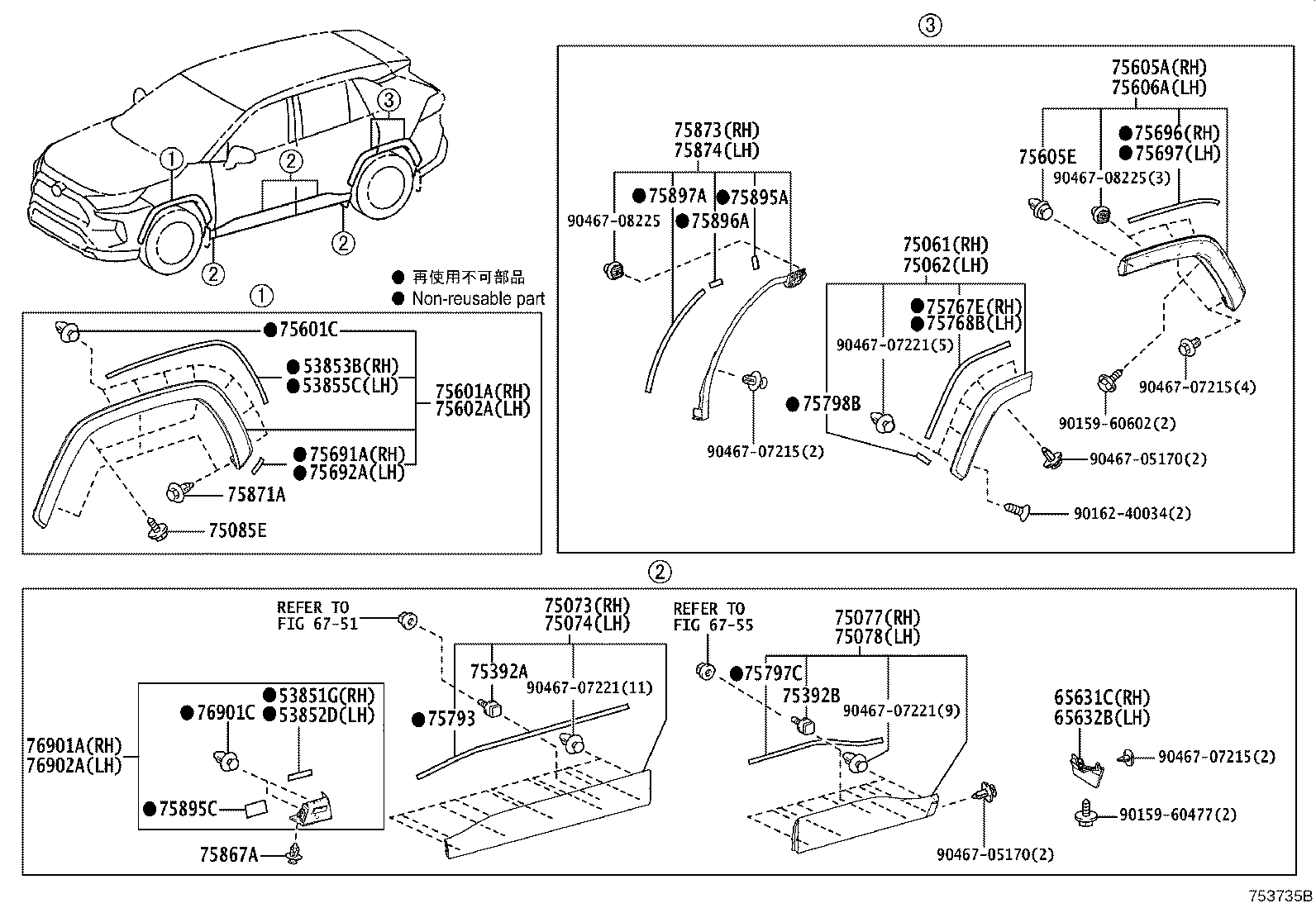

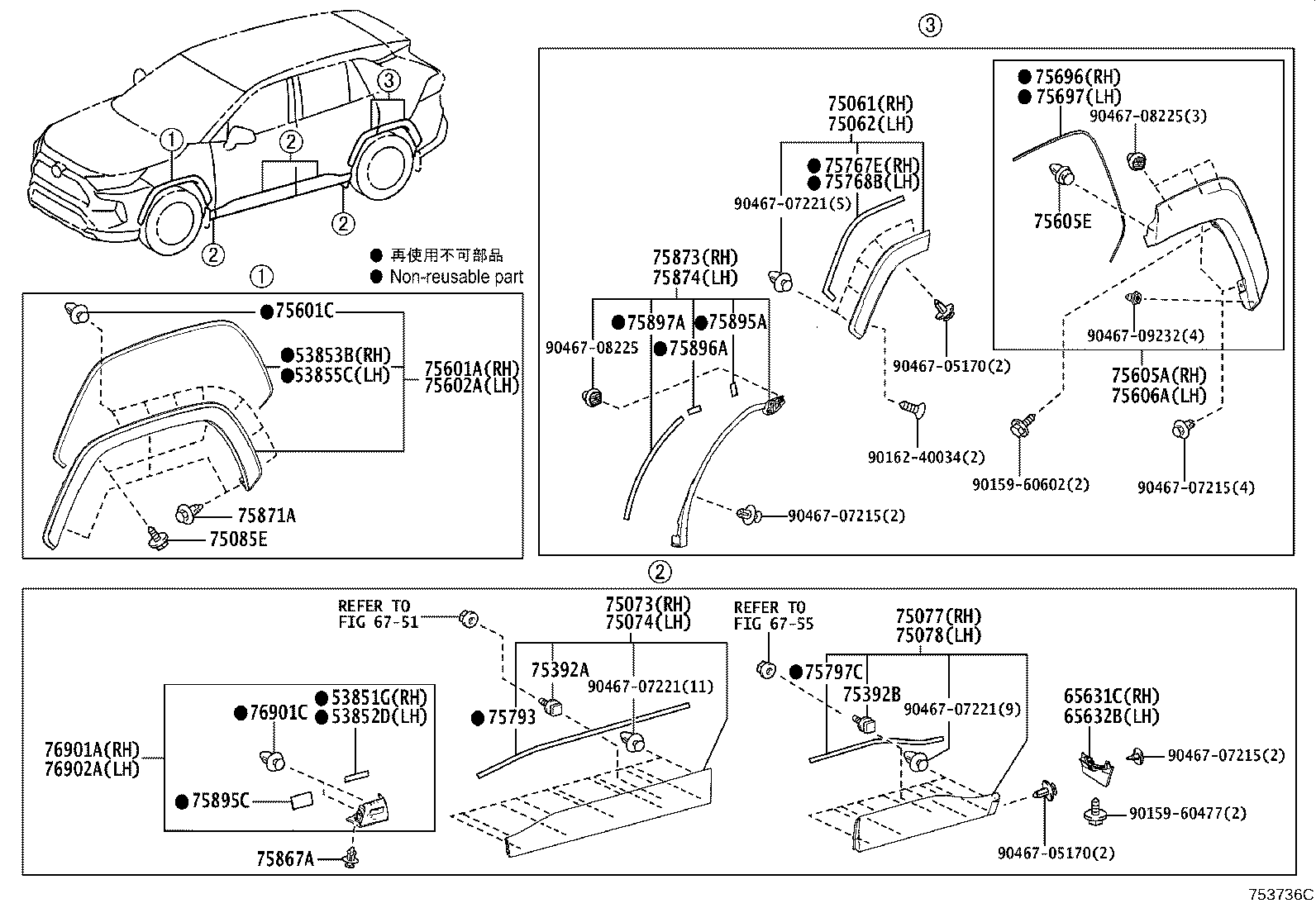

Moulding
70 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53851G | Pad, Front Wheel Opening Extension, RH |
| 53852D | Pad, Front Wheel Opening Extension, LH |
| 53853B | Pad, Front Wheel Opening Extension, NO.1 |
| 53855C | Pad, Front Wheel Opening Extension, NO.5 |
| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 62791G | Moulding, Quarter Window, Upper RH |
| 62792V | Moulding, Quarter Window, Upper LH |
| 65631C | Plate, Rear Wheel House, Front RH |
| 65632B | Plate, Rear Whell House, Front LH |
| 75061 | Moulding Set, Outside |
| 75062 | Moulding Set, Outside, LH |
| 75073 | Moulding Sub-assy, Front Door, Outside Lower RH |
| 75074 | Moulding Sub-assy, Front Door, Outside Lower LH |
| 75077 | Moulding Sub-assy, Rear Door Outside Lower RH |
| 75078 | Moulding Sub-assy, Rear Door Outside Lower LH |
| 75085E | Screw, NO.1 |
| 75392A | Retainer, Outside Moulding, NO.1 |
| 75392B | Reteiner, Outside Moulding, NO.1 |
| 75551E | Moulding, Roof Drip Side Finish, RH |
| 75552E | Moulding, Roof Drip Side Finish, LH |
| 75553A | Moulding, Roof Drip Side Finish, Rear RH |
| 75554A | Moulding, Roof Drip Side Finish, Rear LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75601C | Clip, Front Fender Moulding |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605A | Moulding Sub-assy, Quarter Outside, RH |
| 75605E | Clip, Quarter Outside Moulding |
| 75606A | Moulding Sub-assy, Quarter Outside, LH |
| 75691A | Pad, Front Fender Outside Moulding, RH |
| 75692A | Pad, Front Fender Outside Moulding, LH |
| 75696 | Pad, Body Outside Moulding, NO.1 |
| 75697 | Pad, Body Outside Moulding, NO.2 |
| 75711B | Moulding, Front Door Belt, RH |
| 75712B | Moulding, Front Door Belt, LH |
| 75721A | Moulding, Rear Door Belt, RH |
| 75722A | Moulding, Rear Door Belt, LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755A | Moulding, Front Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75756D | Moulding, Front Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75761B | Moulding, Rear Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75762B | Moulding, Rear Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75765B | Moulding, Rear Door Window Frame, RH(REAR PILLAR SIDE) |
| 75766B | Moulding, Rear Door Window Frame, LH(REAR PILLAR SIDE) |
| 75767E | Pad, Rear Door Moulding, RH |
| 75768B | Pad, Rear Door Moulding, LH |
| 75792 | Clip, Door Window Frame Moulding |
| 75793 | Pad, Front Door Outside Moulding, Upper |
| 75797C | Pad, Rear Door Outside Moulding, Upper |
| 75798B | Pad, Rear Door Outside Moulding, Rear |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
| 75867K | Clip, Rocker Panel Moulding |
| 75871A | Clip (FOR FRONT FENDER MOULDING NO.1) |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 75895A | Tape, Moulding, NO.1 |
| 75895C | Tape, Moulding, NO.3 |
| 75896A | Tape, Moulding, NO.2 |
| 75897A | Tape, Moulding, NO.2 |
| 76901A | Mudguard Sub-assy, Side, RH |
| 76901C | Clip, Fender Panel Mudguard |
| 76902A | Mudguard Sub-assy, Side, LH |
| 76924H | Retainer, Side Mudguard, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
