Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States
Supported model
Data version 2023-10

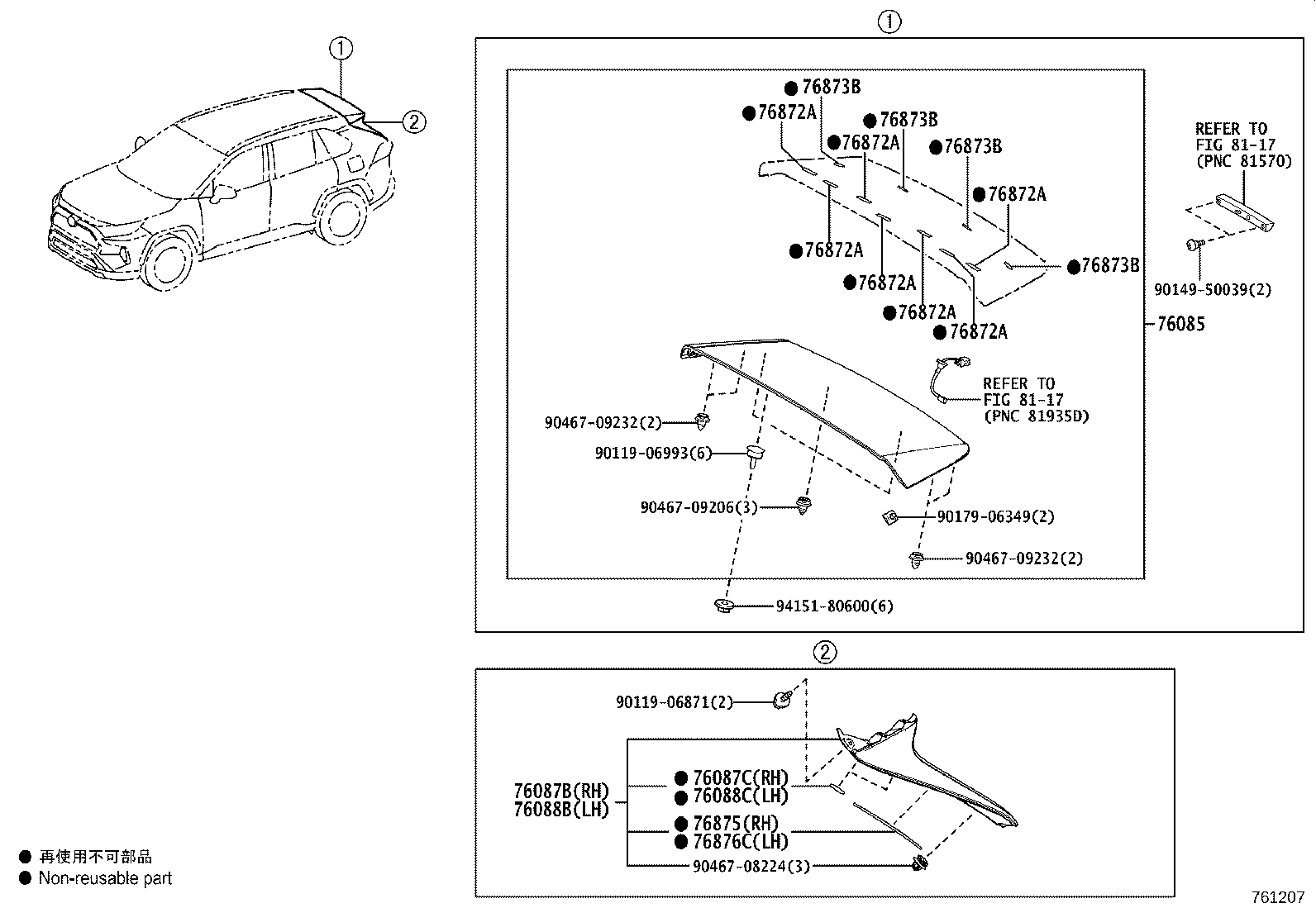

Spoiler & Side Mudguard
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 76085 | Spoiler Sub-assy, Rear |
| 76087B | Spoiler Sub-assy, Rear Side, RH |
| 76087C | Protector, Rear Side Spoiler |
| 76088B | Spoiler Sub-assy, Rear Side, LH |
| 76088C | Protector, Rear Side Spoiler |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76873B | Protector, Rear Spoiler, NO.2 |
| 76874C | Protector, Rear Spoiler, NO.3 |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76876C | Protector, Rear Spoiler, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
