Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

6 part groups · 2 illustrations

Illustrations

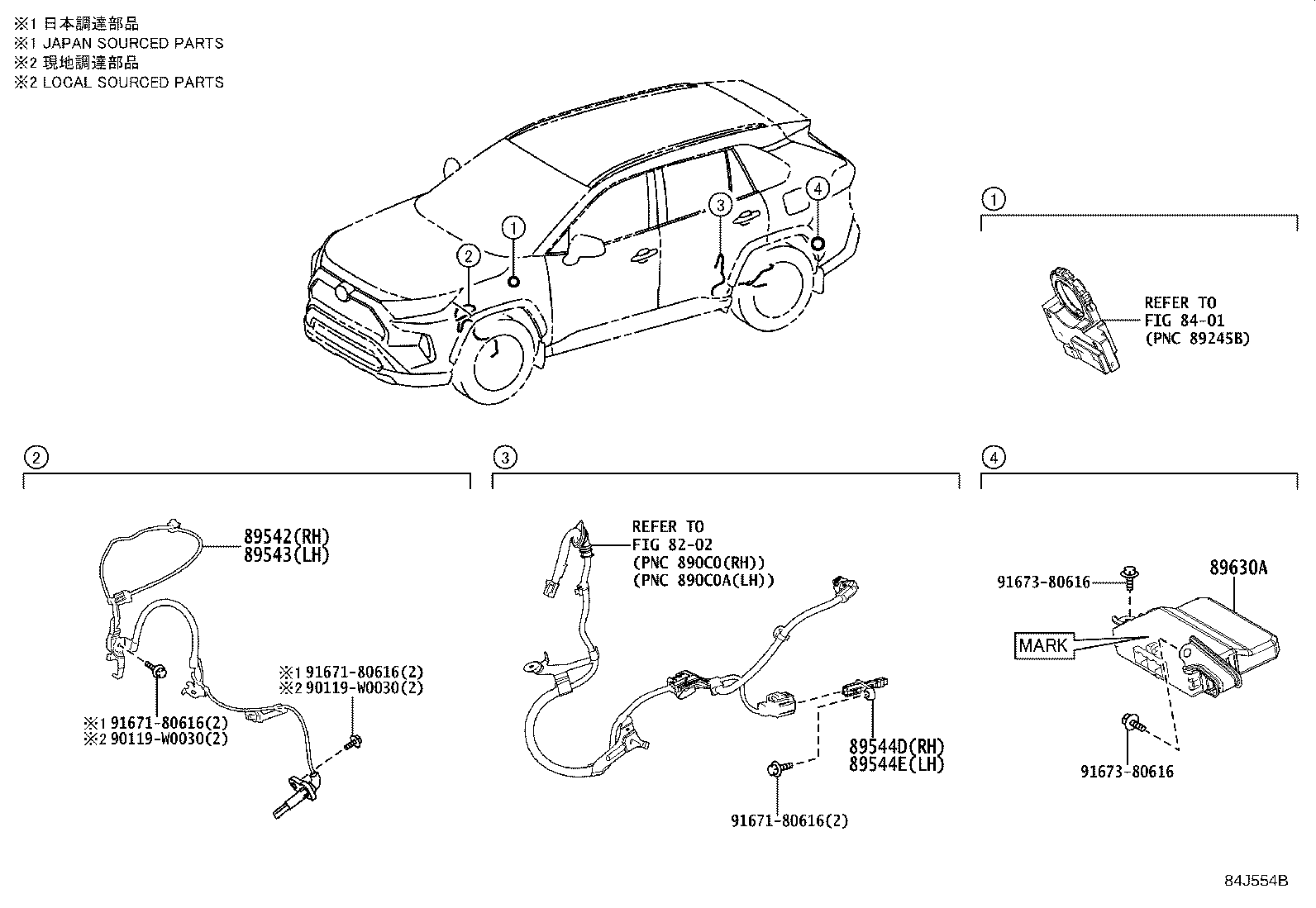

Figure 84J551C 84J551C 2018-11 → — Figure 84J554B 84J554B 2018-11 → —

Part groups

PNCDescription
89510D Sensor Assy, Brake Pedal Stroke
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544D Sensor, Skid Control, Rear RH
89544E Sensor, Skid Control, Rear LH
89630A Computer Assy, 4WD
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
