Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States
Supported model
Data version 2023-10
Hev Inverter
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

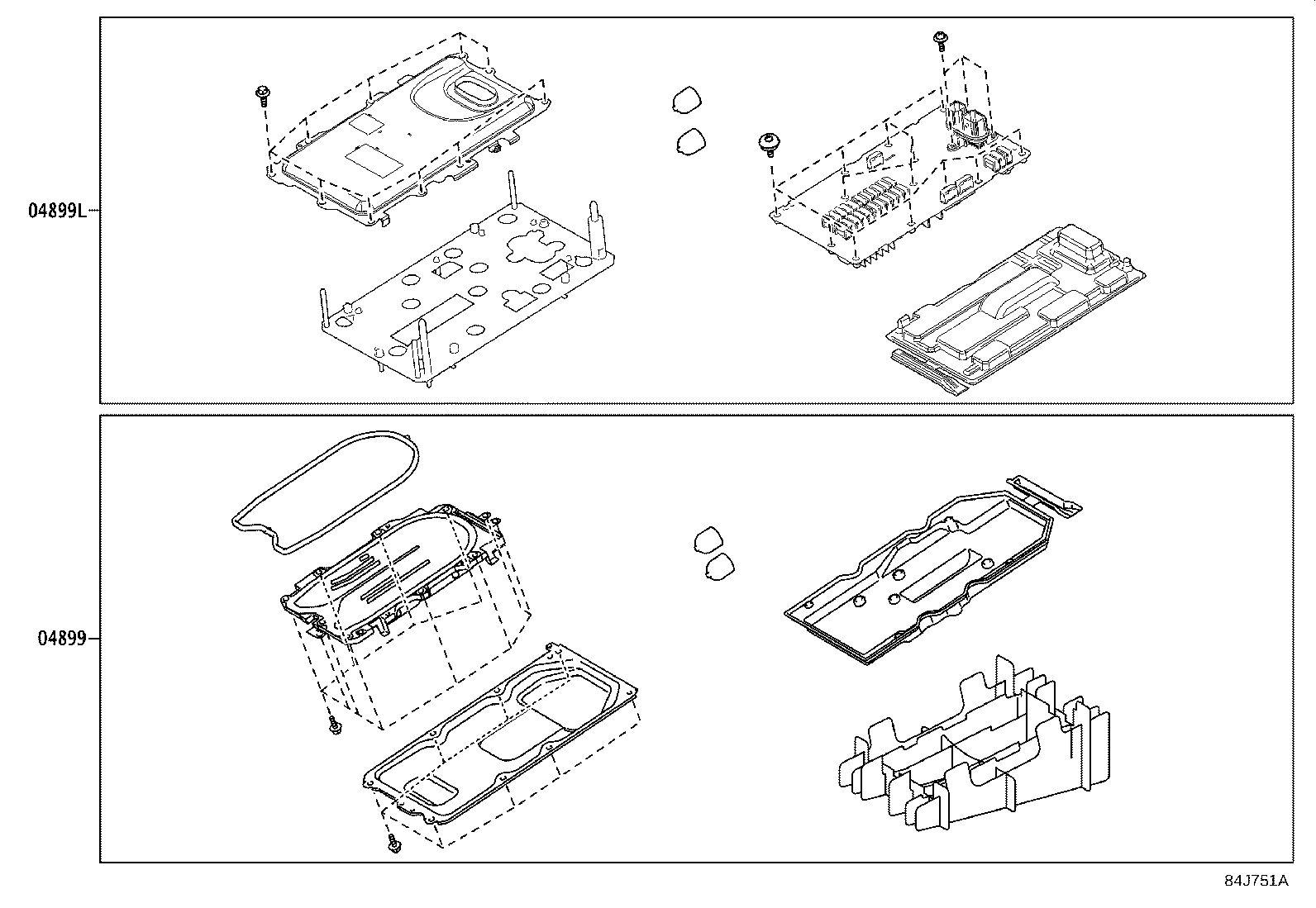

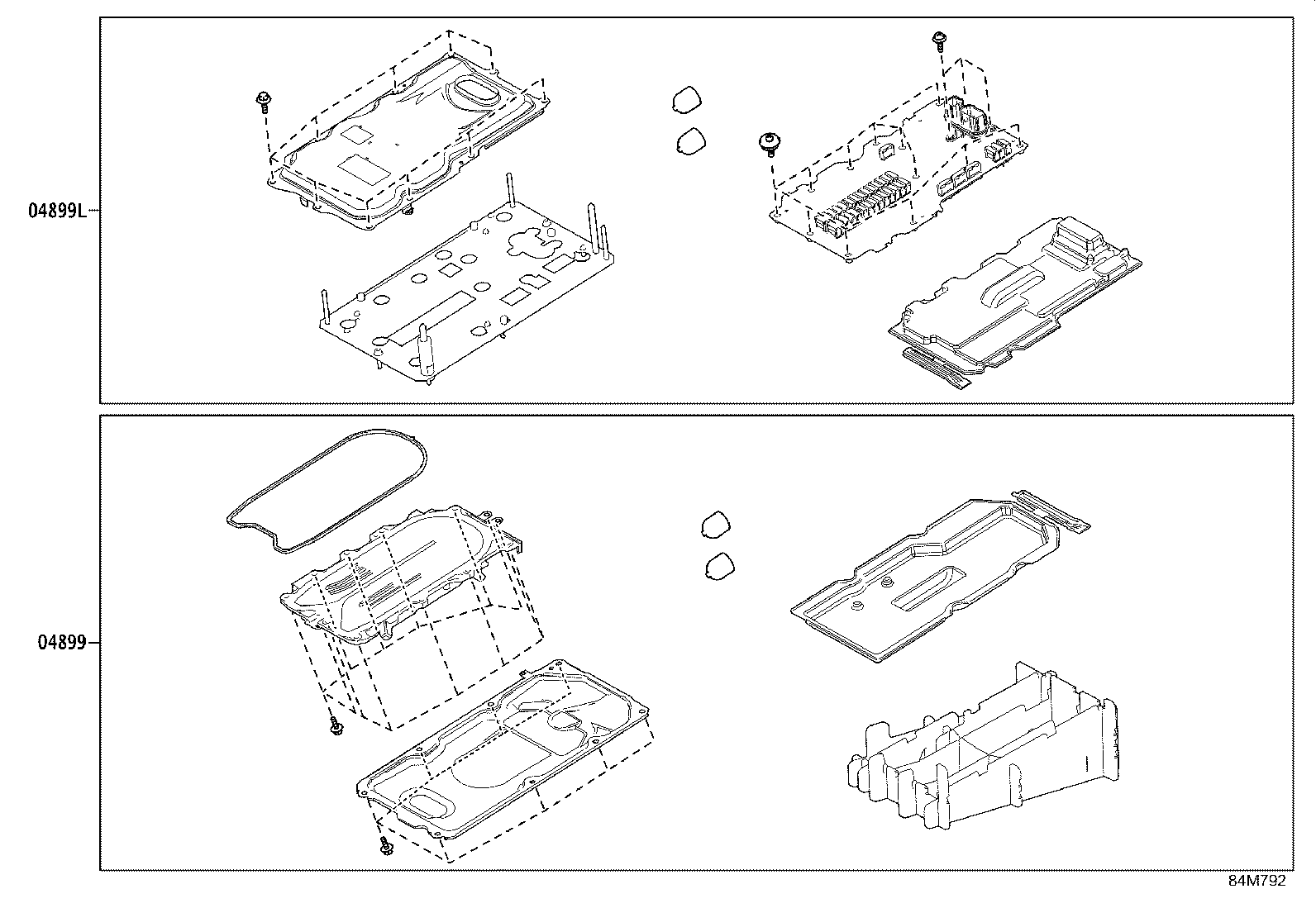

| 04899 | Converter Kit, HV |
| 04899L | Computer Kit, Motor Generator Control |

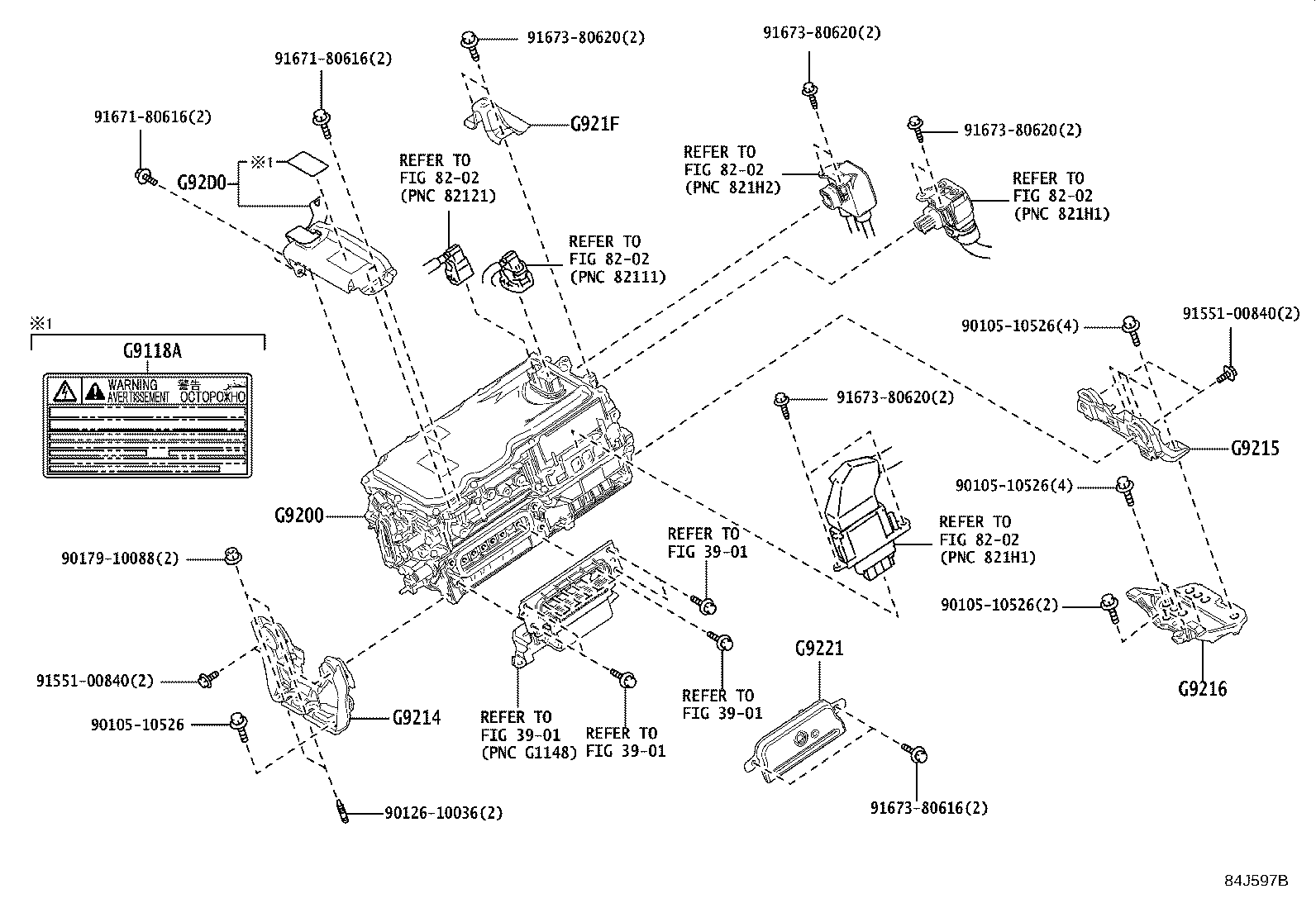

| G9118A | Label, HV Motor Control Inverter Caution |
| G9200 | Inverter Assy, W/Converter |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G9216 | Bracket, Inverter, NO.3 |
| G921F | Protector, Inverter, NO.2 |
| G9221 | Cover, Inverter |
| G92D0 | Protector Assy, Hybrid Inverter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
