Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States
Supported model
Data version 2023-10
Radio Receiver & Amplifier & Condenser
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

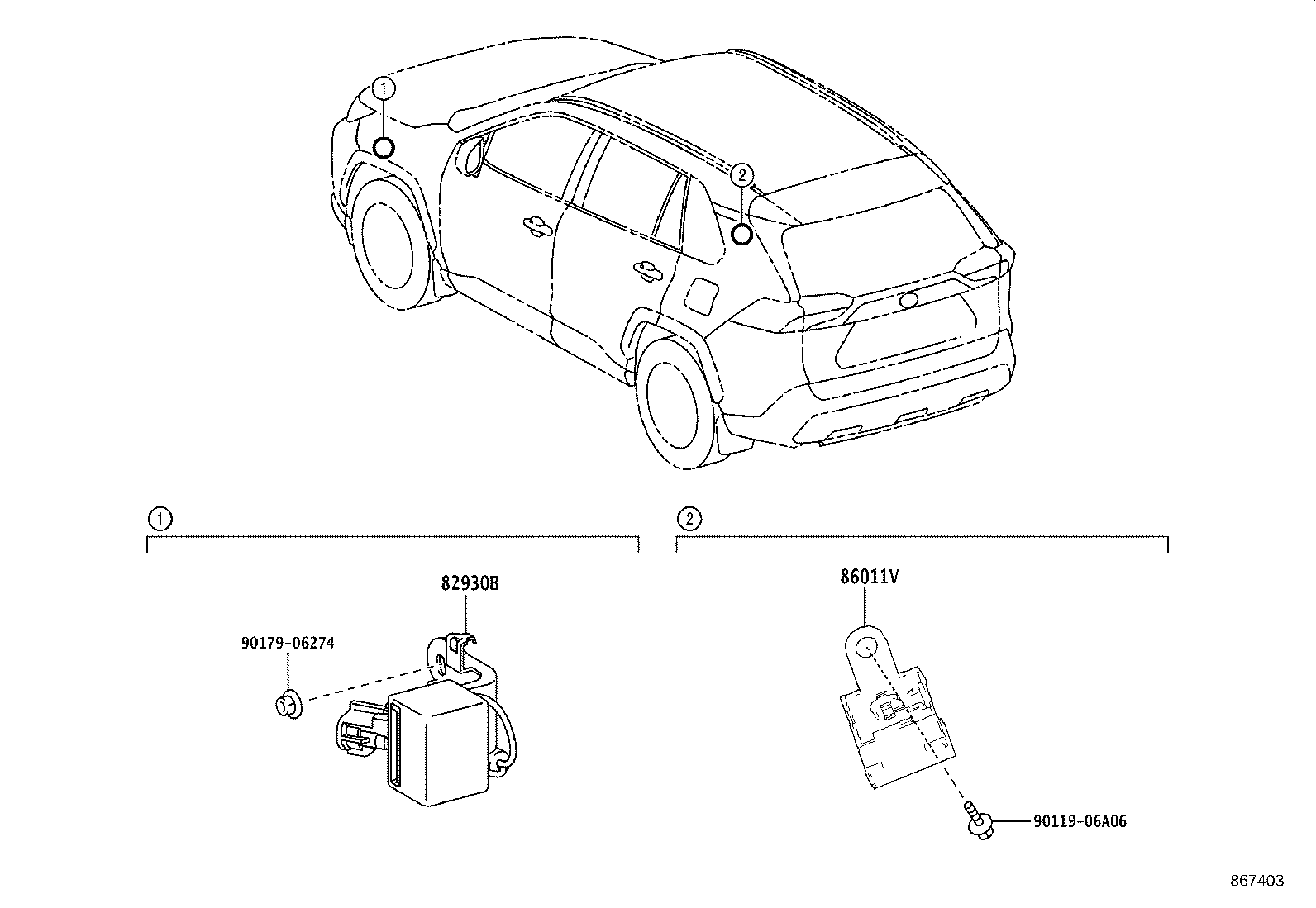

| 82930B | Condenser Assy, Wiring Harness |
| 86011V | Condenser, Radio Setting |

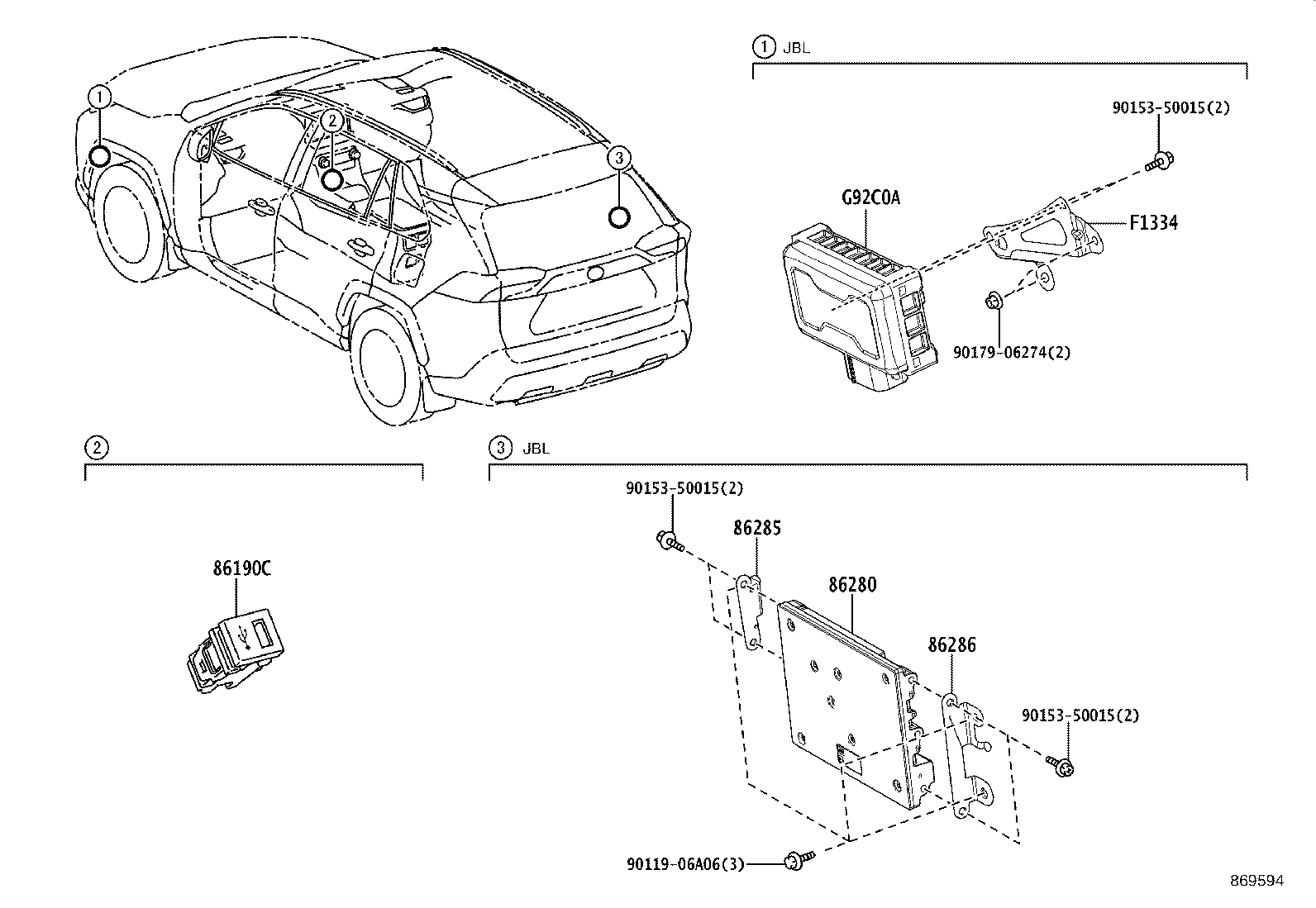

| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
| F1334 | Bracket, Converter Control, NO.1 |
| G92C0A | Converter Assy, Eco-run Vehicle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
