Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL54 · catalogue 662450 · United States
Supported model
Data version 2023-10

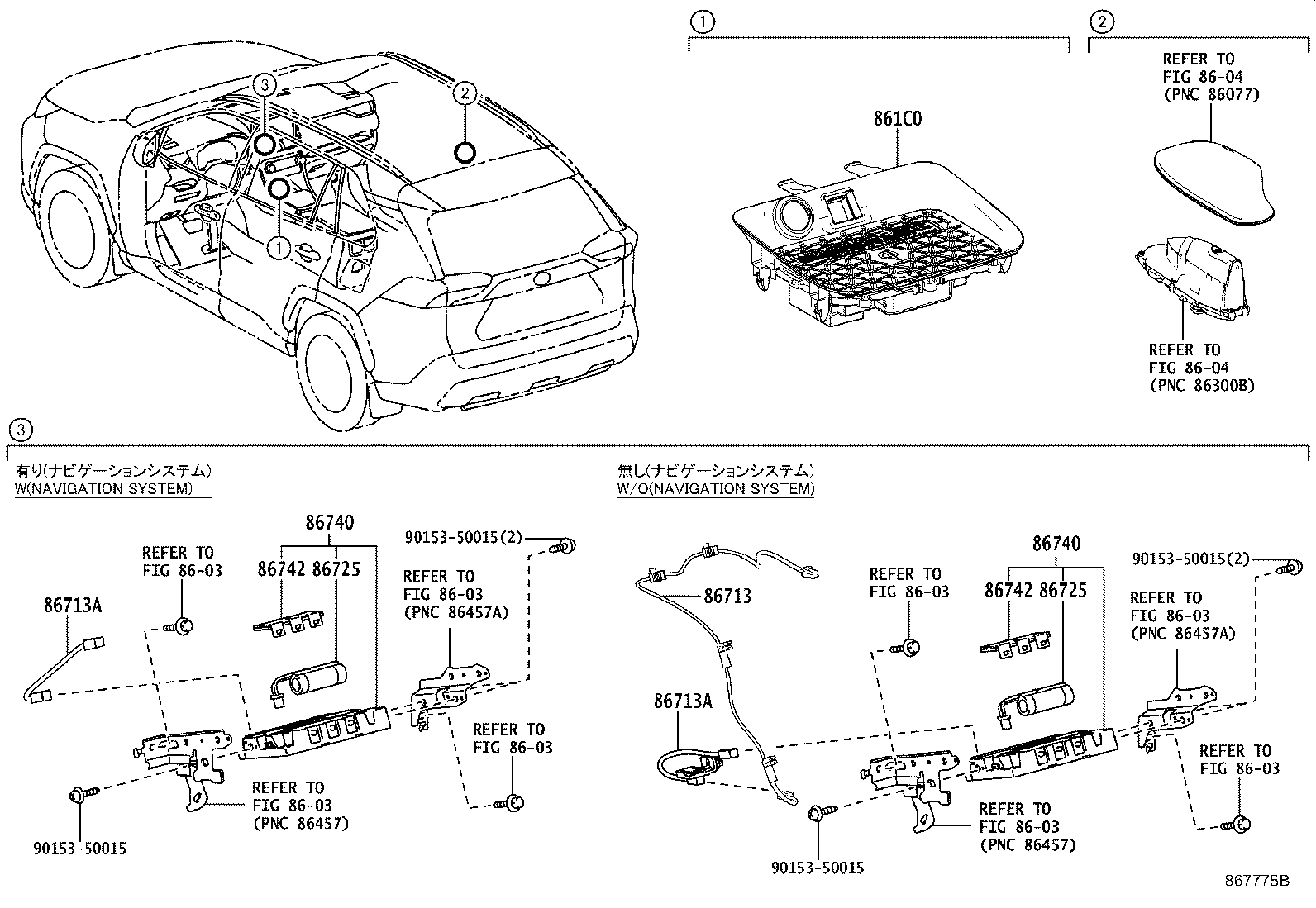

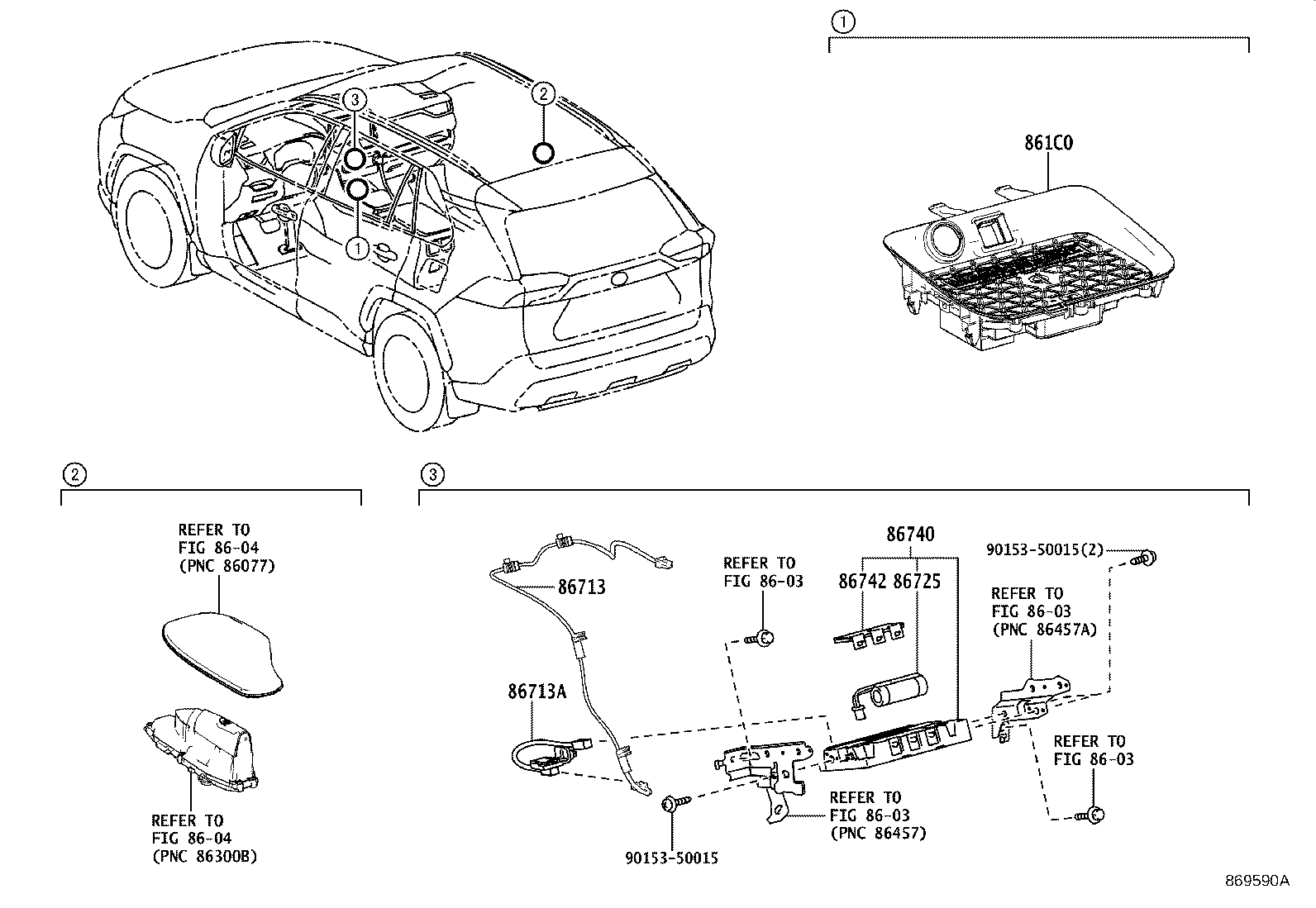

Telephone & Mayday
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86713 | Wire, Telephone Computer |
| 86713A | Wire, Telephone Computer, (TO TRANSCEIVER) |
| 86725 | Battery, Mobilephone |
| 86740 | Transceiver Assy, Telephone |
| 86742 | Cover, Transceiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
