Toyota FJ Cruiser
2006-01 → 2014-07 · chassis GSJ1# · catalogue 663410 · United States
Supported model
Data version 2014-08

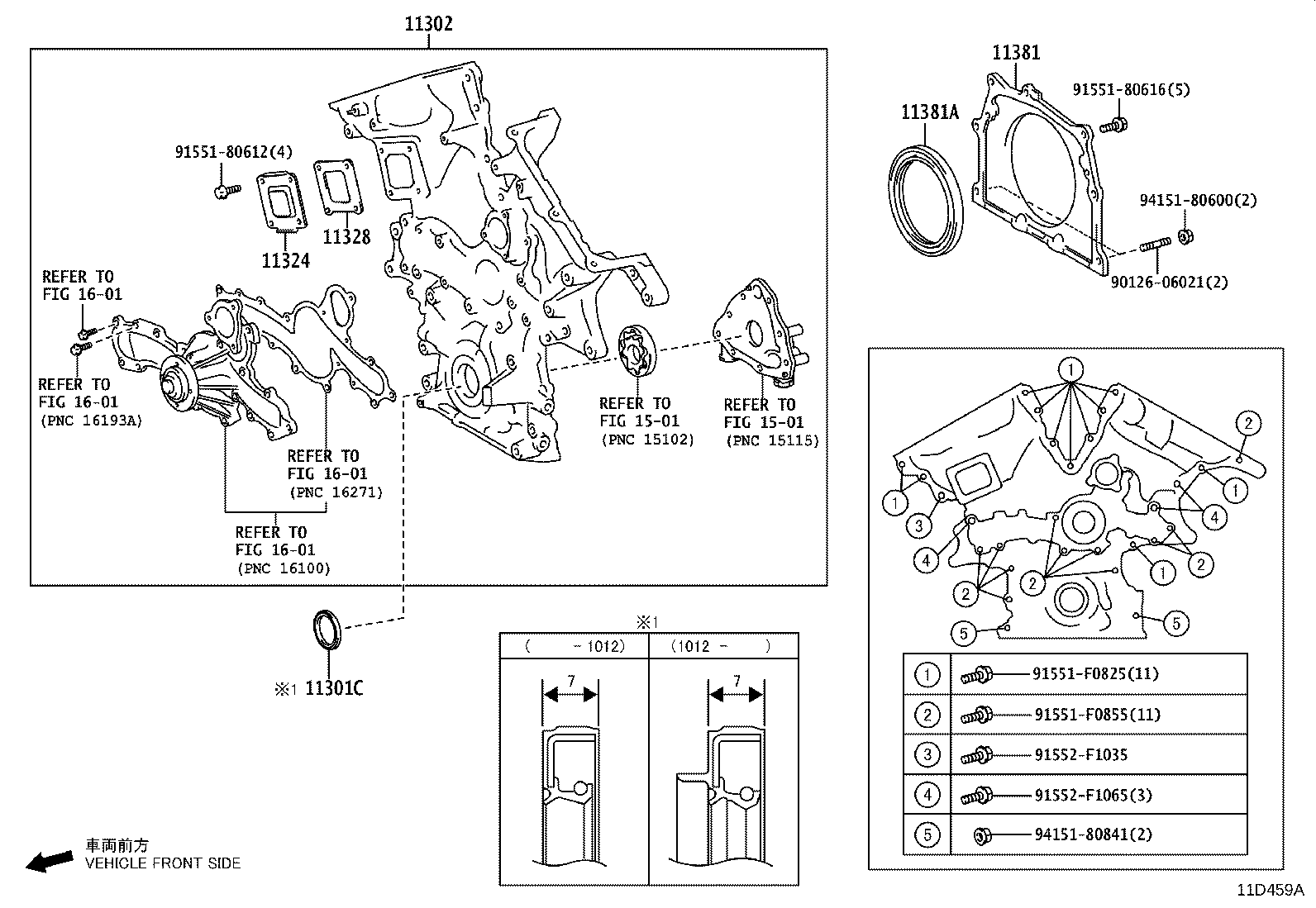

Timing Gear Cover & Rear End Plate
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301M | Sensor, Cam Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11324 | Plate, Timing Chain Cover |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
