Toyota FJ Cruiser
2006-01 → 2014-07 · chassis GSJ1# · catalogue 663410 · United States
Supported model
Data version 2014-08

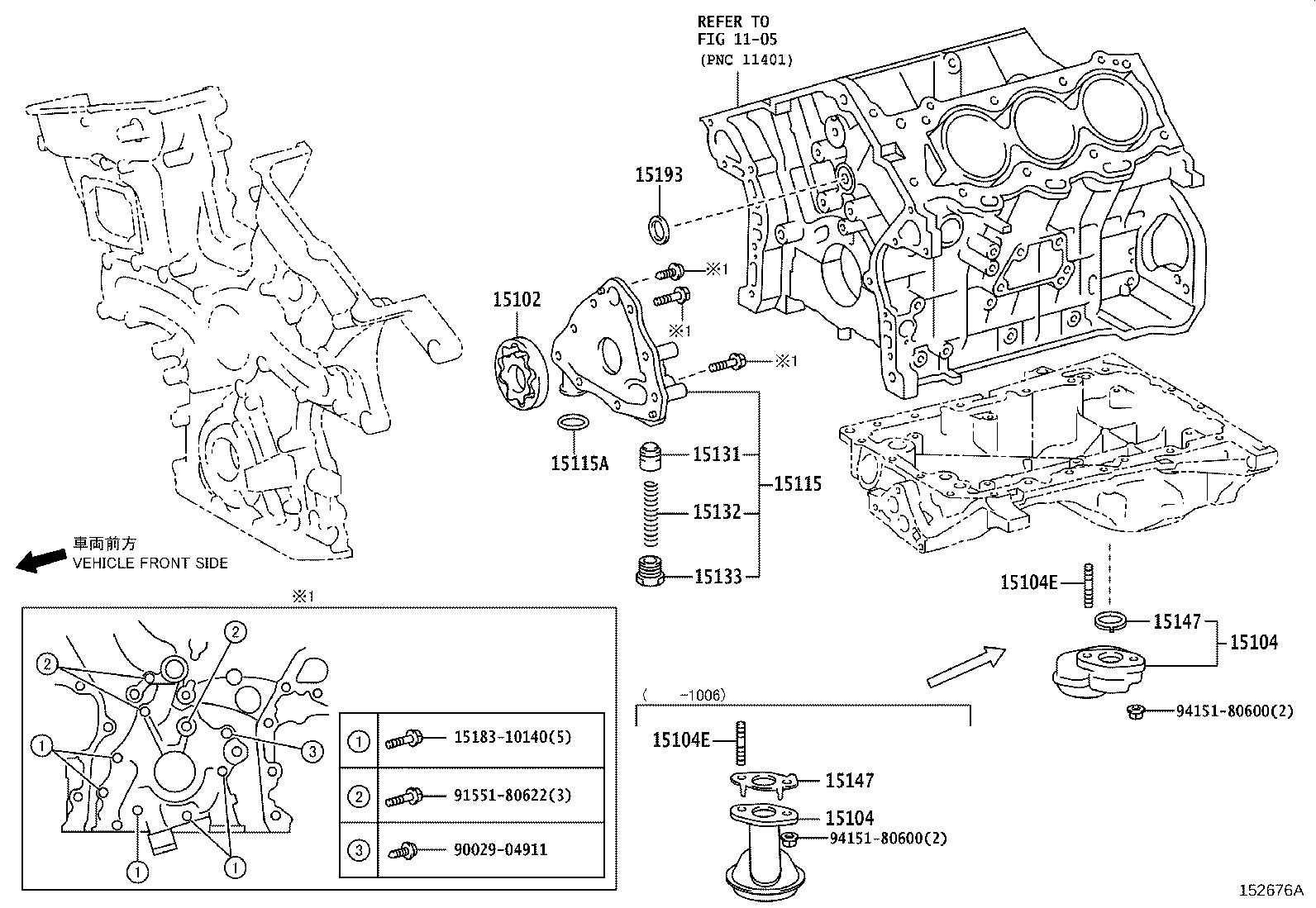

Engine Oil Pump
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15102 | Rotor Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15104E | Bolt, Stud(FOR OIL STRAINER) |
| 15115 | Cover, Oil Pump |
| 15115A | Ring, O(FOR OIL PUMP COVER) |
| 15119 | Gasket, Oil Pump Cover |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
| 15188 | Gasket, Oil Pump |
| 15193 | Gasket, Oil Pump |
| 15413 | Pipe, Oil Pump Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
