Toyota FJ Cruiser

2006-01 → 2014-07 · chassis GSJ1# · catalogue 663410 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

7 part groups · 2 illustrations

Illustrations

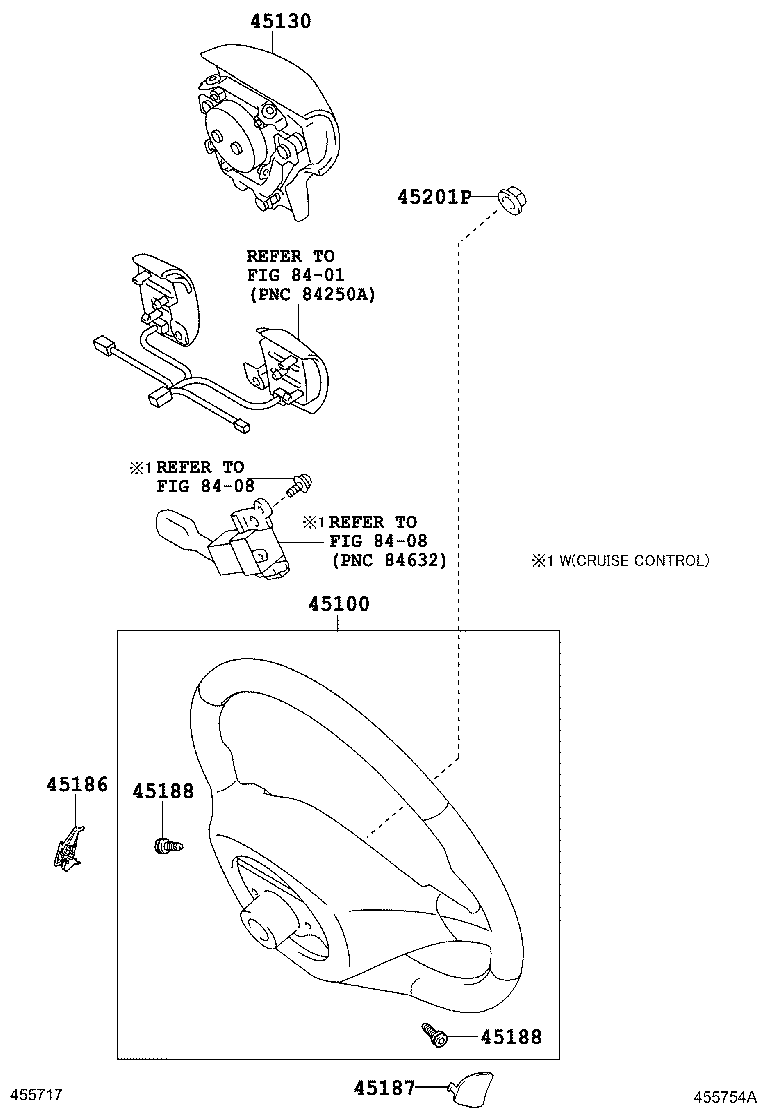

Figure 454419A 454419A 2006-01 → 2010-11 Figure 455754A 455754A 2010-11 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
