Toyota FJ Cruiser

2006-01 → 2014-07 · chassis GSJ1# · catalogue 663410 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

18 part groups · 3 illustrations

Illustrations

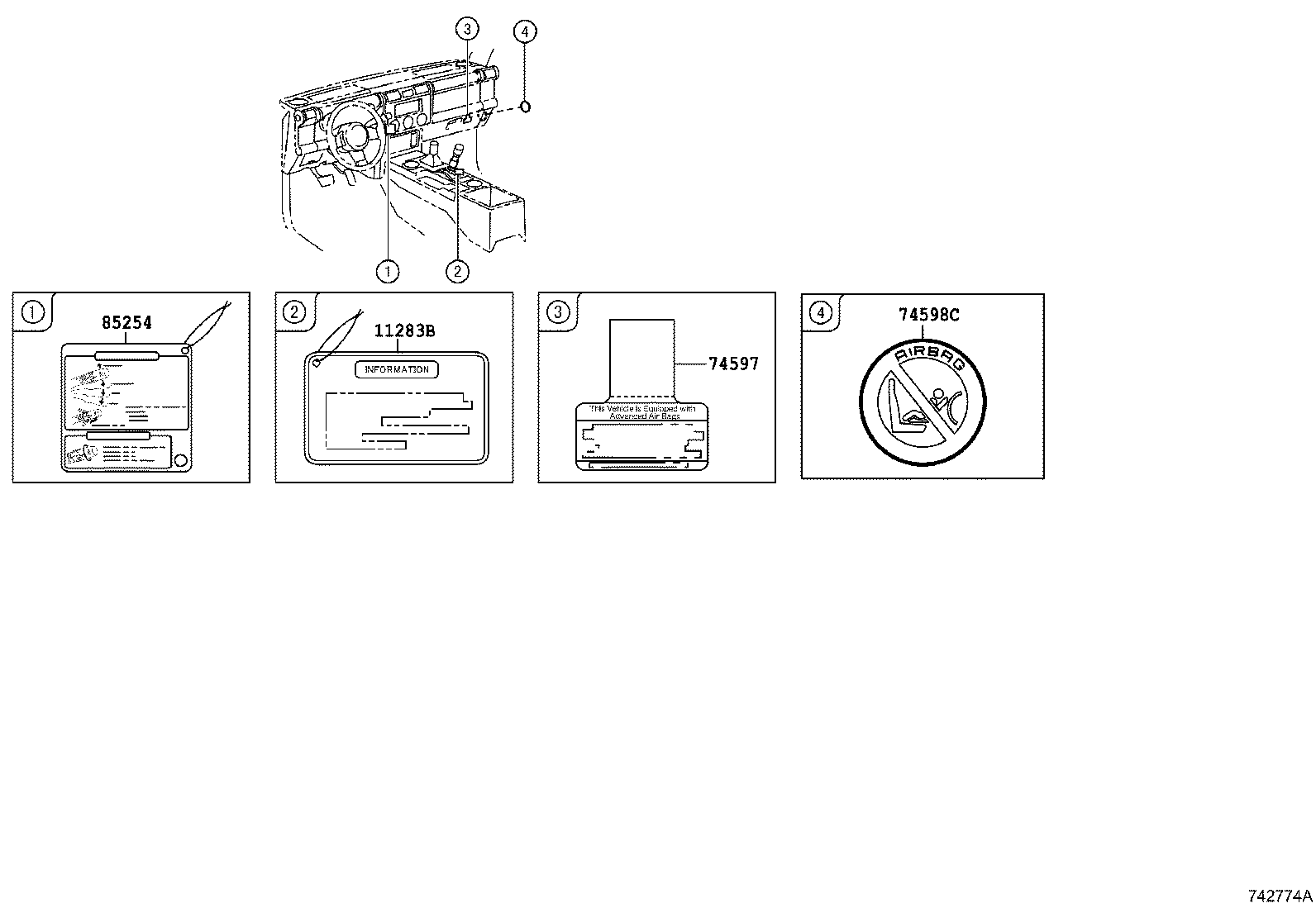

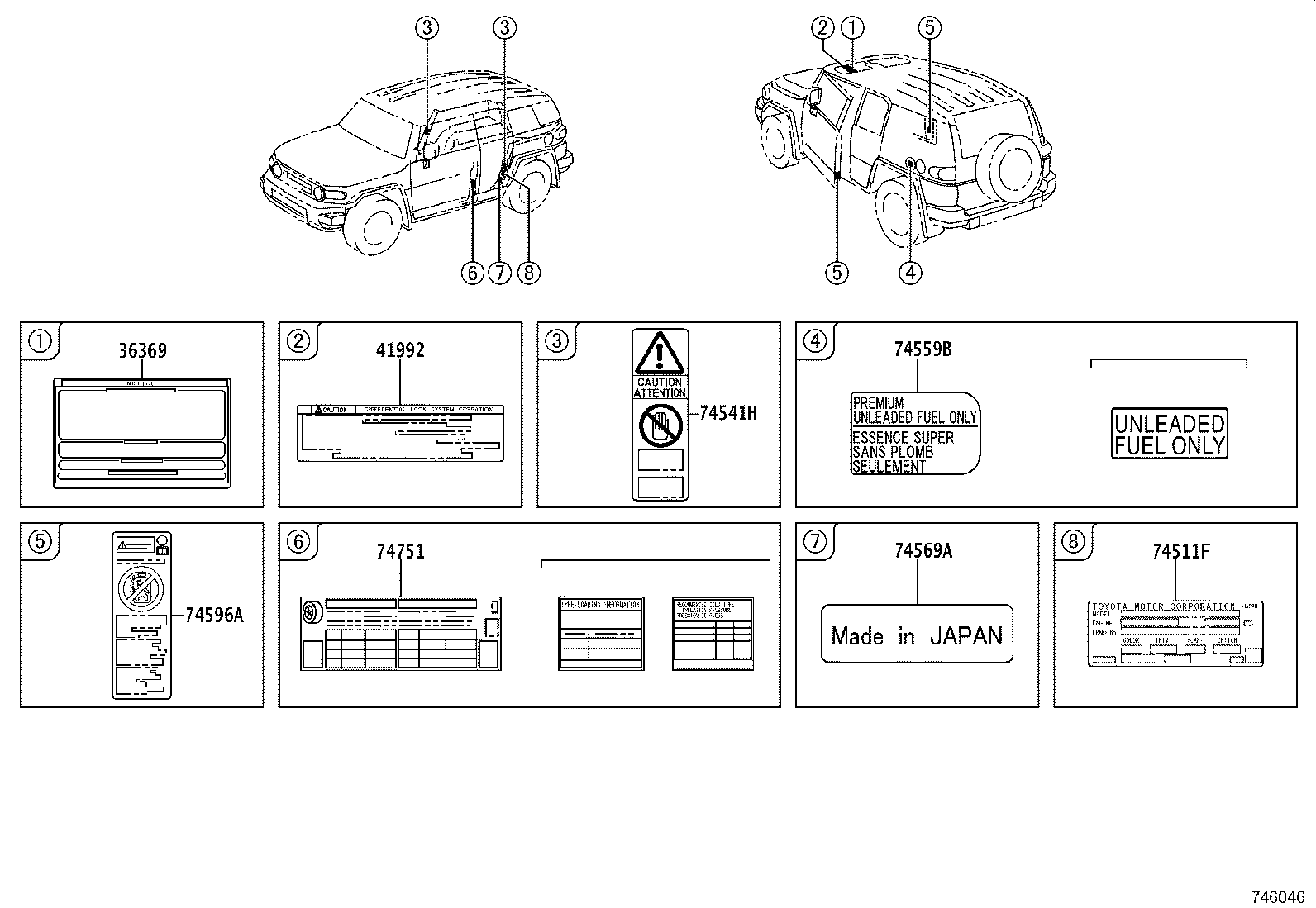

Figure 741821P 741821P 2006-01 → — Figure 746046 746046 2006-01 → — Figure 742774A 742774A 2006-01 → —

Part groups

PNCDescription
11282B Label, Loaded Testing Caution
11283B Label, Leak Detection Pump Information
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
11298B Label, Emission Control Information
17792C Label, Engine Vacuum Hose Information
36369 Label, Transfer Information
41992 Label, Differential Notice
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541H Plate, Body Caution
74559B Label, Fuel Information
74569A Plate, Vehicle Information
74596A Label, Side Airbag Caution
74597 Label, Driver & Passenger Airbag Caution
74598C Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
85254 Label, Rear Wiper Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
