Toyota FJ Cruiser

2006-01 → 2014-07 · chassis GSJ1# · catalogue 663410 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 2 illustrations

Illustrations

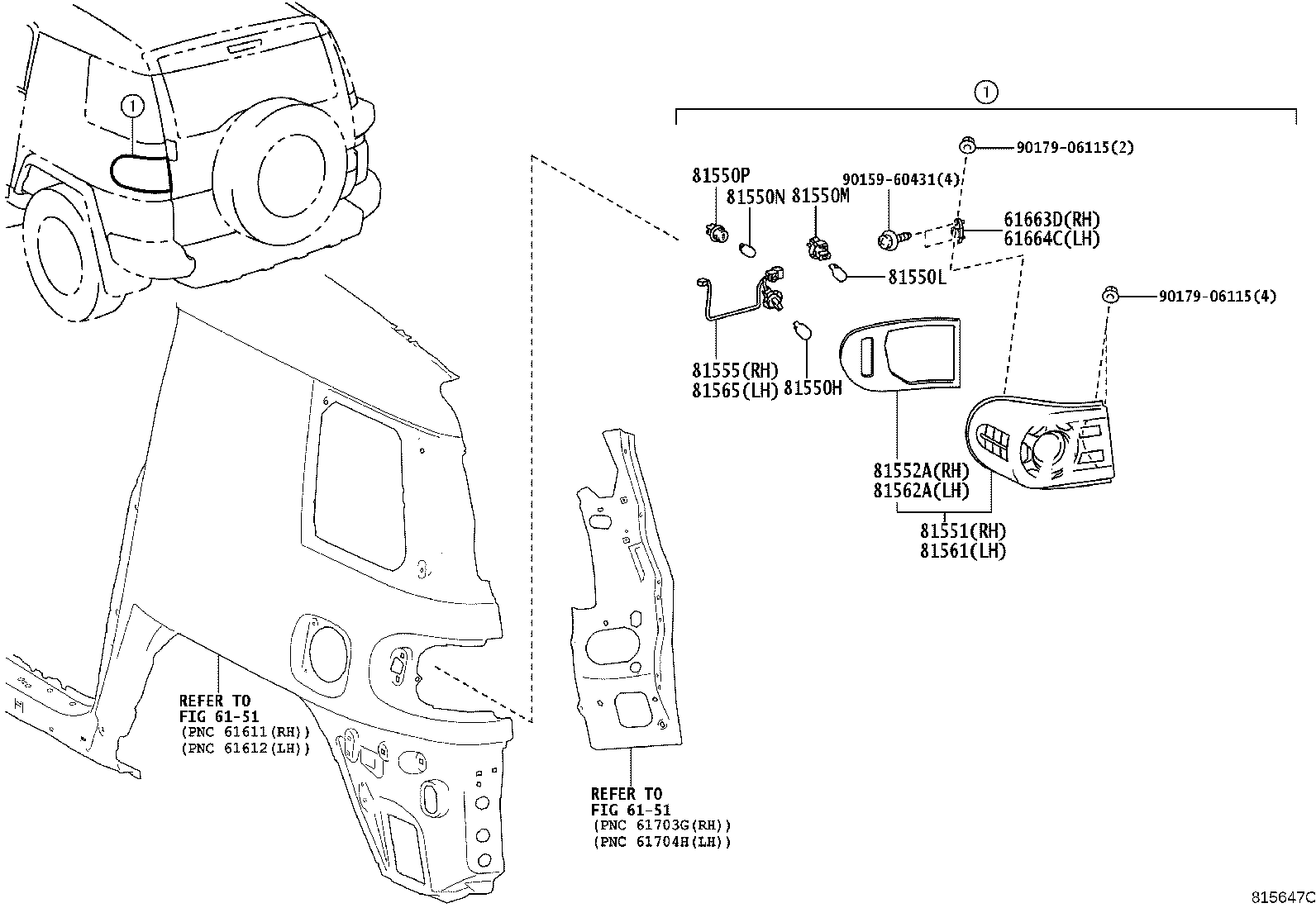

Figure 813551B 813551B 2006-01 → 2011-08 Figure 815647C 815647C 2011-08 → 2014-07

Part groups

PNCDescription
61663D Support, Rear Combination Lamp, RH
61664C Support, Rear Combination Lamp, LH
81550H Bulb, Tail & Stop Lamp
81550J Socket, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550M Socket, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550P Socket, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81552A Gasket, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81562A Gasket, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
