Toyota FJ Cruiser
2006-01 → 2014-07 · chassis GSJ1# · catalogue 663410 · United States
Supported model
Data version 2014-08
Switch & Relay & Computer
104 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28380A | Resister, Fuel Pump |
| 45116A | Ornament, Steering Wheel, NO.1 |
| 55905G | Knob Sub-assy, Control |
| 55905N | Knob Sub-assy, Control, NO.1 |
| 81240F | Relay, Dome Lamp |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |

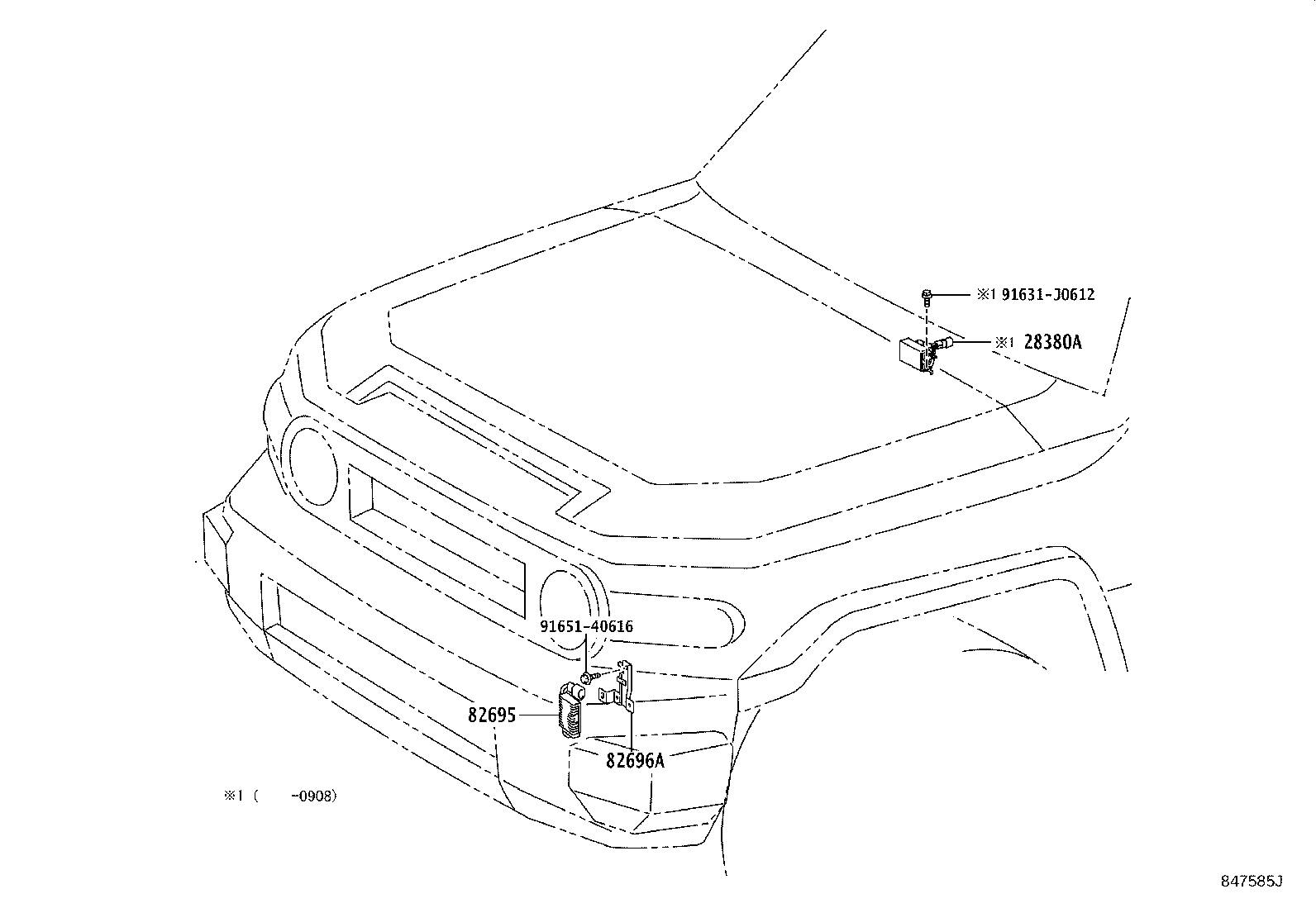

| 82695 | Resistor, Daytime Running Light |
| 82696A | Bracket, Running Light Resistor |
| 82715 | Bracket,Wiring Harness Clamp |

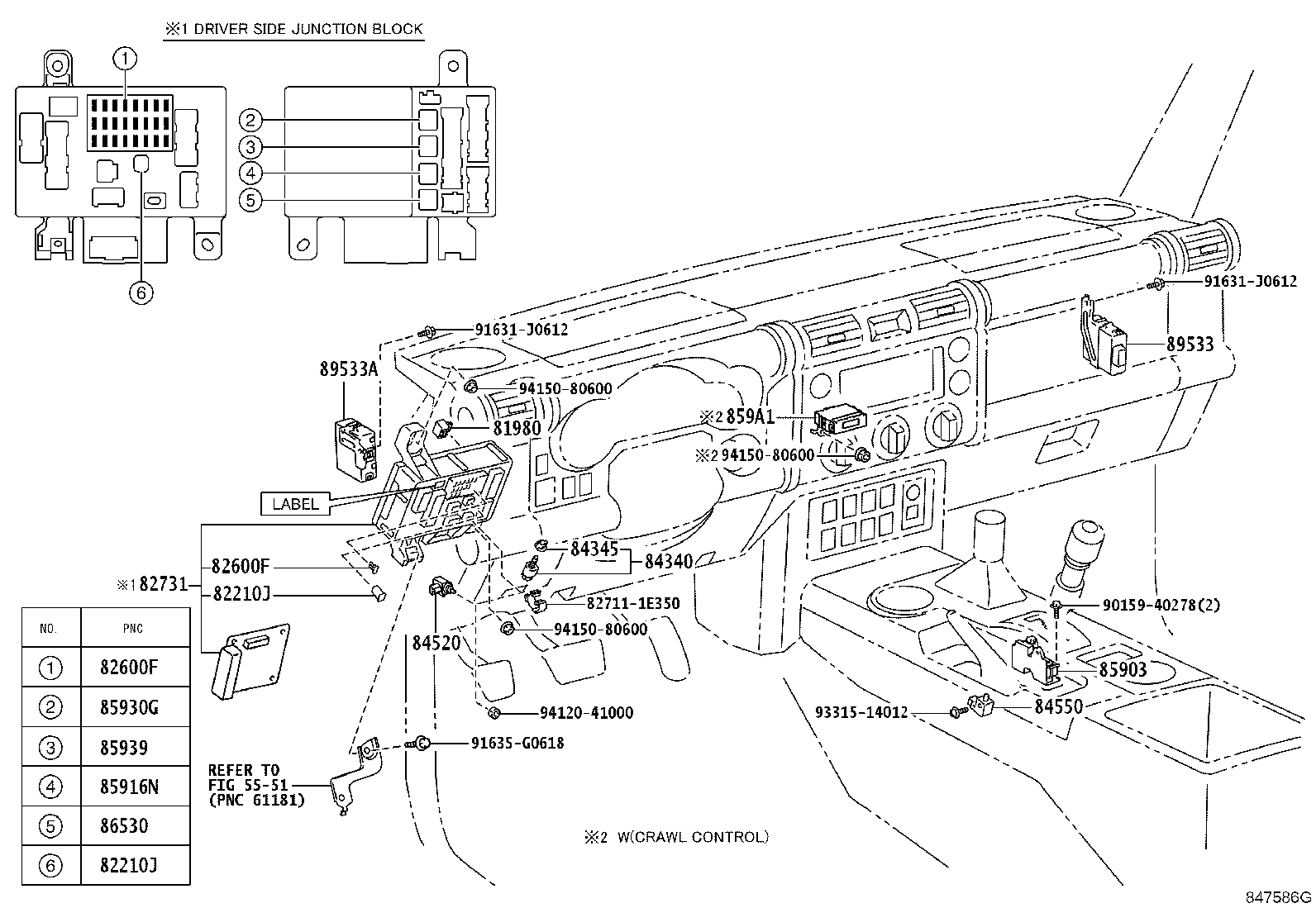

| 82731 | Block, Driver Side Junction |

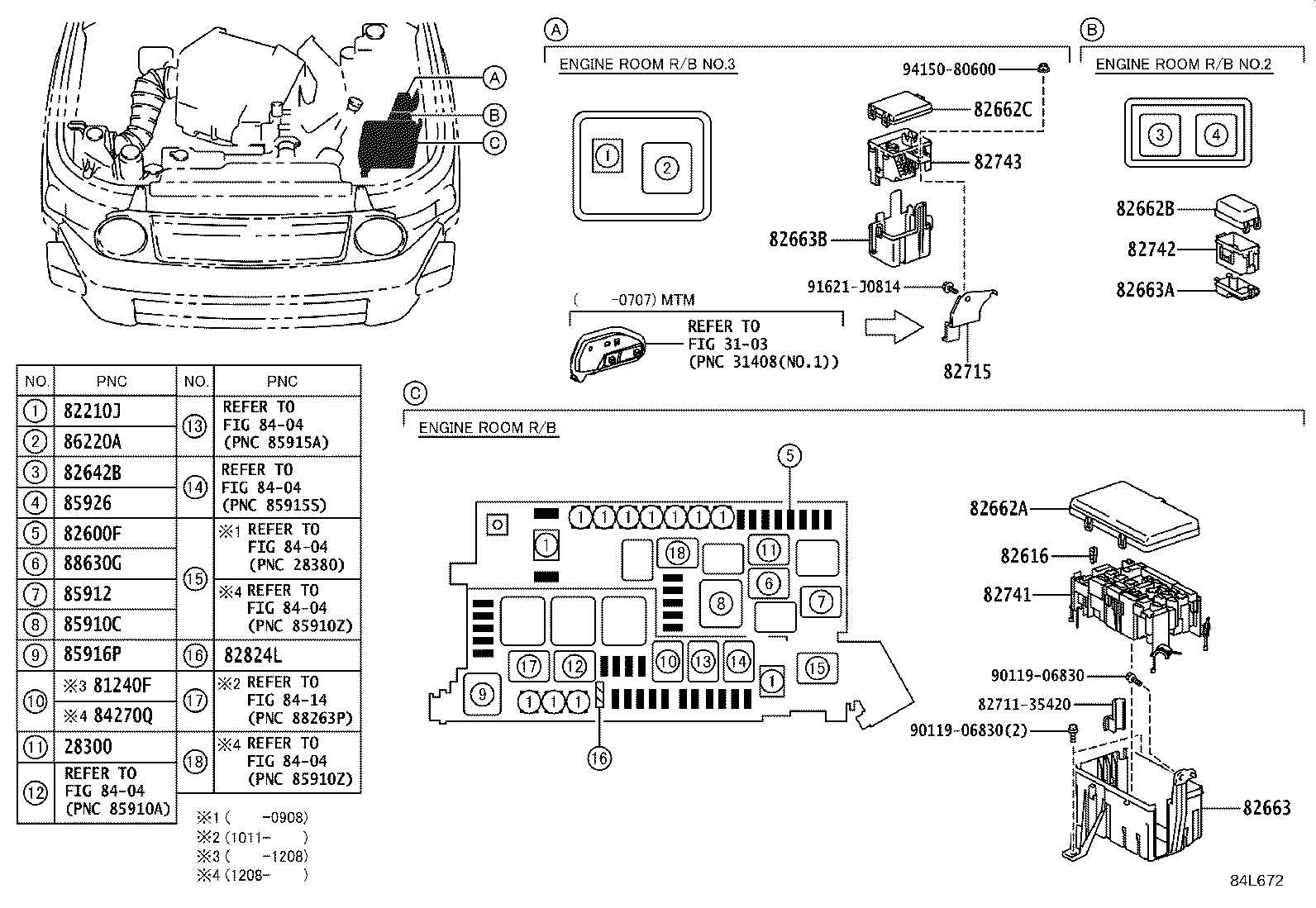

| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82824L | Pin, Short |
| 83181G | Sensor, Speedometer |
| 83181H | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

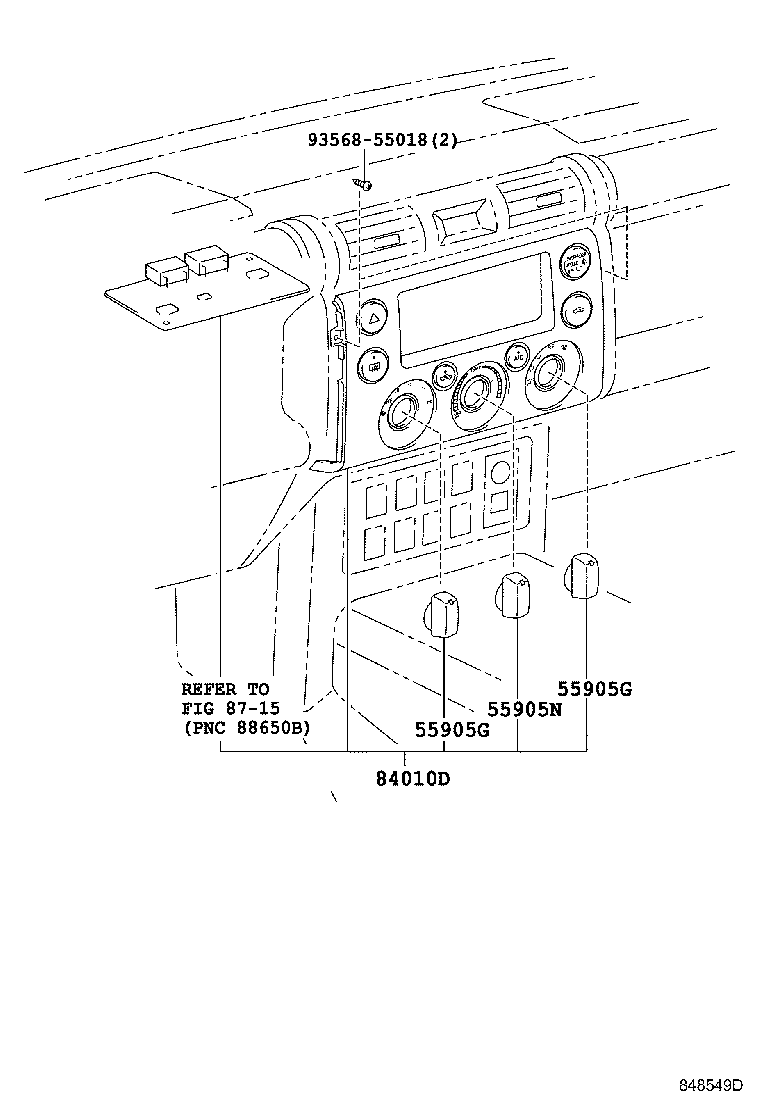

| 84010D | Control & Panel Assy, Integration |
| 84052 | Switch Assy, Un-lock Warning |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84222B | Switch, Transfer Indicator, NO.2 |
| 84222C | Switch, Transfer Indicator, NO.3 |
| 84222E | Switch, Differential Lock Indicator |
| 84223A | Switch, Transfer Position |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84247A | Switch, Steering Pad, LH |

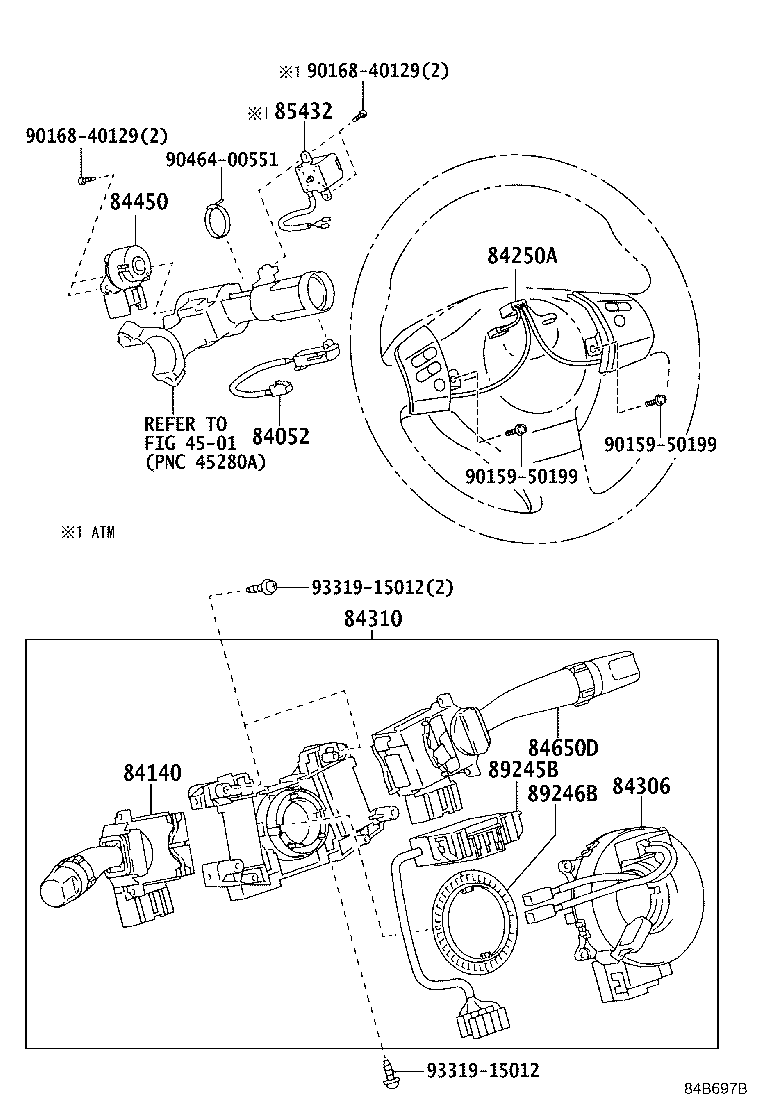

| 84250A | Switch Assy, Steering Pad |
| 84270Q | Relay, Lamp Cut |
| 84306 | Cable Sub-assy, Spiral |

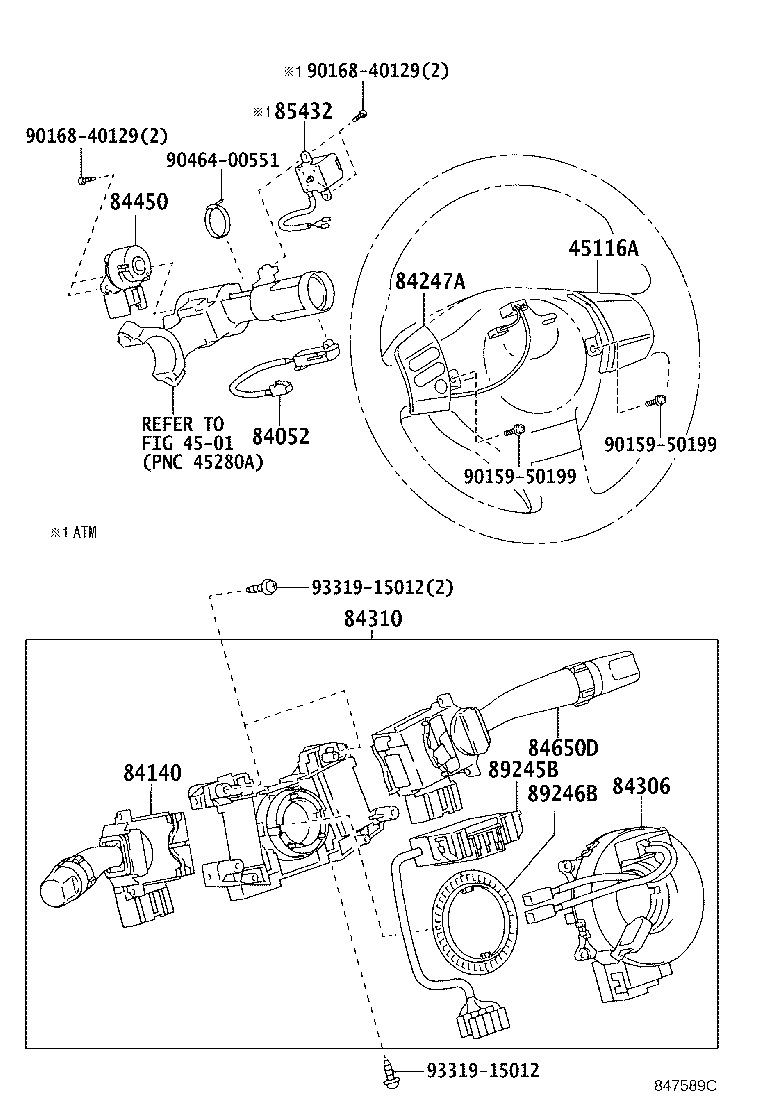

| 84310 | Switch Assy, Turn Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84415 | Switch, Curtain Airbag Cutoff |
| 84415A | Bulb, Curtain Airbag Cutoff Switch |
| 84450 | Switch Assy, Ignition OR Starter |
| 84480 | Switch Assy, Main |
| 84480A | Switch Assy, Clutch Start Cancel |
| 84480B | Bulb, Main Switch Assy |
| 84480C | Cap Bulb, Main Switch Assy |
| 84480D | Bulb, Clutch Start Cancel Switch Assy |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84725A | Switch, Differential Lock |
| 84725B | Blub, Differential Lock Switch |
| 84810 | Switch Assy, Power Window Regulator |

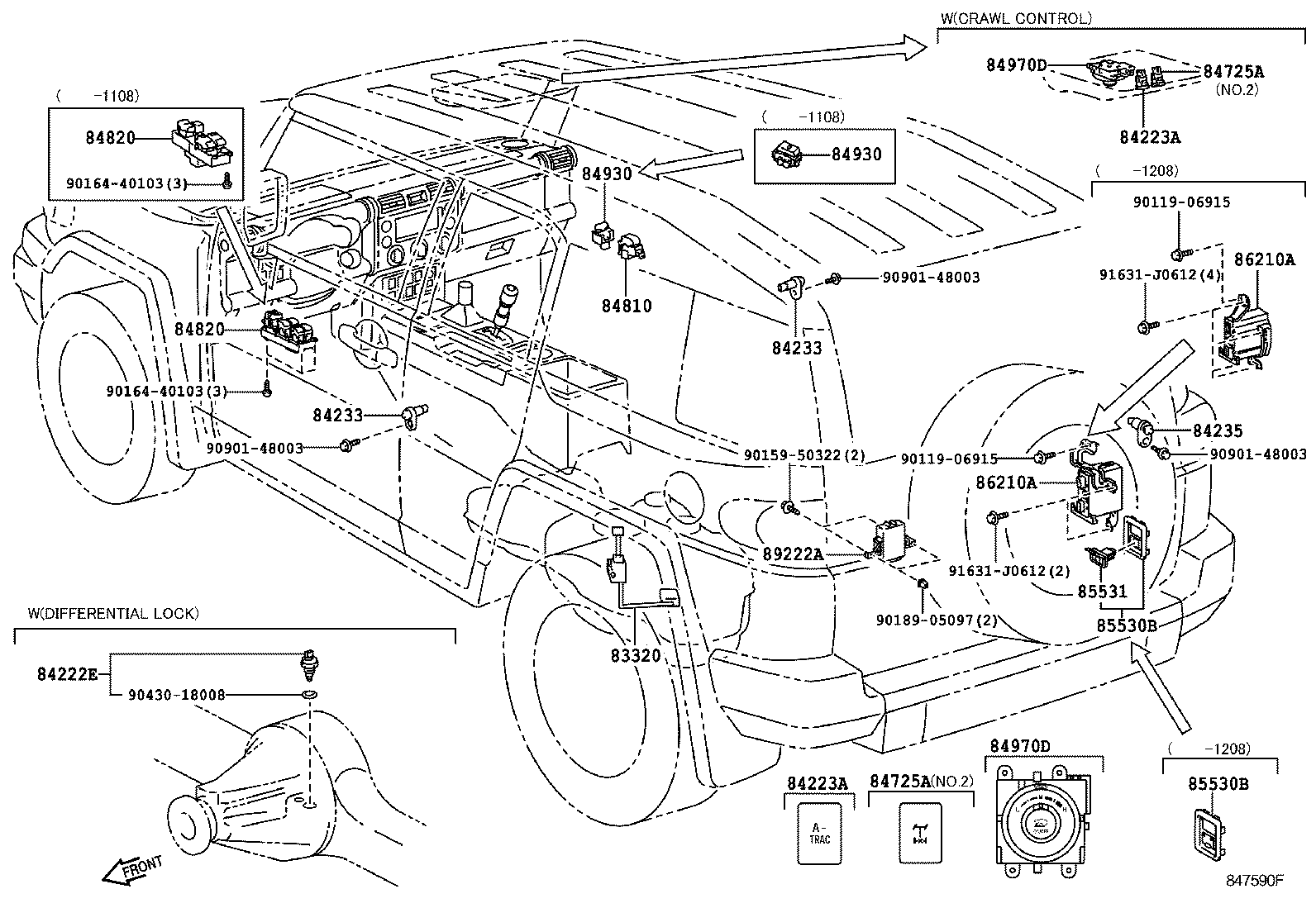

| 84820 | Master Switch Assy, Power Window Regulator |

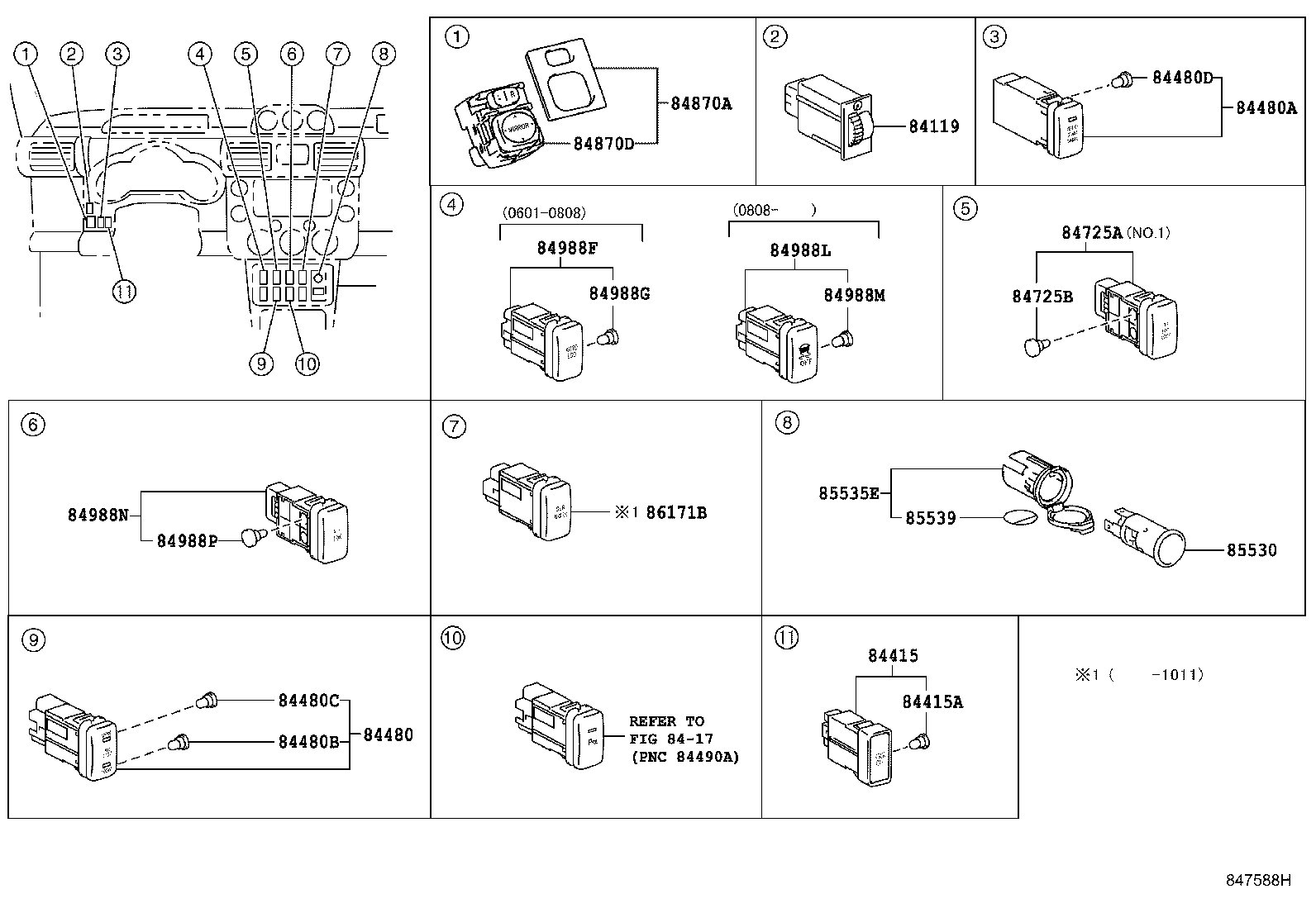

| 84870A | Switch Assy, Outer Mirror |
| 84870D | Switch Assy, Outer Mirror, NO.2 |
| 84930 | Switch Assy, Door Control |
| 84970D | Switch Assy, Crawl Control |
| 84988F | Switch, Traction Control |
| 84988G | Bulb, Traction Control Switch |
| 84988L | Switch, Vsc Off |
| 84988M | Bulb, Vsc Off Switch |
| 84988N | Switch, Traction Control, NO.2 |
| 84988P | Bulb, Traction Contorol Switch, NO.2 |
| 85432 | Solenoid, Key Interlock |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85531 | Socket, Power Outlet |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85539 | Label, Power Outlet Notice |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85930G | Relay, Acc |
| 85939 | Relay, Power Window |
| 859A1 | Computer, Driving Support Switch Control |
| 86171B | Switch, Woofer Speaker |
| 86210A | Inverter Assy, Voltage |
| 86220A | Relay, Inverter |
| 86530 | Relay Assy, Horn |
| 88630G | Relay Assy, Cooler |
| 89222A | Computer, Multiplex Network Door |
| 89245B | Sensor, Steering |
| 89246B | Disc, Sensor Steering |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89533 | Computer, 4 Wheel Drive Control |
| 89533A | Computer, 4 Wheel Drive Control, NO.2 |
| 89615 | Sensor, Knock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
