Toyota FJ Cruiser

2006-01 → 2014-07 · chassis GSJ1# · catalogue 663410 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 3 illustrations

Illustrations

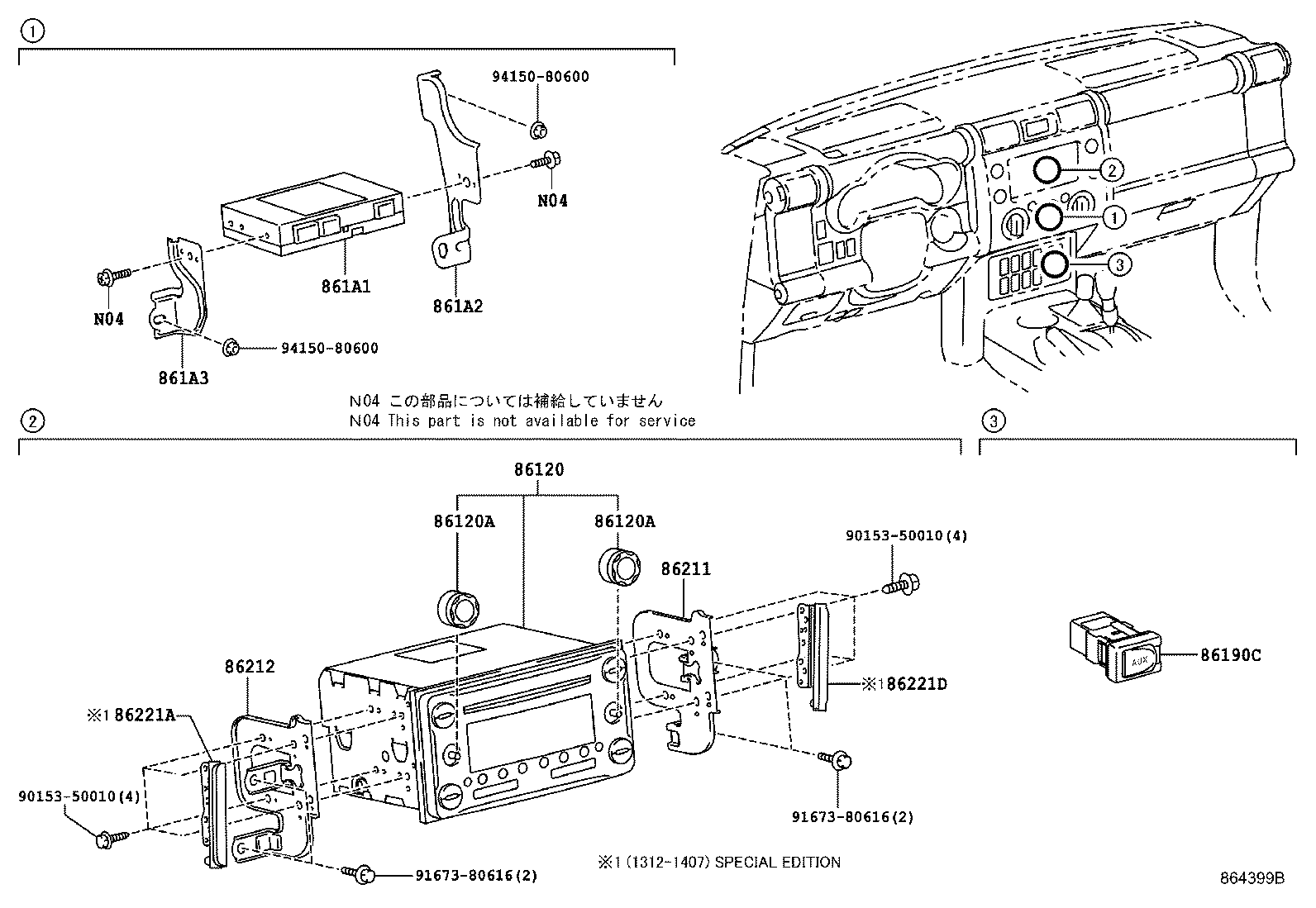

Figure 862715D 862715D 2006-01 → 2010-11 Figure 864399B 864399B 2010-11 → — Figure 862716B 862716B 2006-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
861A3 Bracket, Multi-media Interface, NO.2
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86221D Panel, Radio Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
