Toyota RAV4 EV

1997-09 → 2003-04 · chassis BEA11 · catalogue 664410 · United States

Discontinued model Data version 2003-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

34 part groups · 2 illustrations

Illustrations

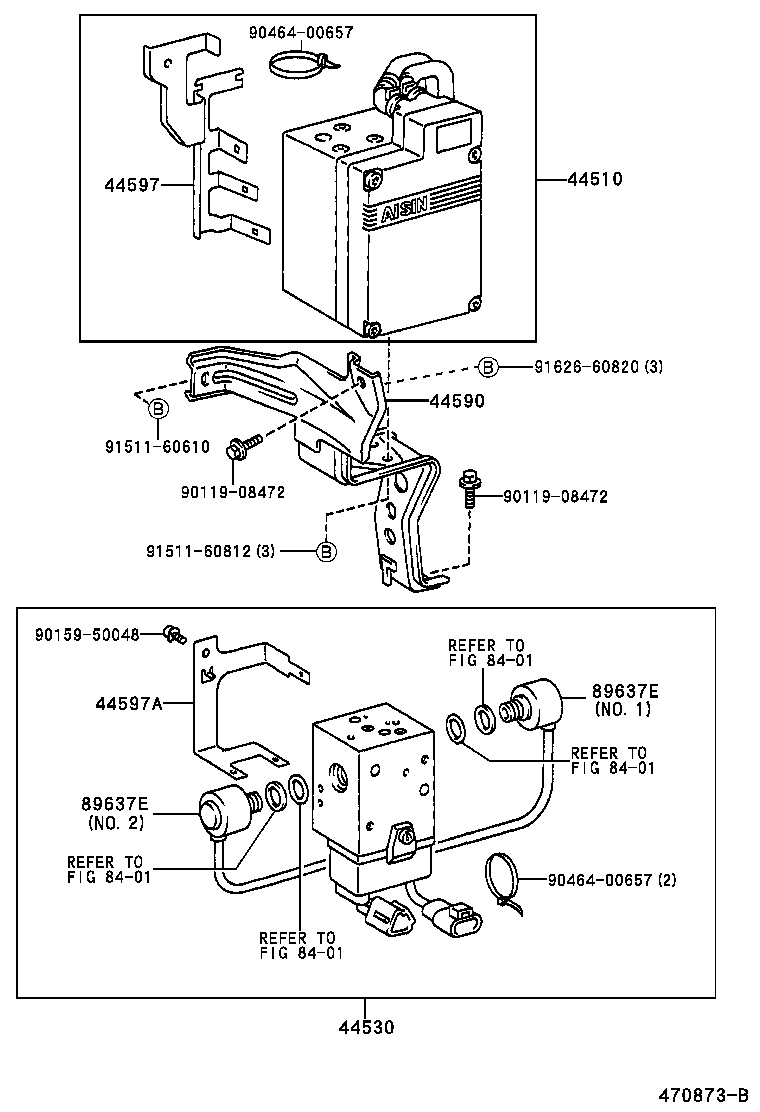

Figure 470872A 470872A 1997-09 → — Figure 470873B 470873B 1997-09 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44530 Valve Assy, Brake Actuator Control
44590 Bracket Assy, Brake Actuator
44597 Clamp, Brake Actuator Connector, NO.1
44597A Clamp, Brake Actuator Connector, NO.2
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316F Way, 3(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318F Hose, Flexible(FOR REAR RH)
47319 Tube, Front Brake, NO.9
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47351B Bracket, Flexible Hose, NO.1
47352B Bracket, Flexible Hose, NO.2
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
89637E Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
