Toyota RAV4 EV
1997-09 → 2003-04 · chassis BEA11 · catalogue 664410 · United States
Discontinued model
Data version 2003-12

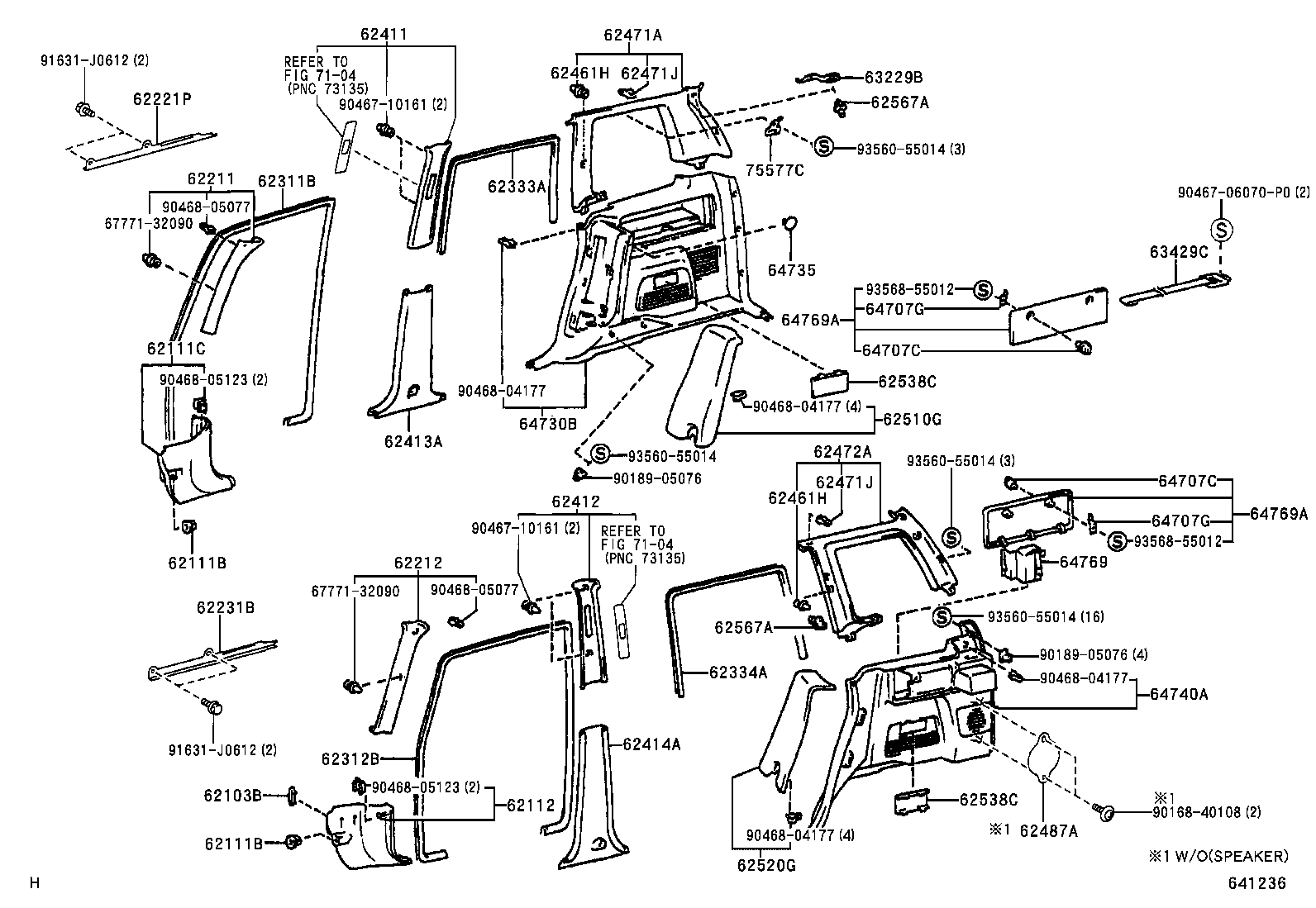

Inside Trim Board
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103B | Plug(FOR COWL SIDE TRIM BOARD) |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62221P | Spacer, Front Pillar, NO.1 RH |
| 62231B | Spacer, Front Pillar, NO.1 LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62487A | Cover, Roof Side Inner Garnish, RH |
| 62510G | Trim Assy, Side NO.1, RH |
| 62520G | Trim Assy, Side NO.1, LH |
| 62538C | Cover, Quarter Trim, Hole |
| 62567A | Clip(FOR QUARTER TRIM REAR LOWER COVER) |
| 63229B | Bracket, Roof Headlining, Rear |
| 63429C | Band, Room Rack |
| 64707C | Knob, Jack Cover |
| 64707G | Stopper, Jack Cover |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64740A | Panel Assy, Deck Trim Side, LH |
| 64769 | Case Sub-assy, Tool Bag |
| 64769A | Cover Assy, Side Trim Tool Bag |
| 64771B | Cover, Spare Wheel |
| 75577C | Bracket, Roof Side Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
