Toyota RAV4 EV
1997-09 → 2003-04 · chassis BEA11 · catalogue 664410 · United States
Discontinued model
Data version 2003-12

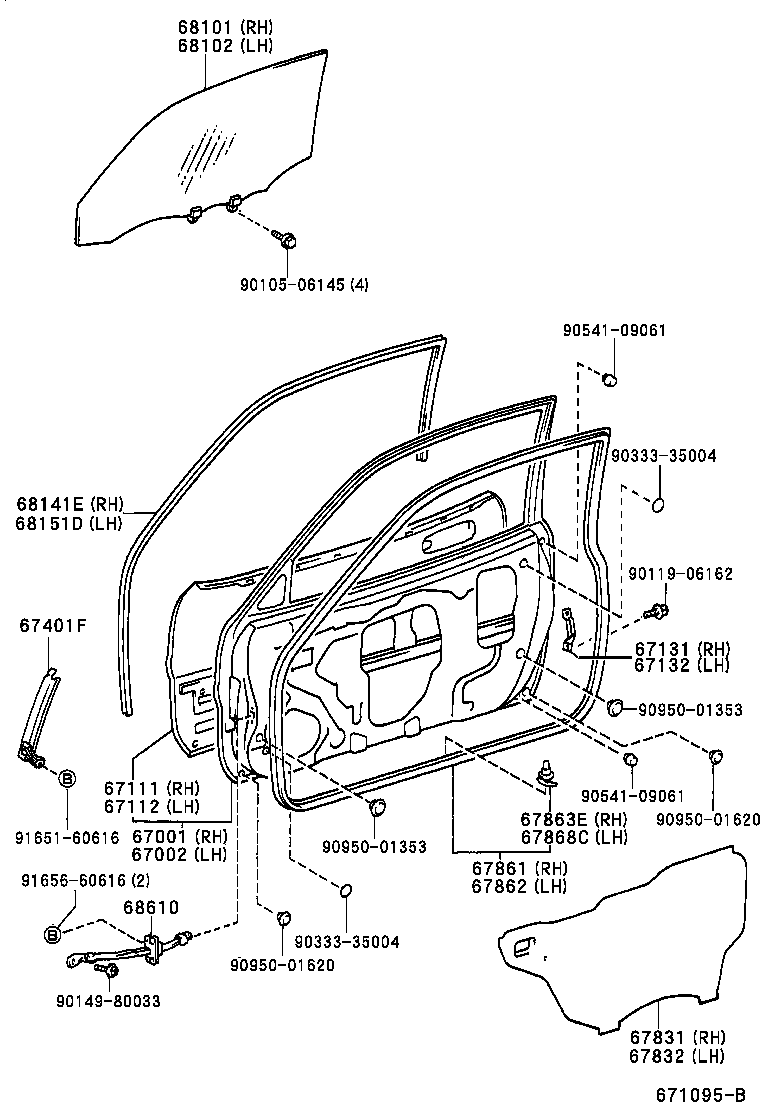

Front Door Panel & Glass
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67131 | Extension, Front Door Outside Panel Reinforcement, Front RH |
| 67132 | Extension, Front Door Outside Panel Reinforcement, Front LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67491E | Retainer, Door Trim |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601G | Plug, Hole(FOR FRONT DOOR TRIM BOARD) |
| 67601M | Retainer, Door Trim, NO.2 |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67651B | Grille, Speaker Door, RH |
| 67652B | Grille, Speaker Door, LH |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67863E | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141E | Run, Front Door Glass, RH |
| 68151D | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610 | Check Assy, Front Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
