Toyota RAV4 EV

1997-09 → 2003-04 · chassis BEA11 · catalogue 664410 · United States

Discontinued model Data version 2003-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

20 part groups · 2 illustrations

Illustrations

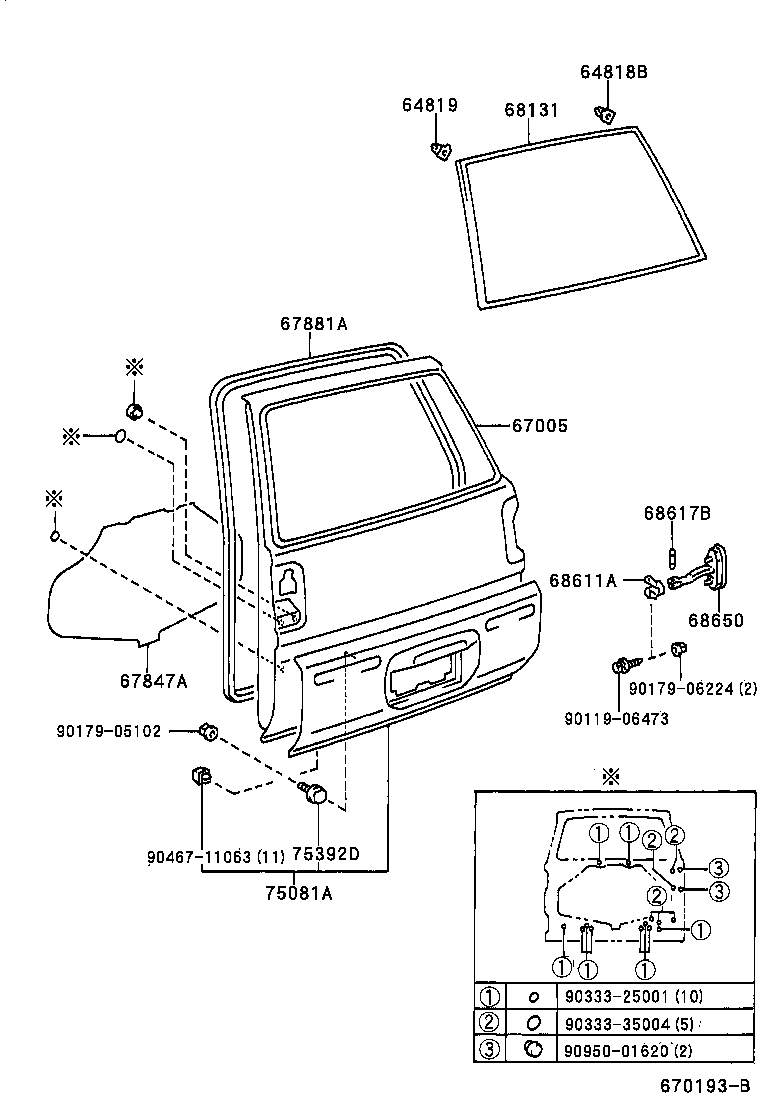

Figure 670194 670194 1997-09 → — Figure 670193B 670193B 1997-09 → —

Part groups

PNCDescription
64276A Bracket, Back Panel Trim, Upper
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67750A Clip(FOR BACK DOOR TRIM)
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67765B Cover, Back Door Trim, Upper
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
67935B Garnish, Back Door
67936A Garnish, Back Door, LH
67937A Garnish, Back Door Side
67938A Garnish, Back Door Side, LH
68131 Glass, Back Door
68611A Base, Back Door Check
68617B Pin, Back Door Check
68650 Check Assy, Back Door
75081A Panel Sub-assy, Back Door Finish
75392D Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
