Toyota RAV4 EV

1997-09 → 2003-04 · chassis BEA11 · catalogue 664410 · United States

Discontinued model Data version 2003-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

17 part groups · 4 illustrations

Illustrations

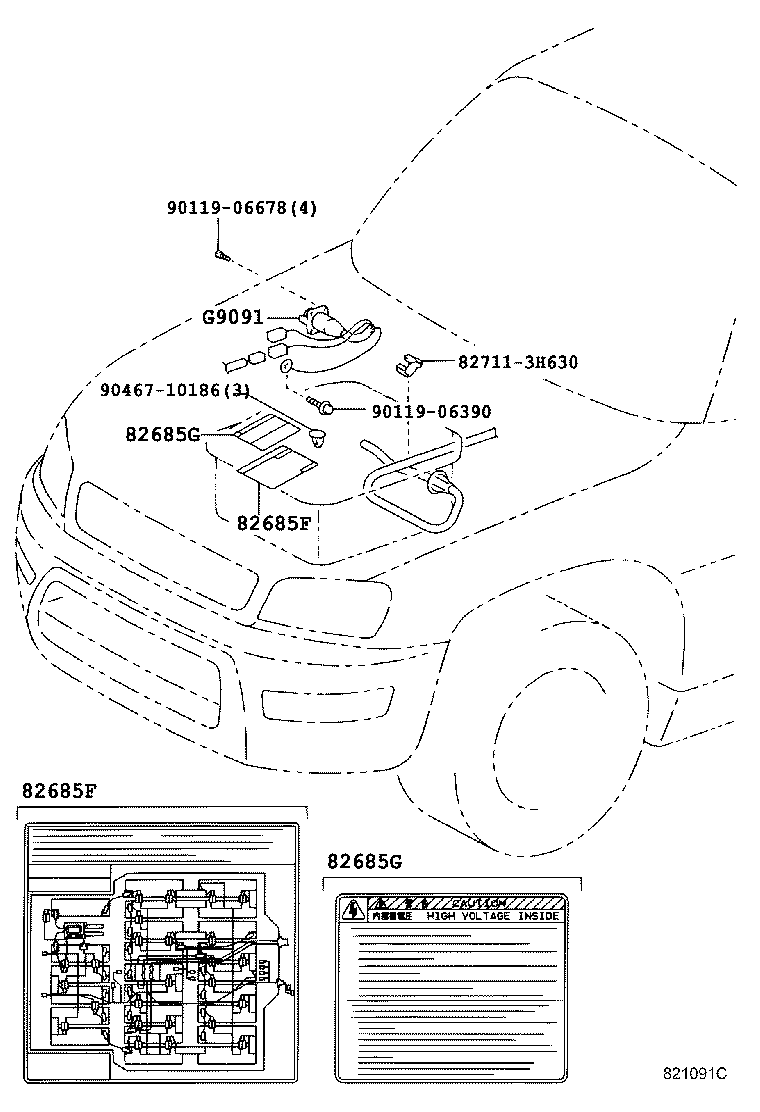

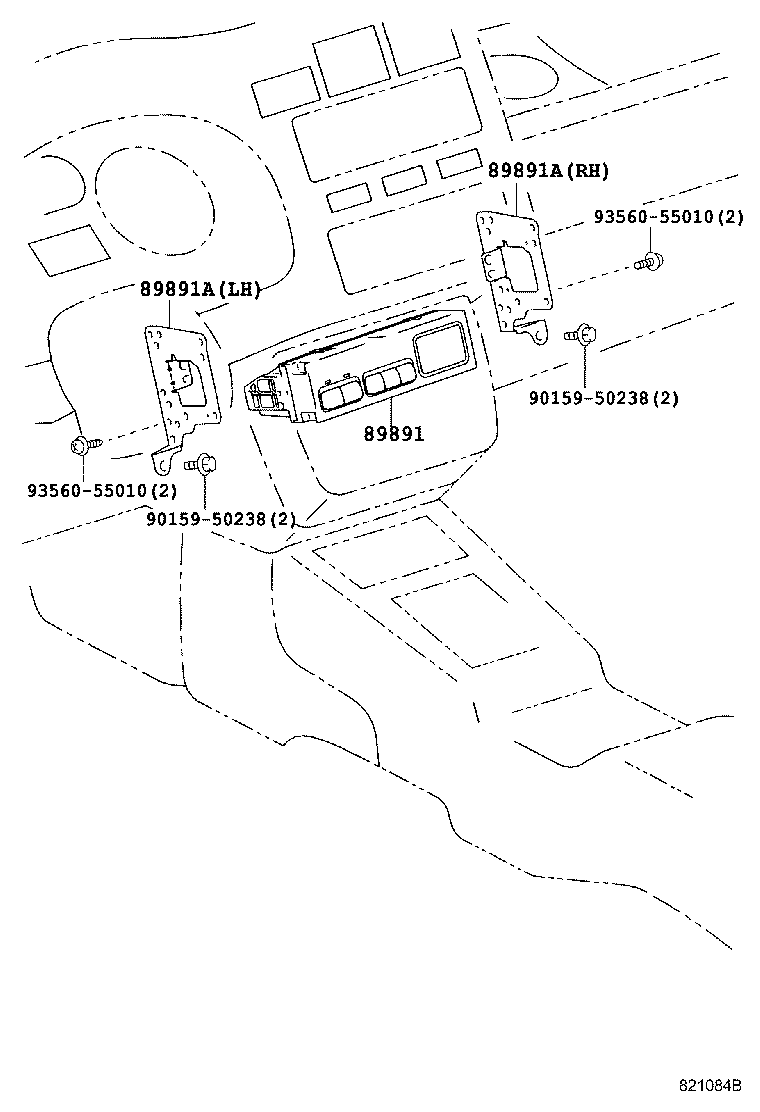

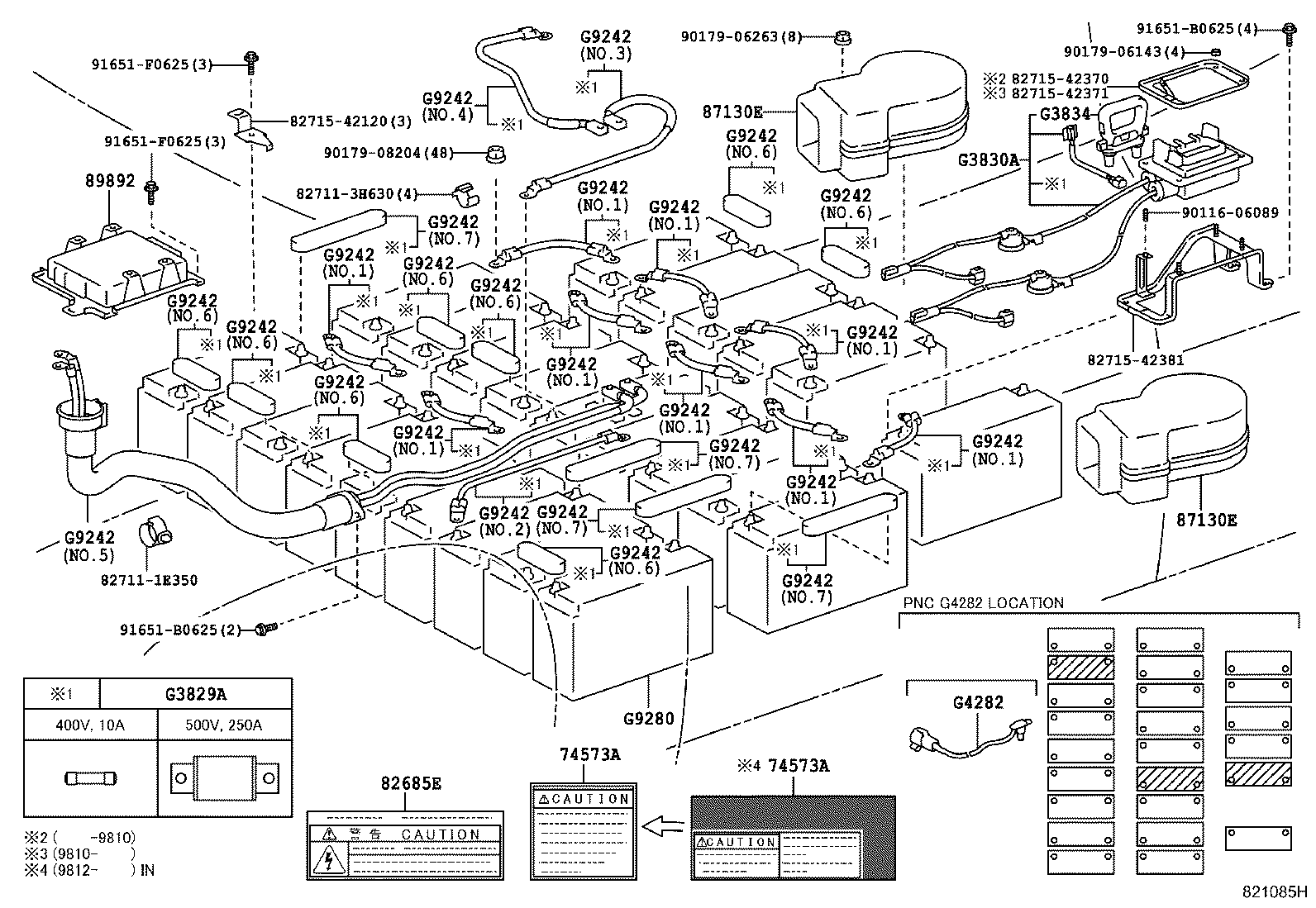

Figure 821083C 821083C 1997-09 → — Figure 821084B 821084B 1997-09 → — Figure 821085H 821085H 1997-09 → — Figure 821091C 821091C 1997-09 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
74573A Label, Electric Vehicle Battery Caution
82685E Plate, Service Plug Caution
82685F Main Battery Caution Plate, NO.1
82685G Main Battery Caution Plate, NO.2
87130E Blower Assy, Battery
89891 Panel, Battery Computer
89891A Bracket, Battery Computer Panel
89892 Computer, Battery Sensor
G3829A Fuse, Electric Vehicle
G3830A Plug Assy, Electric Vehicle Battery
G3834 Grip, Service Plug
G4282 Sensor, EV Battery Temperature, NO.2
G9091 Cable Sub-assy, Electric Vehicle Charger
G9242 Cable, Main Battery
G9280 Battery Assy, EV, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
