Toyota RAV4 EV

1997-09 → 2003-04 · chassis BEA11 · catalogue 664410 · United States

Discontinued model Data version 2003-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

15 part groups · 6 illustrations

Illustrations

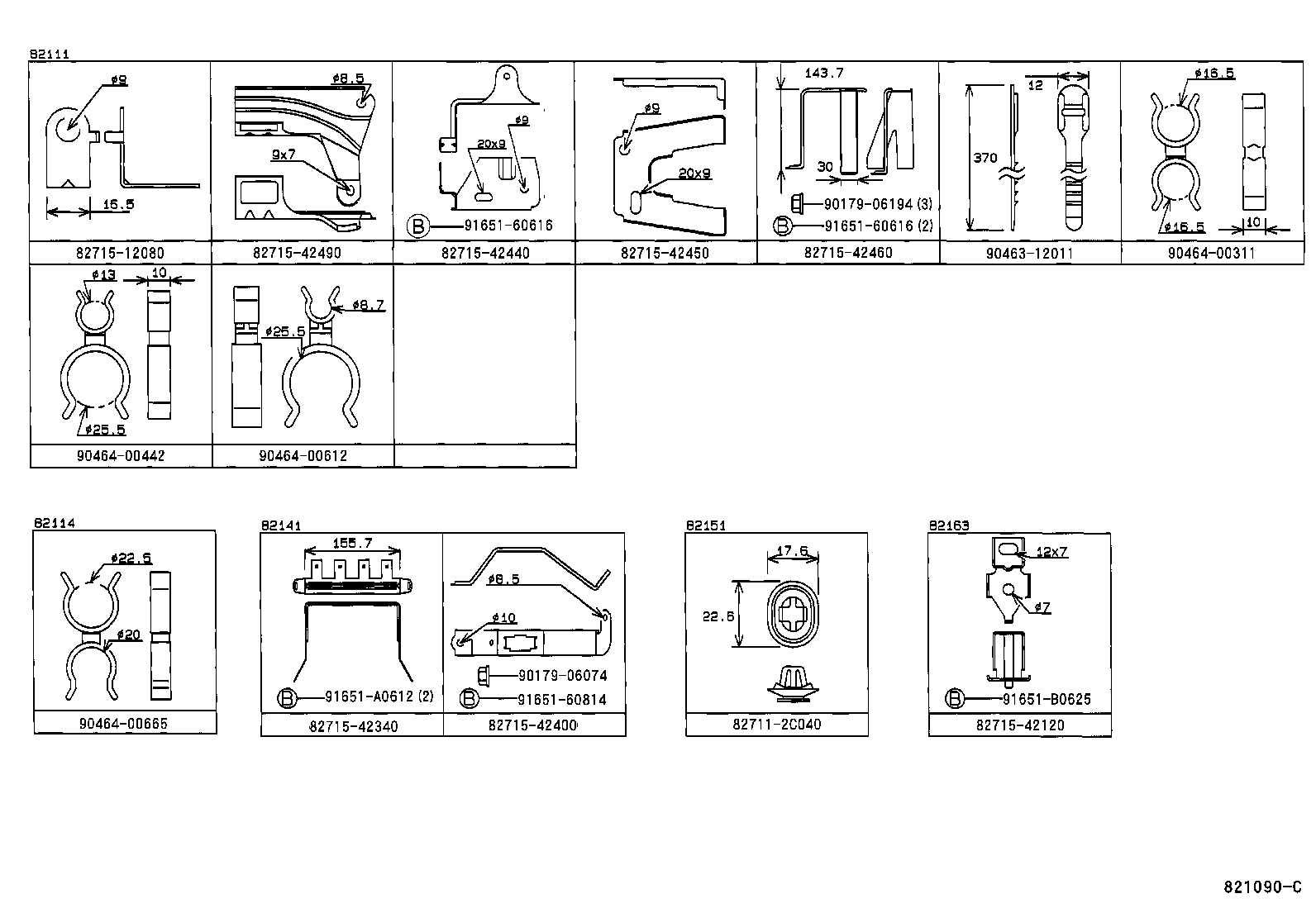

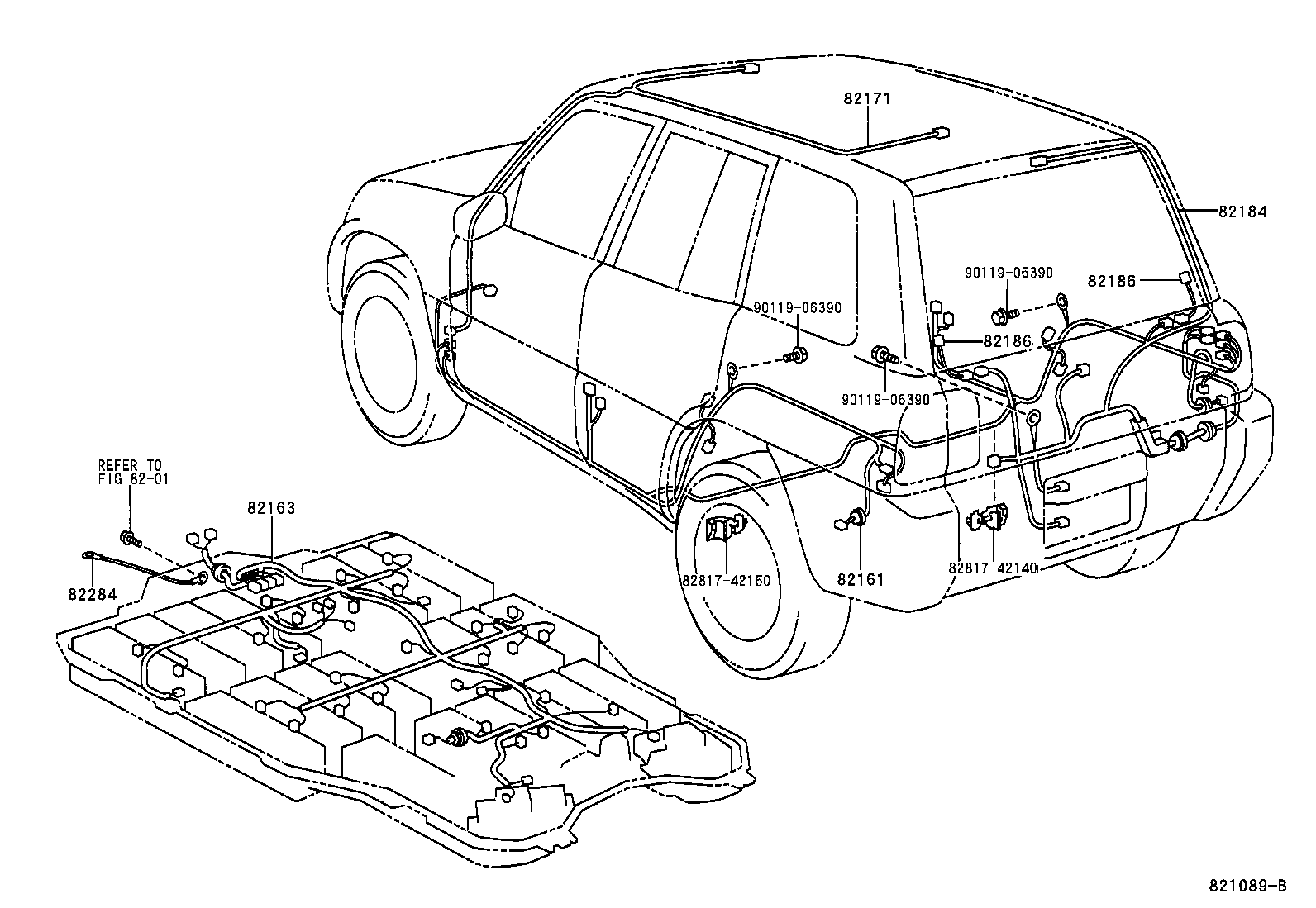

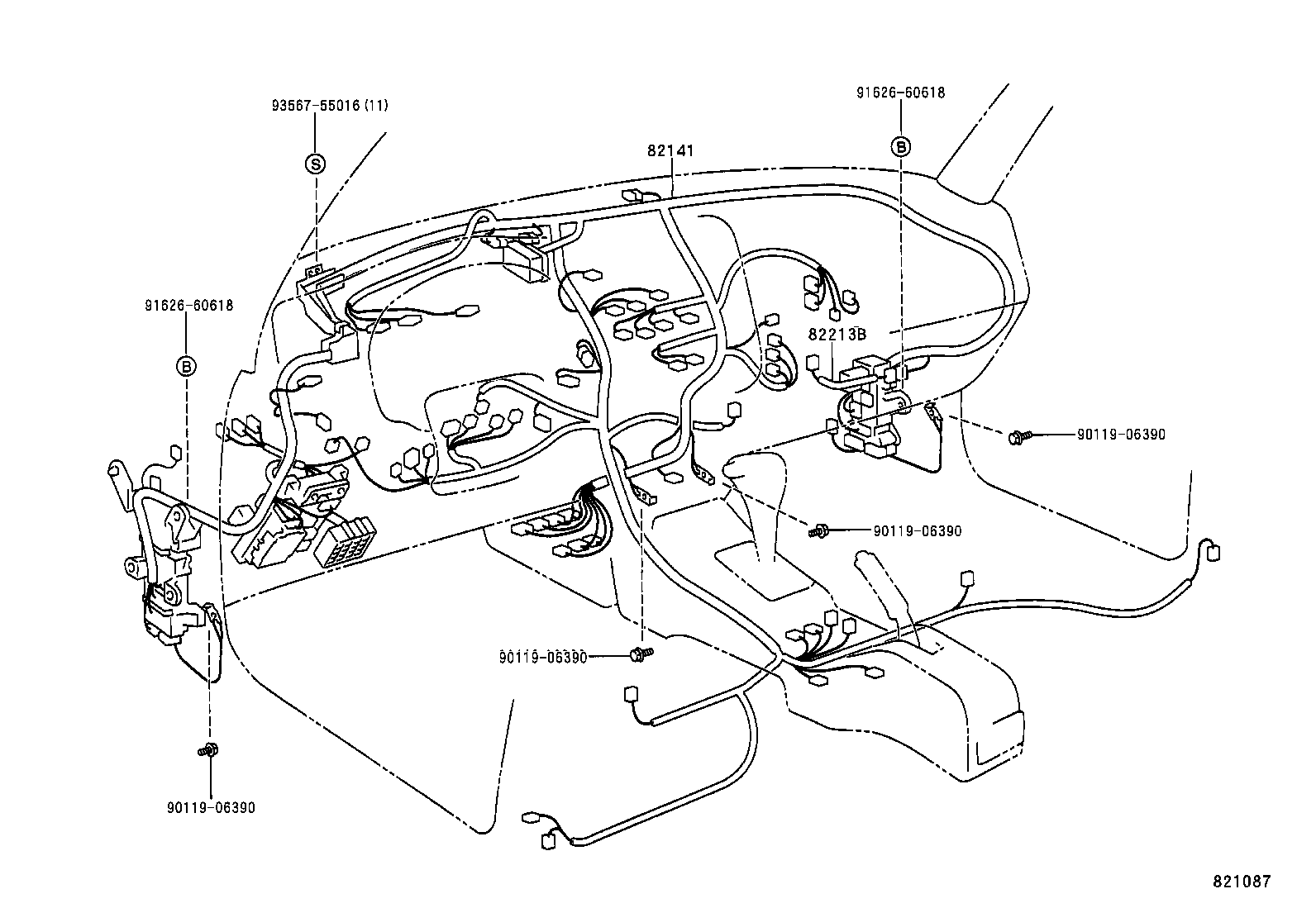

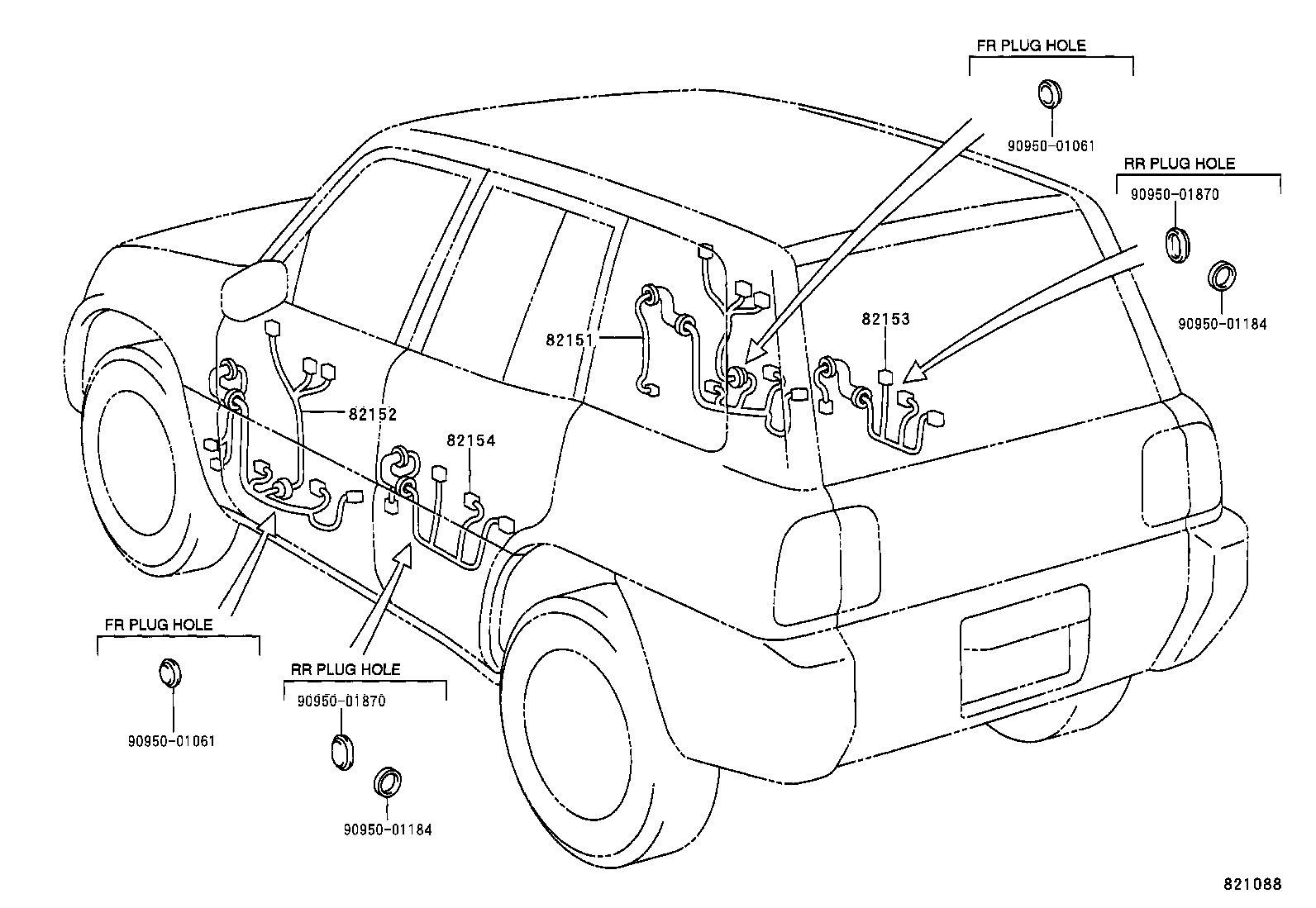

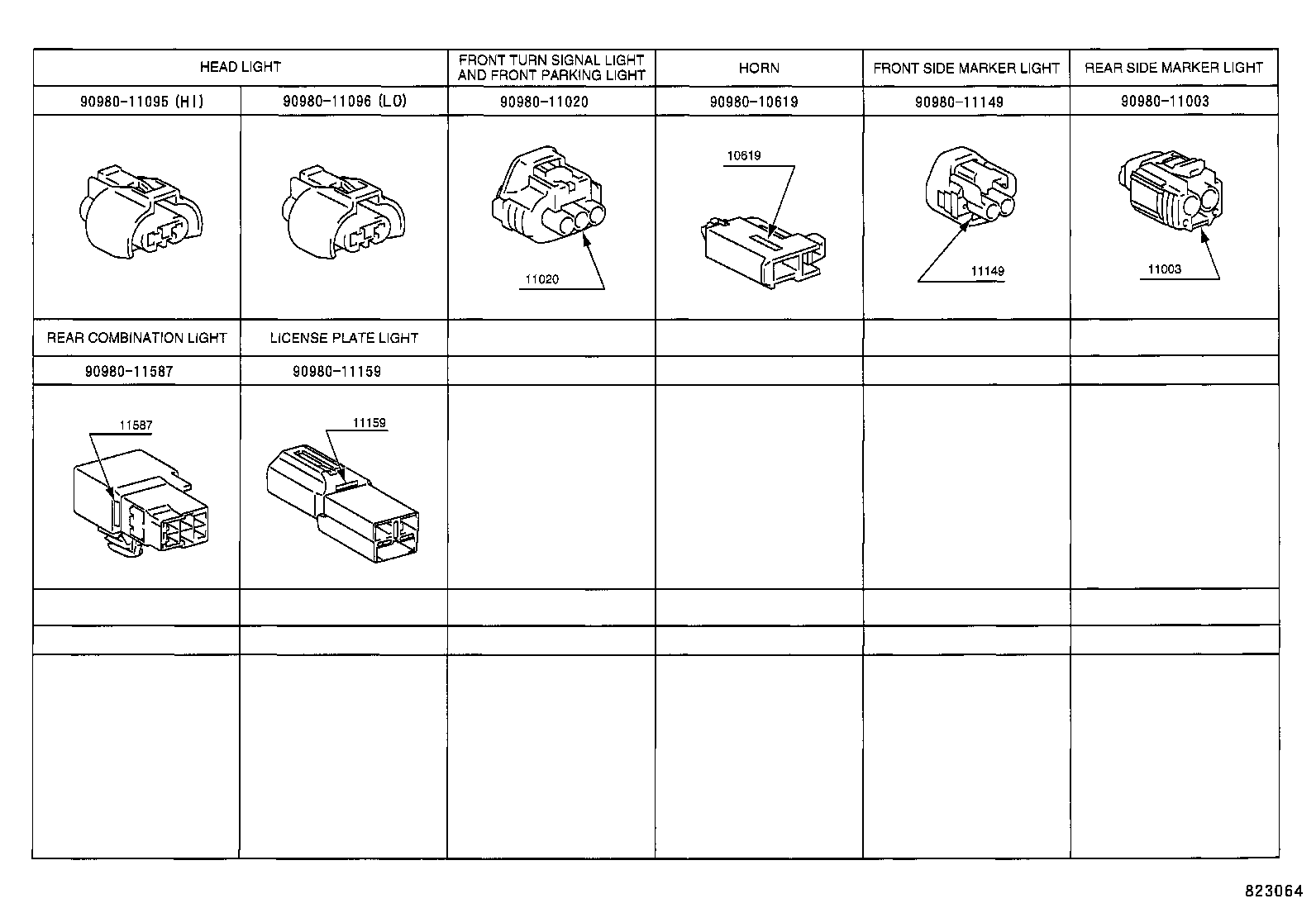

Figure 821086A 821086A 1997-09 → — Figure 821087 821087 1997-09 → — Figure 821088 821088 1997-09 → — Figure 821089B 821089B 1997-09 → — Figure 821090C 821090C 1997-09 → — Figure 823064 823064 1997-09 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82213B Wire, Heater
82284 Wire, Earth
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
