Toyota RAV4 EV

1997-09 → 2003-04 · chassis BEA11 · catalogue 664410 · United States

Discontinued model Data version 2003-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

19 part groups · 3 illustrations

Illustrations

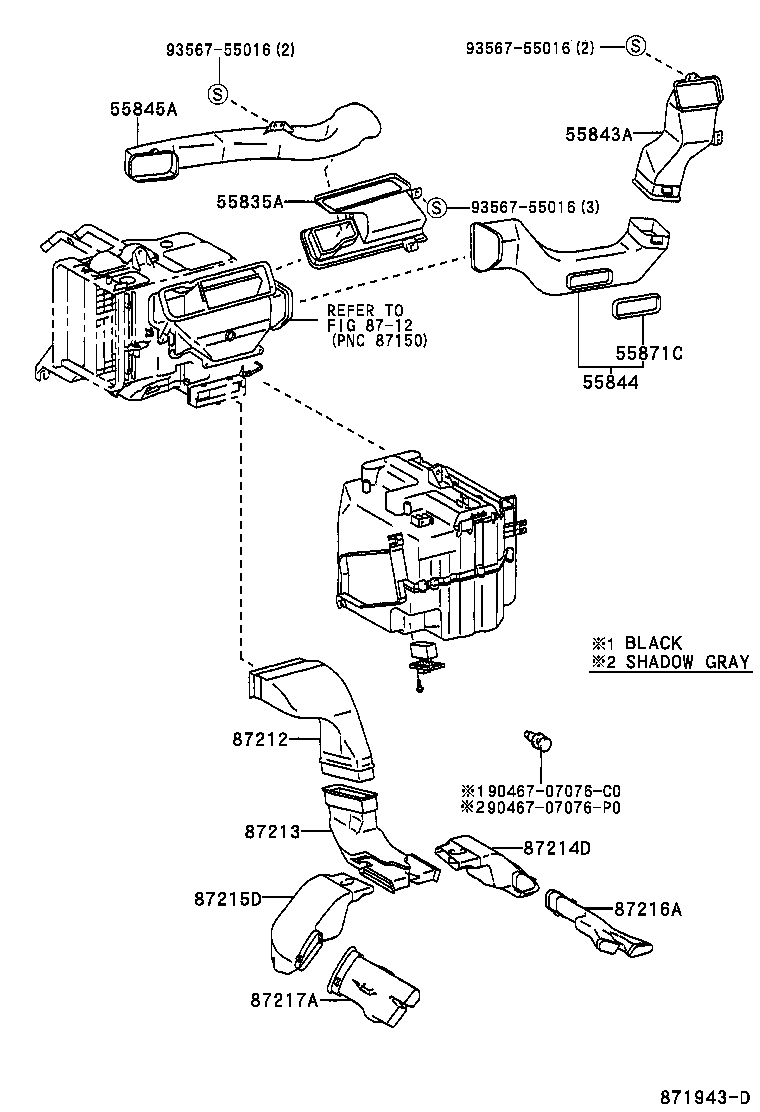

Figure 871942A 871942A 1997-09 → — Figure 871943D 871943D 1997-09 → — Figure 871944 871944 1997-09 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55871C Seal, Air Duct
55905A Knob, Heater Control
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214D Duct, Air, Rear NO.3
87215D Duct, Air, Rear NO.4
87216A Duct, Air, Rear NO.5
87217A Duct, Air, Rear NO.6
87284 Resistor Sub-assy, Variable
88610C Switch Assy, Cooler Control
88625C Thermistor, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
