Toyota RAV4 EV
2012-04 → 2014-08 · chassis QEA38 · catalogue 664420 · United States
Supported model
Data version 2015-01

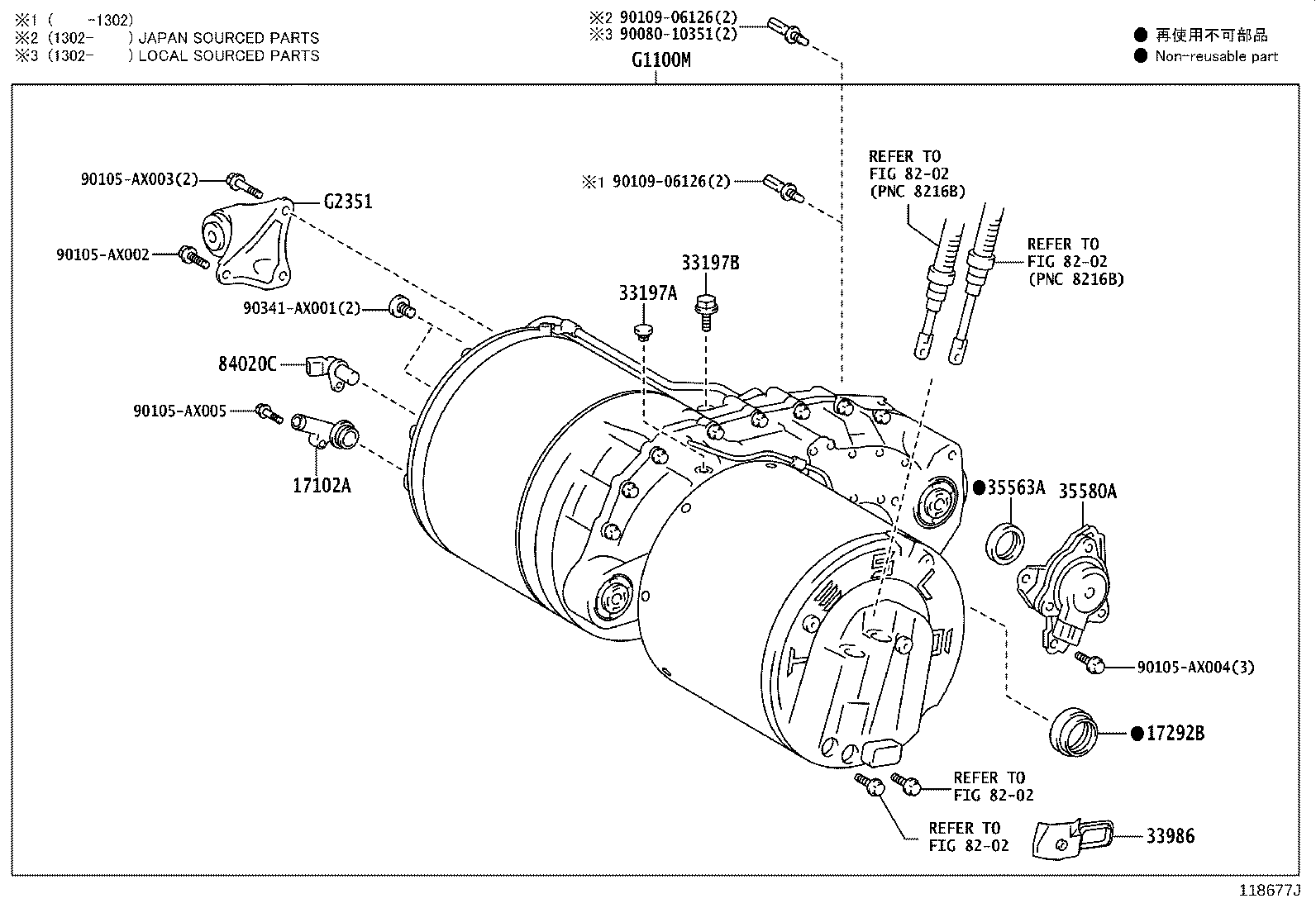

Bev Motor
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17102A | Manifold Sub-assy |
| 17292B | Seal, Mechanical |
| 33197A | Breather, Transmission, NO.1 |
| 33197B | Breather, Transmission, NO.2 |
| 33986 | Cover, EV Motor |
| 35563A | Seal, Shift Control Actuator |
| 35580A | Actuator Assy, Shift Control |
| 84020C | Circuit Assy, Switch |
| G1100M | Motor Assy, Electric Vehicle Traction |
| G2311 | Bracket, Motor Mounting, Front |
| G2315 | Bracket, Motor Mounting, RH |
| G2321 | Bracket, Motor Mounting, Rear |
| G2351 | Damper, Motor Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
