Toyota RAV4 EV

2012-04 → 2014-08 · chassis QEA38 · catalogue 664420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

17 part groups · 2 illustrations

Illustrations

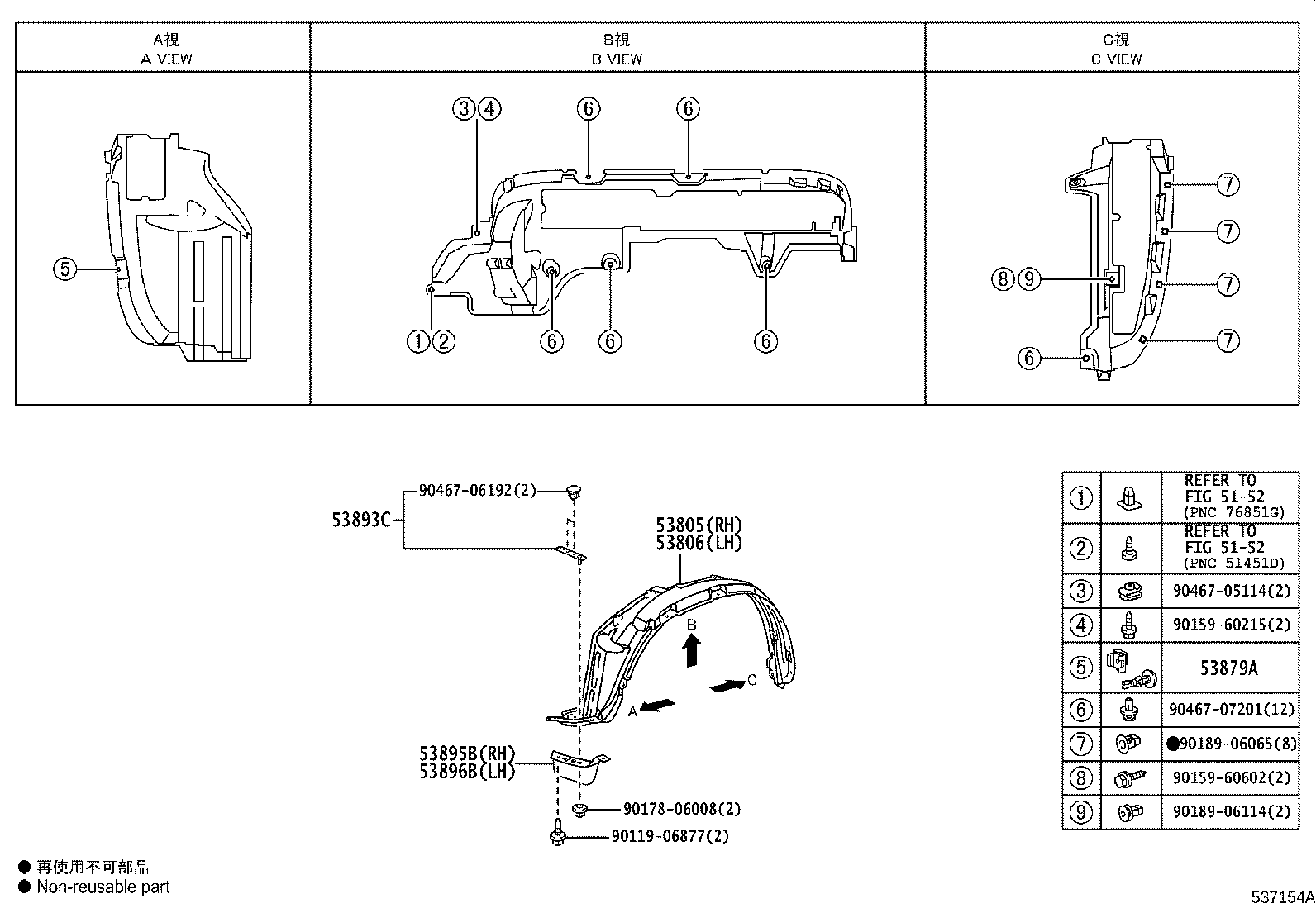

Figure 537153 537153 2012-04 → — Figure 537154A 537154A 2012-04 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53866A Clip(FOR FRONT FENDER TO COWL SIDE SEAL)
53879A Retainer, Front Fender Liner
53882K Seal, Front Fender
53893C Retainer, Front Fender Splash Shield, Front
53895B Shield, Front Fender Splash, Front RH
53896B Shield, Front Fender Splash, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
