Toyota RAV4 EV

2012-04 → 2014-08 · chassis QEA38 · catalogue 664420 · United States

Supported model Data version 2015-01

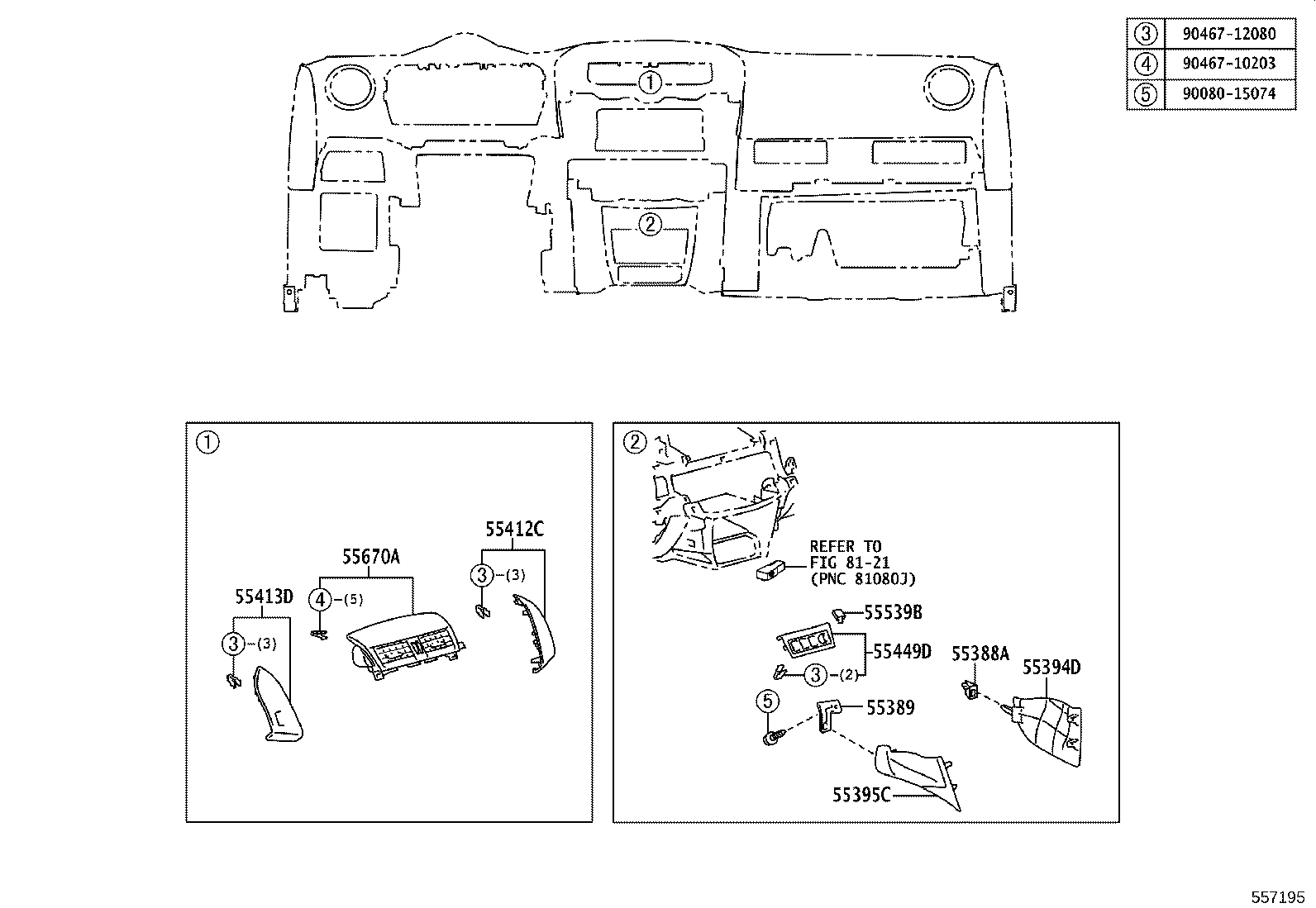

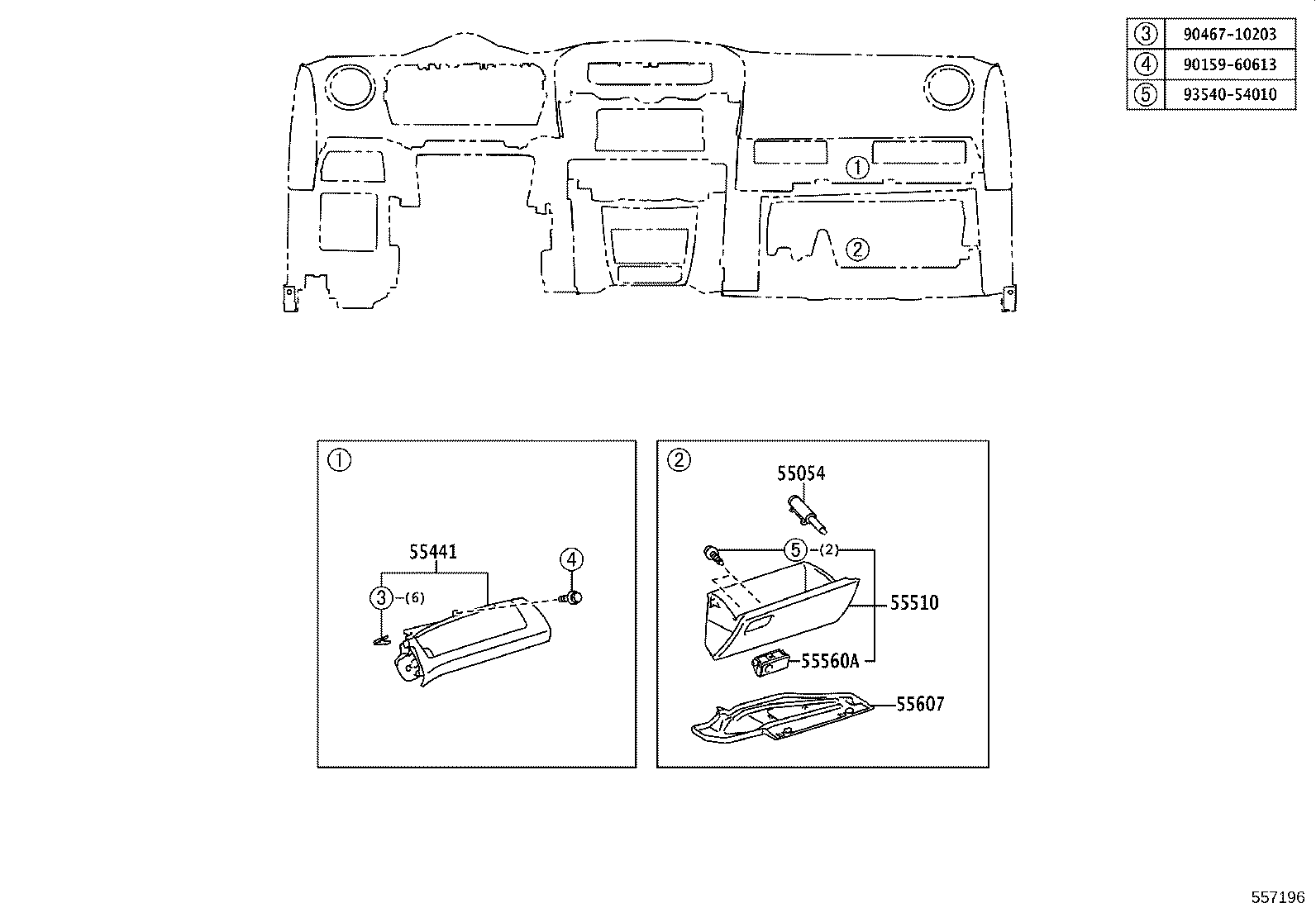

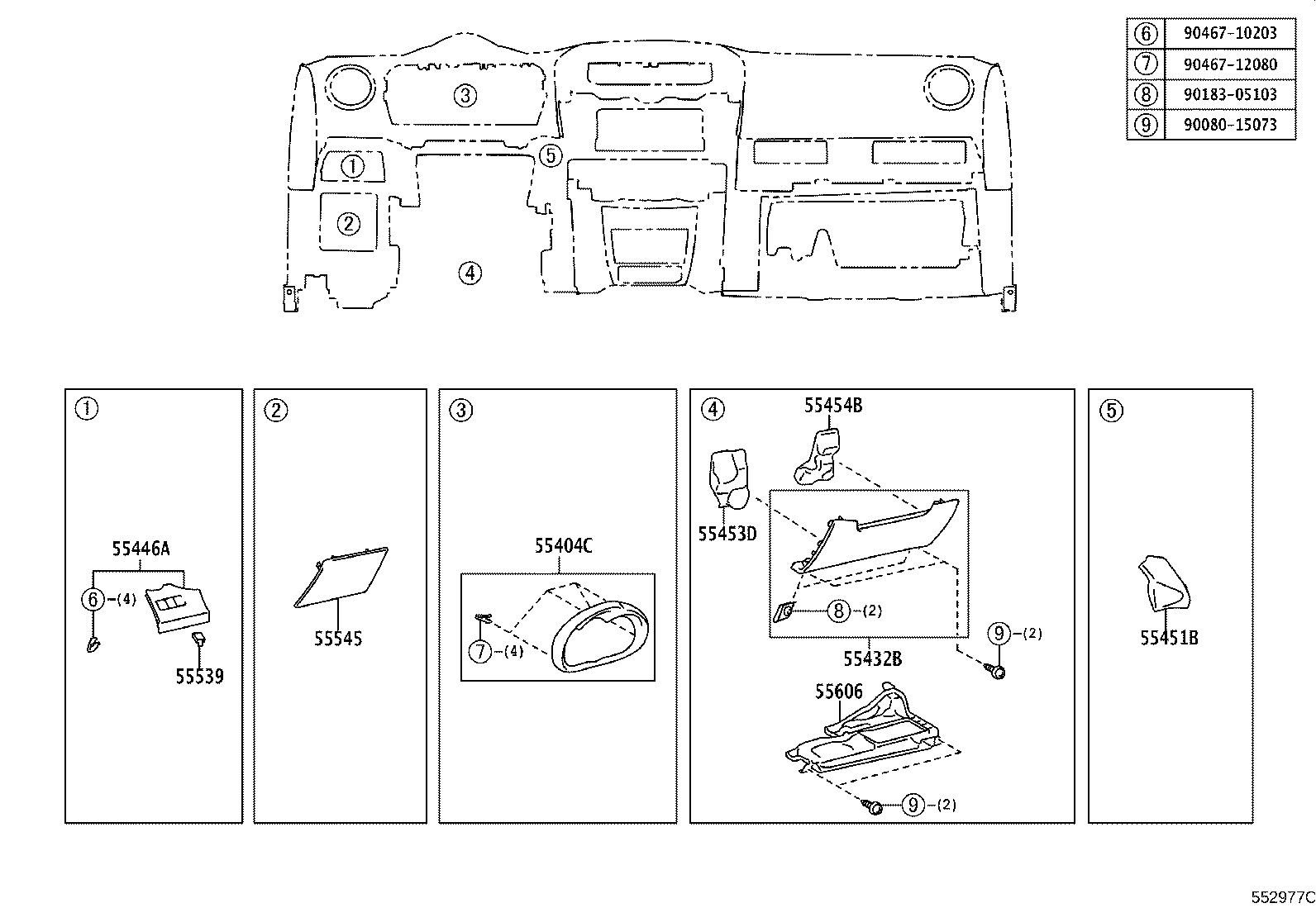

Instrument Panel & Glove Compartment

36 part groups · 4 illustrations

PNC	Description
55054	Stopper Sub-assy, Glove Compartment Door
55302A	Panel Sub-assy, Instrument, Upper
55306A	Brace Sub-assy, Instrument Panel, NO.1
55312	Panel, Instrument, Lower
55312A	Clip, Instrument Panel
55331	Reinforcement, Instrument Panel
55337	Reinforcement, Instrument Panel Sub
55355	Cushion, Instrument Panel, NO.1
55359C	Coshion, Instrument Panel, NO.5
55368C	Bracket, Meter Mounting
55388A	Bracket, Console Mounting, RH
55389	Bracket, Console Mounting, LH
55391	Cushion, Instrument Panel, Lower NO.1
55394D	Cover, Instrument Panel Bracket, Inner NO.1 RH
55395C	Cover, Instrument Panel Bracket, Inner NO.1 LH
55404C	Panel Sub-assy, Instrument Cluster Finish, NO.2
55412C	Panel, Instrument Cluster Finish, Center NO.1
55413D	Panel, Instrument Cluster Finish, Center Lower
55432B	Panel, Instrument Panel Finish, Lower
55441	Box, Instrument Panel
55446A	Base, Switch Hole, NO.1
55448A	Cushion, Instrument Panel Finish, NO.1
55449D	Base, Switch
55451B	Cover, Instrument Panel Safety Pad
55453D	Pad, Instrument Panel Safety, NO.1
55454B	Pad, Instrument Panel Safety, NO.2
55510	Door Assy, Glove Compartment
55539	Cover, Spare Switch Hole
55539B	Cover, Spare Switch Hole, NO.2
55545	Cover, Fuse Box Opening
55560A	Lock Assy, Glove Compartment Door
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55650	Register Assy, Instrument Panel, NO.1
55670A	Register Assy, Instrument Panel, Center
73960A	Airbag Assy, Instrument Panel Passenger W/O Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
