Toyota RAV4 EV
2012-04 → 2014-08 · chassis QEA38 · catalogue 664420 · United States
Supported model
Data version 2015-01
Front Floor Panel & Front Floor Member

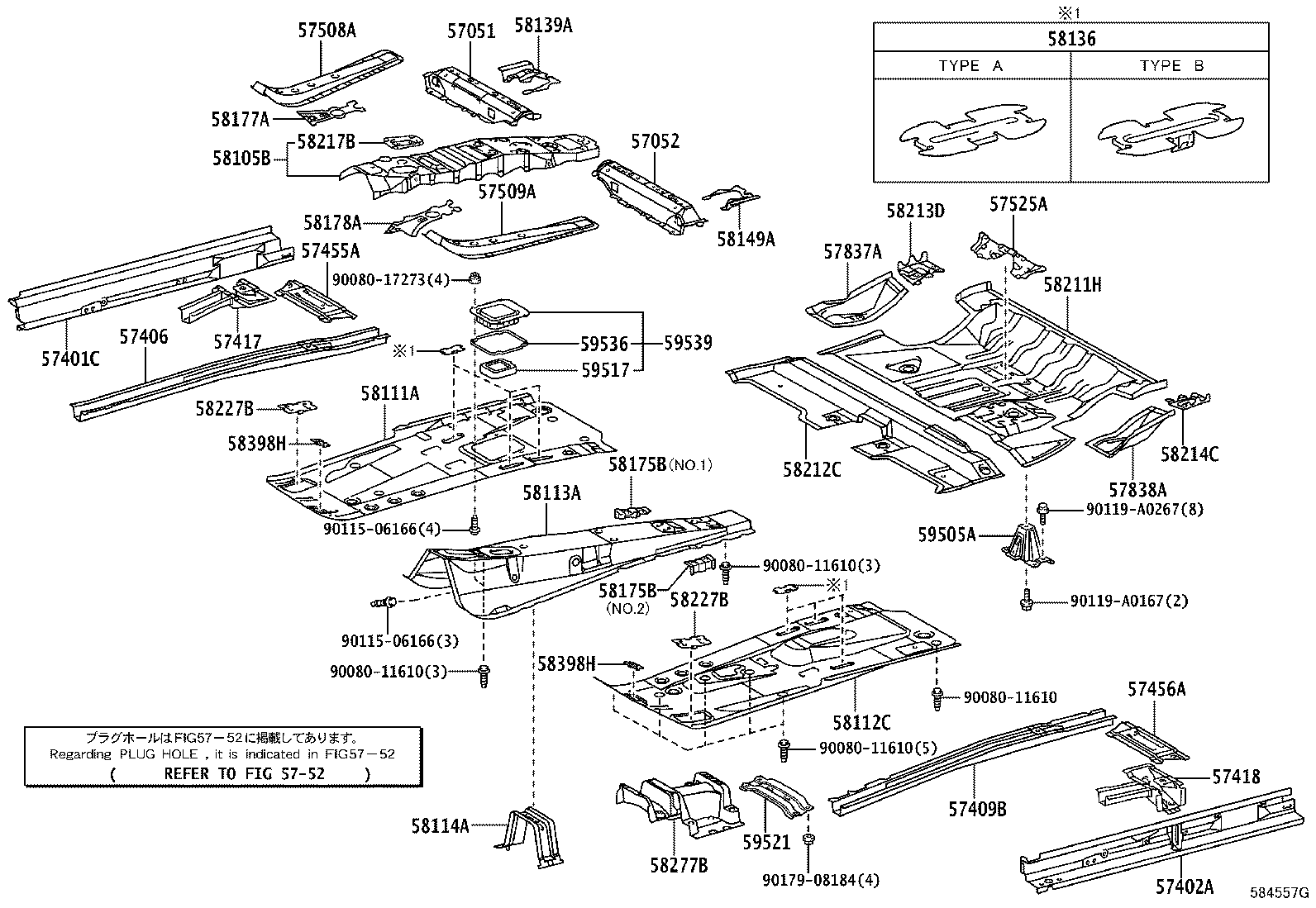

66 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51401B | Bracket Sub-assy, Engine Front Mounting |
| 51402A | Bracket Sub-assy, Engine Front Mounting, LH |
| 57016 | Reinforcement Sub-assy, Front Side Member, RH |
| 57017 | Reinforcement Sub-assy, Front Side Member, LH |
| 57025C | Member Sub-assy, Front Side, Outer RH |
| 57026B | Member Sub-assy, Front Side, Outer LH |
| 57051 | Member Sub-assy, Front Floor Cross, RH |
| 57052 | Member Sub-assy, Front Floor Cross, LH |
| 57101 | Member Sub-assy, Front Side, RH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57107A | Plate Sub-assy, Front Side Member, NO.2 RH |
| 57108A | Plate Sub-assy, Front Side Member, NO.2 LH |
| 57111 | Member, Front Side, RH |
| 57112 | Member, Front Side, LH |
| 57113 | Extension, Front Side Member, RH |
| 57114 | Extension, Front Side Member, LH |
| 57121 | Bracket, Front Body Mounting, RH |
| 57135A | Bracket, Front Floor Side, RH |
| 57136A | Bracket, Front Floor Side, LH |
| 57151A | Reinforcement, Front Side Member, NO.1 RH |
| 57153 | Reinforcement, Front Side Member, NO.2 RH |
| 57188B | Gusset, Front Side Member TO Spring Support, RH |
| 57189A | Gusset, Front Side Member TO Spring Support, LH |
| 57197 | Box, Torque, Front RH |
| 57198 | Box, Torque, Front LH |
| 57213B | Extension, Front Side Member, NO.2 RH |
| 57214C | Extension, Front Side Member, NO.2 LH |
| 57401C | Member Sub-assy, Floor Side, Inner RH |
| 57402A | Member Sub-assy, Floor Side, Inner LH |
| 57406 | Member Sub-assy, Main Floor Side, RH |
| 57409B | Member Sub-assy, Front Floor Cross, LH |
| 57417 | Reinforcement, Front Floor Under, RH |
| 57418 | Reinforcement, Front Floor Under, LH |
| 57455A | Bracket, Front Floor Crossmember |
| 57456A | Gusset, Front Floor Crossmember, LH |
| 57508A | Reinforcement Sub-assy, Front Floor, RH |
| 57509A | Reinforcement Sub-assy, Front Floor, LH |
| 57525A | Plate, Center Floor, NO.1 |
| 57837A | Reinforcement, Rear NO.1 Seat Leg, Rear NO.3 |
| 57838A | Reinforcement, Rear NO.1 Seat Leg, Rear NO.4 |
| 58105B | Panel Sub-assy, Front Floor Rear Upper Sub |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58114A | Reinforcement, Front Floor Panel |
| 58136 | Cover, Front Floor Hole |
| 58139A | Plate, Front Floor Side, Rear RH |
| 58149A | Plate, Front Floor Side, Rear LH |
| 58175B | Angle Sub-assy, Front Floor, Rear |
| 58177A | Extension, Front Floor Panel, RH |
| 58178A | Extension, Front Floor Panel, LH |
| 58211H | Pan, Center Floor |
| 58212C | Pan, Center Floor, Front |
| 58213D | Reinforcement, Center Floor Panel |
| 58214C | Reinforcement, Center Floor Panel, LH |
| 58217B | Plate, Front Floor |
| 58227B | Plate, Front Floor Panel Side, RH |
| 58277B | Reinforcement, Drive Shaft Center Support |
| 58398H | Cover, Floor Under, NO.1 |
| 59393 | Bracket, Floor Step Support |
| 59394A | Bracket, Floor Step Support, NO.2 |
| 59505A | Board Sub-assy, Rear Floor Battery Back, RH |
| 59517 | Board, Upper Floor, NO.7 |
| 59521 | Bracket, Rear Floor Battery Front Cover, NO.1 |
| 59536 | Plate, Upper Floor, NO.2 |
| 59539 | Cover, Upper Floor, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
