Toyota RAV4 EV
2012-04 → 2014-08 · chassis QEA38 · catalogue 664420 · United States
Supported model
Data version 2015-01

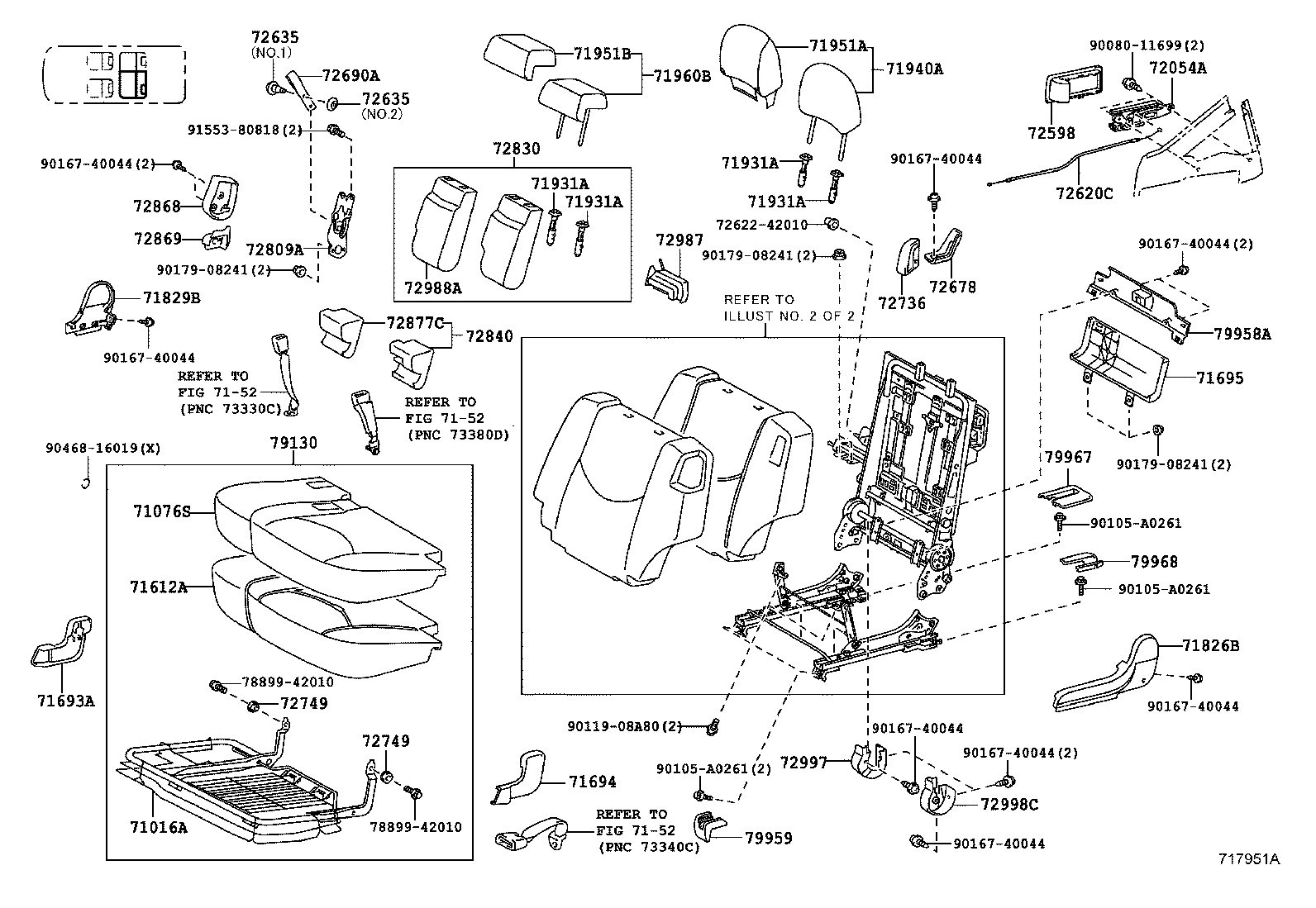

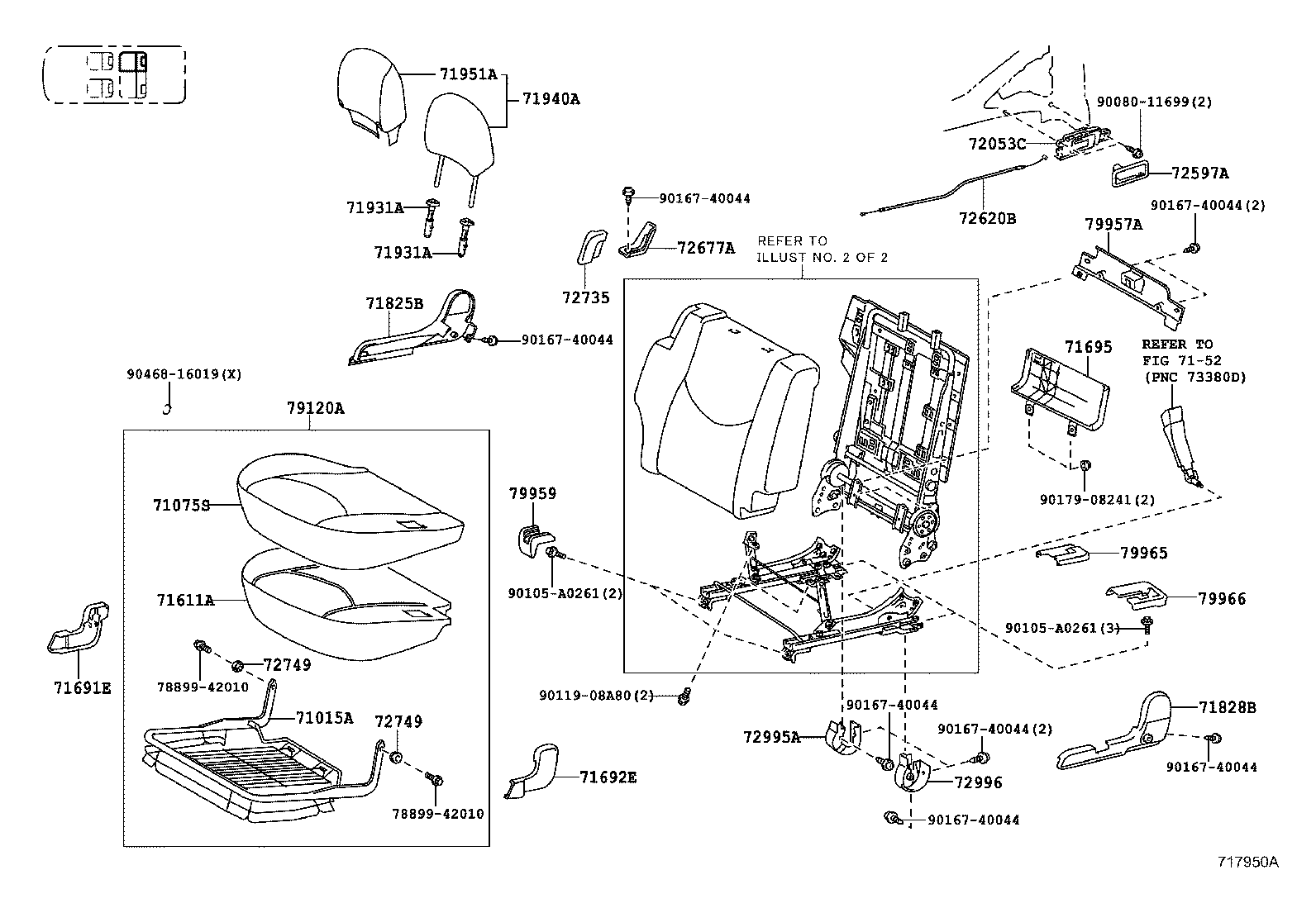

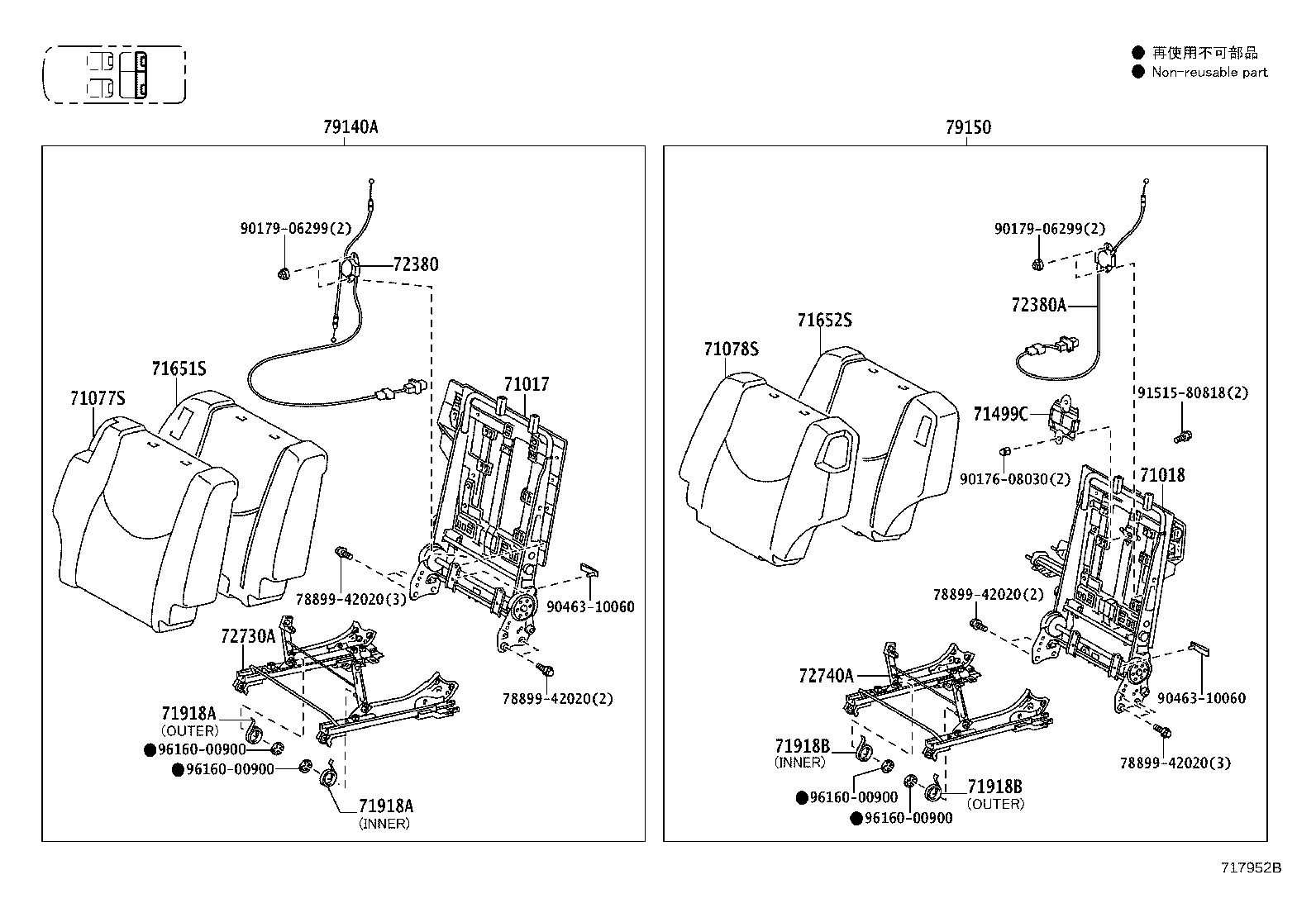

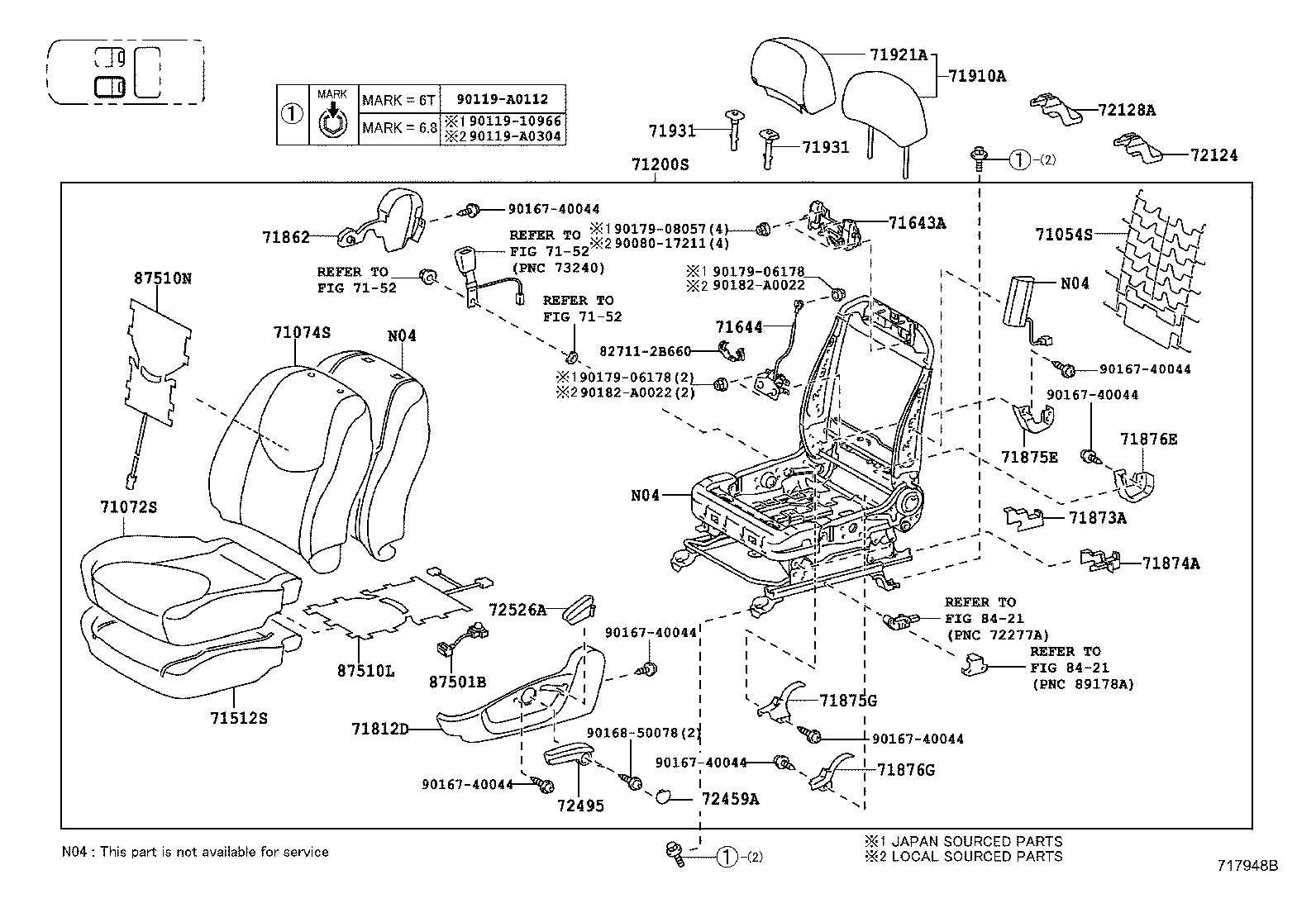

Seat & Seat Track
114 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71053S | Spring Sub-assy, Front Seatback, RH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71100S | Seat Assy, Front RH |
| 71200S | Seat Assy, Front LH |
| 71499C | Damper, Rear Seat Cushion Spring |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71643A | Unit, Active Headrest, Upr |
| 71644 | Unit, Active Headrest, Lwr |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71691E | Cover, Rear Seat Cushion Hinge, NO.1 |
| 71692E | Cover, Rear Seat Cushion Hinge, NO.2 |
| 71693A | Cover, Rear Seat Cushion Hinge, NO.3 |
| 71694 | Cover, Rear Seat Cushion Hinge, Lower LH |
| 71695 | Protector, Rear Seatback |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71825B | Moulding, Rear Seat Cushion, RH |
| 71826B | Moulding, Rear Seat Cushion, LH |
| 71828B | Moulding, Rear Seat Cushion, Rear RH |
| 71829B | Moulding, Rear Seat Cushion, Rear LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71875E | Cover, Reclining Adjuster Inside, RH |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71876E | Cover, Reclining Adjuster Inside, LH |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71918A | Spring, Center Seat Cushion Catch |
| 71918B | Spring, Center Seat Cushion Catch, NO.2 |
| 71921A | Cover, Front Seat Headrest |
| 71931 | Support, Front Seat Headrest |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71951A | Cover, Rear Seat Headrest |
| 71951B | Cover, Rear Seat Headrest, Center |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72053C | Lever Sub-assy, Reclining Remote Control, RH |
| 72054A | Lever Sub-assy, Reclining Remote Control, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72380 | Cable Assy, Seat Adjuster Control, NO.2 |
| 72380A | Cable Assy, Seat Adjuster Control, NO.2 |
| 72459A | Cap, Vertical Seat Adjuster Knob |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72597A | Bezel, Reclining Remote Control Lever, RH |
| 72598 | Bezel, Reclining Remote Control Lever, LH |
| 72620B | Cable Assy, Rear NO.1 Seat Lock |
| 72620C | Cable Assy, Rear NO.1 Seat Lock |
| 72635 | Hook, Rear Seatback Lock |
| 72677A | Base, Rear Seatback Lock Control Lever, RH |
| 72678 | Base, Rear Seatback Lock Control Lever, LH |
| 72690A | Strap Assy, Rear Seat Lock Release |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72735 | Lever, Rear Seat Reclining Release |
| 72736 | Lever, Rear Seat Reclining Release, LH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 72749 | Spacer, Rear Seat Reclining |
| 72809A | Lock Sub-assy, Center Armrest |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72840 | Armrest Assy, Rear NO.1 Seat, LH |
| 72868 | Cover, Center Armrest Hinge, RH |
| 72869 | Cover, Center Armrest Hinge, LH |
| 72877C | Cover, Seat Armrest |
| 72987 | Cover, Rear Seat Center Armrest |
| 72988A | Cover, Rear Seat Center Armrest, NO.2 |
| 72995A | Cover, Rear Seat |
| 72996 | Cover, Rear Seatback, RH |
| 72997 | Cover, Rear Seatback, LH |
| 72998C | Cover, Rear Seat, LH |
| 79120A | Cushion Assy, NO.1 Seat |
| 79130 | Cushion Assy, NO.1 Seat, LH |
| 79140A | Back Assy, NO.1 Seat |
| 79150 | Back Assy, NO.1 Seat, LH |
| 79957A | Cover, Rear Seat Rear Bracket, RH |
| 79958A | Cover, Rear Seat Rear Bracket, LH |
| 79959 | Cover, RR Seat Leg |
| 79965 | Cover, Rear Seat Leg Side, NO.2 |
| 79966 | Cover, Rear Seat Leg Side, NO.3 |
| 79967 | Cover, Rear Seat Leg Side, NO.4 |
| 79968 | Cover, Rear Seat Leg Side, NO.5 |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
