Toyota RAV4 EV

2012-04 → 2014-08 · chassis QEA38 · catalogue 664420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

8 part groups · 2 illustrations

Illustrations

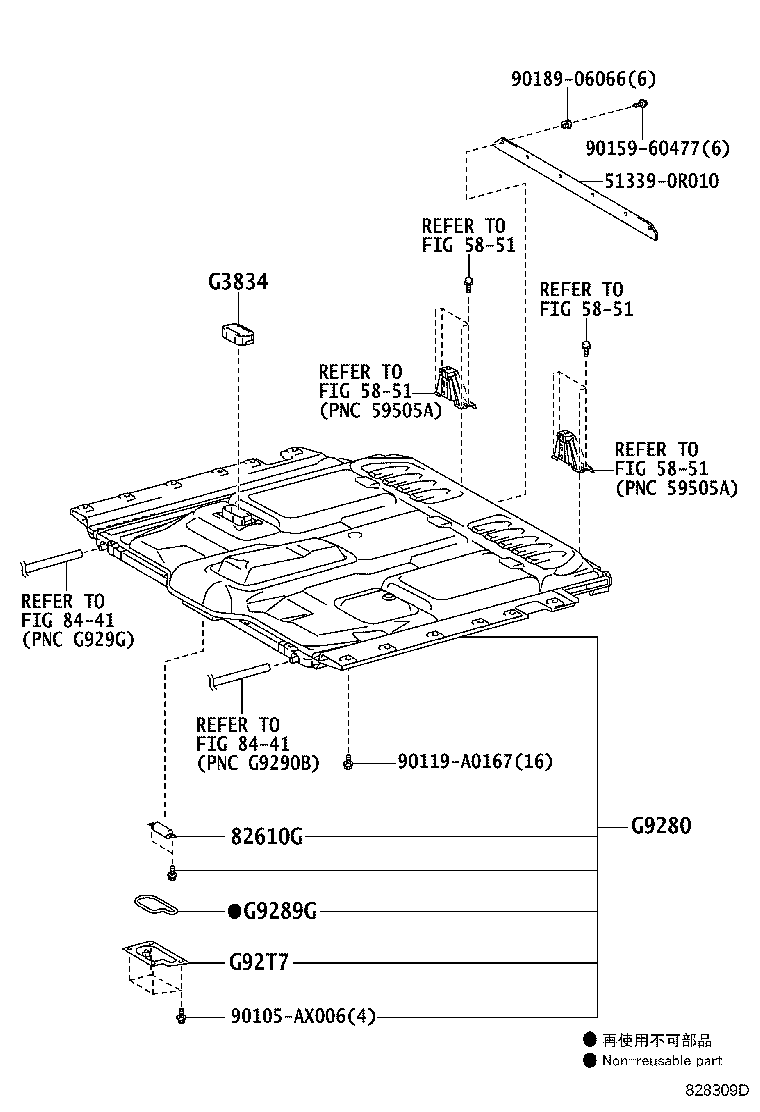

Figure 828308 828308 2012-04 → — Figure 828309D 828309D 2012-04 → —

Part groups

PNCDescription
28800A Terminal, Battery Positive
28800J Terminal, Battery Negative
82610G Block Assy, Fuse
82621B Cover, Fusible Link
G3834 Grip, Service Plug
G9280 Battery Assy, EV, NO.1
G9289G Seal, Battery
G92T7 Cover, Hybrid Battery Bus-bar Block, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
