Toyota RAV4 EV
2012-04 → 2014-08 · chassis QEA38 · catalogue 664420 · United States
Supported model
Data version 2015-01
Wiring & Clamp
65 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|

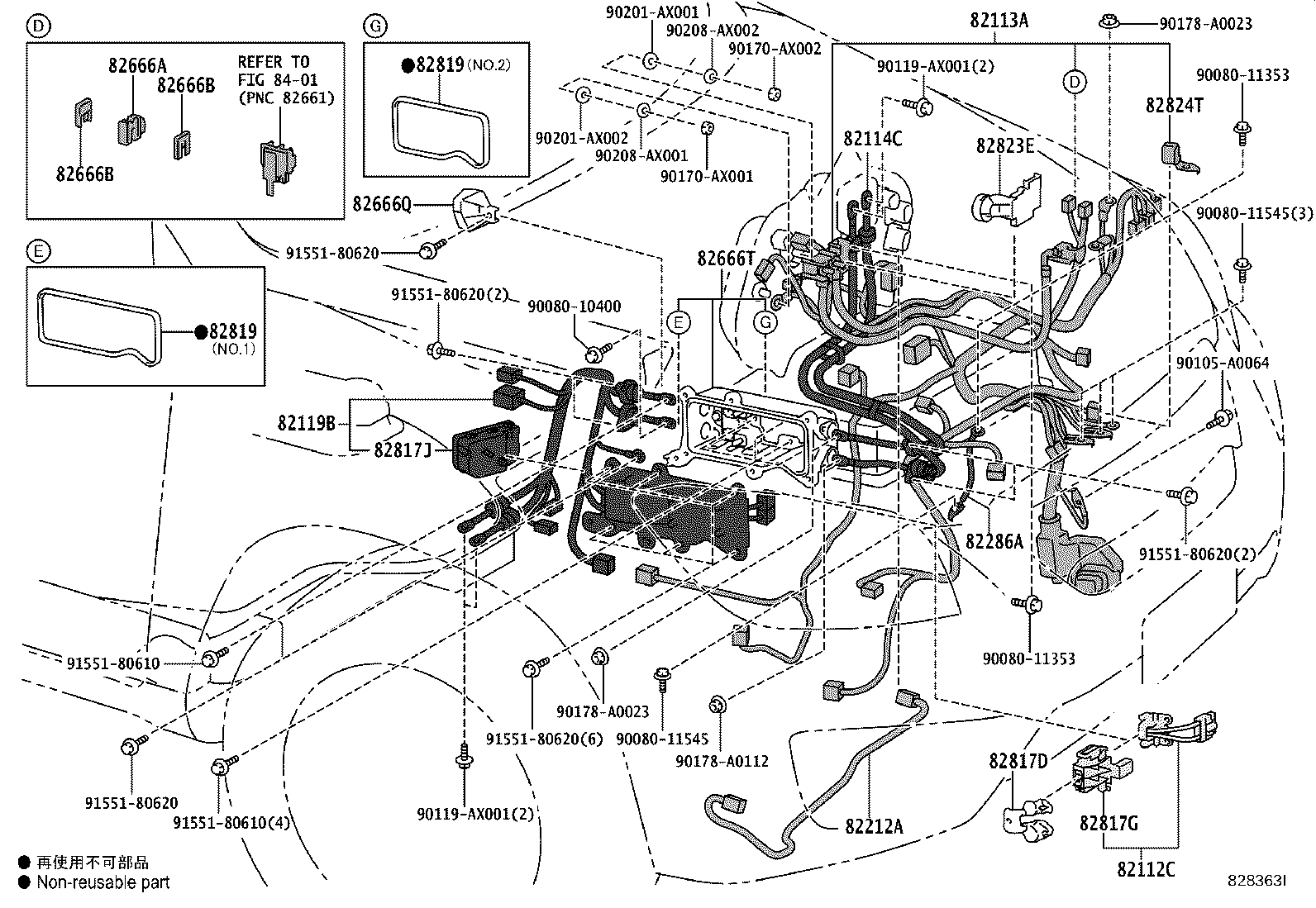

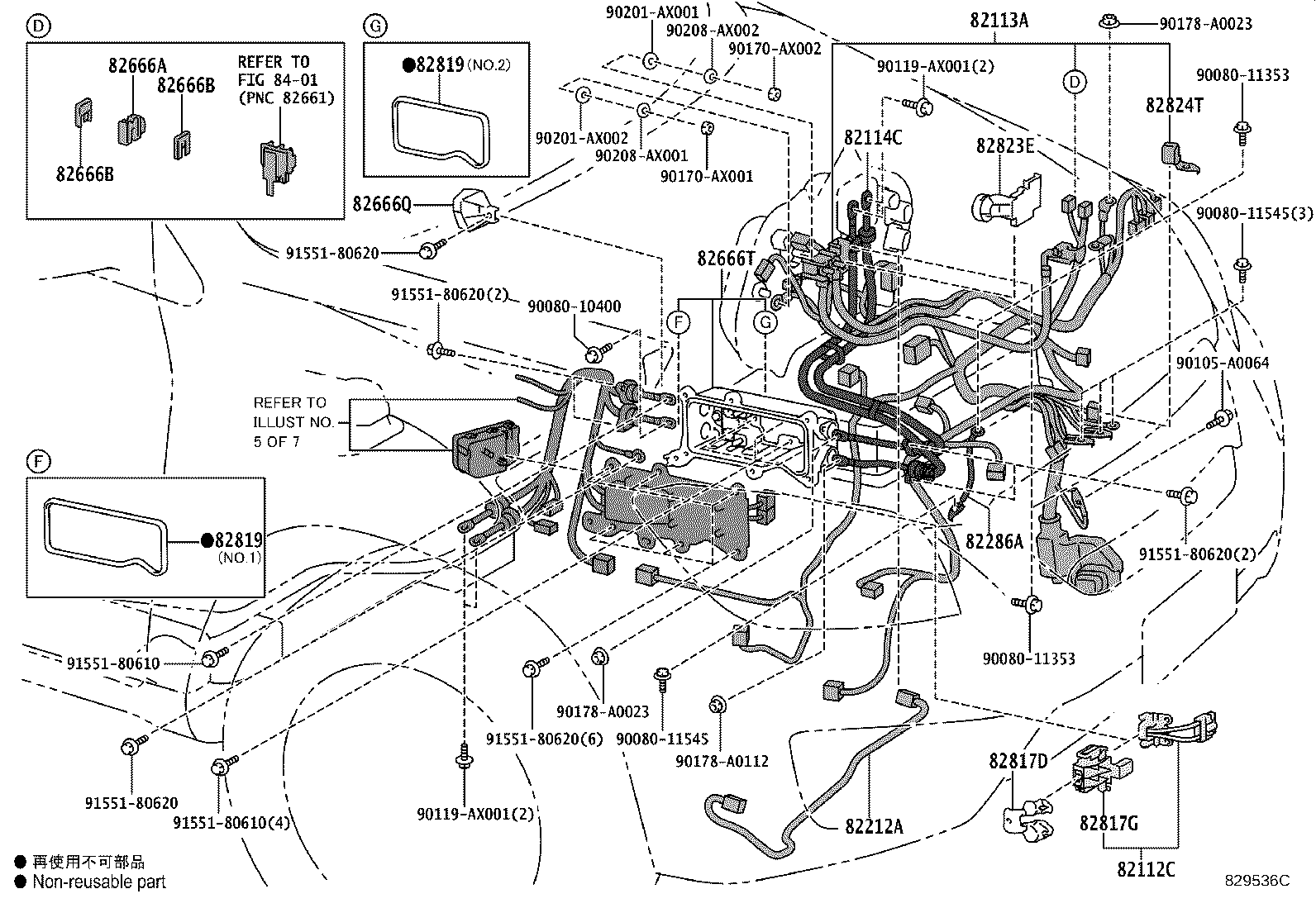

| 82111C | Wire, Front Compartment, Main |
| 82112C | Wire, Fromt Compartment, NO.2 |
| 82113A | Wire, Front Compartment, NO.3 |
| 82114C | Wire, Front Compartment, NO.4 |
| 82119B | Wire, Front Compartment, NO.5 |
| 82122B | Wire, Motor, NO.2 |

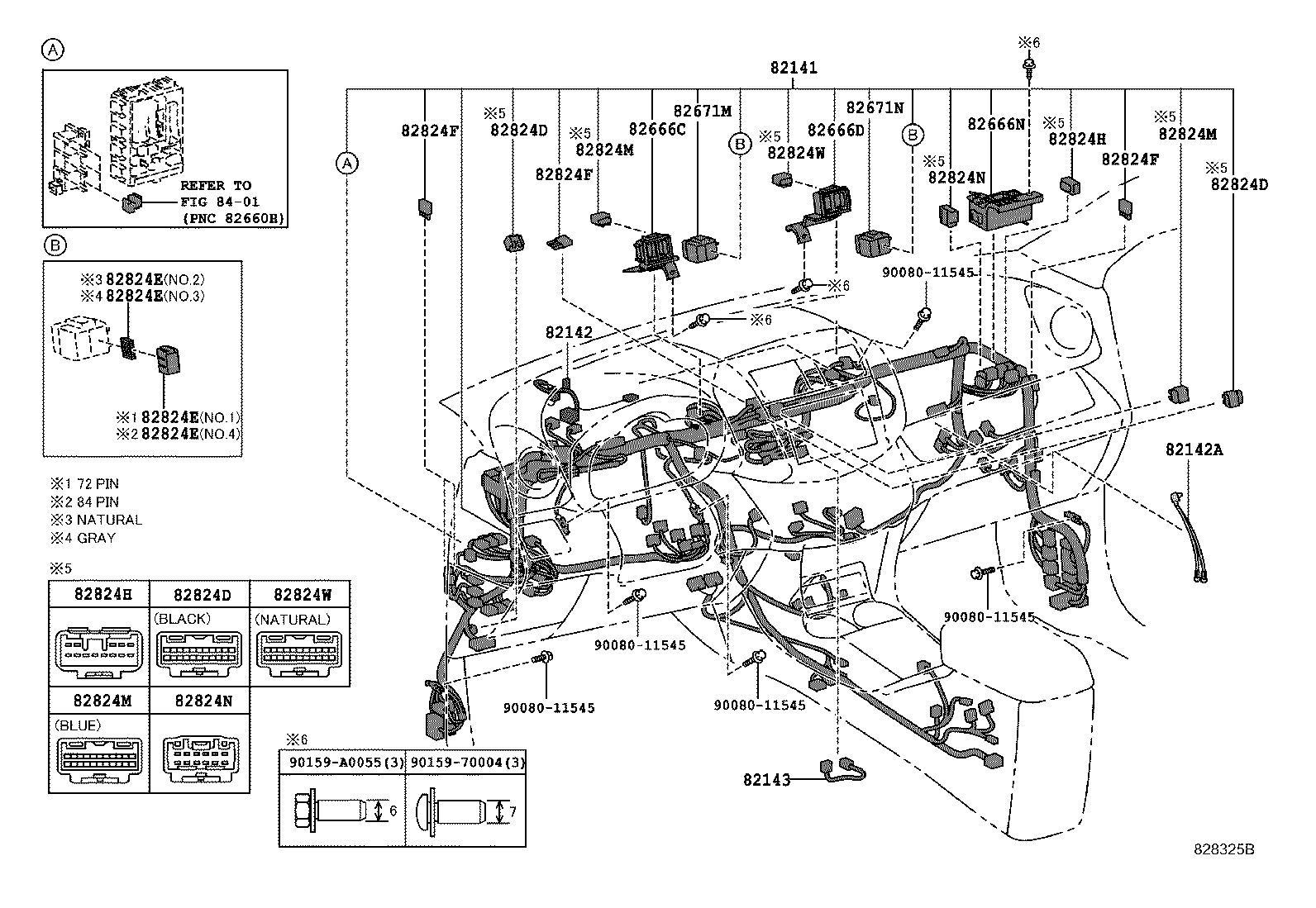

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |

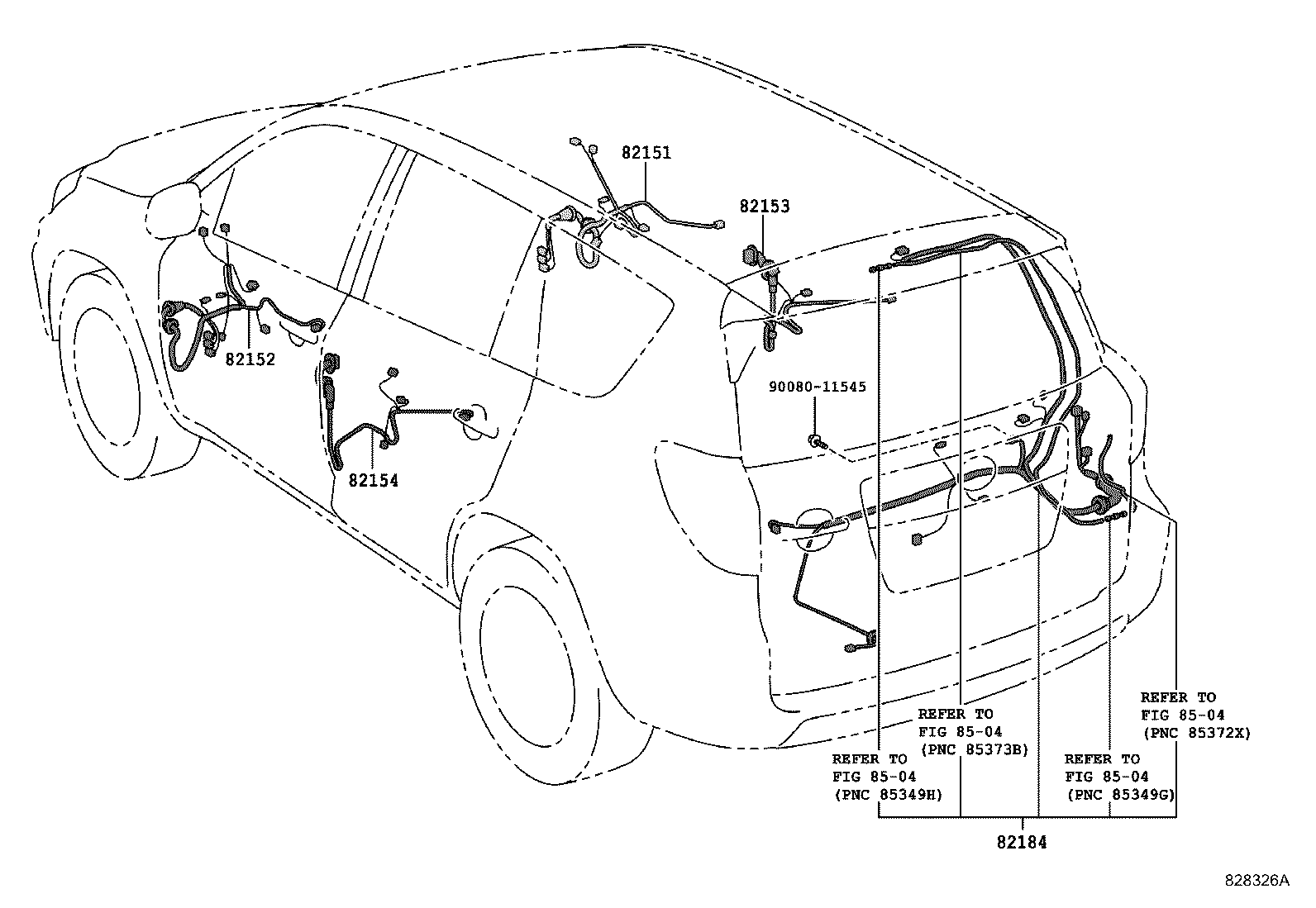

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

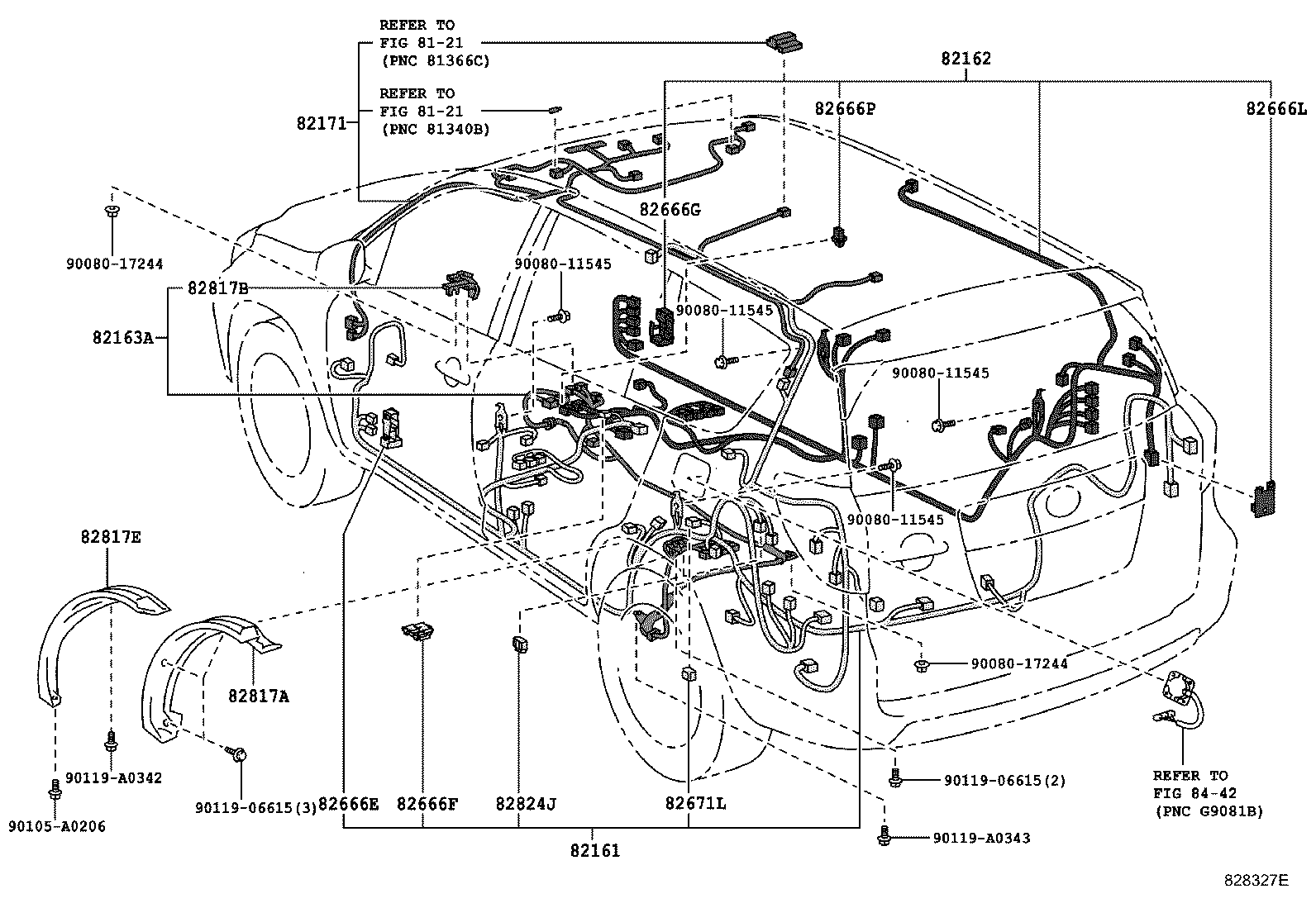

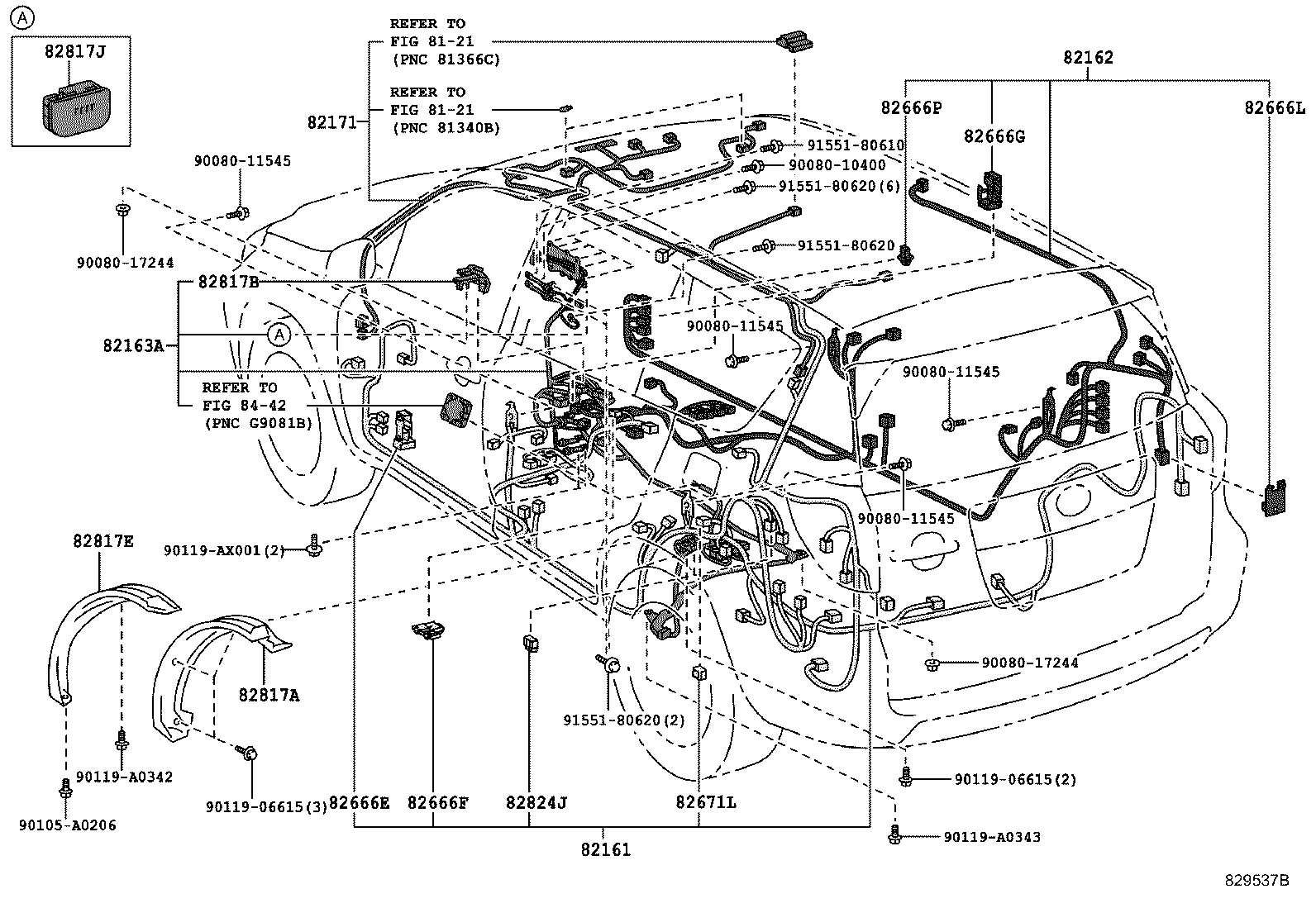

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163A | Wire, Floor, NO.4 |
| 8216B | Wire, Floor NO.8 |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82191 | Wire, Front Seat, RH |
| 82212A | Harness, Air Conditioner |
| 82284 | Wire, Earth |
| 82284A | Wire, Earth NO.2 |
| 82286A | Wire, Earth, NO.2 |
| 82287 | Wire, Earth, NO.3 |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666P | Holder, Connector NO.11 |
| 82666Q | Holder, Connector NO.12 |
| 82666T | Holder, Connector NO.14 |

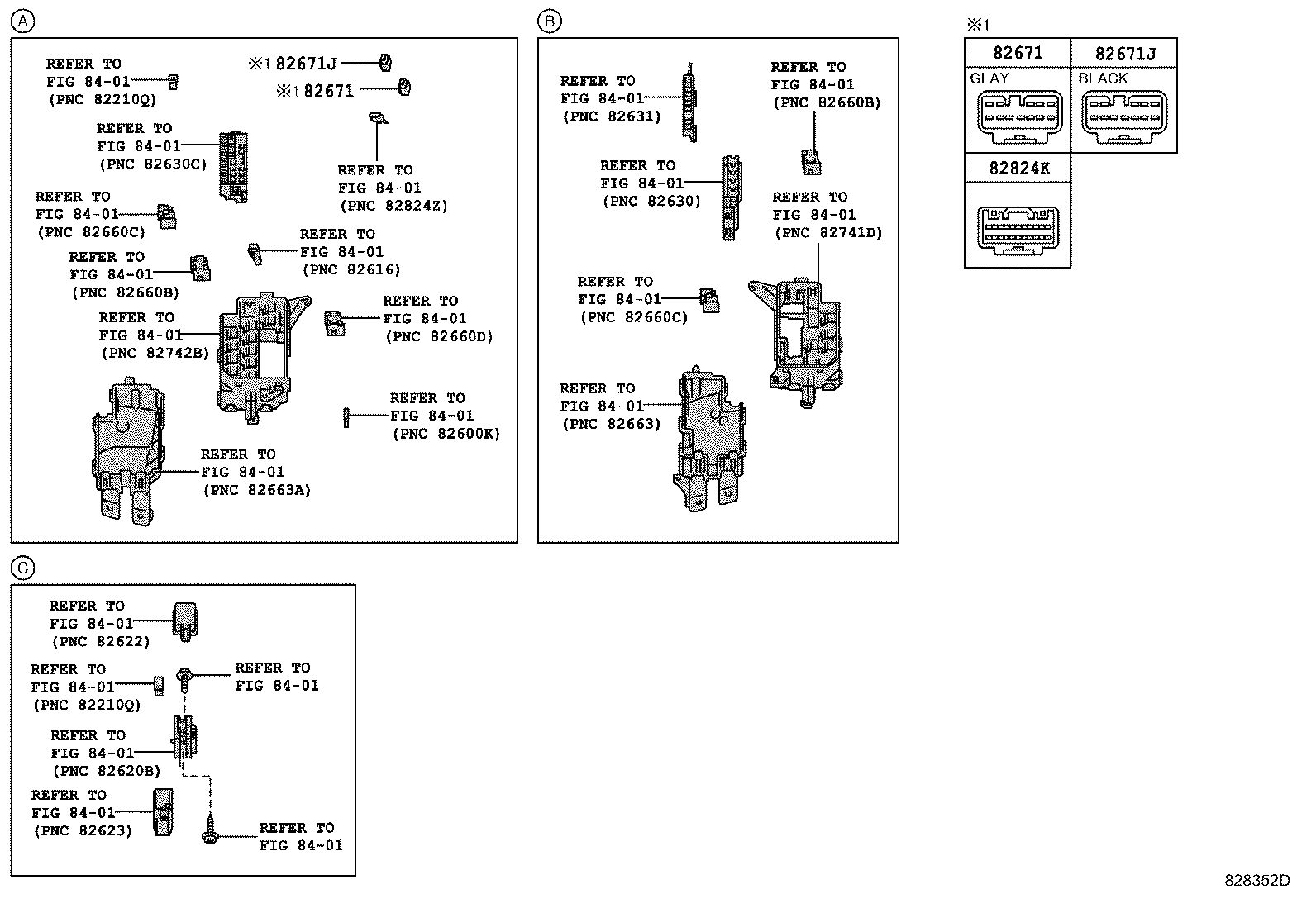

| 82671 | Block, Junction |
| 82671J | Block, Junction, NO.2 |
| 82671L | Block, Junction, NO.4 |
| 82671M | Block, Junction, NO.5 |
| 82671N | Block, Junction, NO.6 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82819 | Grommet, Wiring Harness |
| 82821E | Cover, Connector |
| 82823E | Cap, Terminal, NO.5 |

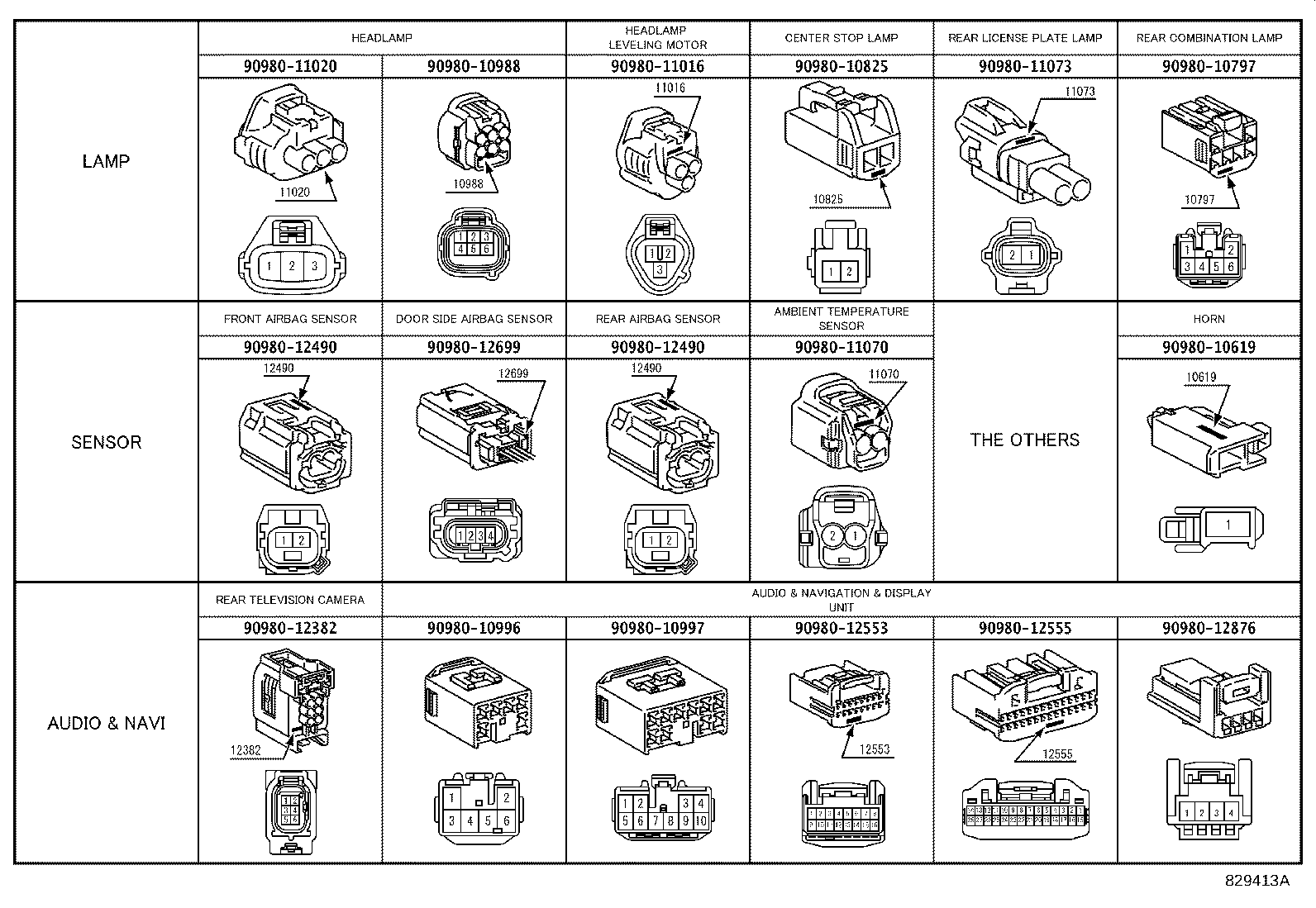

| 82824D | Connector, Wiring Harness |
| 82824E | Connector, Wiring Harness |
| 82824F | Connector, Wiring Harness |
| 82824H | Connector, Wiring Harness |
| 82824J | Connector, Wiring Harness |
| 82824K | Connector, Wiring Harness |
| 82824M | Connector, Wiring Harness |
| 82824N | Connector, Wiring Harness |
| 82824T | Connector, Wiring Harness |
| 82824W | Connector, Wiring Harness |
| 82991 | Wire, Fusible Link Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
