Toyota RAV4 EV
2012-04 → 2014-08 · chassis QEA38 · catalogue 664420 · United States
Supported model
Data version 2015-01

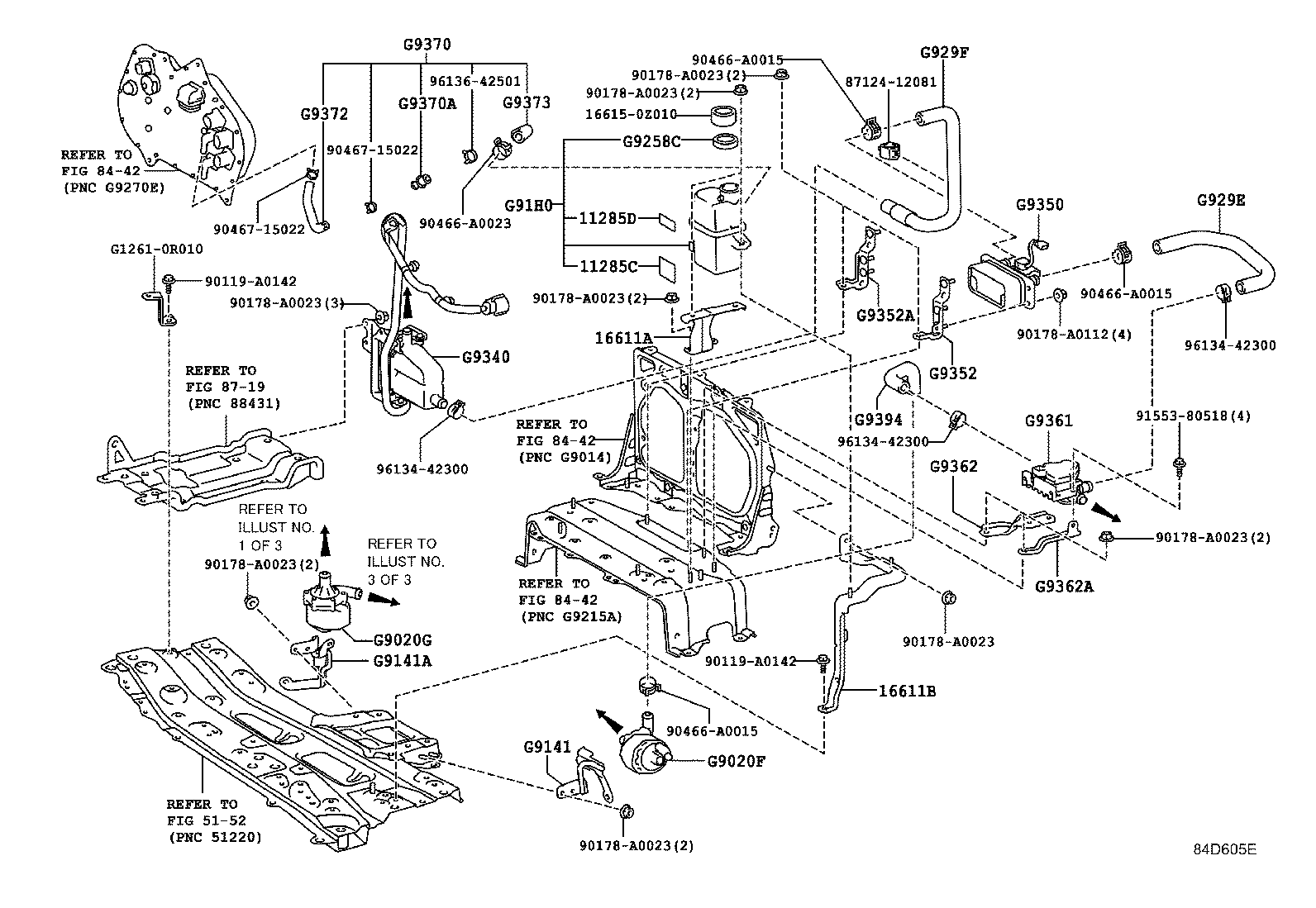

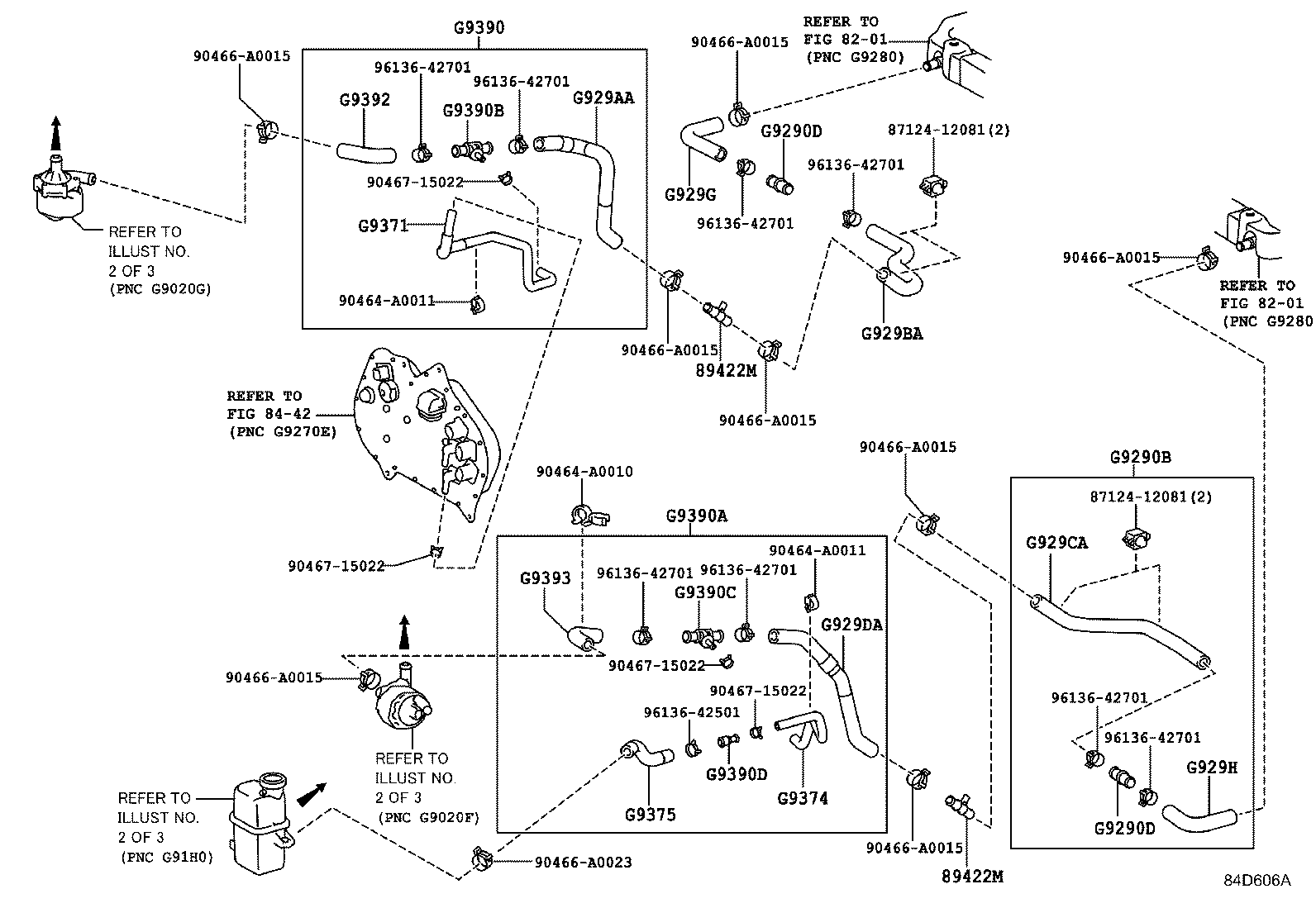

Bev Cooling
56 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285C | Label, Coolant System Information |
| 11285D | Label, Coolant System Caution |
| 16611A | Bracket, Battery Reserve Tank, NO.1 |
| 16611B | Bracket, Battery Reserve Tank, NO.2 |
| 89422M | Sensor, Water Temperature |
| G9010D | Radiator Assy |
| G9020F | Pump Assy, Water W/Motor & Insulator, LH |
| G9020G | Pump Assy, Water W/Motor & Insulator, RH |
| G9141 | Bracket, EV Water Pump, LH |
| G9141A | Bracket, EV Water Pump, RH |
| G91H0 | Tank Assy, Battery Reserve |
| G9258C | Cap, Battery Reserve Tank |
| G9290B | Hose Assy, EV Battery, NO.1 |
| G9290D | Way, 2 |
| G929AA | Hose, EV Battery, NO.1 |
| G929BA | Hose, EV Battery, NO.2 |
| G929CA | Hose, EV Battery, NO.3 |
| G929DA | Hose, EV Battery, NO.4 |
| G929E | Hose, EV Battery, NO.5 |
| G929F | Hose, EV Battery, NO.6 |
| G929G | Hose, EV Battery, NO.7 |
| G929H | Hose, EV Battery, NO.8 |
| G9340 | Heater Assy, Battery Coolant |
| G9350 | Cooler Assy, Battery Coolant |
| G9352 | Bracket, Battery Coolant Cooler, NO.1 |
| G9352A | Bracket, Battery Coolant Cooler, NO.2 |
| G9361 | Way, Switching Valve |
| G9362 | Bracket, Way Coolant Valve, RH |
| G9362A | Bracket, Way Coolant Valve, LH |
| G9370 | Hose Assy, EV Water By-pass |
| G9370A | Way, 2 |
| G9371 | Hose, EV Water By-pass, NO.1 |
| G9372 | Hose, EV Water By-pass, NO.2 |
| G9373 | Hose, EV Water By-pass, NO.3 |
| G9374 | Hose, EV Water By-pass, NO.4 |
| G9375 | Hose, EV Water By-pass, NO.5 |
| G9376 | Hose, EV Water By-pass, NO.6 |
| G9380 | Hose Assy, EV Radiator, NO.1 |
| G9380A | Hose Assy, EV Radiator, NO.2 |
| G9380B | Way, 3 |
| G9380C | Way, 3 |
| G9380D | Way, 3 |
| G9381 | Hose, EV Radiator, NO.1 |
| G9382 | Hose, EV Radiator, NO.2 |
| G9383 | Hose, EV Radiator, NO.3 |
| G9384 | Hose, EV Radiator, NO.4 |
| G9385 | Hose, EV Radiator, NO.5 |
| G9390 | Hose Assy, EV Water Pump, NO.1 |
| G9390A | Hose Assy, EV Water Pump, NO.2 |
| G9390B | Way, 3 |
| G9390C | Way, 3 |
| G9390D | Way, 2 |
| G9391 | Hose, EV Water Pump, NO.1 |
| G9392 | Hose, EV Water Pump, NO.2 |
| G9393 | Hose, EV Water Pump, NO.3 |
| G9394 | Hose, EV Water Pump, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
