Toyota RAV4 EV

2012-04 → 2014-08 · chassis QEA38 · catalogue 664420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

DC/DC Converter & Charger(BEV OR FCEV)

20 part groups · 5 illustrations

Illustrations

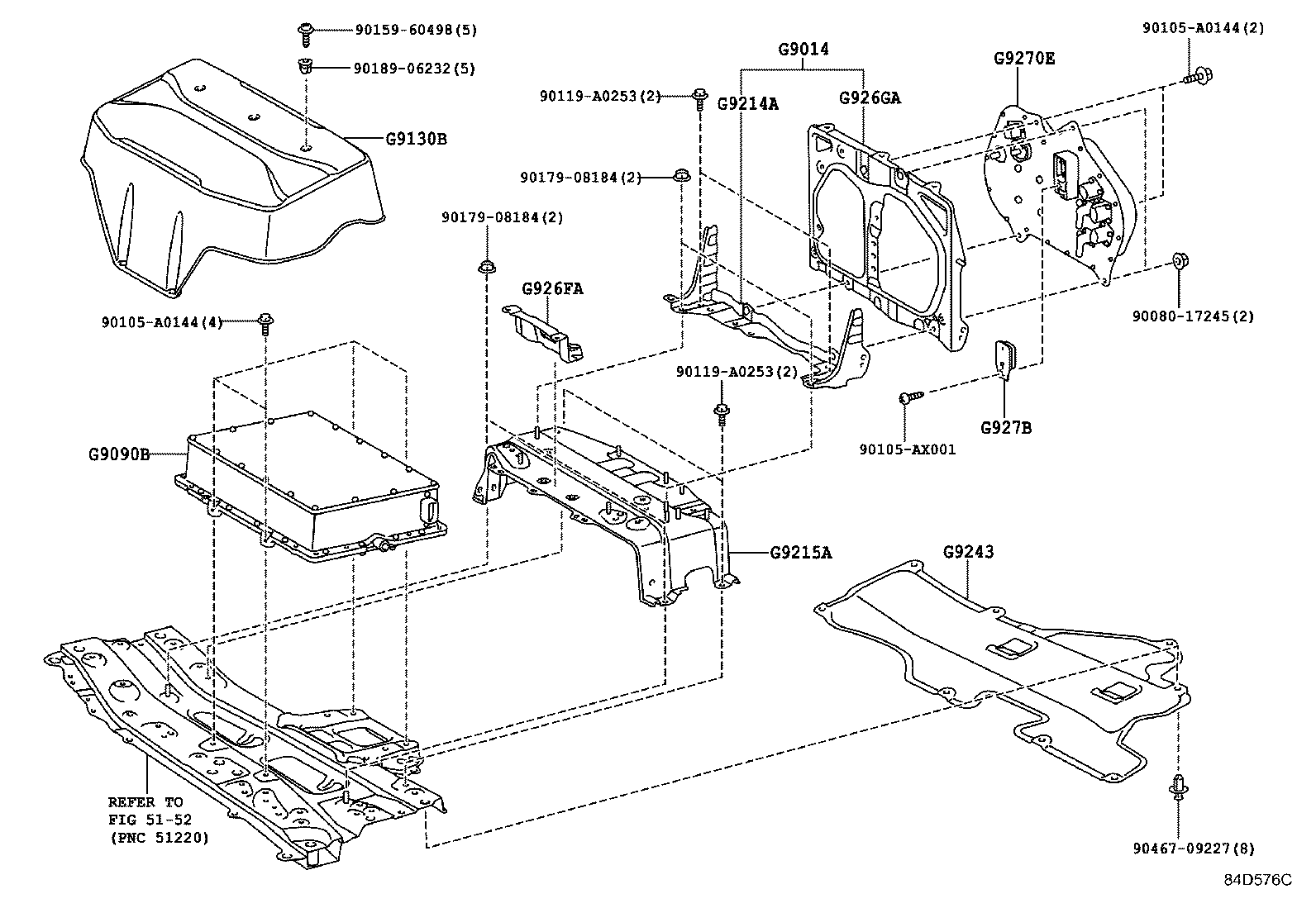

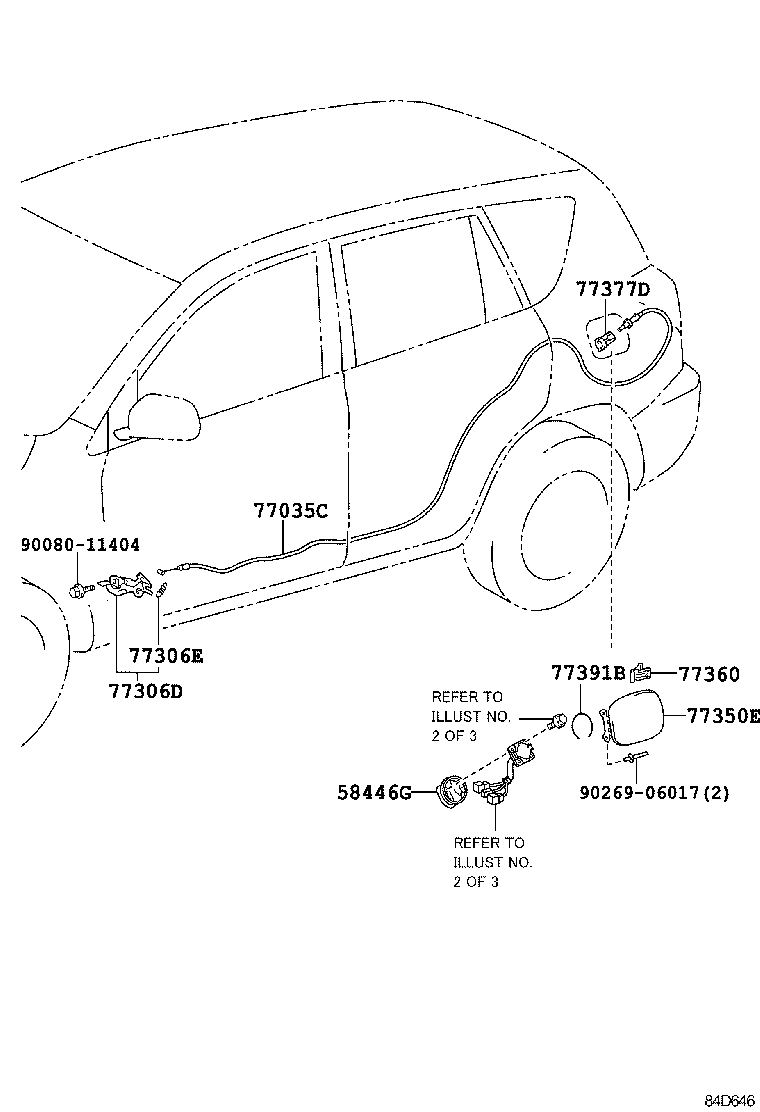

Figure 84E121 84E121 2012-04 → 2013-02 Figure 84D646 84D646 2013-02 → — Figure 84E122A 84E122A 2012-04 → 2013-02 Figure 84D575B 84D575B 2013-02 → — Figure 84D576C 84D576C 2012-04 → —

Part groups

PNCDescription
58446G Protector, Battery Service Opening Lid
77035C Cable Sub-assy, Charge Lid Lock Control
77306D Lever Sub-assy, Charge Lid Lock Open
77306E Spring, Charge Lid Lock Open Lever
77350E Lid Assy, Charging Port Opening
77360 Spring Assy, Charging Port Opening Lid
77377D Retainer, Charging Port Opening Lid Lock
77391B Ring, Charge Inlet Box
G9014 Bracket Sub-assy, DC/DC Converter, NO.1
G9060A Cable Assy, Electric Vehicle Charger
G9081B Inlet Sub-assy, EV Charger W/Cable
G9090B Charger Assy, Electric Vehicle
G9130B Cover Assy, DC/DC Converter, RH
G9214A Bracket, DC/DC Converter, NO.1
G9215A Bracket, DC/DC Converter, NO.2
G9243 Insulator, DC/DC Converter
G926FA Bracket, EV Charger Mount, NO.1
G926GA Bracket, EV Charger Mount, NO.2
G9270E DC/DC Converter Assy
G927B Protector, EV Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
