Toyota RAV4 EV

2012-04 → 2014-08 · chassis QEA38 · catalogue 664420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 3 illustrations

Illustrations

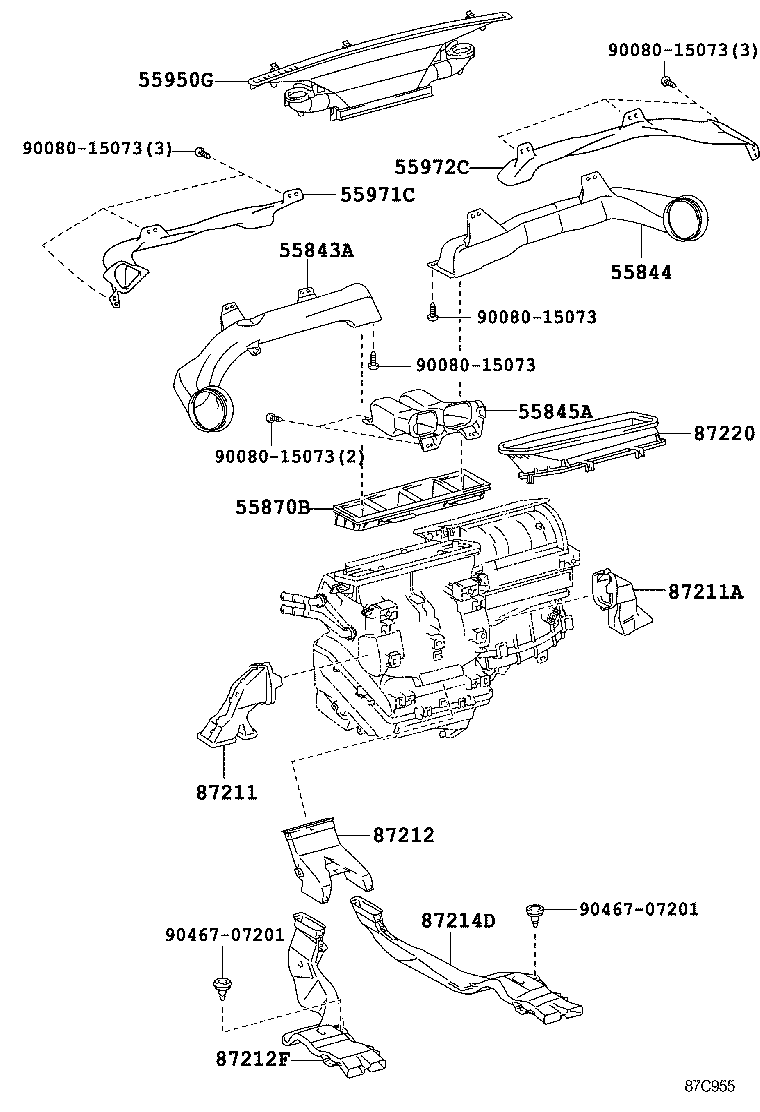

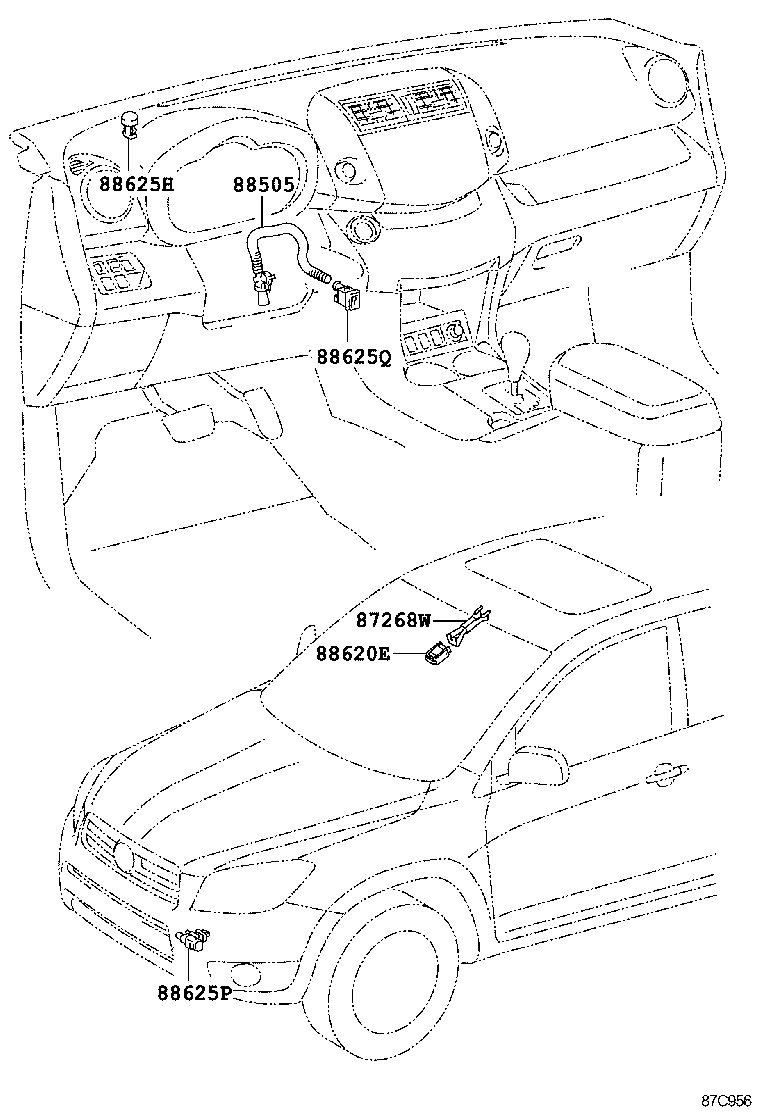

Figure 87C954B 87C954B 2012-04 → — Figure 87C955 87C955 2012-04 → — Figure 87C956 87C956 2012-04 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55870B Duct Assy, Heater TO Register
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87214D Duct, Air, Rear NO.3
87220 Duct Assy, Air
87268W Protector
88505 Duct Sub-assy,Air Conditioner
88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
