Toyota RAV4 (NAP)
2008-11 → 2013-01 · chassis ASA3#,GSA3# · catalogue 665410 · United States
Supported model
Data version 2011-12

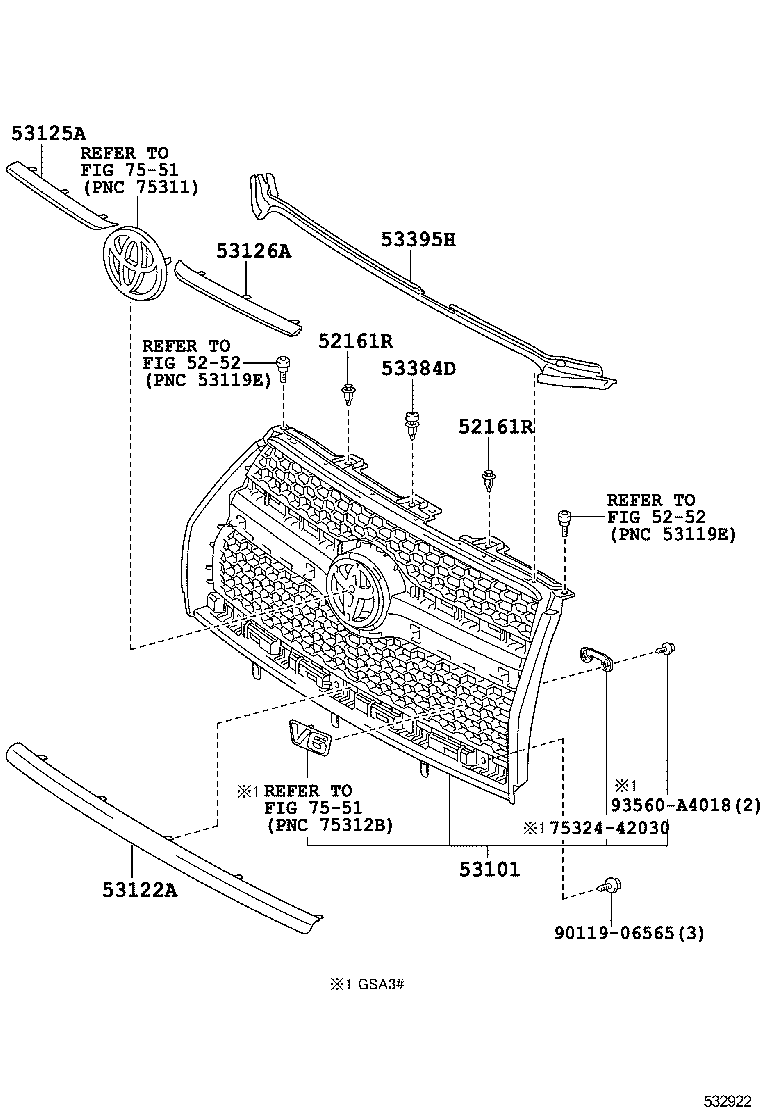

Radiator Grille
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161R | Piece, Front Bumper |
| 53101 | Grille Sub-assy, Radiator |
| 53122A | Moulding, Radiator Grille, Lower |
| 53125A | Moulding, Radiator Grille, Center RH |
| 53126A | Moulding, Radiator Grille, Center LH |
| 53384D | Cushion, Hood, Center |
| 53395H | Seal, Hood TO Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
