Toyota RAV4 (NAP)

2008-11 → 2013-01 · chassis ASA3#,GSA3# · catalogue 665410 · United States

Supported model Data version 2011-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

27 part groups · 3 illustrations

Illustrations

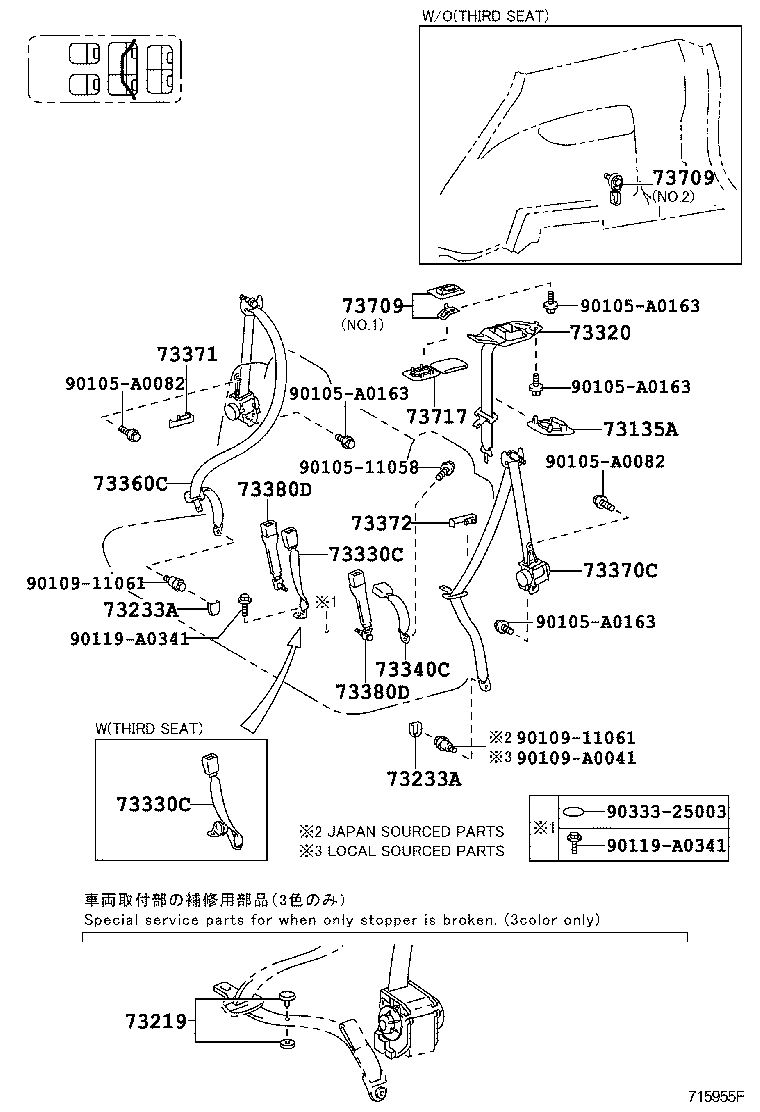

Figure 715954B 715954B 2008-11 → — Figure 715955F 715955F 2008-11 → — Figure 715956A 715956A 2008-11 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73135A Cover, Shoulder Belt Anchor, RH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233A Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
73240 Belt Assy, Front Seat Inner, LH
73320 Belt Assy, Rear Seat 3 Point Type, LH
73330C Belt Assy, Rear Seat Lap Type, Center RH
73340C Belt Assy, Rear Seat Lap Type, Center LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73371C Hanger, Rear NO.2 Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73372C Hanger, Rear NO.2 Seat Shoulder Belt, LH
73380D Belt Assy, Rear Seat, Inner
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73709 Bracket Sub-assy, Tether Anchor
73717 Cover, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
