Toyota RAV4 (NAP)
2008-11 → 2013-01 · chassis ASA3#,GSA3# · catalogue 665410 · United States
Supported model
Data version 2011-12

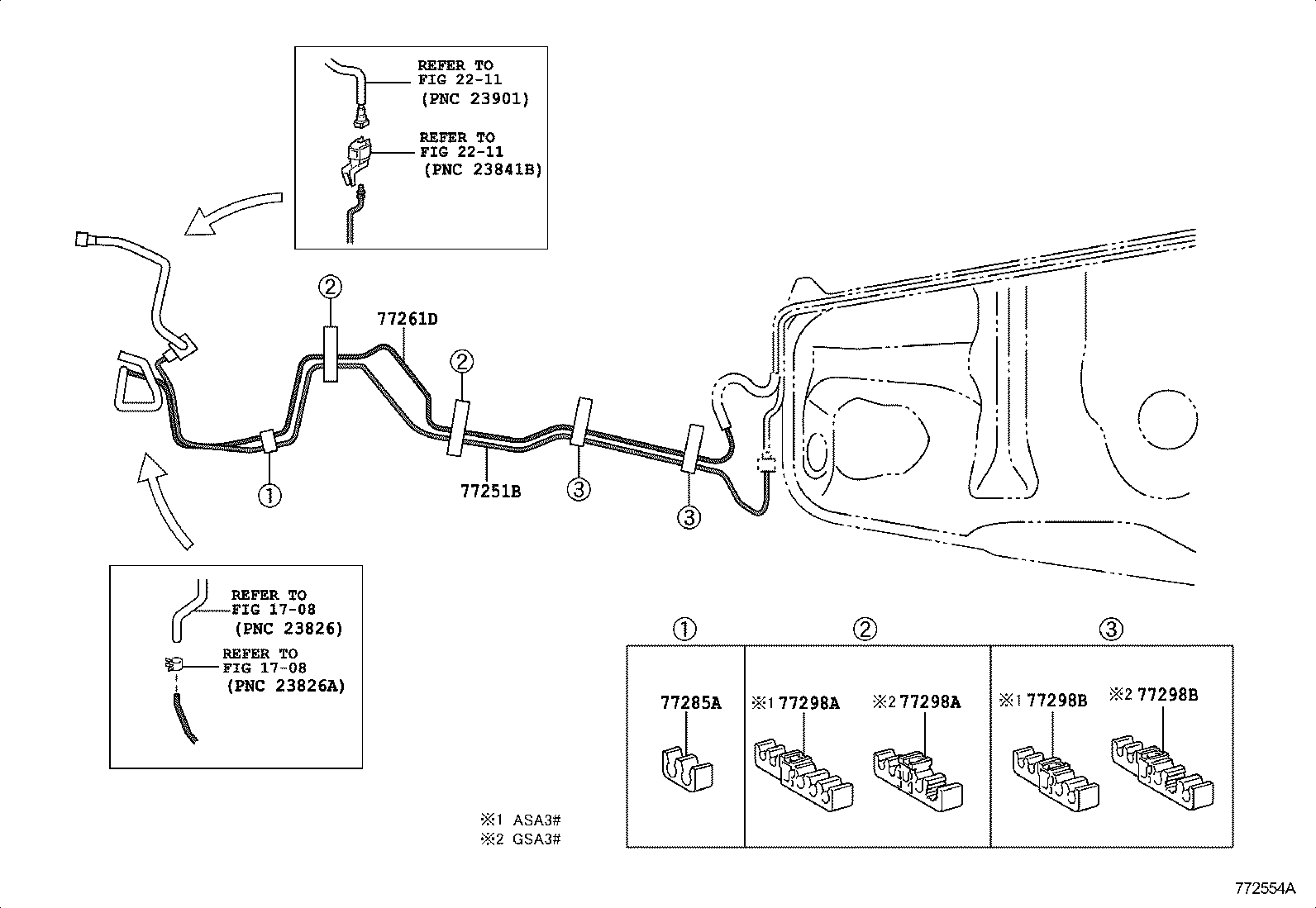

Fuel Tank & Tube
58 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23220A | Pump Assy, Fuel W/Filter |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77019J | Tube Sub-assy, Fuel Tank TO Canister |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77101 | Plug(FOR FUEL SUB-TANK) |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202 | Tube Sub-assy, Breather |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213E | Hose, Fuel Tank TO Filler Pipe |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77240 | Tube Assy, Fuel Suction |
| 77241W | Clip, Tube Joint |
| 77248A | Holder, Fuel Tank Filler Pipe Cover |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77261D | Tube, Fuel Tank TO Canister |
| 77276 | Protector, Fuel Hose |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285A | Support, Fuel Return And Main Tube |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77289 | Holder, Fuel Tank Pipe Setting |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77295D | Grommet, Fuel Tube |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77306A | Spring, Fuel Lid Open Lever |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391A | Ring, Fuel Inlet Box |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603B | Band Sub-assy, Fuel Tank, NO.2 RH |
| 77612B | Band, Fuel Tank, NO.2 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77681A | Seat, Fuel Tank Band |
| 77681B | Seat, Fuel Tank Band |
| 77682A | Seat, Fuel Tank Band, NO.2 |
| 77706 | Filter Sub-assy, Charcoal Canister |
| 77740 | Canister Assy, Charcoal |
| 77740Q | Leak Detection Pump Sub-assy, Charcoal Canister |
| 77753 | Bracket, Charcoal Canister, NO.3 |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
