Toyota RAV4 (NAP)

2008-11 → 2013-01 · chassis ASA3#,GSA3# · catalogue 665410 · United States

Supported model Data version 2011-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

9 part groups · 2 illustrations

Illustrations

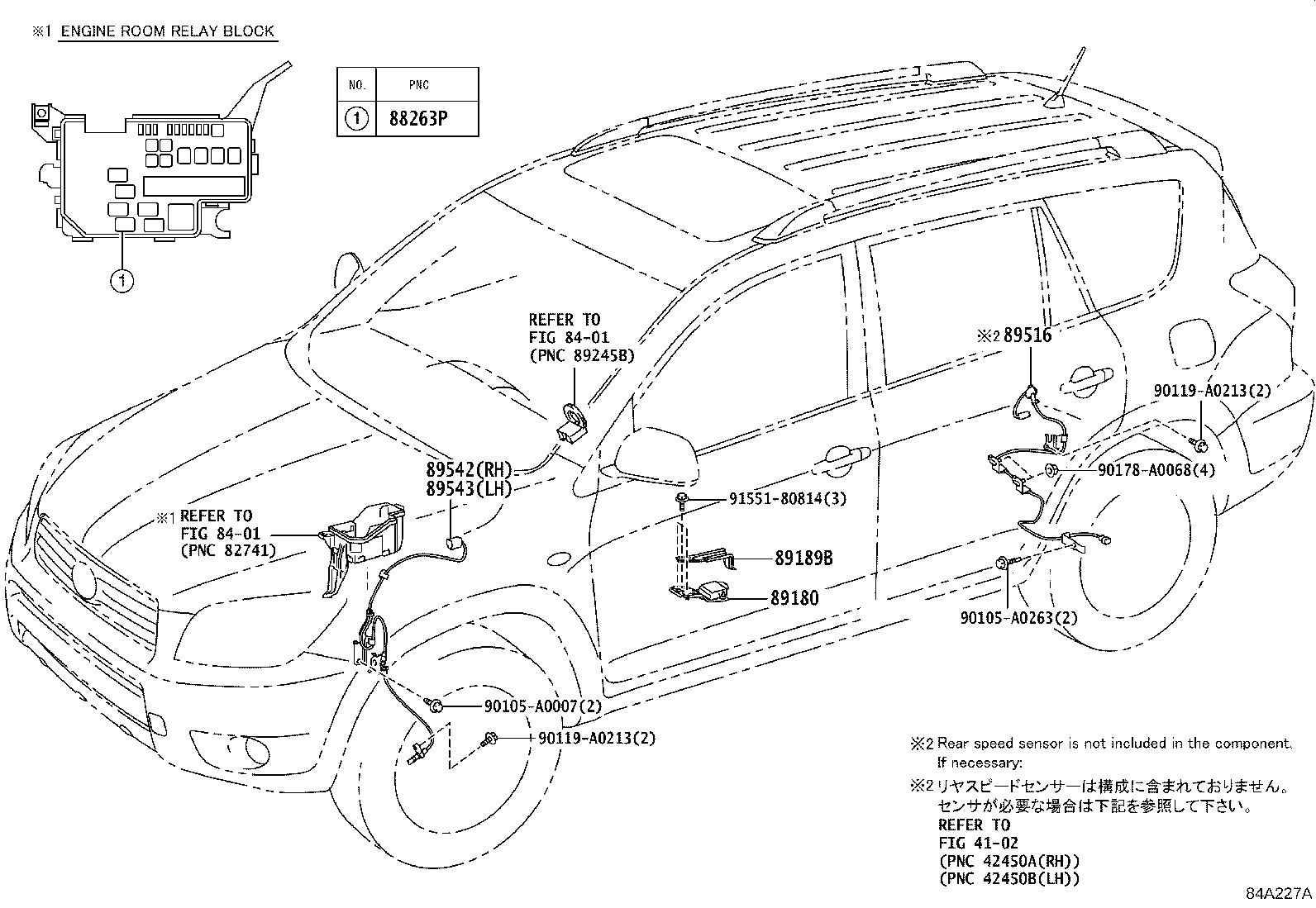

Figure 84A226 84A226 2008-11 → — Figure 84A227A 84A227A 2008-11 → —

Part groups

PNCDescription
88263P Relay, Stop Lamp Control
89180 Sensor Assy, Yawrate
89189B Bracket, Yawrate Sensor
89516 Wire, Skid Control Sensor
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
