Toyota RAV4 (NAP)
2008-11 → 2013-01 · chassis ASA3#,GSA3# · catalogue 665410 · United States
Supported model
Data version 2011-12
Heating & Air Conditioning - Control & Air Duct
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55519 | Plate, Heater Control Name |

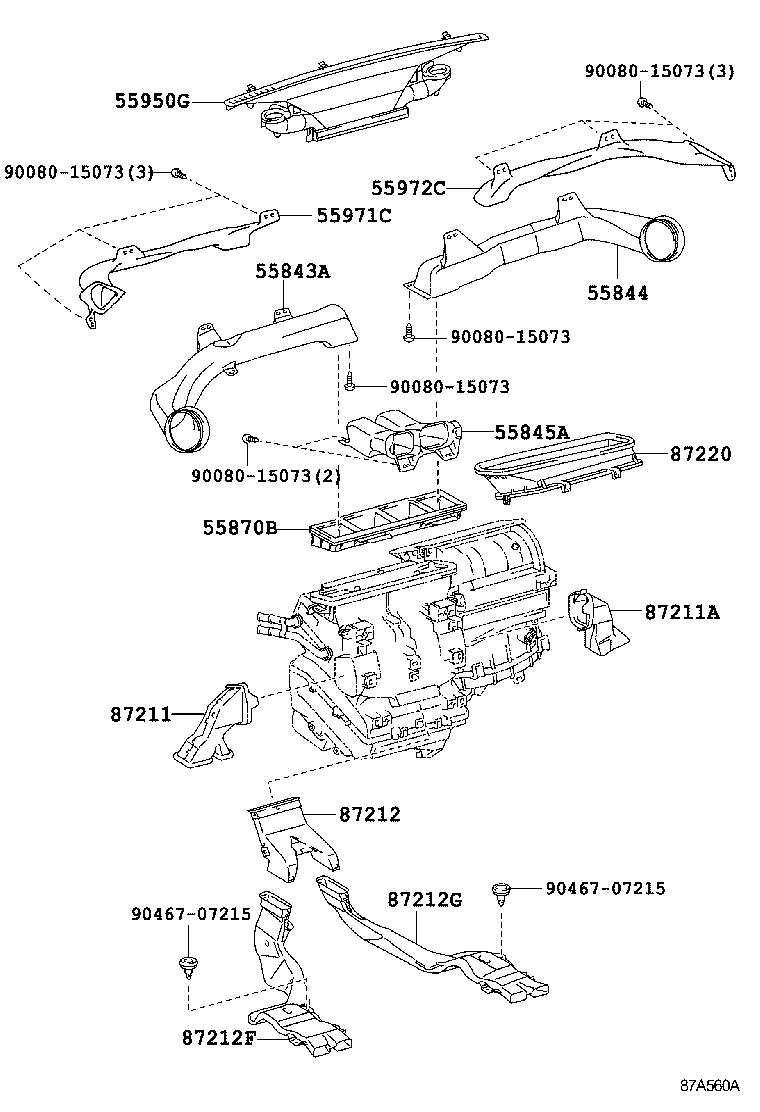

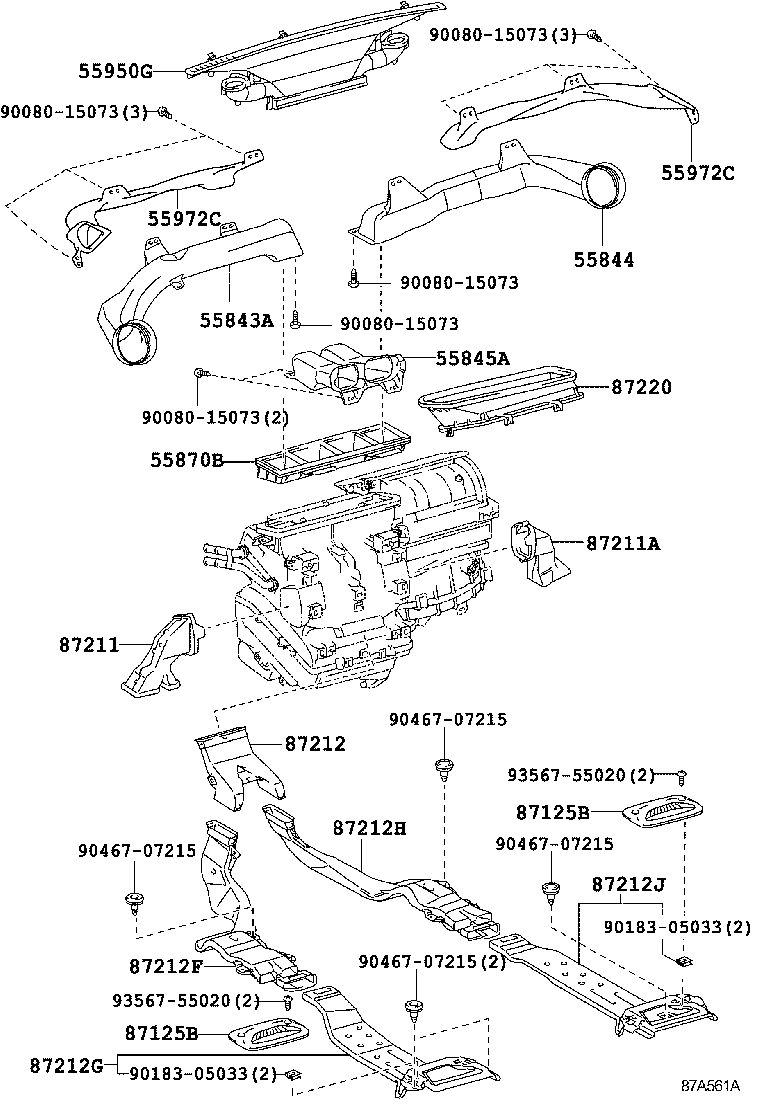

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55870B | Duct Assy, Heater TO Register |

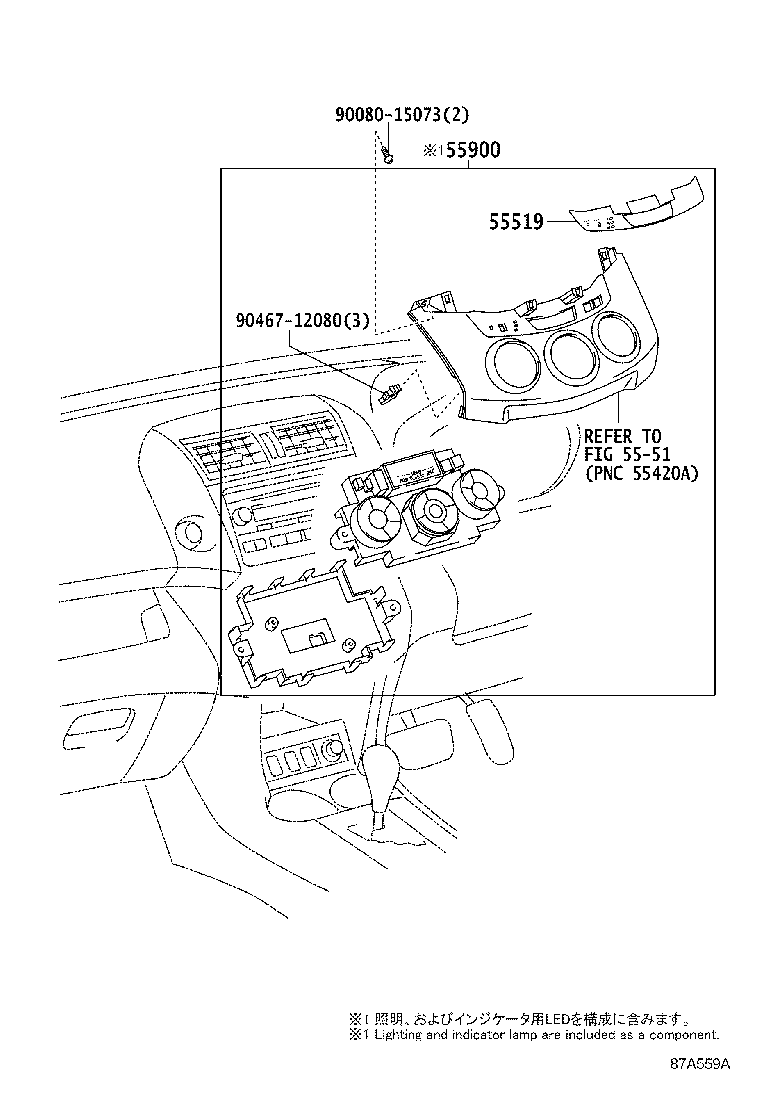

| 55900 | Control Assy, Air Conditioner |
| 55900B | Bulb, Air Conditioner Control |
| 55901 | Base Sub-assy, Heater Control |
| 55902B | Control Sub-assy, Heater |
| 55903A | Control Sub-assy, Heater, NO.3 |
| 55906D | Cable Sub-assy, Heater Control, NO.2 |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910B | Bulb, Heater Control |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 87125B | Grille, Heater Air Outlet |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87212J | Duct, Air, Rear NO.5 |
| 87220 | Duct Assy, Air |

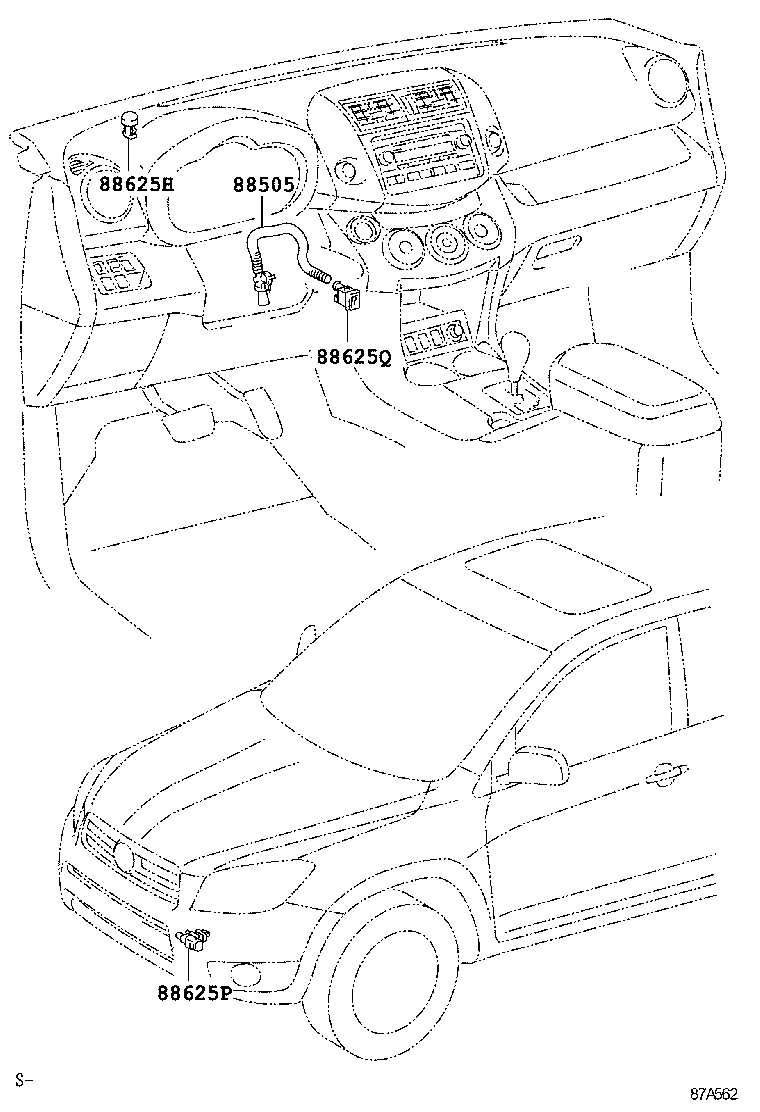

| 88505 | Duct Sub-assy,Air Conditioner |
| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
