Toyota RAV4 (NAP)
2013-01 → 2018-11 · chassis ASA4# · catalogue 665420 · United States
Supported model
Data version 2019-04

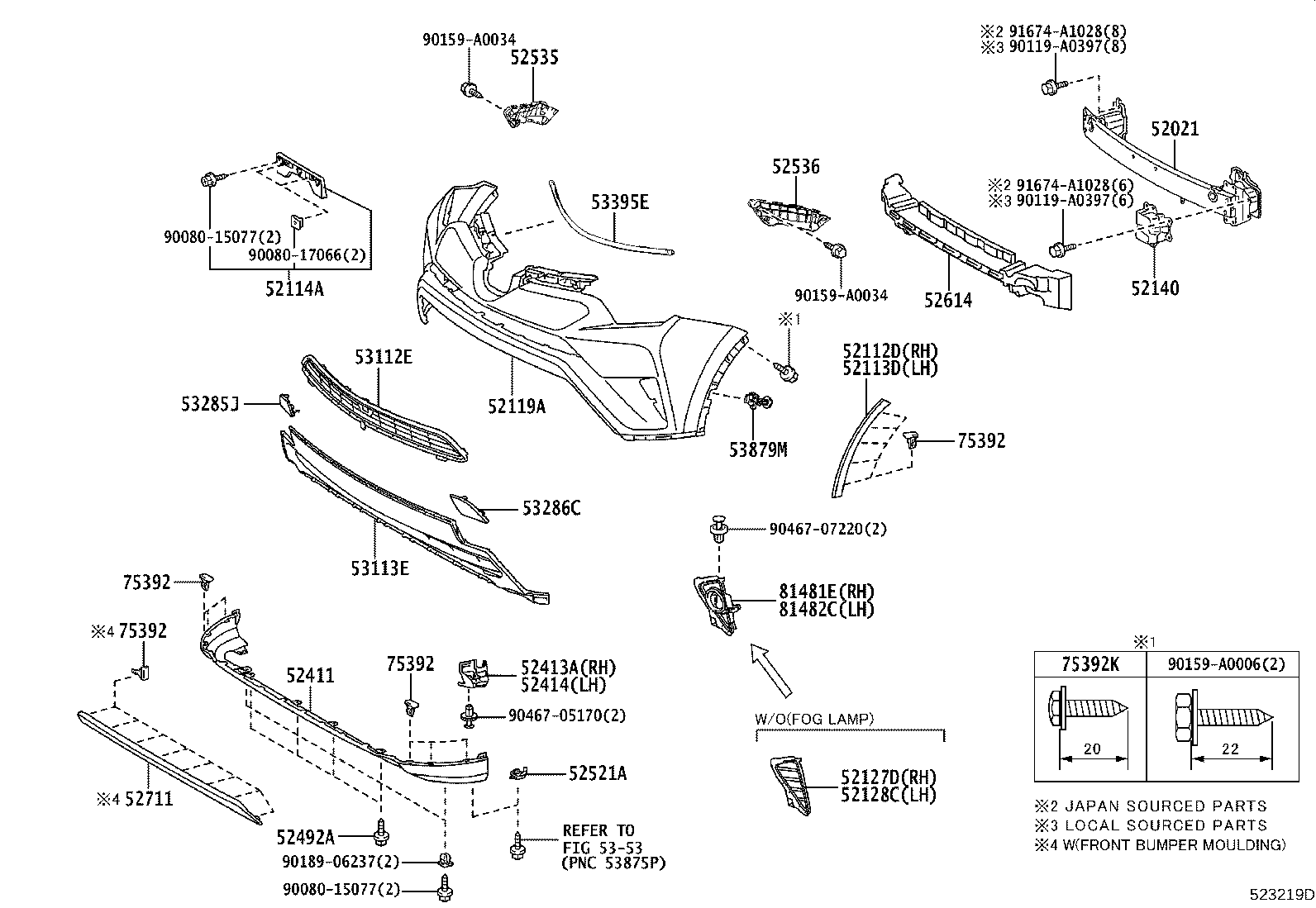

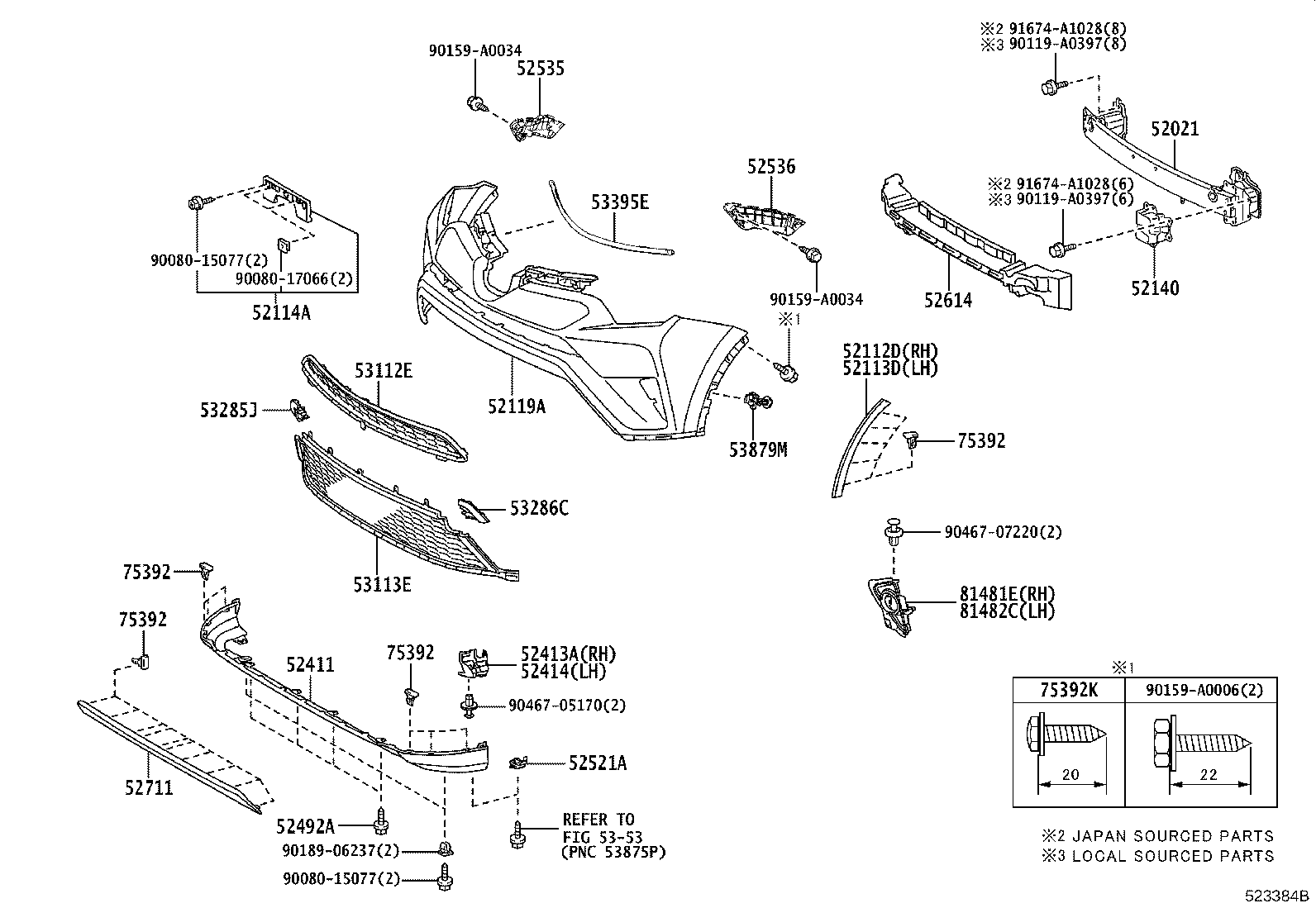

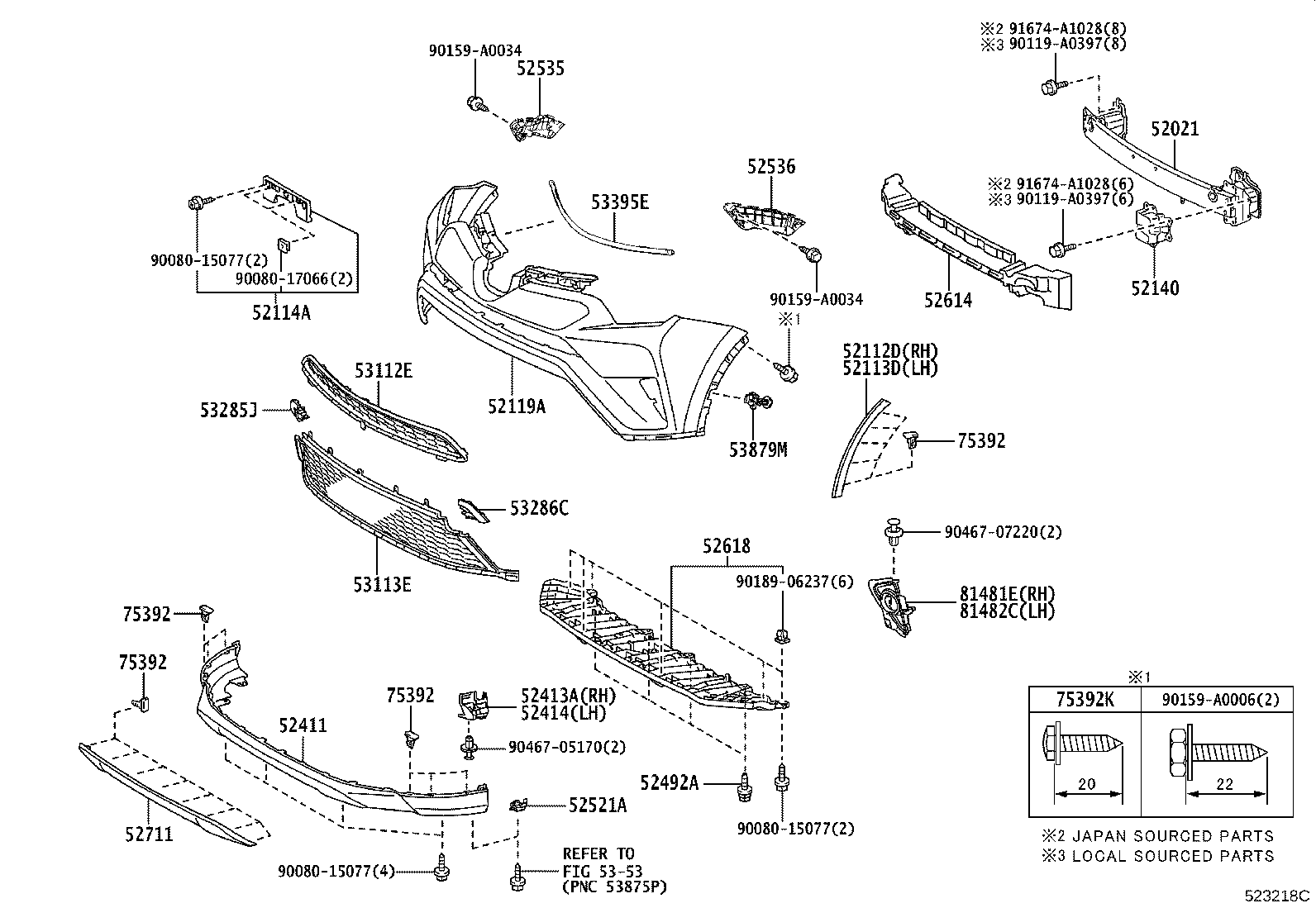

Front Bumper & Bumper Stay
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52127C | Cover, Front Bumper Hole |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52128C | Cover, Front Bumper Hole, LH |
| 52140 | Bracket Assy, Front Bumper Side Mounting, LH |
| 52161C | Piece, Front Bumper |
| 52161T | Piece, Front Bumper |
| 52411 | Guard, Front Bumper |
| 52413A | Pad, Front Bumper Guard, RH |
| 52414 | Pad, Front Bumper Guard, LH |
| 52492A | Bolt, Bumper Pad, NO.3 |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52535 | Retainer, Front Bumper Side, RH |
| 52535D | Retainer, Front Bumper Side |
| 52536 | Retainer, Front Bumper Side, LH |
| 52614 | Absorber, Front Bumper Energy, NO.2 |
| 52618 | Absorber, Front Bumper, Lower |
| 52711 | Moulding, Front Bumper |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53113E | Grille, Radiator, Lower NO.2 |
| 53119E | Protector, Radiator Grille |
| 53285J | Cover, Front Bumper Arm Hole, RH |
| 53286C | Cover, Front Bumper Arm Hole, LH |
| 53384C | Cushion, Hood, Center |
| 53395E | Seal, Hood TO Front End Panel |
| 53879M | Retainer, Front Fender Liner |
| 75392 | Retainer, Outside Moulding |
| 75392K | Retainer, Outside Moulding, NO.2 |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
